CaddxFPV Walksnail Avatar HD Mini 1S／Mini 1S Lite 圖傳模組｜數位 FPV 圖傳套裝

$994.00

結帳時計算運費。

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

CaddxFPV Walksnail Avatar HD Mini 1S／Mini 1S Lite 圖傳模組｜數位 FPV 圖傳套裝

CaddxFPV／Walksnail 官方數位 FPV 圖傳套裝，已依台灣使用者習慣整理繁體中文名稱與規格。下單前請確認型號、版本、接頭、尺寸及相容設備；套裝內容以所選規格為準。

July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)

USB Cable needs to be purchased separately

CaddxFPV Walksnail Avatar HD Mini 1S／Mini 1S Lite 圖傳模組｜數位 FPV 圖傳套裝商品規格與外觀圖

Specification

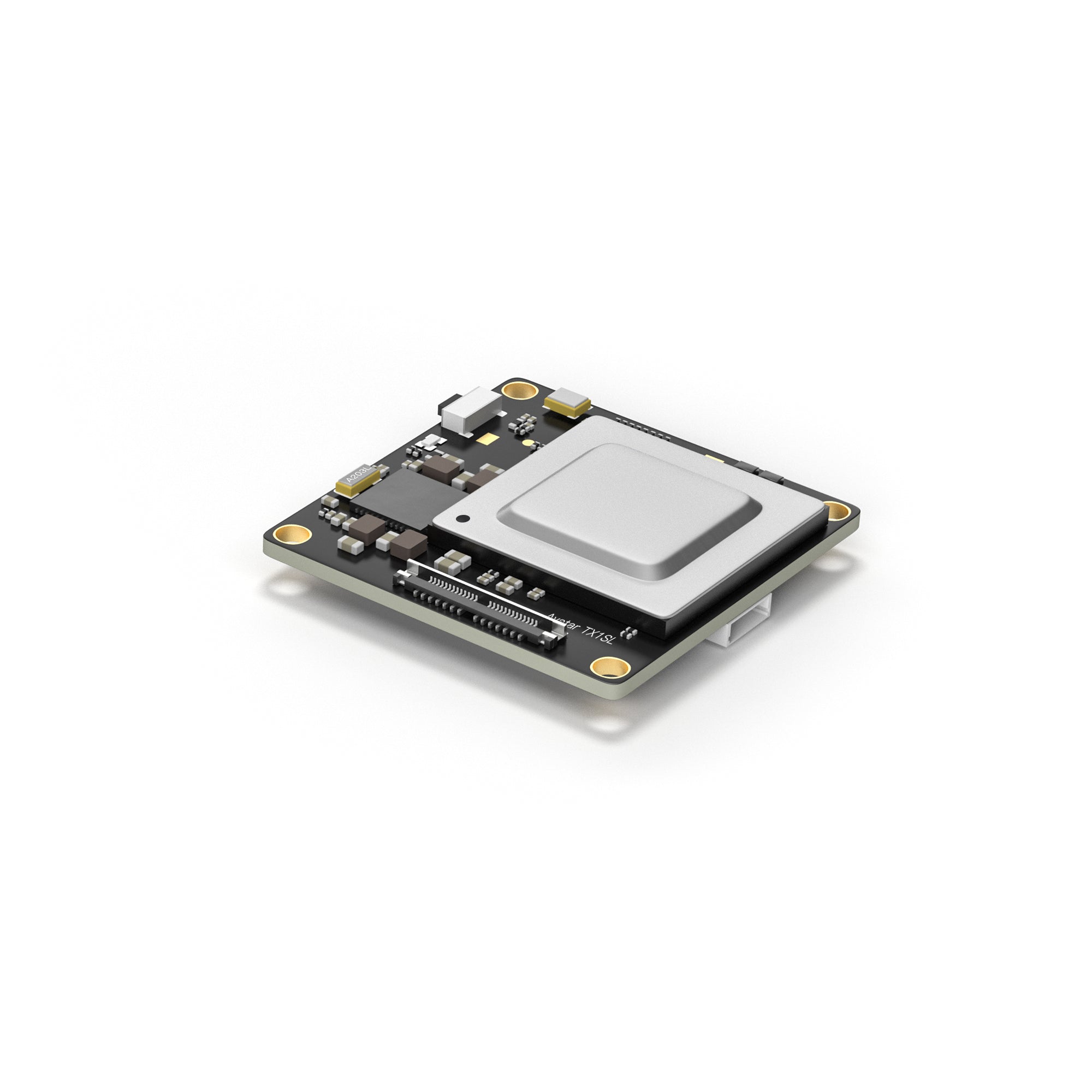

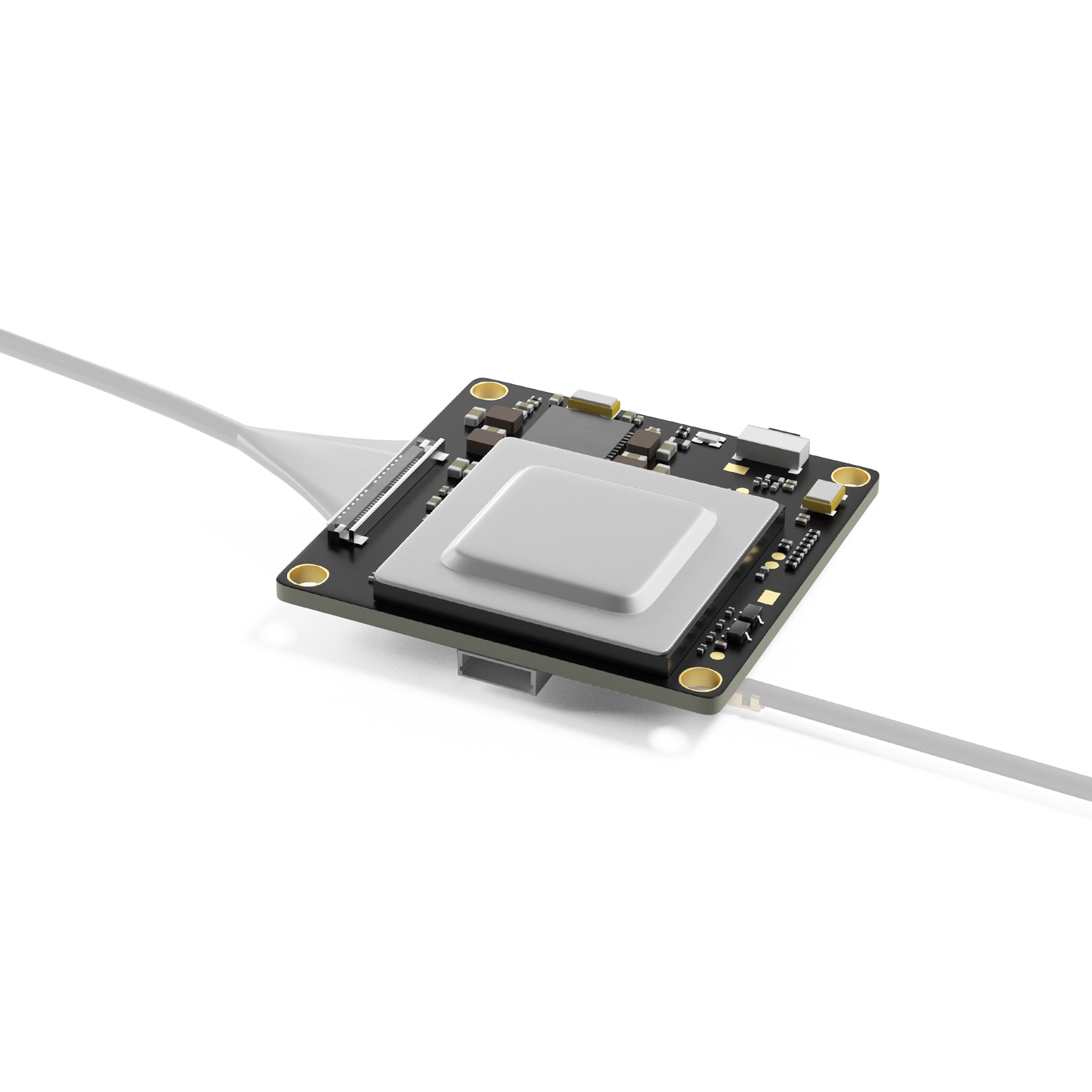

VTX
Model	VTX For Walksnail Avatar HD Mini 1s And Mini 1s Lite
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
I/O Interface	JST1.04(Power in)JST0.84(USB)

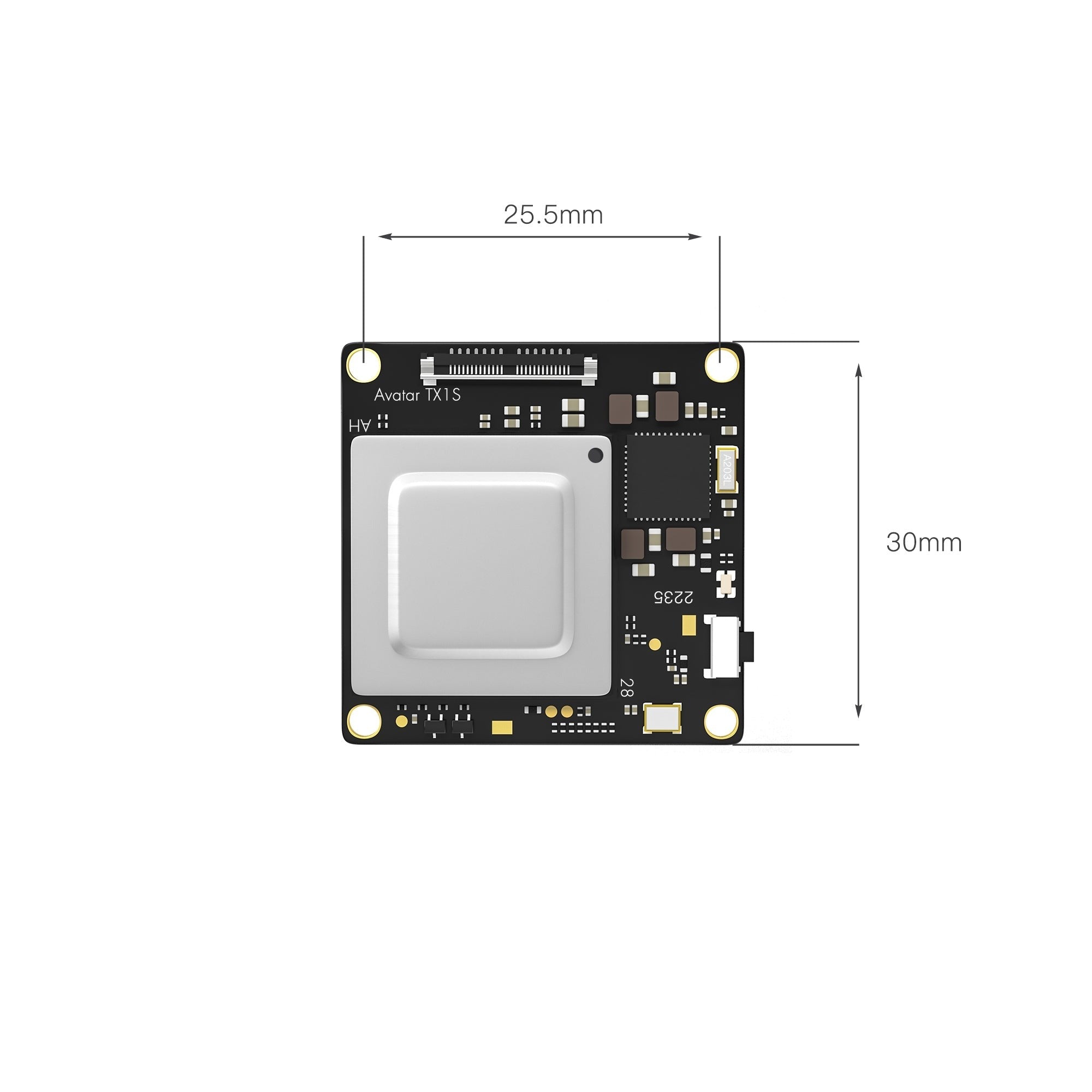

Mounting Holes	25.525.5mm(M2 hole);2020mm(M3 hole)
Dimensions	31.531.59.4mm
Storage	8G
Recording	1080p/720p
Weight	6.8g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	3.1V-13V
Supported FC System	Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD	Canvas mode
Latency	Average latency 22ms
Antenna	1(IPEX)
