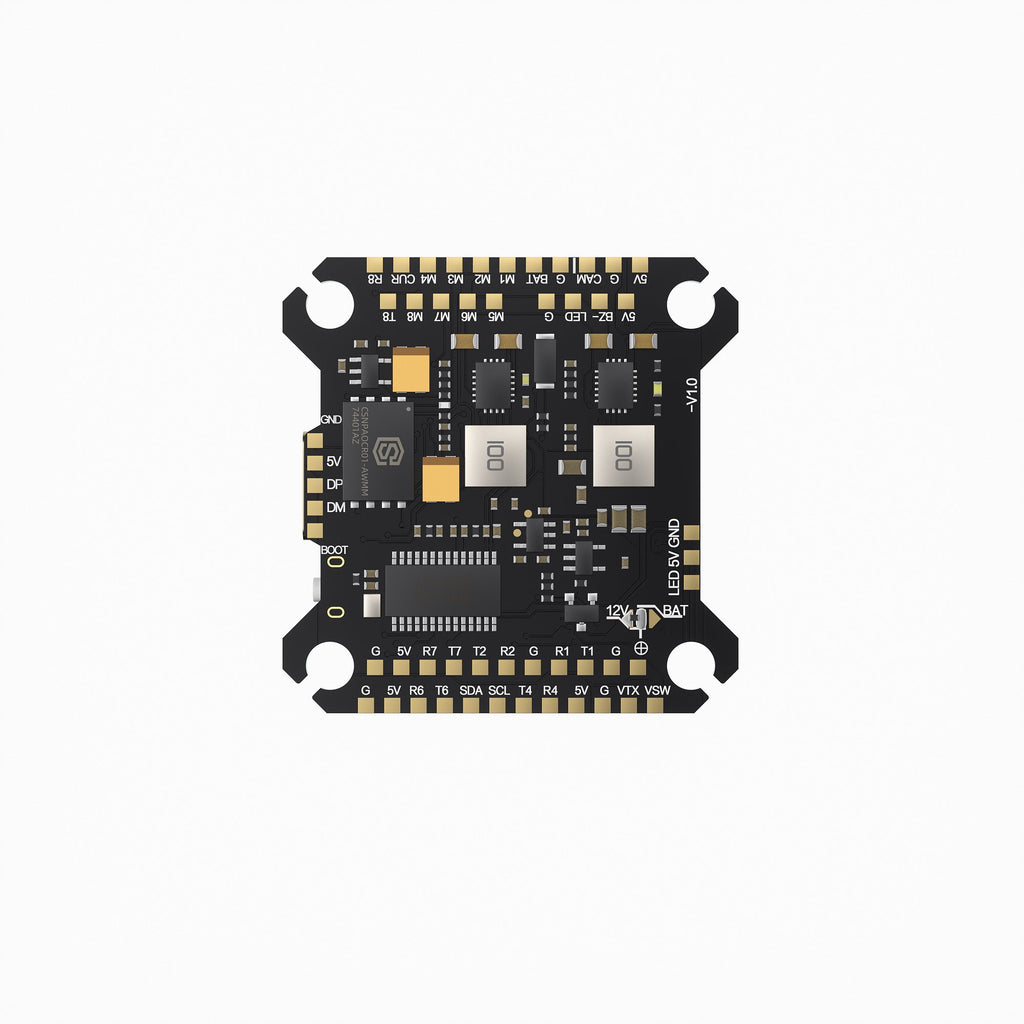

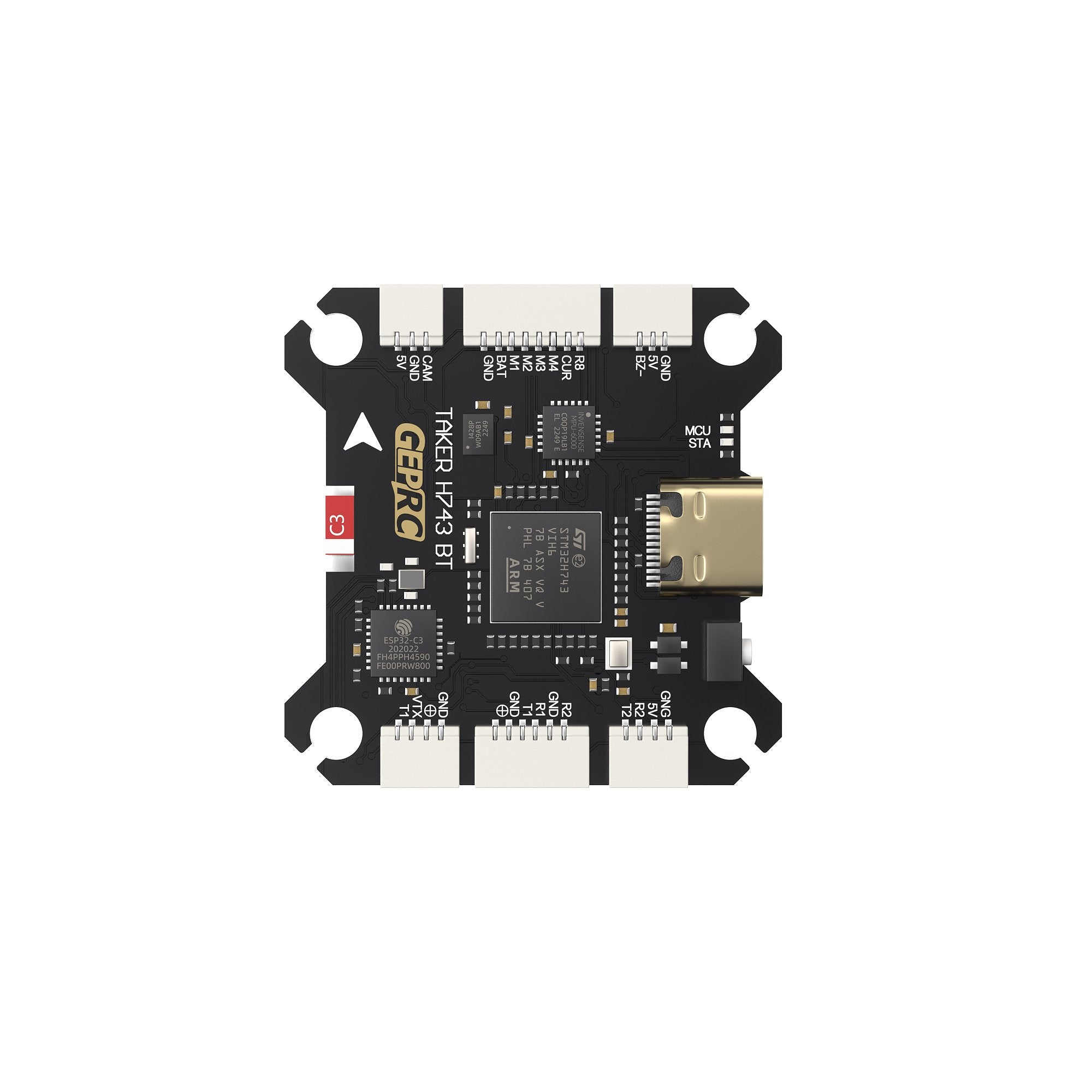

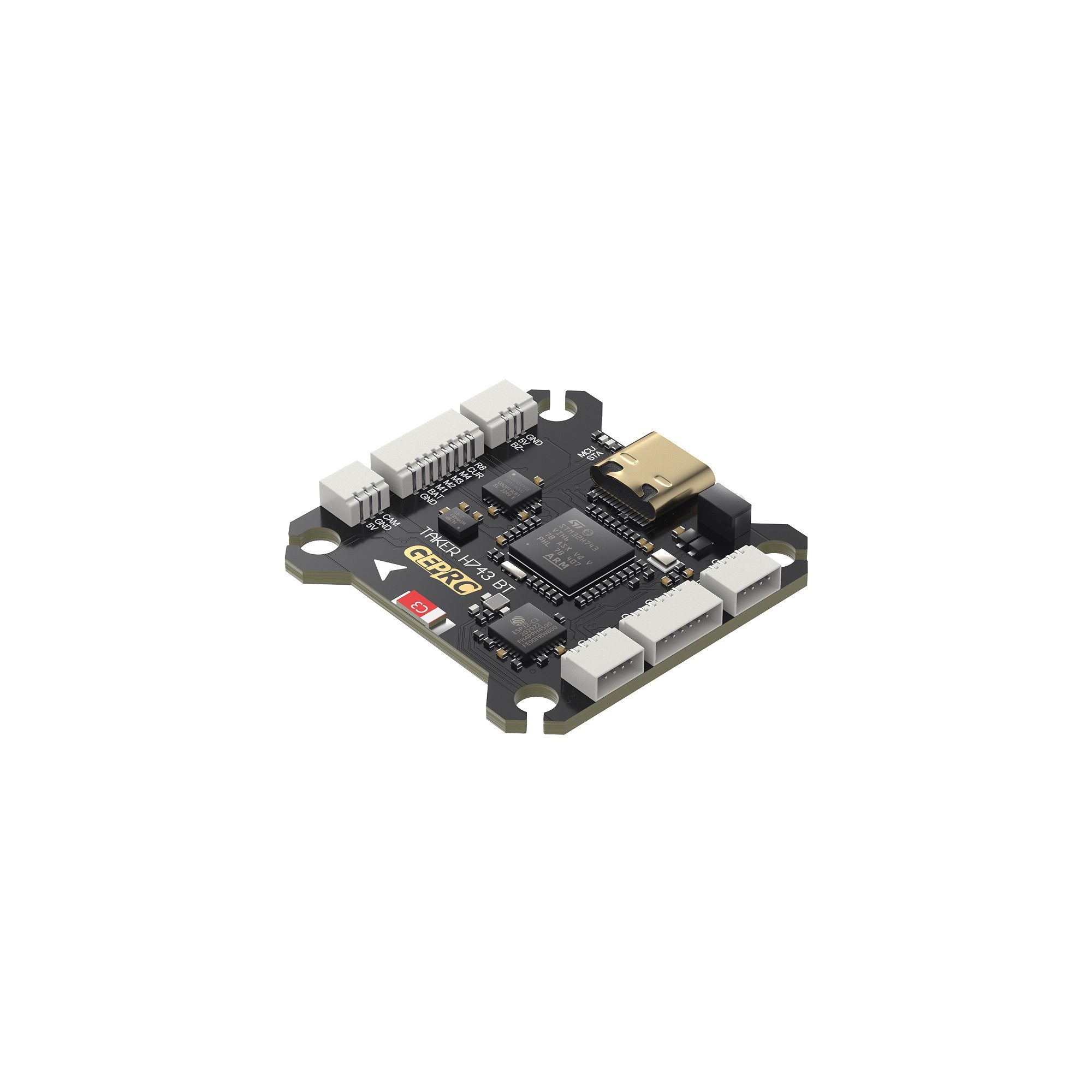

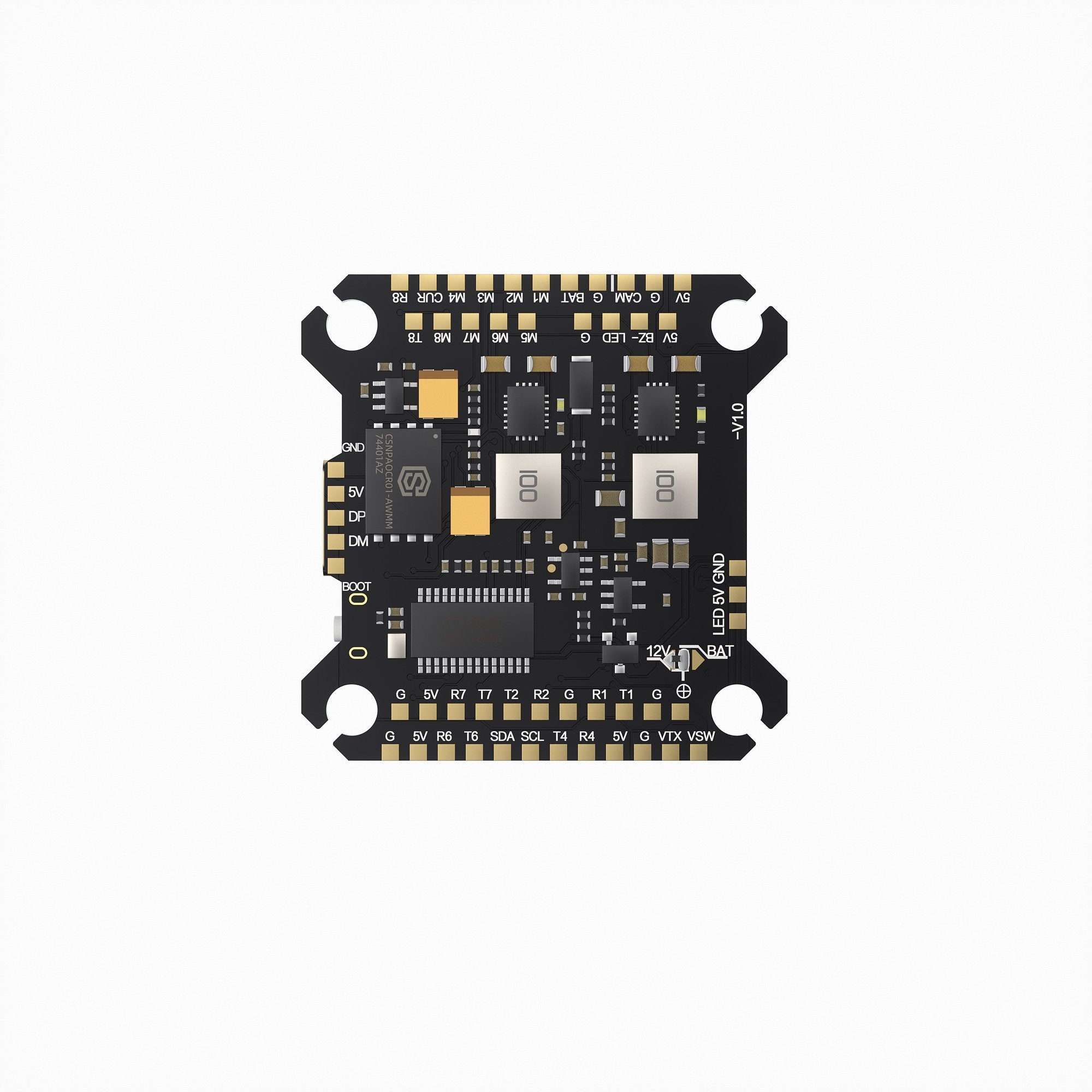

TAKER H743 BT Flight Controller｜飛行控制器

TAKER H743 BT Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Important Update Regarding Bluetooth Function

Feb 25, 2026:

Due to temporary hardware adjustments, the current batch of the Flight Controller does not support Bluetooth wireless parameter tuning. Please rest assured that all other technical specifications and flight performances remain unaffected. The resumption time for this feature will be announced separately. We apologize for any inconvenience!

Features

Addopts the high-performance STM32H743 as the main controller

Equipped with MPU6000 and 42688-P dual gyroscopes

512M of black box storage

Bluetooth parameter tuning

Integrated LC filter

Upgraded type-C USB interface

Direct plug-in compatibility with DJI Air Unit

Integrated Barometer

Features 7 groups of UART

[email protected]

+ 5V@3A dual independent BEC

Offers multiple firmware options

Specifications

MCU: STM32H743

IMU: MPU6000 + ICM42688-P(dual gyro)

Air Unit Connection: Directly plugs into DJI Air Unit

Black Box：512M onboard

Bluetooth: Supported

Barometer: Supported

USB Interface: Type-C

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@3A,

[email protected]

dual BEC

Firmware Target: GEPRC_TAKER_H743

Size: 38.5×38.5mm, mounting hole size 30.5×30.5mm

Input Voltage: 3-6S LiPo

UART Ports: 7 groups (UART3 fixed for Bluetooth)

Power Filtering: Integrated LC filter

Weight：8.4g

Includes

1 x FC board

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x Buzzer connection cable

4 x Silicone grommets
