RadioMaster ER5C-i 2.4GHz ELRS PWM 5 通道接收機

RadioMaster ER5C-i 2.4GHz ELRS PWM 5 通道接收機

RadioMaster 原廠接收機，依官方目前在售規格整理，並提供全額付款與訂金預購選項。

The RadioMaster ER5C-i receiver is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications.

The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.

Features

• Built-in high-sensitivity ceramic antenna
• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, low latency, and strong link quality
• Supports 5 PWM Channels
• Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
• Optimized ground up PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
• Designed for all types of surface models
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

• Item: ER5C-i 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 - 8.4V
• Antenna type: Built-in high-sensitivity ceramic antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 5CH PWM
• Telemetry power: 10mW
• Battery voltage detection range: DC 4.0 - 35V
• Weight: 5.0 grams
• Dimensions: 30.0*18.5*13.0 mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i

Size

Associated Products

• MT12 Surface Radio Controller
• ER SERIES ELRS PWM RECEIVERS

Download

• ER5C-i Receiver User Manual

Package Includes

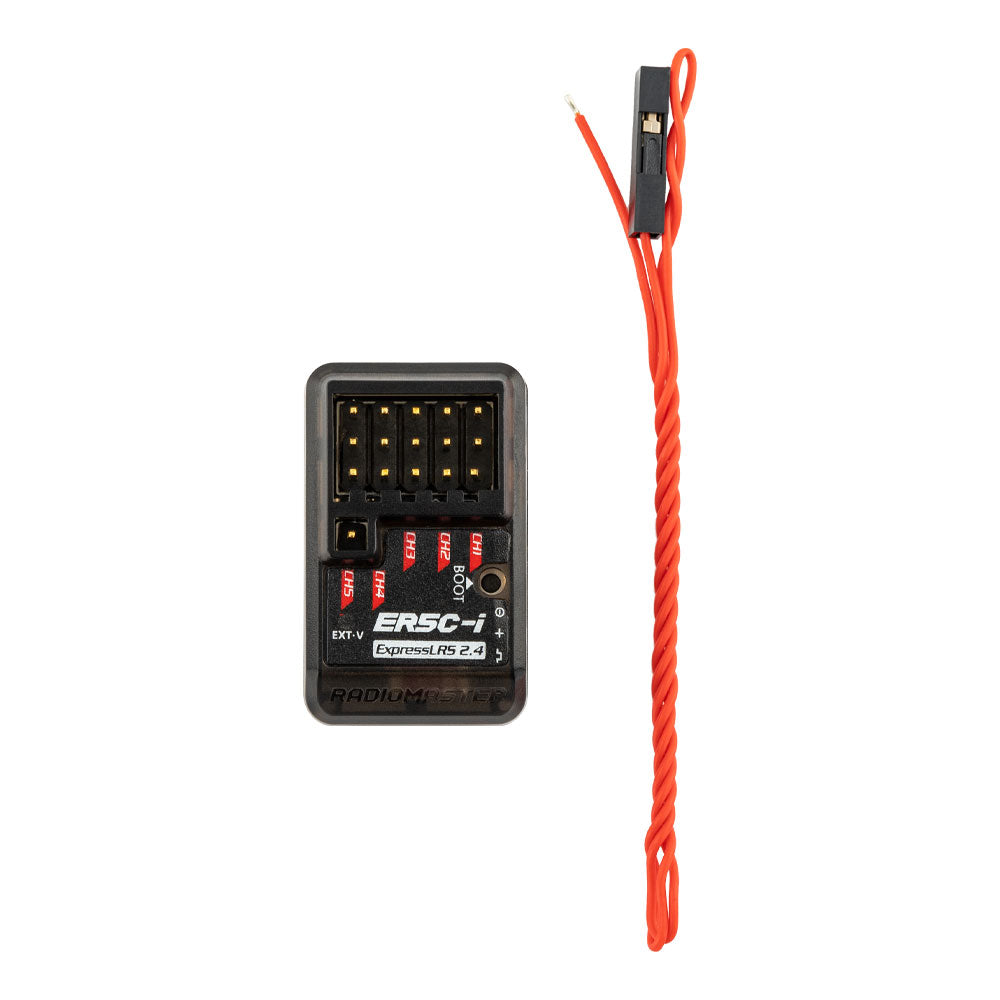

• 1 * ER5C-i 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire
• 1 * User Card

ER5C-i Receiver is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
