RUSHFPV PFB Lite｜FPV 電源濾波板
標準版 / 訂金預購
$59.00
跳到商品資訊
RUSHFPV PFB Lite｜FPV 電源濾波板
$59.00
全額付款說明
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
訂金預購說明
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
RUSHFPV PFB Lite｜FPV 電源濾波板
RUSHFPV 官方 電源模組與濾波板，已依台灣使用者習慣整理繁體中文商品名稱與規格。下單前請確認頻段、接頭、極化方向、尺寸與法規需求。

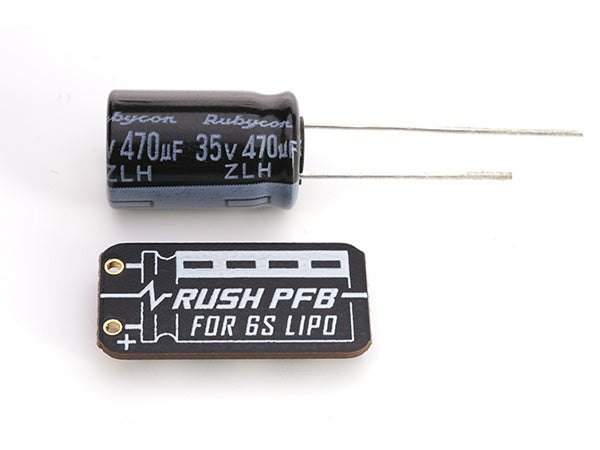

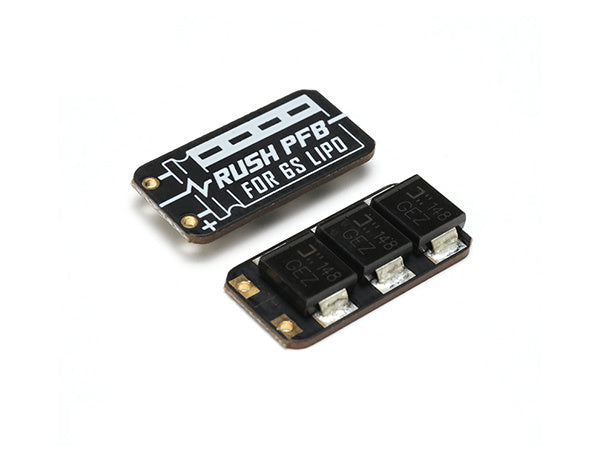

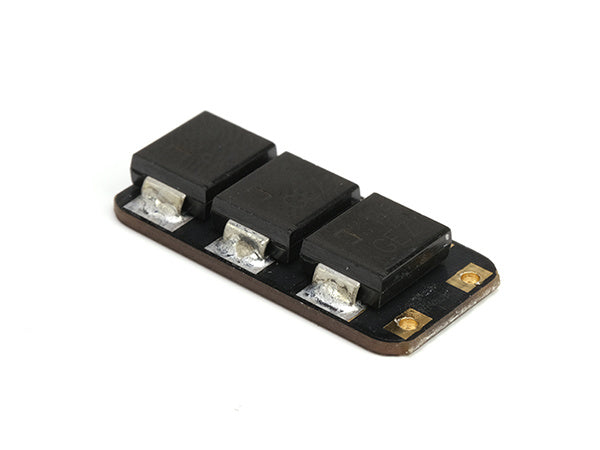

The PFB LITE peak spike suppressor uses carefully selected TVS diodes to absorb dangerous voltage peaks to protect the connected components. Peak spike suppressors are designed for use with electrolytic capacitors. The capacitor can be mounted directly on it. It prevents the voltage from rising from a certain voltage by absorbing and absorbing the energy of the voltage spike. For electric drive systems that use brushless motors and lithium polymer batteries, very high voltage and current peaks will appear. The most widely known way to keep them in an area where they will not harm other connected loads is to use capacitors. This is actually a very good method. The capacitor suppresses all fluctuations in voltage by charging when the voltage rises and discharging when the voltage drops again. In some cases, voltage spikes are too fast for capacitors. These peaks are in the range of nanoseconds and microseconds, and they can easily reach twice or three times the normal battery voltage. Most consumers can tolerate these voltage peaks, even if they are much higher than the actual maximum rated voltage. If the voltage peak is too strong or recurs over a long period of time, the voltage regulator, capacitor and FET may be damaged and fail. The spike suppressor absorbs these voltage peaks and therefore cannot even reach harmful voltages.
