【HDZero】Whoop V2 數位圖傳

【HDZero】Whoop V2 數位圖傳

【HDZero】Whoop V2 數位圖傳，商品類型為 影像傳輸。

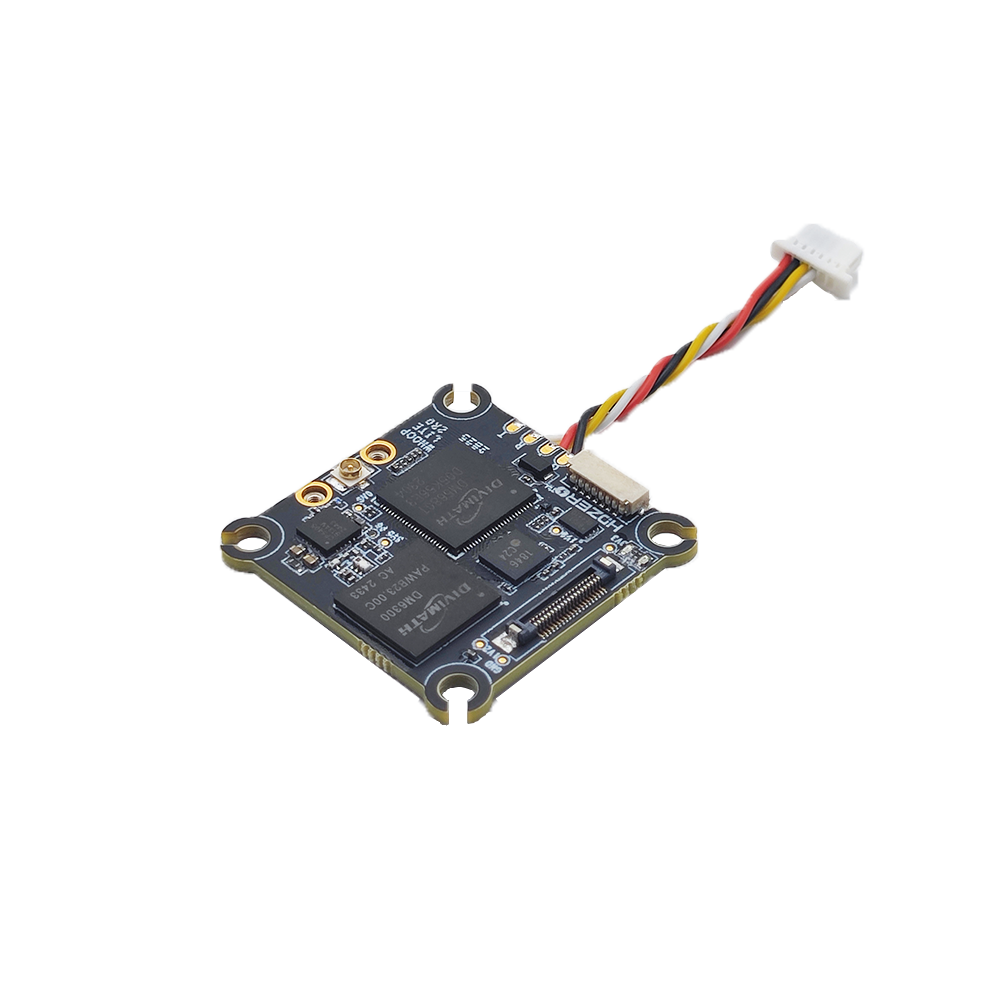

下單前請先聯繫我們確認有無現貨。 Description The HDZero Whoop V2 VTX is the evolution of the Whoop Lite VTX, designed for pilots who want the same HDZero performance, but with improved durability, reliability, and ease of installation. Supporting all HDZero MIPI cameras, including 540p90 , 720p60, and 1080p30 modes, the Whoop V2 delivers up to 200 mW of clean, low-latency HD video over 5.8 GHz. A thicker PCB provides greater impact resistance (addressing a common failure point of the Whoop Lite), a factory-soldered wire harness with Betaflight standard digital VTX plug simplifies installation, and a brass antenna retention bar keeps the U.FL connector secure through crashes and vibration. With its compact 31 × 31 mm footprint and 25.5 × 25.5 mm mounting pattern, the Whoop V2 fits everything from 80 mm whoops to 4-inch micro drones. For ultralight builds, our HDZero AIO boards combine FC + VTX with an AHD camera interface to save both weight and space. Power input range: 3 – 12.6 V (1S – 3S) Notes: • No reverse-polarity protection — incorrect wiring will permanently damage the unit. • Ensure ≥ 1.5 A available current when powered from a 5 V pad. • Direct 1 S power may dip below 3 V on throttle punch-outs, causing video loss. • External capacitor recommended for 3S setups. Includes M2 rubber grommets and a brass antenna bar for secure mounting. For high-speed racing, consider the HDZero Race V3 VTX which has a more common 20 x 20 mm mounting pattern for 5in builds. Specifications Feature Whoop V2 VTX Whoop Lite VTX Comparison Supported Cameras All HDZero MIPI cams Video Resolution 720p60 / 540p90 / 1080p30 RF Power Output 25 mW / 200 mW Frequency Range 5.725 – 5.850 GHz RF Connector Secured U.FL with brass bar Standard U.FL (no retention bar) Video Connector MIPI Durability / PCB…

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
