【HDZero】Whoop Lite 圖傳套裝｜RunCam Nano V3・40mm MIPI，商品類型為 FPV 無人機。

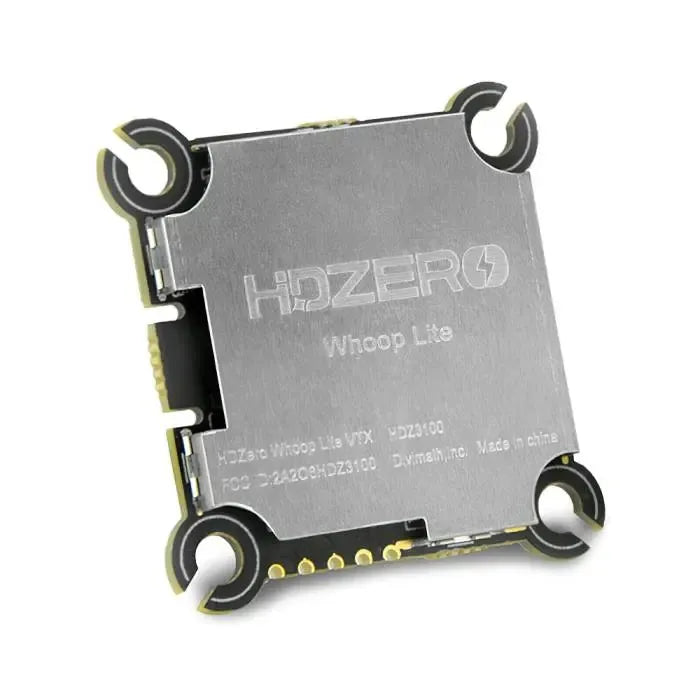

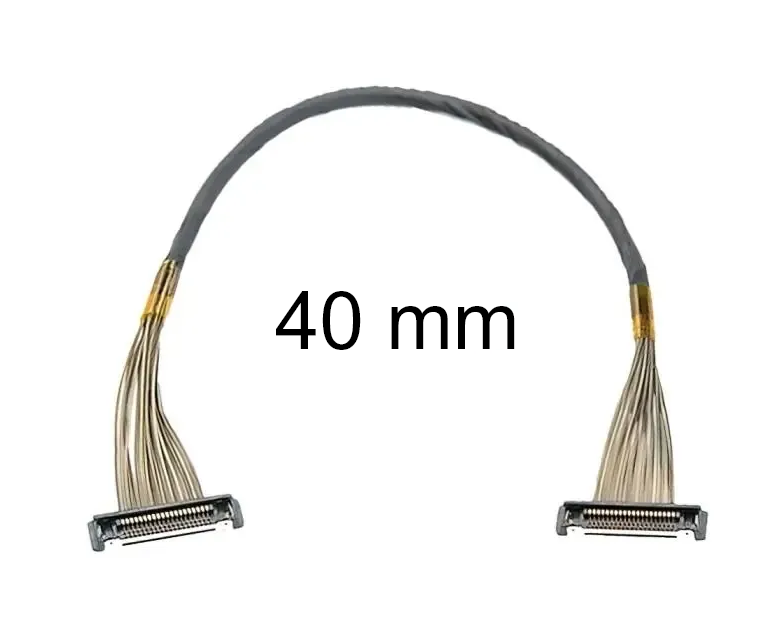

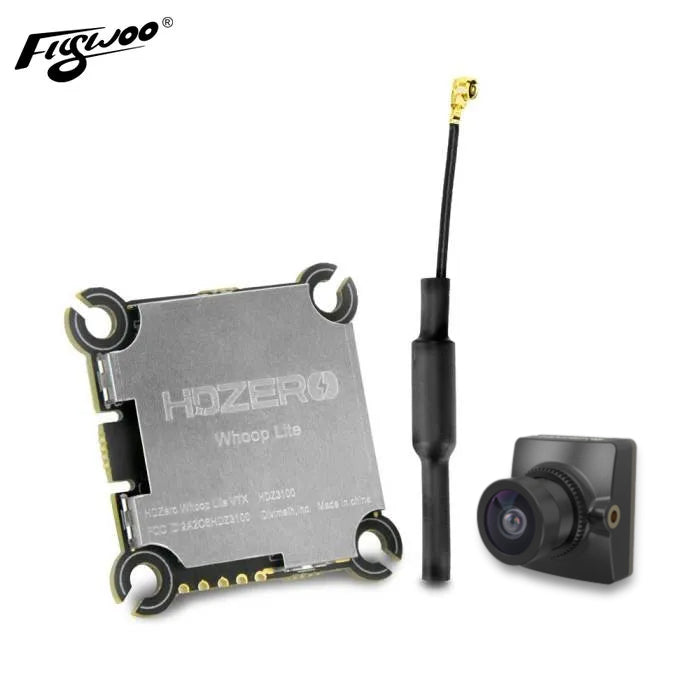

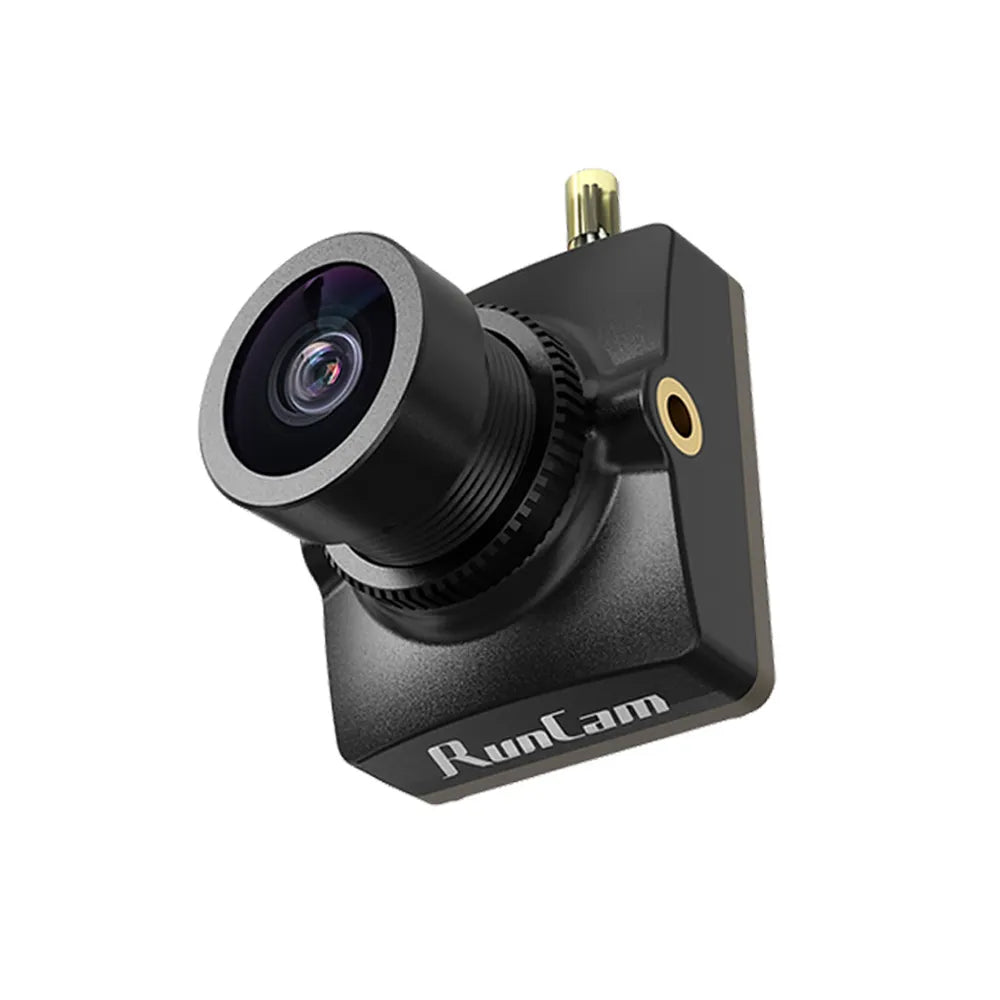

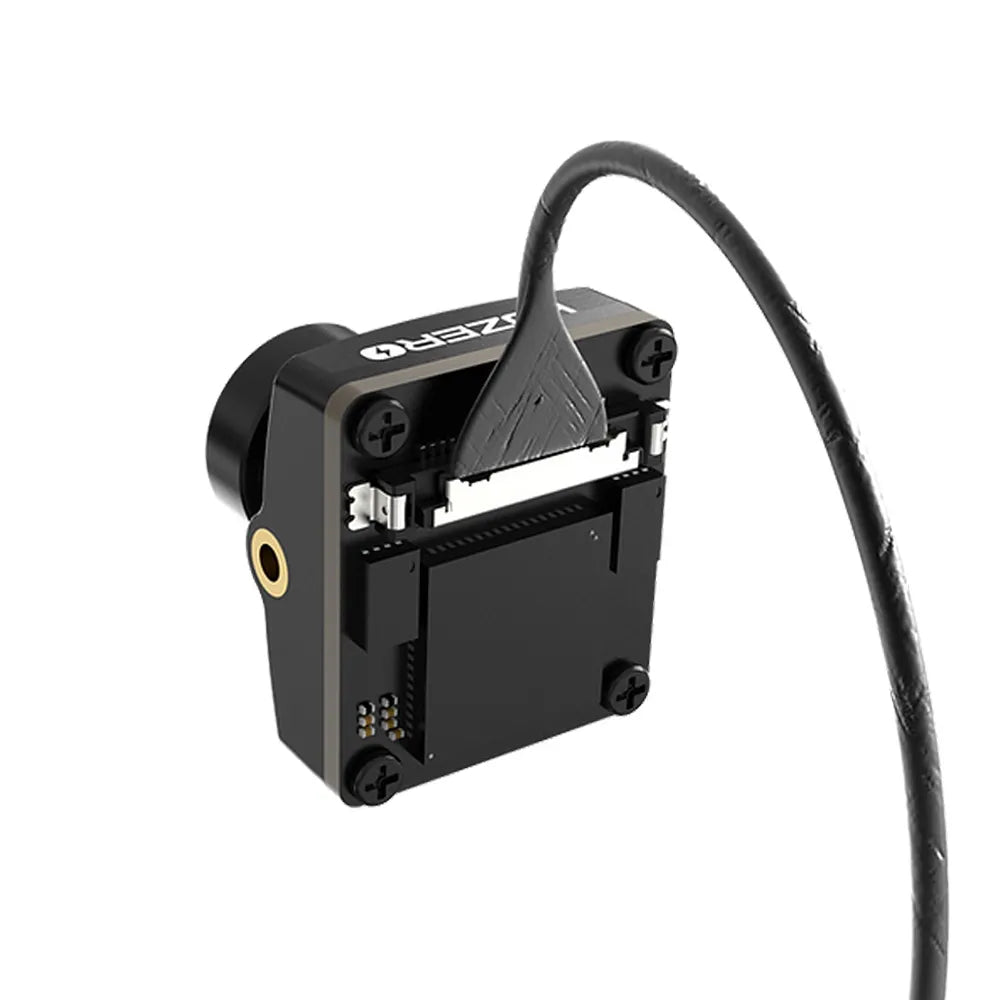

This set is composed of HDZero Whoop Lite VTX and Runcam Nano V3 HD Cam. It uses a frame with a 14mm lens hole position. The coaxial cable for the camera suction uses a length of 40, which is very practical for micro drones. Specifications HDZERO WHOOP LITE VTX Mounting Pattern: 25.5x25.2 M2 (soft mounting) Dimensions: 32.4x32.5mm (29x29mm inner) Video Connector: 20 Position 0.30mm Pitch Resolution Default: 1280*720@60fps Interface: 4-lane MIPI CSI YUV422 RF Power: 25mw/200mw Smart Audio: Supported Power: 1000mA@5V Power input: 1S-3S RF Connector: U.FL Frequency: 5.8G Thickness: 4mm SKU: HDZ3100 Weight: 4.5g HDZERO NANO LITE CAMERA Model: Nano V3 HDZero Sensor Size: 1/2 inch Resolution: 720@60fps 4:3 Sensitivity: 10650mV/Lux-sec Shutter: Rolling Shutter FOV: FOV D:155° H:126° V:94° Input Power: 3.3V Power Consumption: 0.5W Weight: 2.2 g Dimensions: L14mm*W16mm*H14mm Includes 1x HDZero Nano V3 Camera 1x HDZero Whoop Lite VTX 1x Connecting Wire Set 1x Dipole Antenna 1x Hardware Set 1x MIPI Cable 4x Dampers 2x Zip Ties

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
