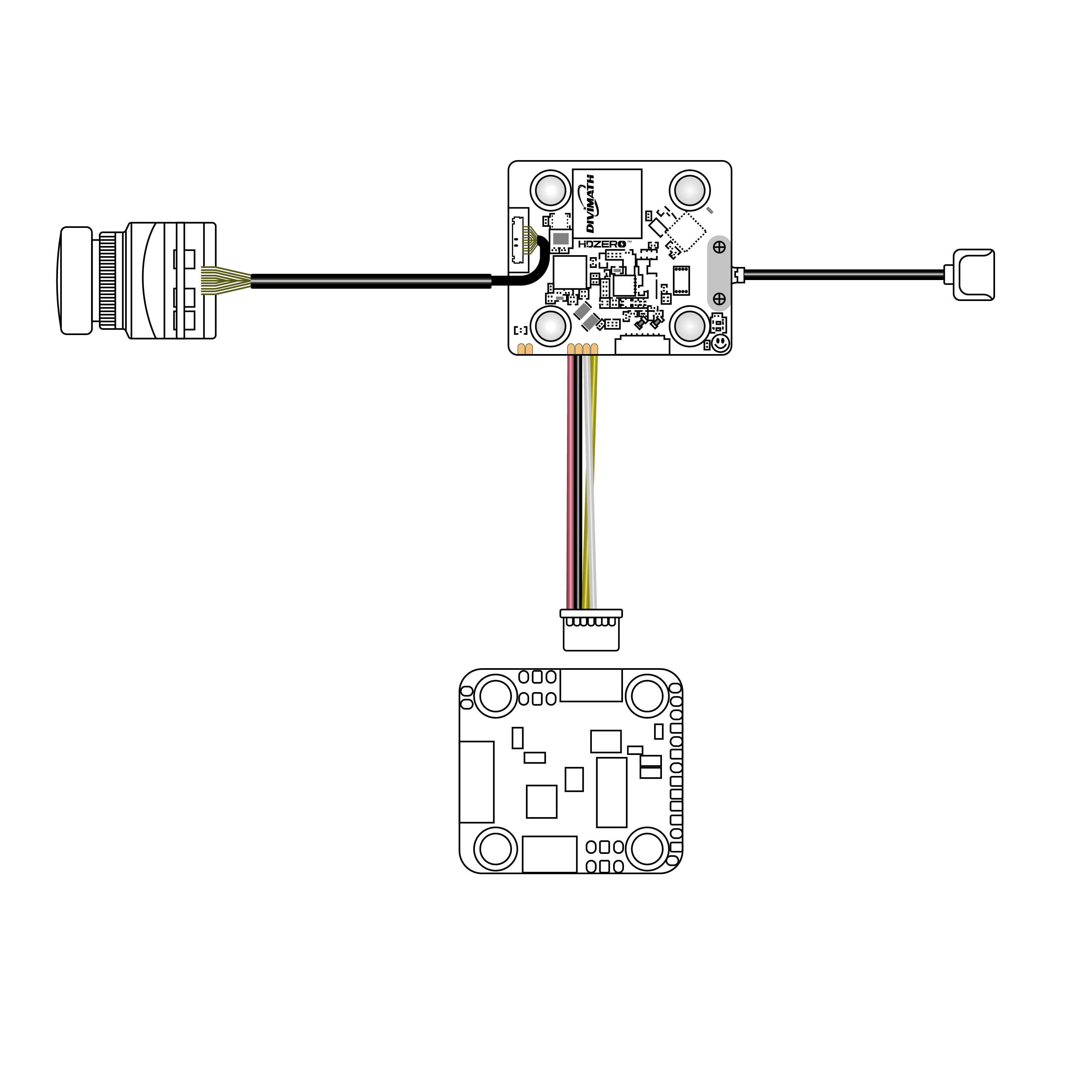

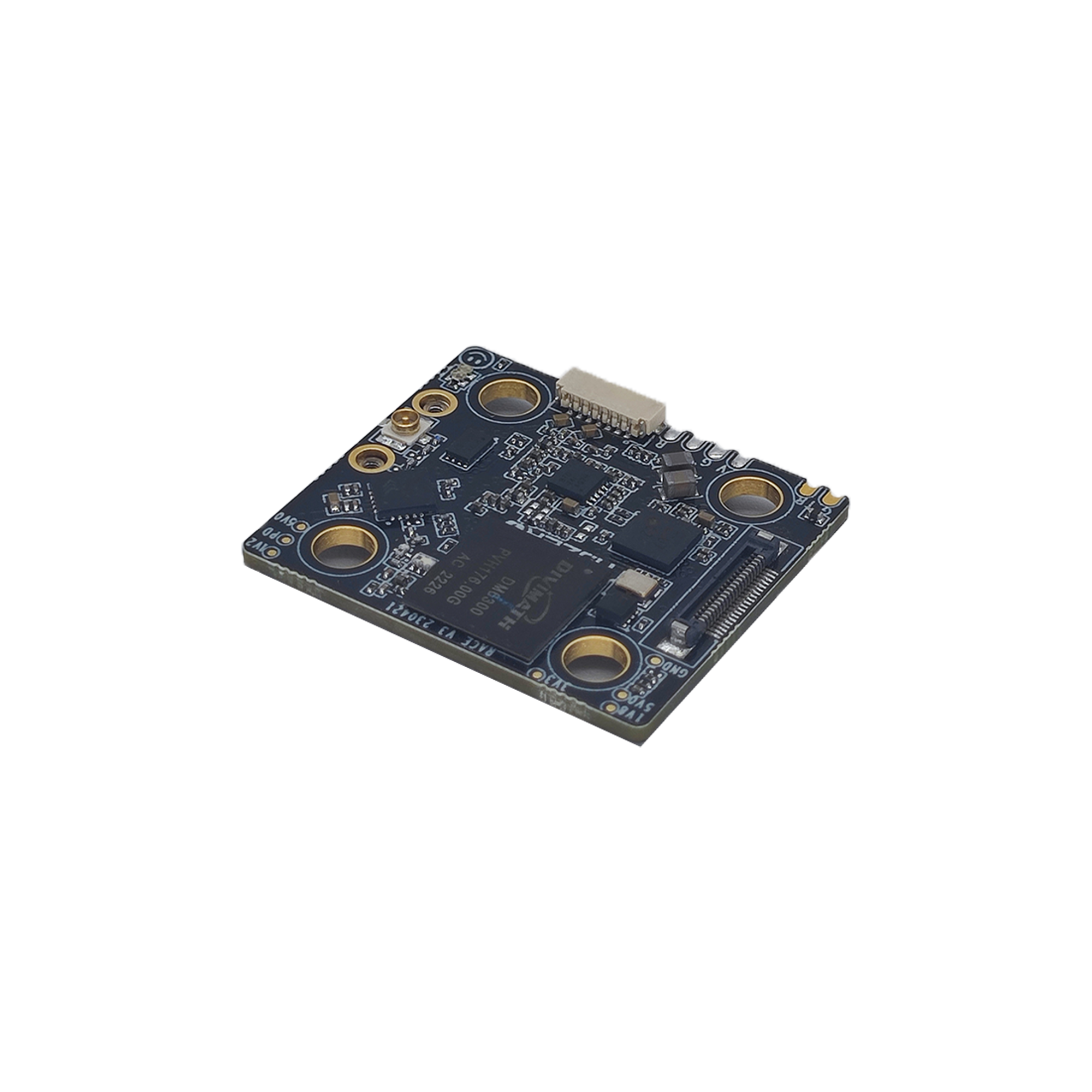

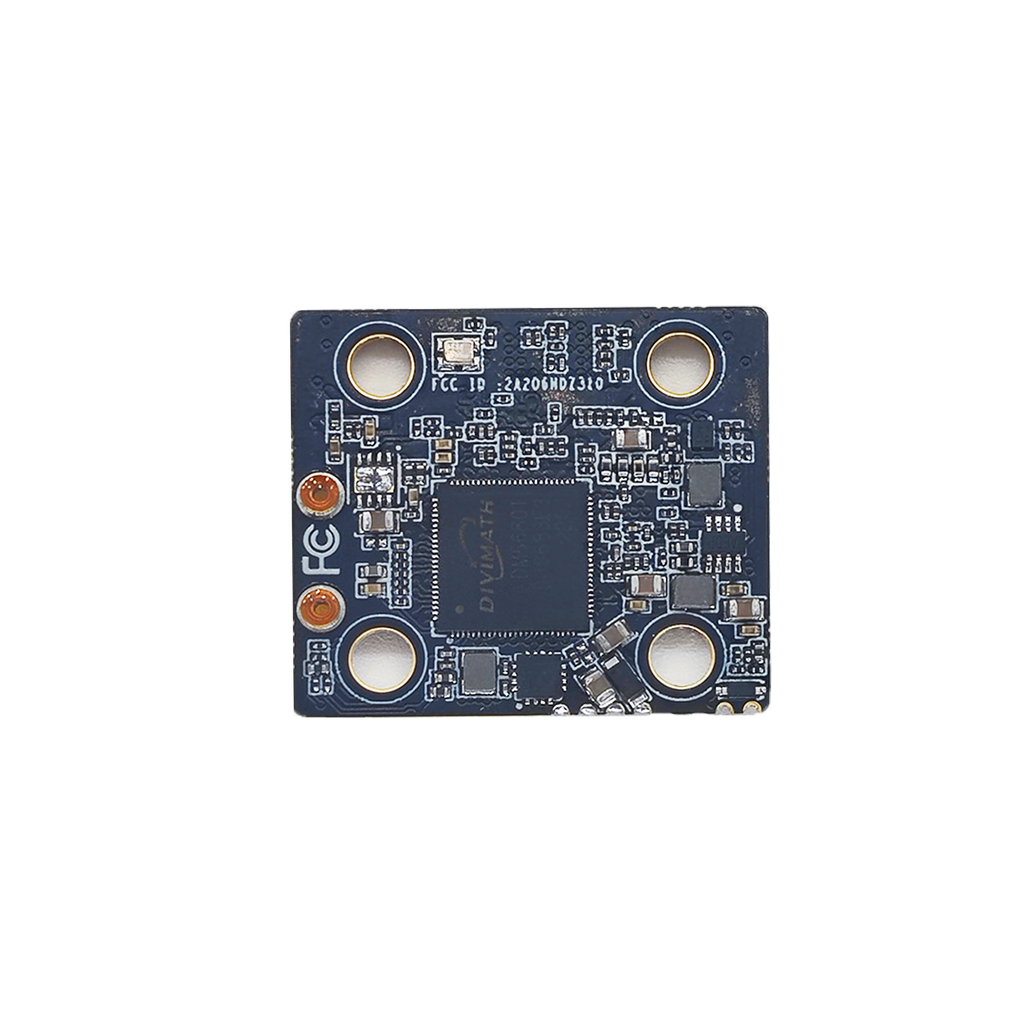

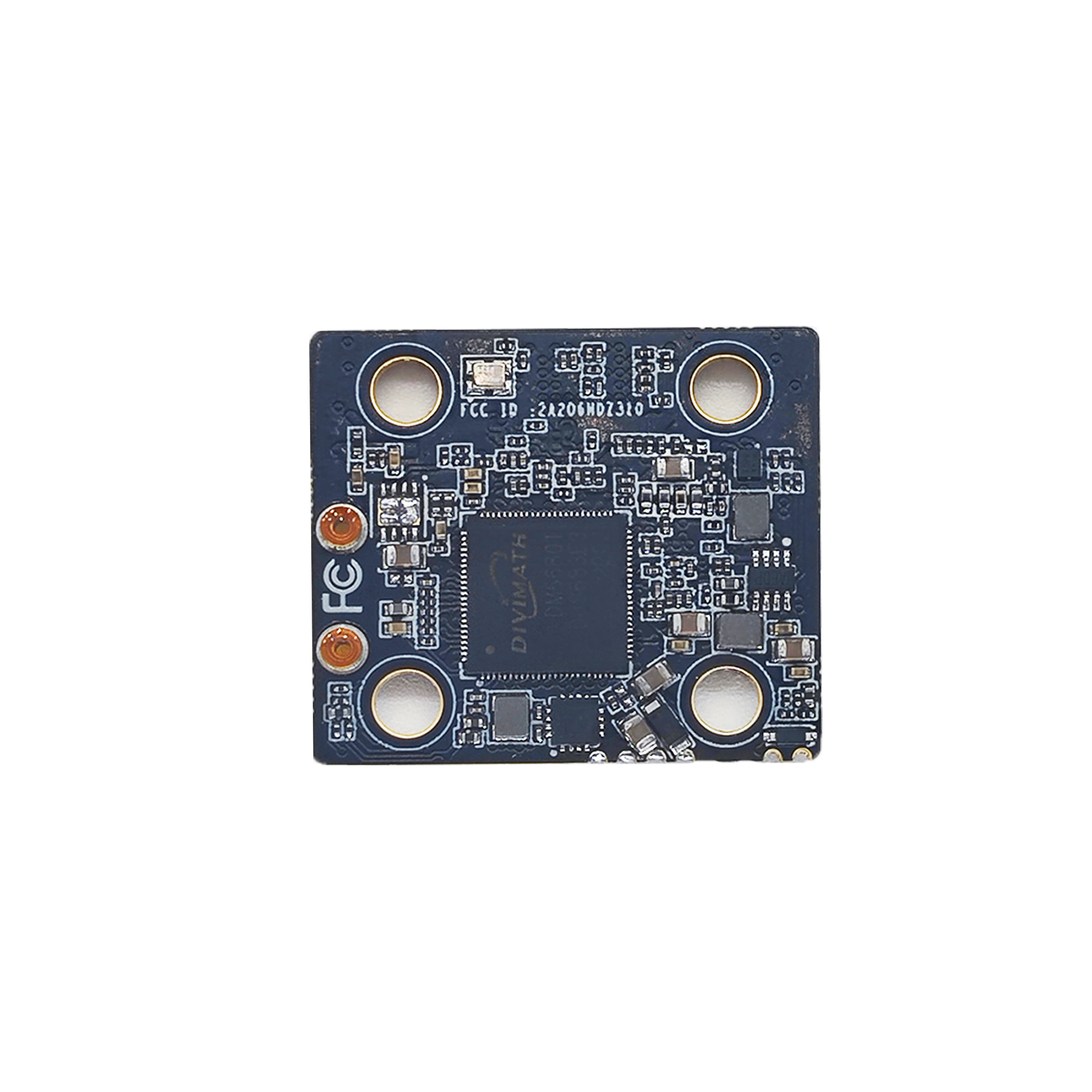

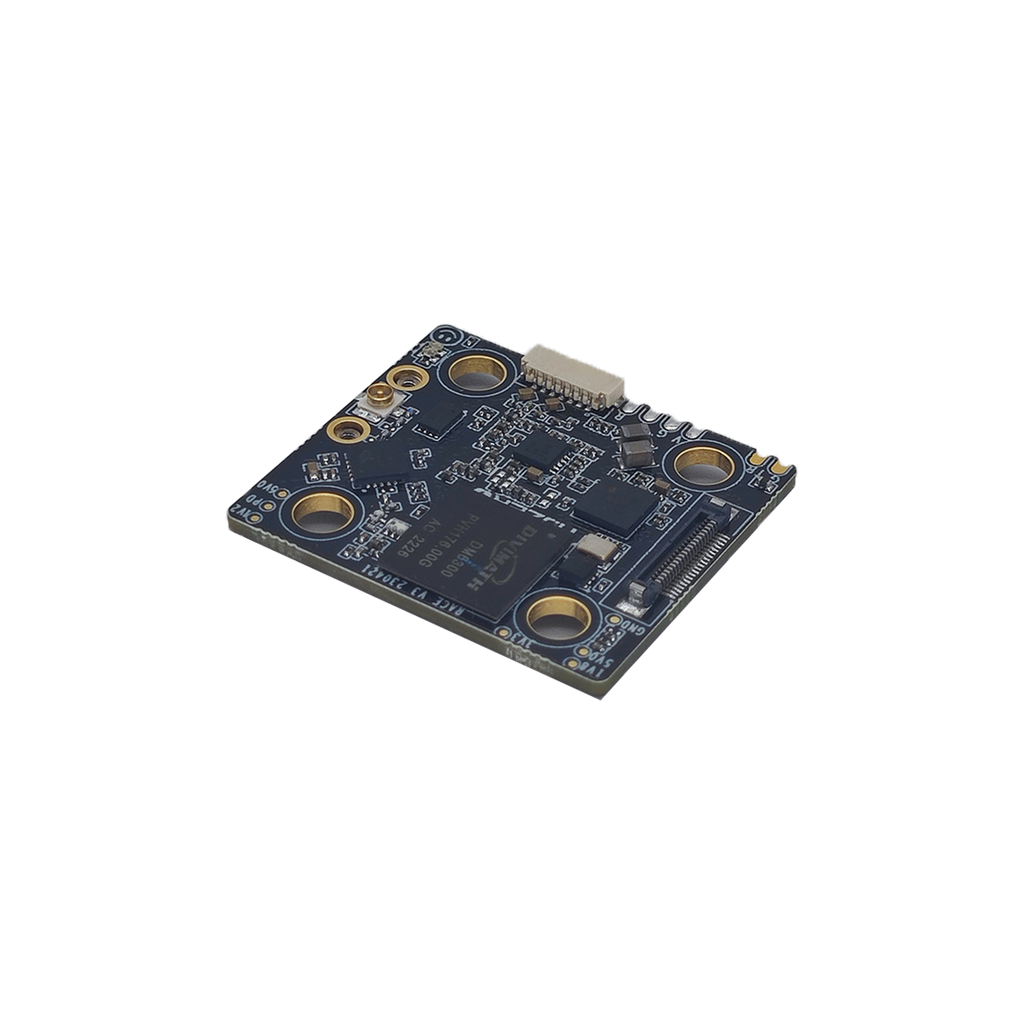

About this product Designed for FPV racing, the HDZero Race V3 VTX is a 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FCs or up to 12V for FCs that include an HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FCs, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering is needed – just plug the wire harness into a compatible HD-ready FC. The HDZero Race V3 VTX is also designed with durability in mind, rather than weight. This VTX is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60, and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz. Features Easy installation without soldering, just plug the wire harness into a compatible HD-ready FC High-quality video in multiple resolutions: 540p90, 720p60, and 1080p30 Improved durability and reduced weight with a width similar to many FCs Additional glue coating for crash protection of smaller components Secure attachment of antenna with a metal bar and screws Switchable power options: 25mW and 200mW Small and lightweight: 28x32x5mm, 5.5 grams Large package size components for stability Durable design with a 1.6mm thick PCB Operates on a 5.8GHz frequency band 3rd generation digital video transmitter Wide voltage range: 4V to 12V Designed for FPV racing Specifications Mounting Pattern: 20x20mm with M4 to M3 gummies Power…

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
