【HDZero】Gamma 45A HD-Ready 一體式飛控

【HDZero】Gamma 45A HD-Ready 一體式飛控

【HDZero】Gamma 45A HD-Ready 一體式飛控，商品類型為 飛控／電調。

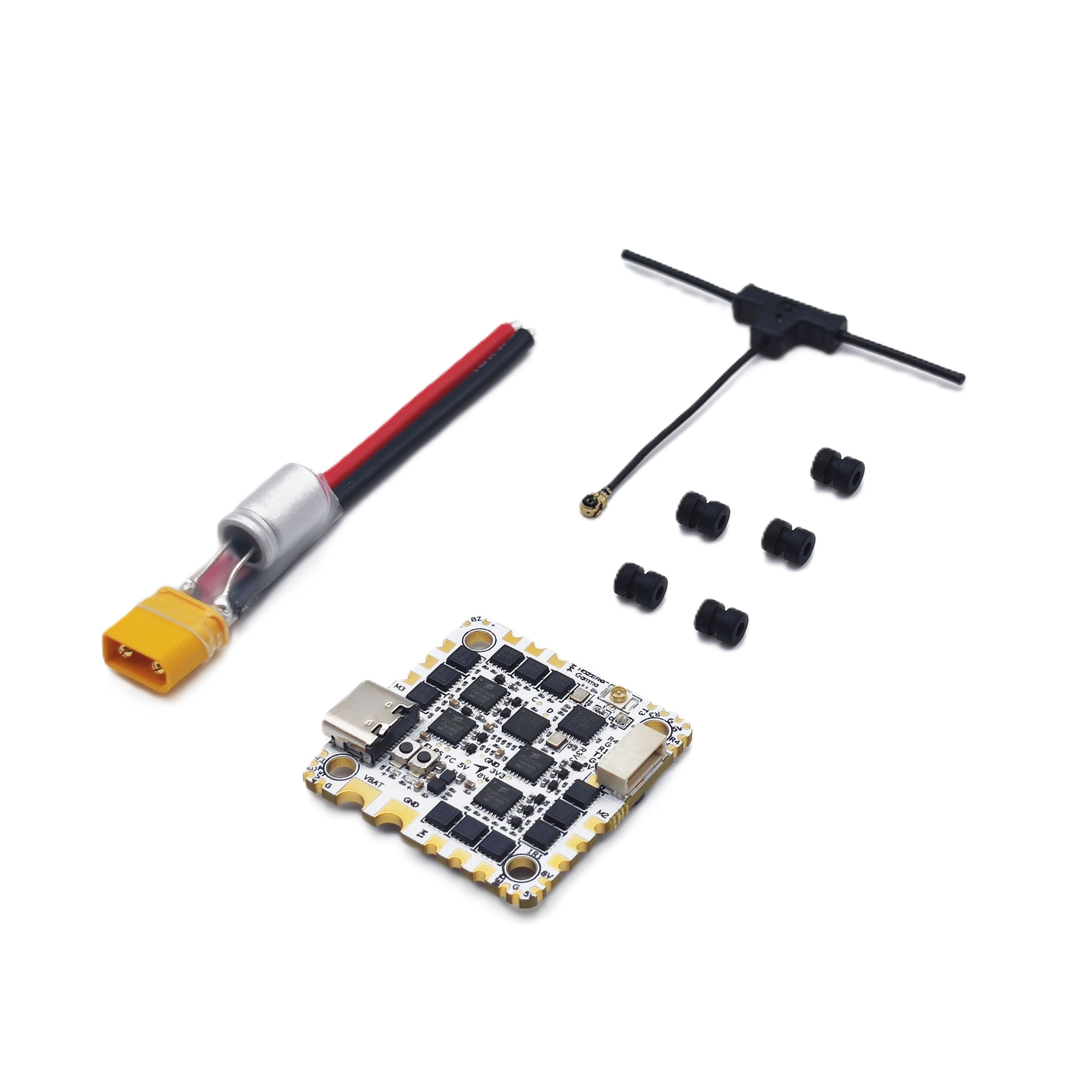

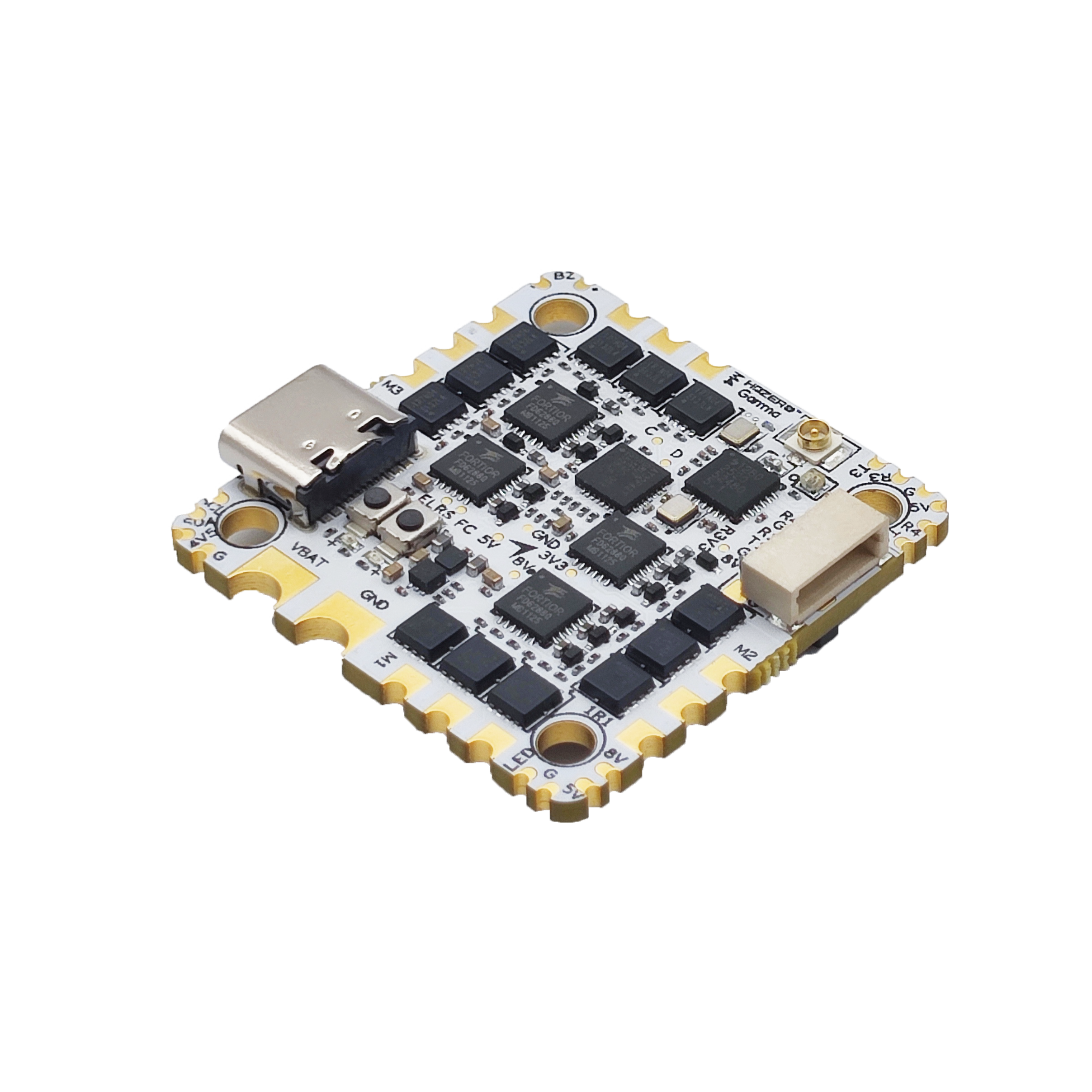

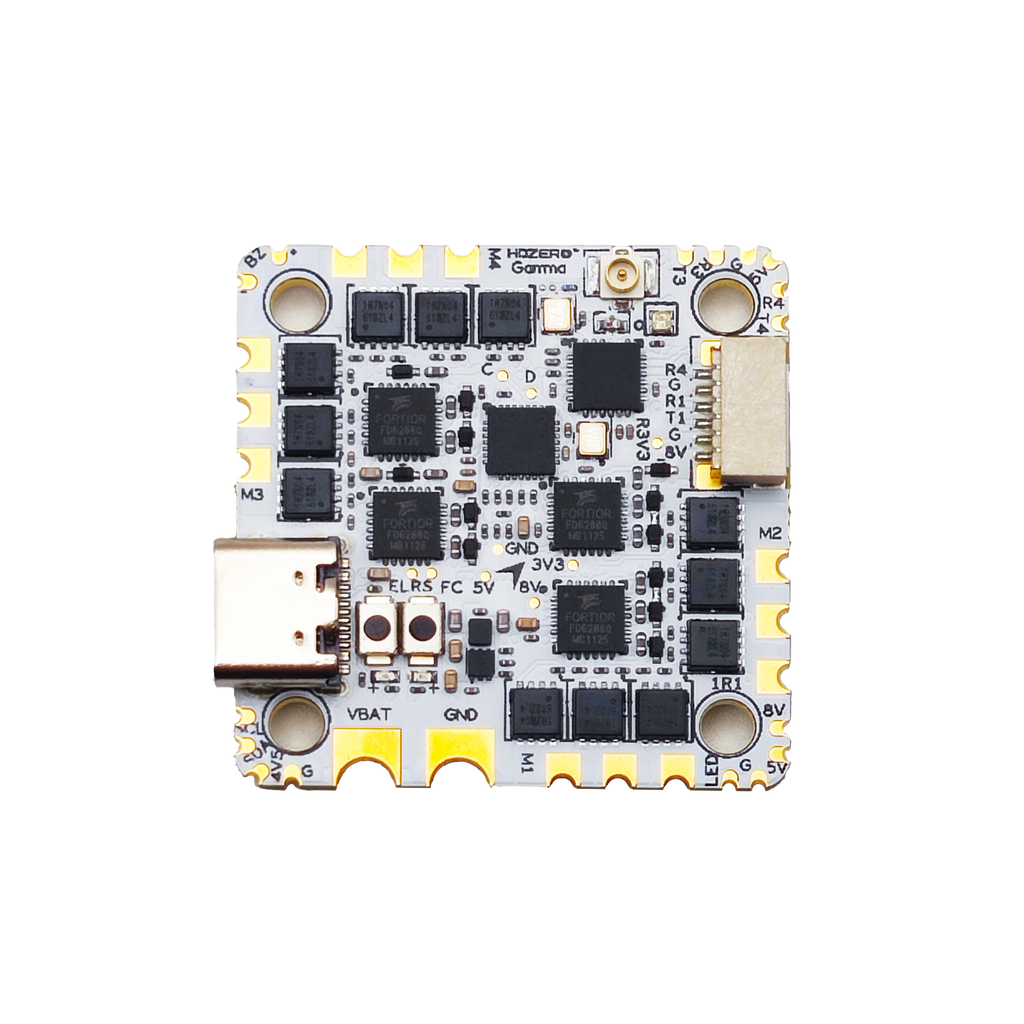

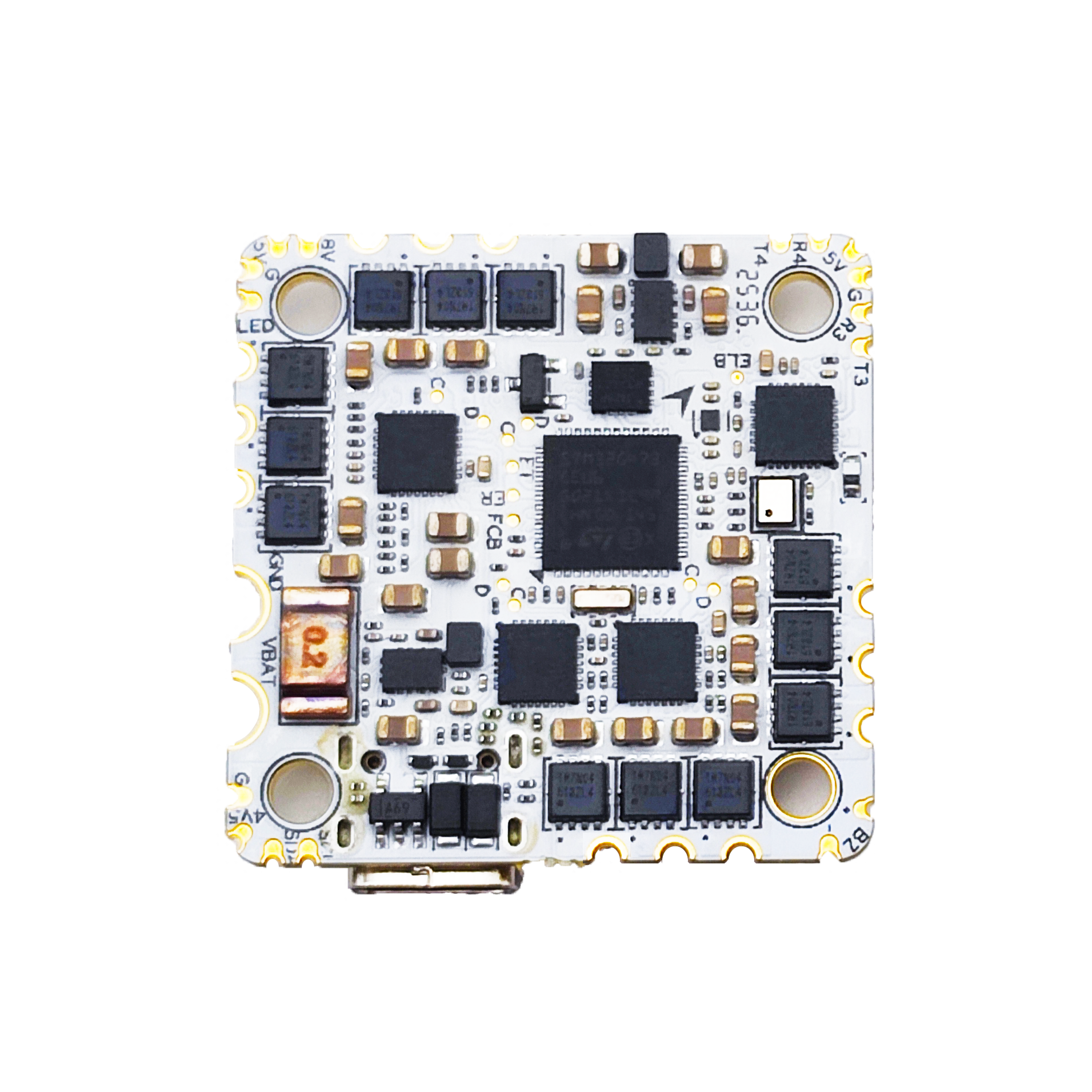

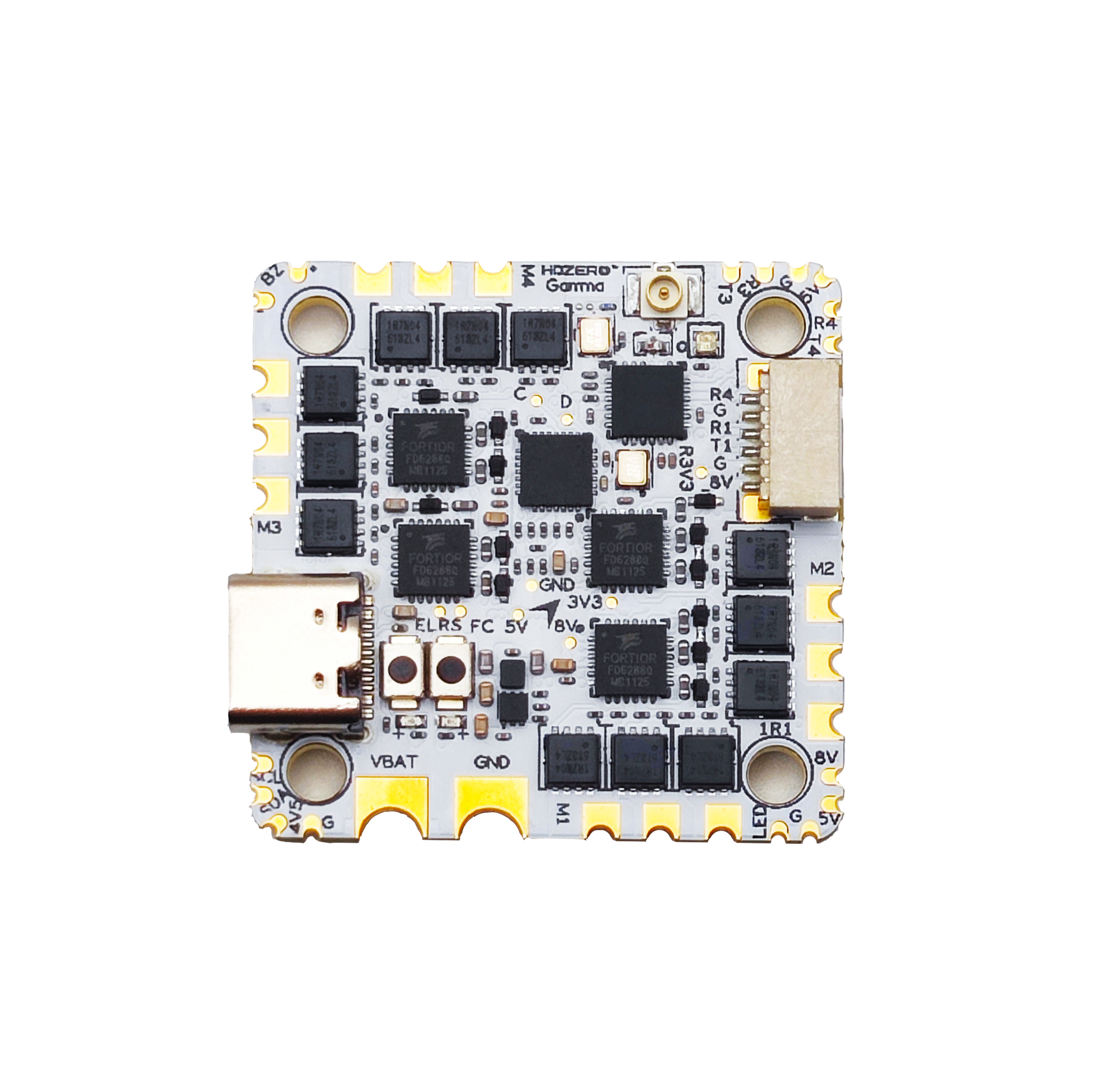

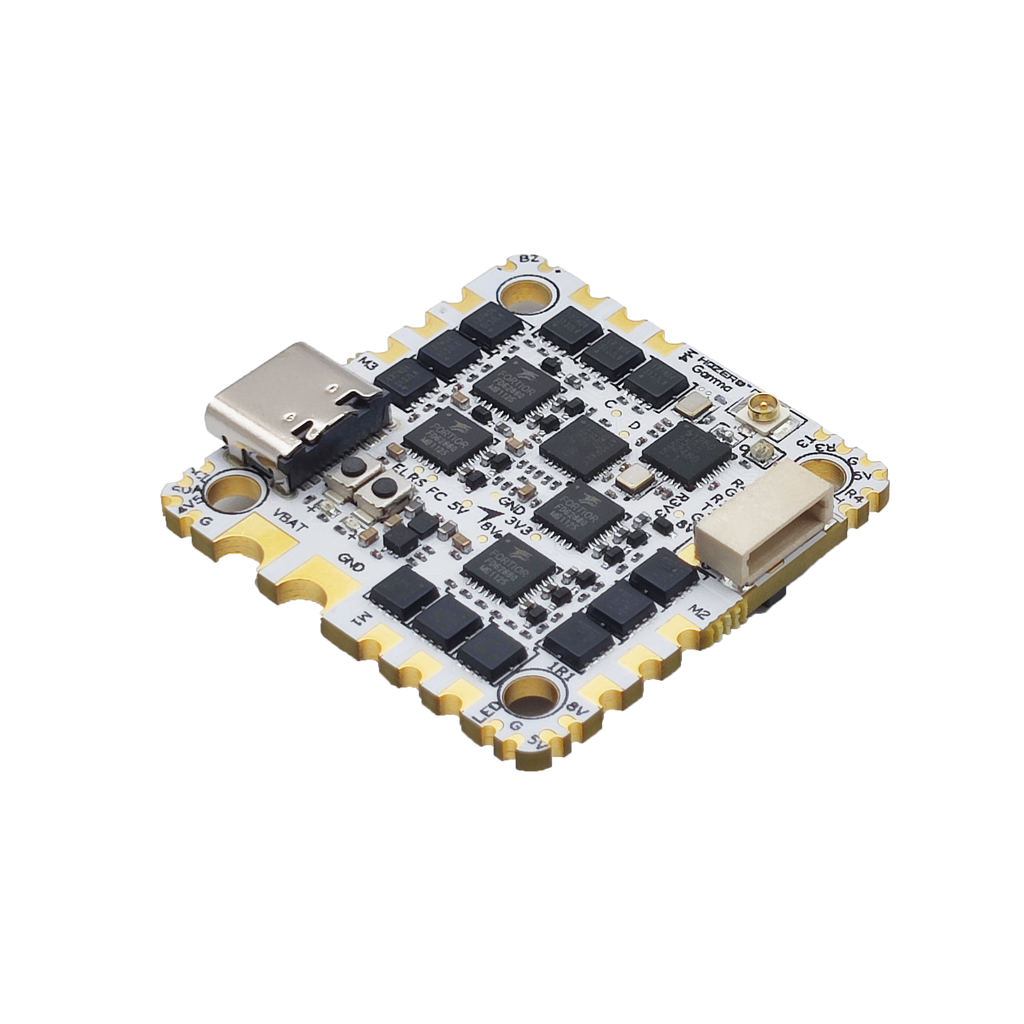

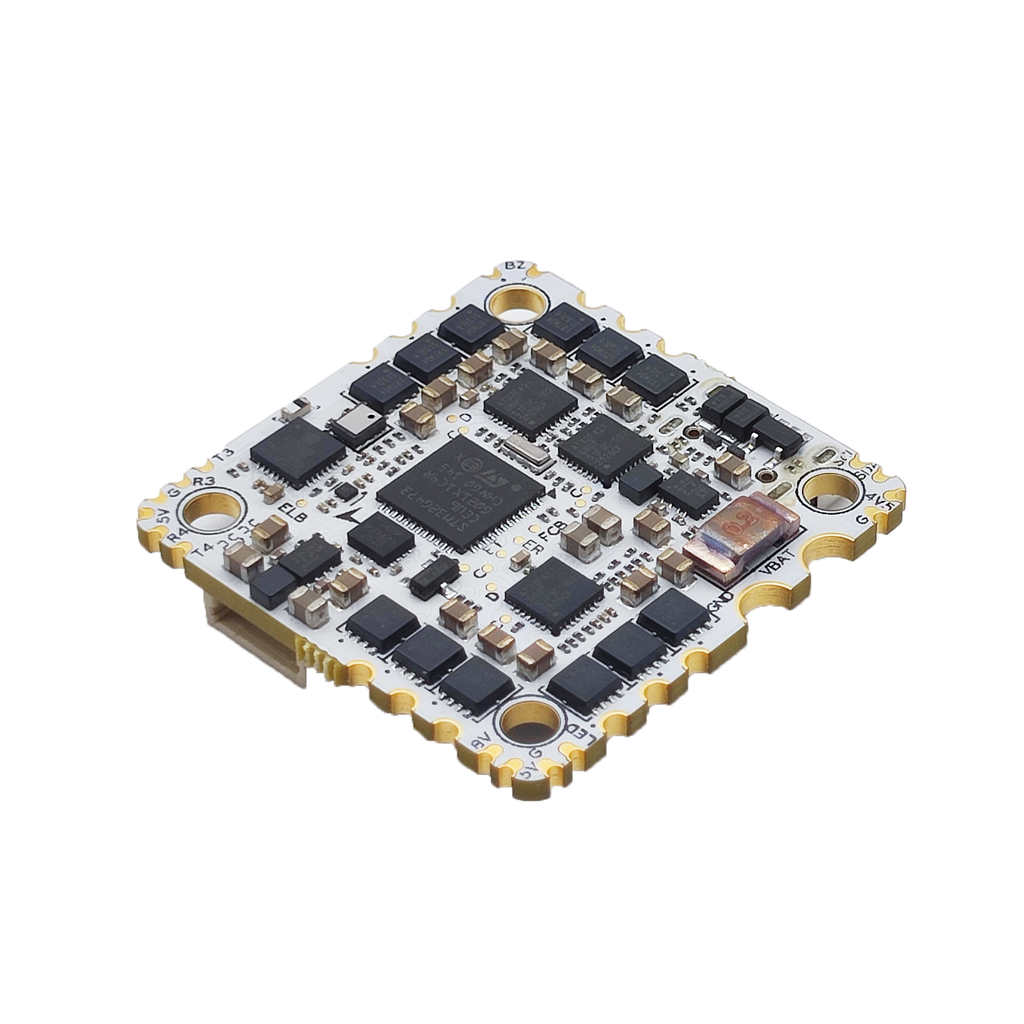

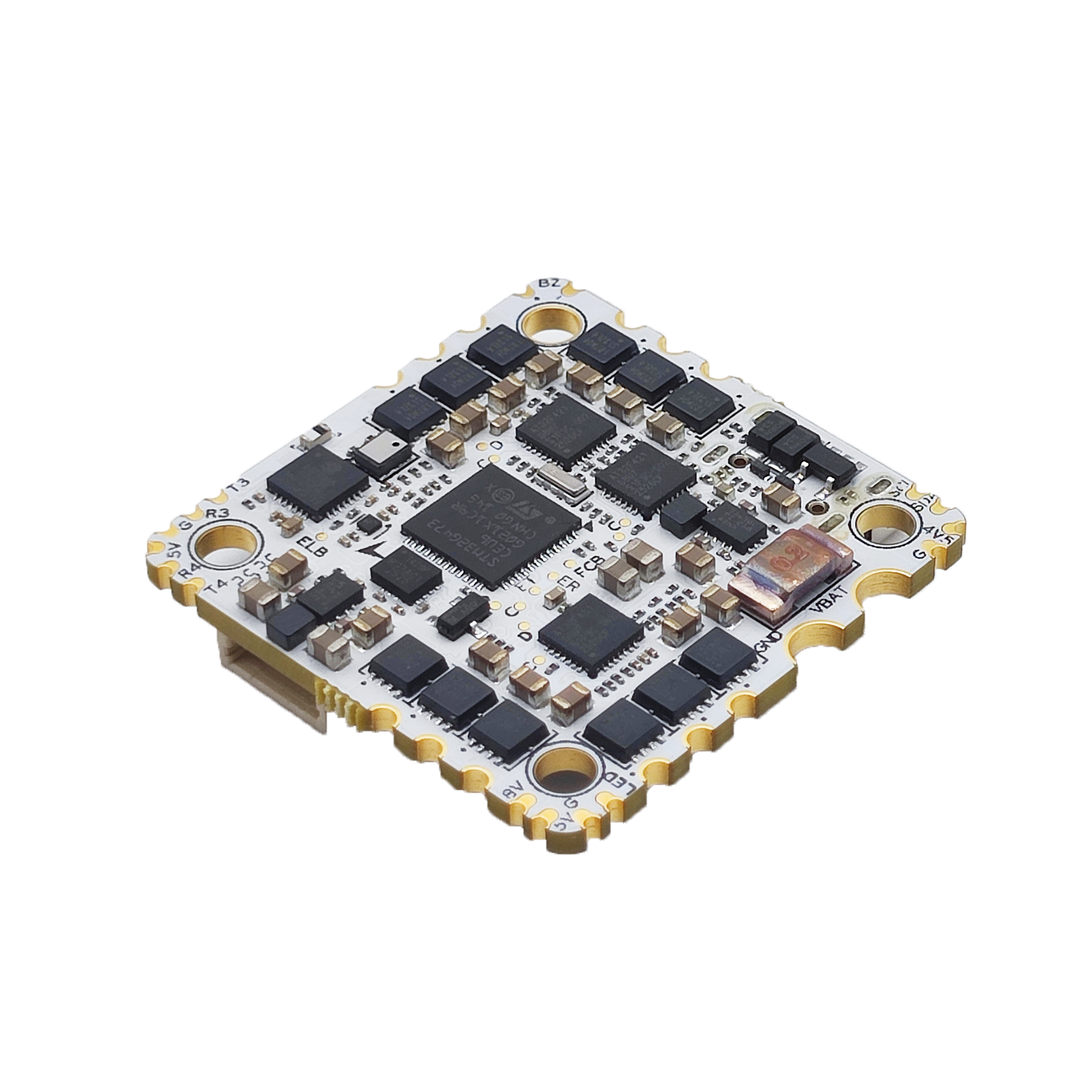

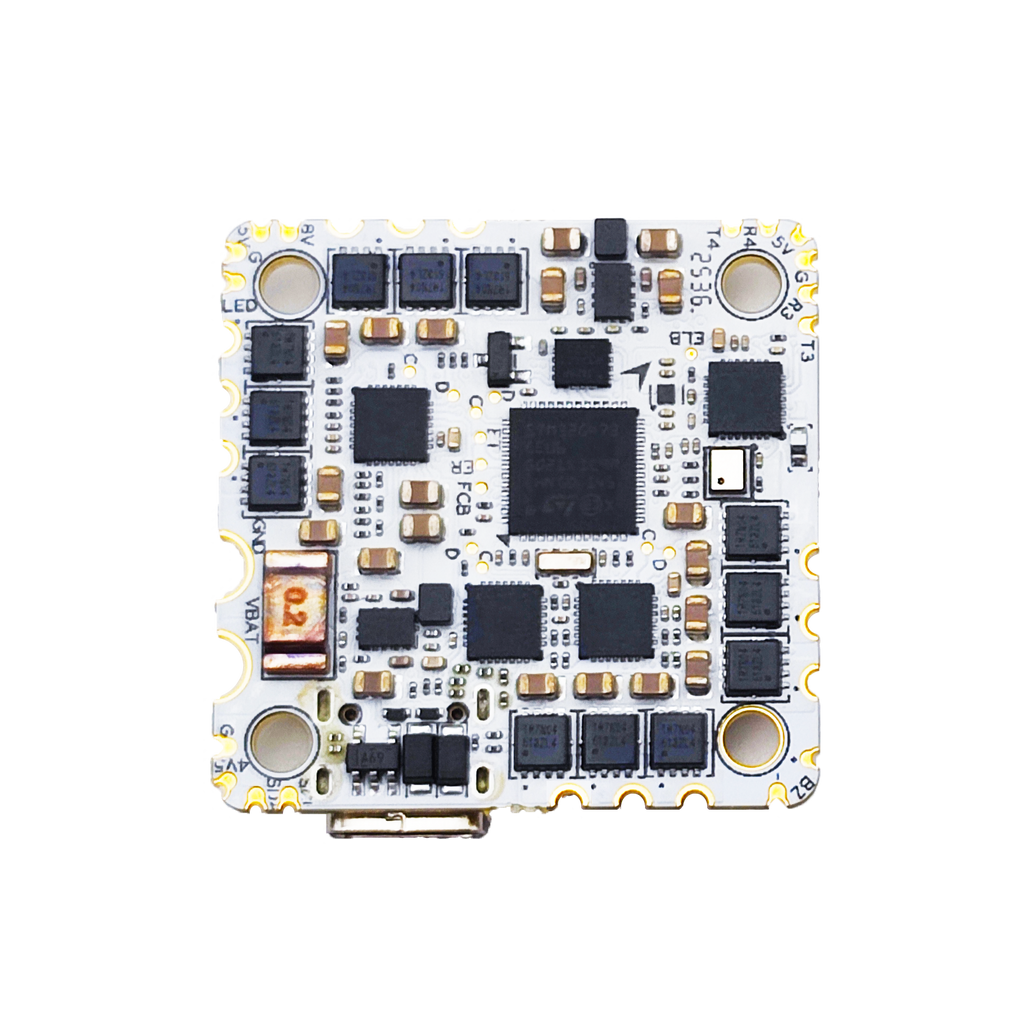

下單前請先聯繫我們確認有無現貨。 HDZero Gamma 45A HD-Ready AIO 25.5×25.5mm for 2.5–4in Digital FPV Builds (3-6s) The HDZero Gamma 45A HD-Ready AIO is a compact, digital-first all-in-one flight controller designed for 2.5–4 inch FPV drones using the popular 25.5×25.5mm Whoop / Toothpick mounting pattern . Built around the STM32G473 MCU , Gamma delivers strong processing headroom for modern Betaflight features while keeping builds clean, simple, and reliable. Integrated ExpressLRS Receiver Gamma includes a built-in serial ExpressLRS 2.4GHz receiver , eliminating the need for a separate RX. This reduces wiring, saves space, and removes one of the most frustrating steps in small digital builds. Designed for Digital Video Gamma is purpose-built for digital FPV systems. A standard digital VTX plug and a protected 8V / 3A high-power BEC make it easy to run modern digital transmitters, including HDZero, DJI, Walksnail, and OpenIPC. A secondary 5V / 3A BEC is available for LEDs and peripherals. The analog OSD chip is intentionally removed to save space and optimize the board for digital-only setups, making Gamma an excellent match for compact digital stacks using VTX's like the HDZero Whoop V2 or HDZero Freestyle V2 . High-Performance 32-bit AM32 ESC The onboard 32-bit 4-in-1 AM32 ESC provides clean, stable power delivery and improved transient response during rapid throttle changes. Each motor output supports 45A continuous with 60A burst capability , helping reduce voltage spikes, brownouts, and component stress. Supports 3-6s batteries for high performance flying. Builder-Friendly Layout All motor and I/O pads are castellated and edge-mounted , making soldering easier and improving serviceability in tight frames - you can even mount the AIO upside down and still access all of the IO pads.…

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
