【HDZero】ECO 輕量數位 FPV 圖傳系統

【HDZero】ECO 輕量數位 FPV 圖傳系統

【HDZero】ECO 輕量數位 FPV 圖傳系統，商品類型為 影像傳輸。

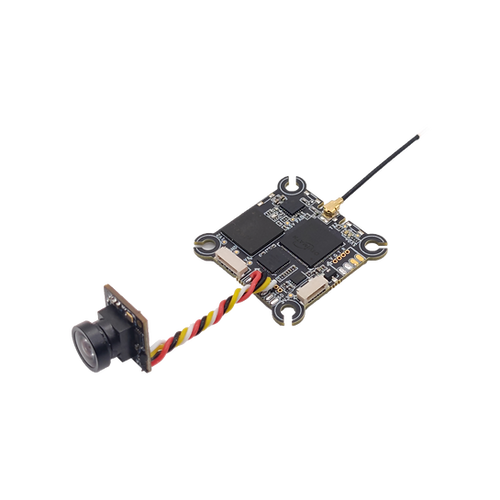

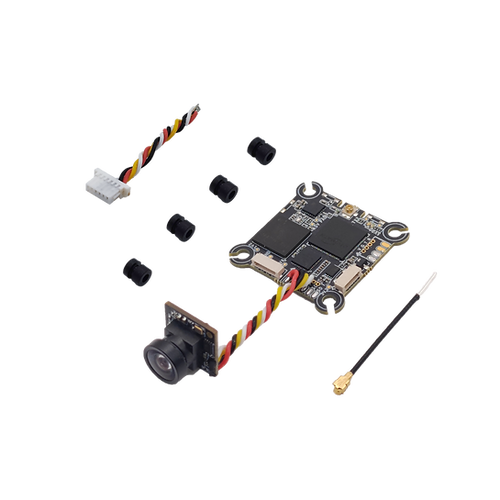

About this product The HDZero ECO FPV System is designed to bring digital FPV to more pilots by offering a low-cost, lightweight, and durable alternative to analog video. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for. This budget-friendly Air Unit is a groundbreaking product - it’s the first VTX/camera combination that utilizes an HD composite video signal, eliminating the need for a delicate MIPI cable. The ECO FPV System was meticulously designed for ultra-lightweight drones like whoops, where every fraction of a gram counts. The camera’s huge 98-degree vertical FOV is perfect for fast indoor proximity flying. The ECO VTX weighs approximately 4.5g, while the camera (including wires) weighs about 1.6g. With the included 0.2g dipole antenna, the entire ECO Bundle weighs about 6.3g. Features 720p Progressive Scan Video with Low Latency Durable and Delicate Cable-Free Composite HD Video Interface Stable Color Reproduction Lightweight Design at 6.3g Affordable Digital FPV Specifications HDZERO ECO CAMERA Dimensions: 14mm wide x 16 tall x 13mm thick FOV: 4:3 D:150° H:120° V:98° Weight: 1.6g with cable CMOS sensor: 1/3” Suggested Settings: Sharpness: 15 Brightness: 45 Saturation: 8 R Surp: 8 HDZERO ECO VTX HD Video Interface: Composite RF Output: 25mW/200mW Soft Mounting: 25 x 25 M2 Weight: 4.5grams Thickness: 4mm Input: 1S-3S Includes 1x HDZero ECO Camera 1x HDZero ECO VTX 4x Grommets 1x Antenna 1x Cable HDZero ECO Bundle 旨在透過提供低成本、輕量且耐用的類比視訊替代方案，將數位 FPV 帶給更多飛行員。 數位視訊訊號具有穩定的色彩再現和720p逐行掃描視頻，並以低延遲HDZero而聞名。 這款經濟實惠的 Air Unit 是一款突破性產品，它是首款利用高清複合視訊訊號的 VTX/攝影機組合，無需精緻的 MIPI 電纜。 ECO FPV 系統專為像 Tiny Whoops 這樣的超輕型無人機而精心設計，每一克都很重要。 這款相機巨大的 98 度垂直視野非常適合快速室內近距離飛行。 ECO VTX 重約 4.5 克，而相機（含電線）重約 1.6 克。 加上隨附的…

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
