【HDZero】AIO15 2S／3S 數位一體式飛控系統

【HDZero】AIO15 2S／3S 數位一體式飛控系統

【HDZero】AIO15 2S／3S 數位一體式飛控系統，商品類型為 飛控／電調。

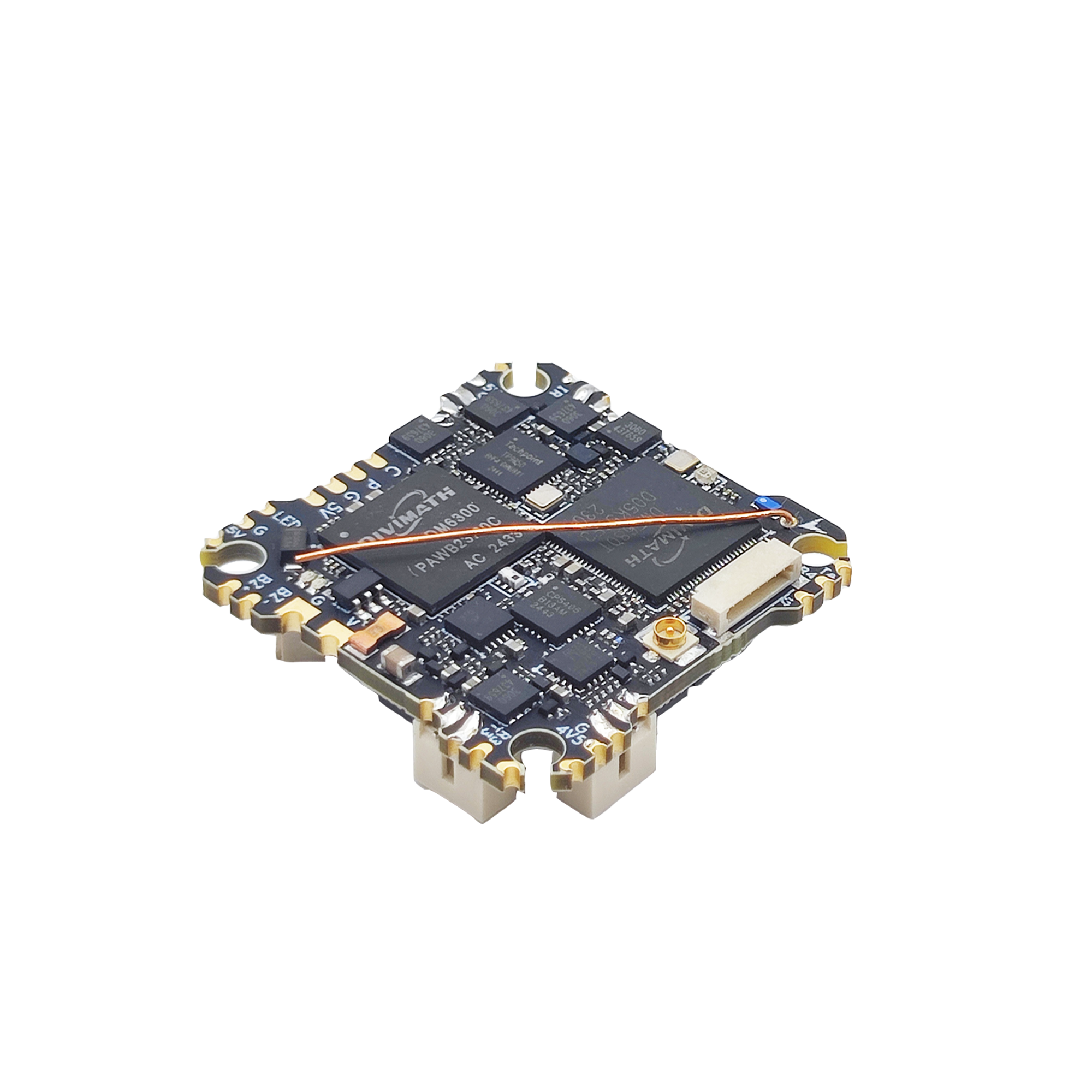

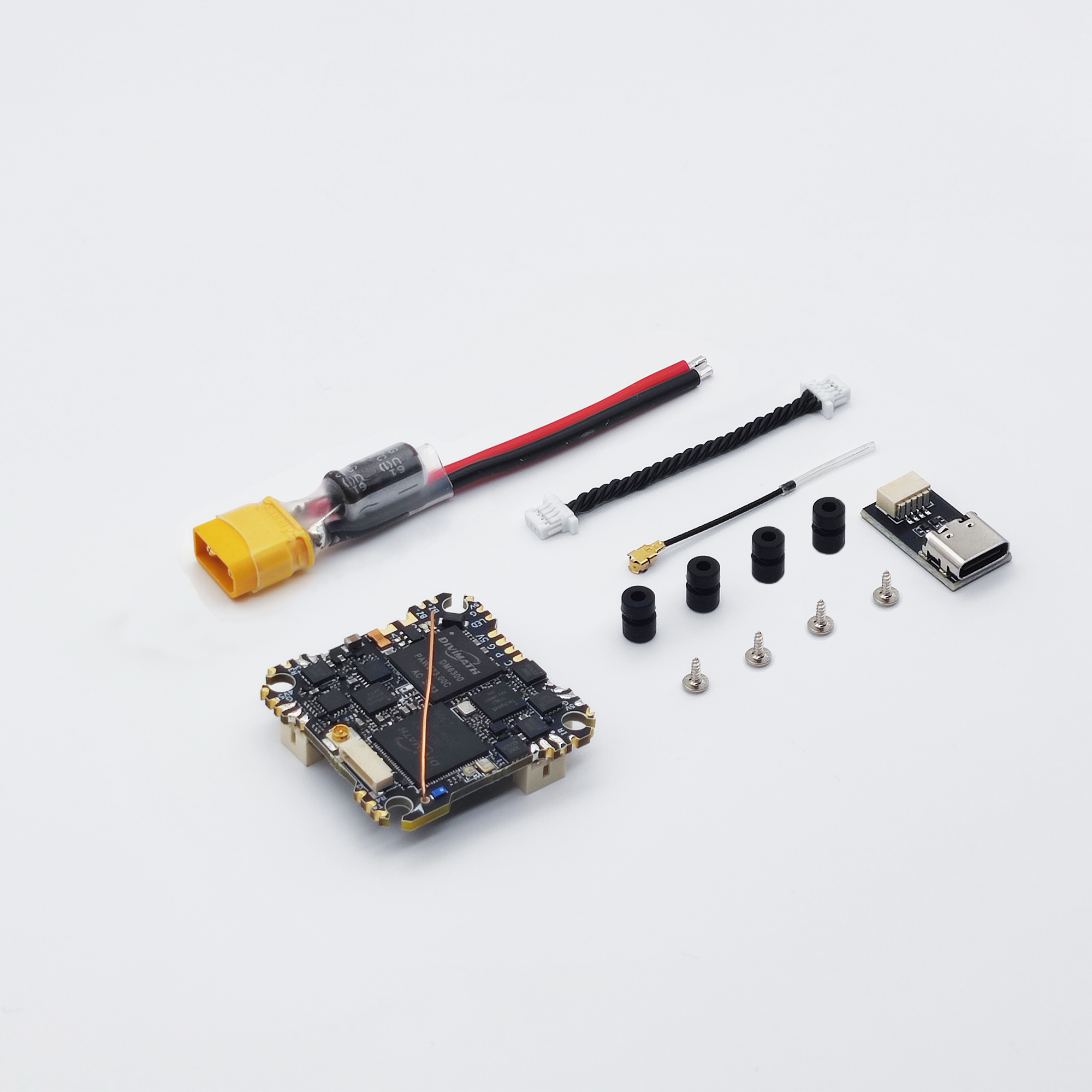

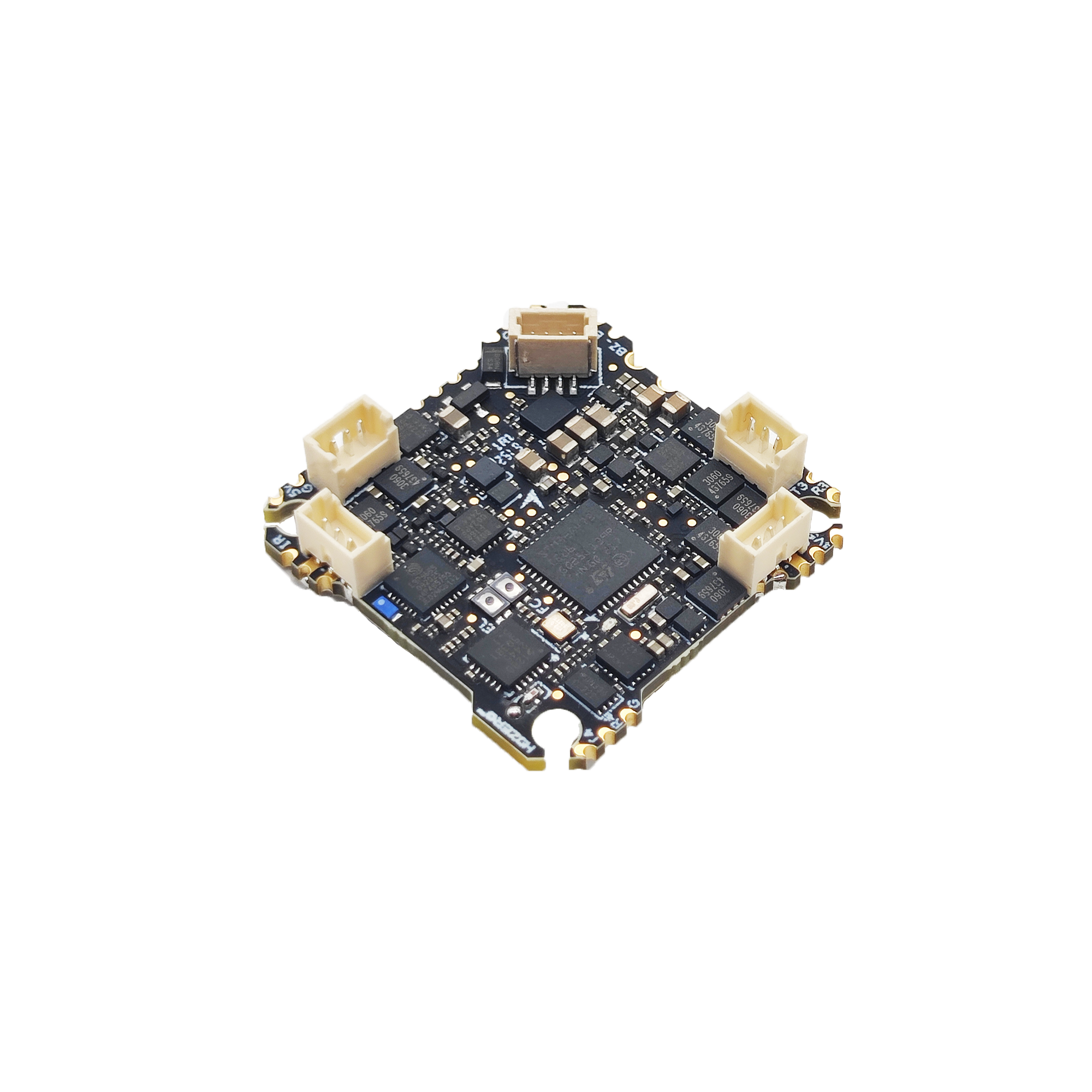

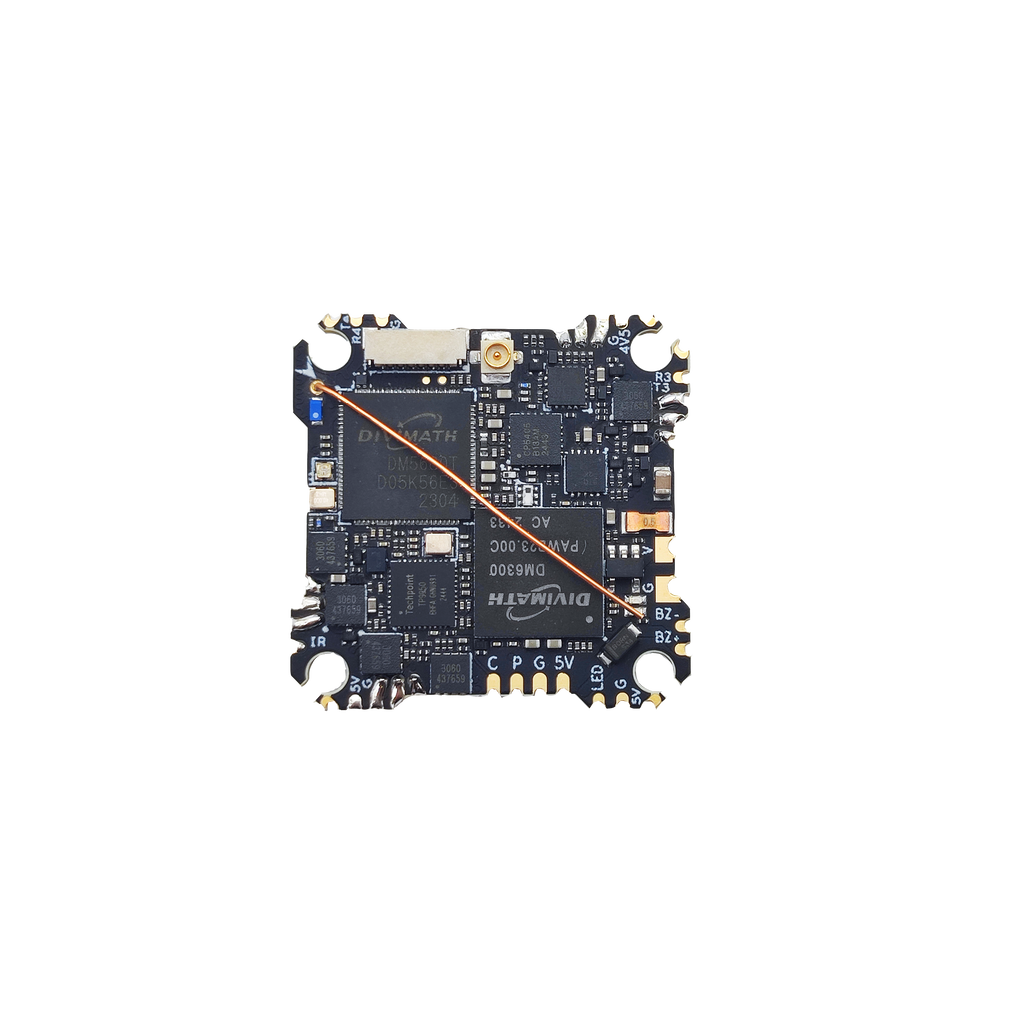

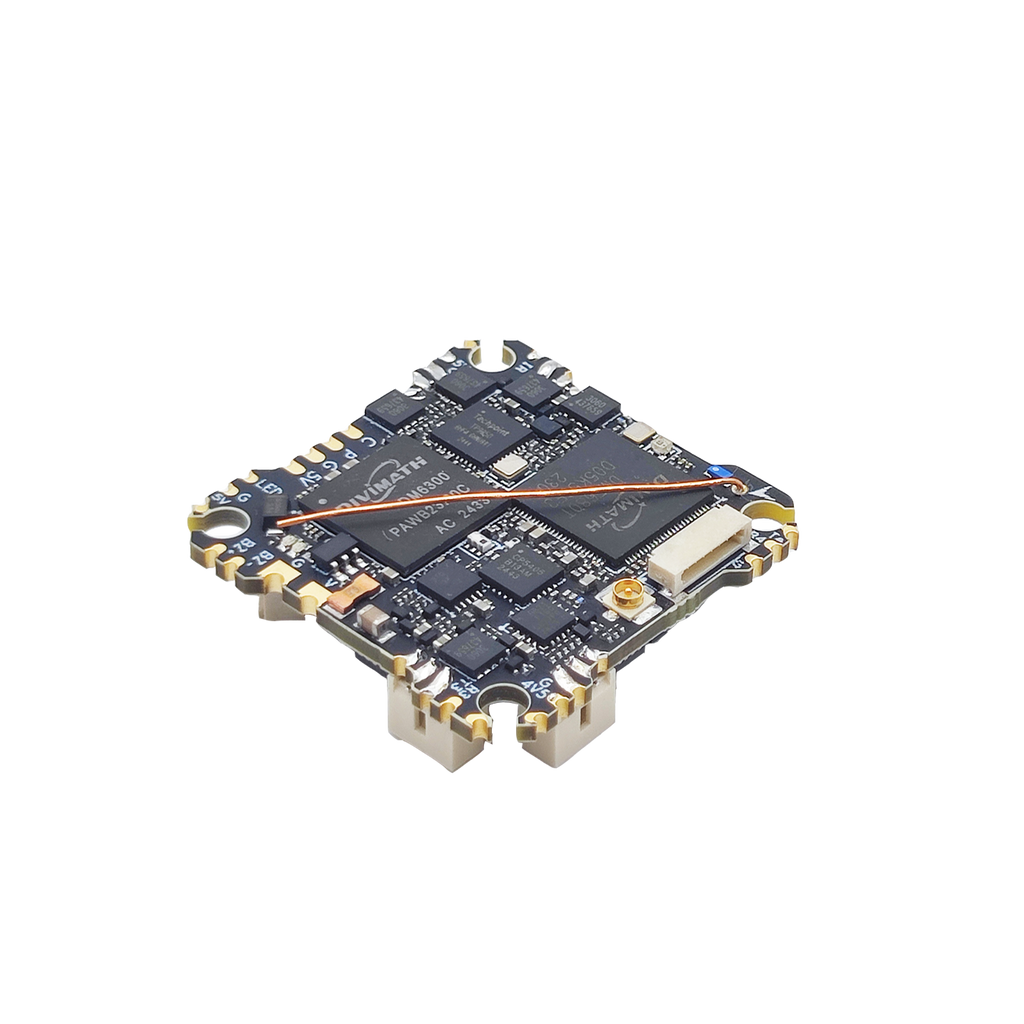

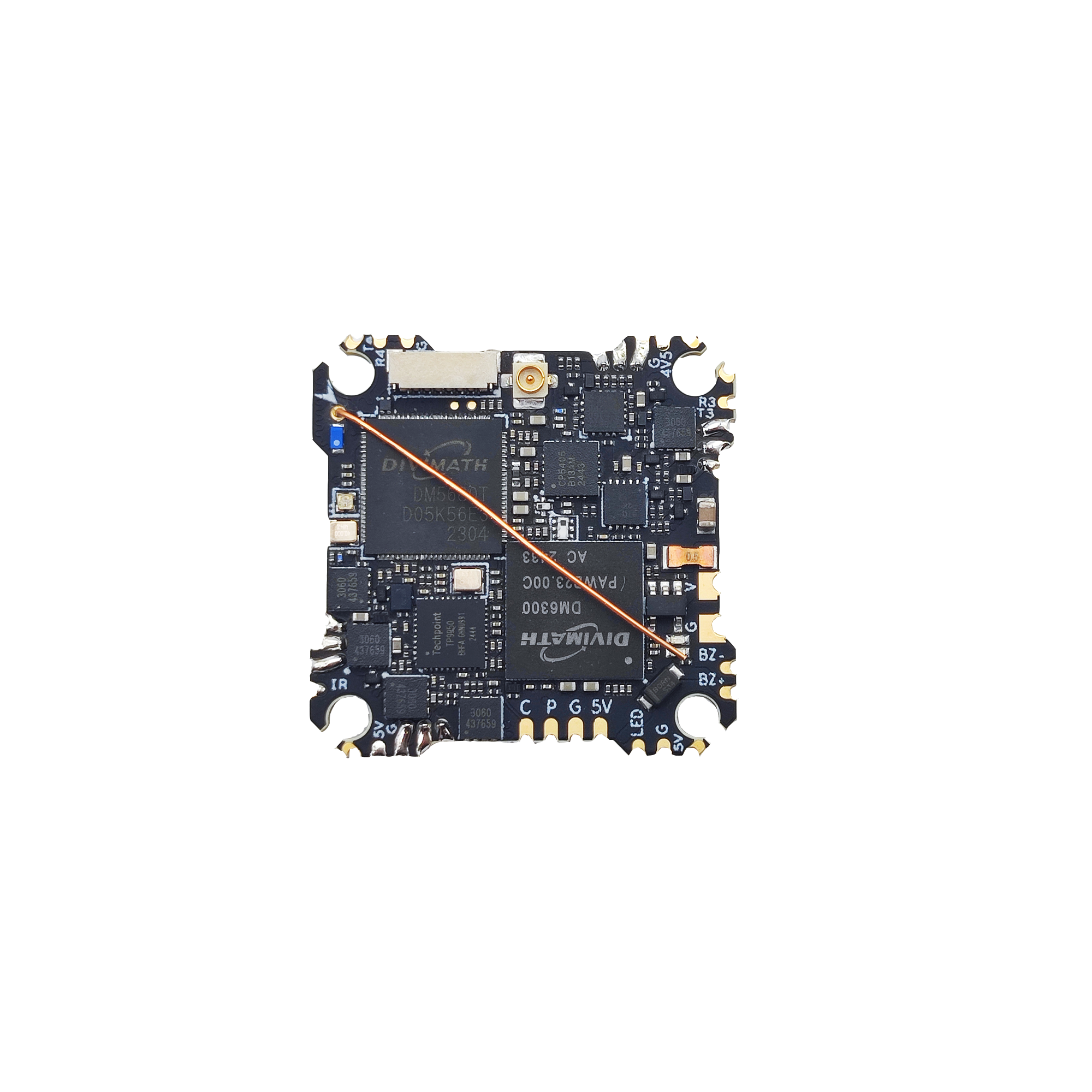

下單前請先聯繫我們確認有無現貨。 The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds . It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board. With an integrated 15A 4-in-1 ESC , the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for. Designed in Response to Pilot Feedback Pilots loved the convenience and weight of the HDZero AIO5 , but wanted more power and voltage flexibility. The AIO5 was limited to: 5A ESCs 1S voltage only The AIO15 solves this with: 15A ESCs (18A peak) 2S-3S battery support Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for. Notes AIO15 inputs HD composite video via a single wire instead of a MIPI cable, compatible with LUX/Eco Camera. Key Features Integrated HDZero 5.8GHz Digital VTX Output Power: 25mW / 200mW Channels: R1- R8, F2/F4, L1 - L8 U.FL connector with included ultra-light linear antenna Built-in Serial ExpressLRS 2.4GHz Receiver Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz) Pre-soldered enamel wire antenna Flight Controller MCU: STM32G473 @170MHz, 512K Flash Gyro: ICM42688 Onboard voltage and current sensing Firmware target: HDZERO_AIO15 4-in-1 15A ESC MCU: EFM8BB21 Current: 15Ax4 continuous, 18Ax4 peak (3s) BlueJay firmware (Z_H_30_48_v0.19.2) DShot600 ready 5V BEC 5V @ 1A output for accessories and…

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
