【HDZero】類比／HDZero 轉接器

【HDZero】類比／HDZero 轉接器

【HDZero】類比／HDZero 轉接器，商品類型為 FPV 配件。

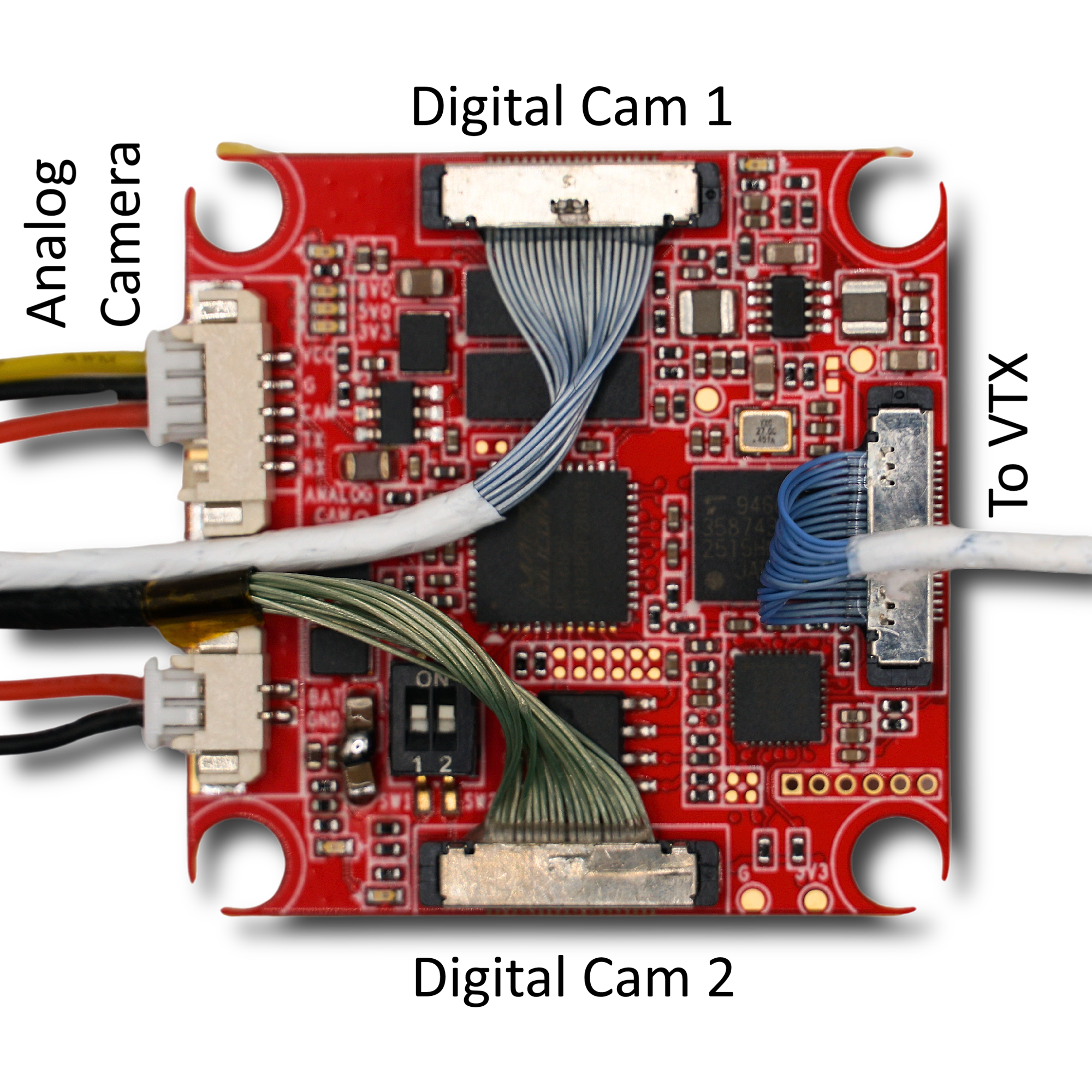

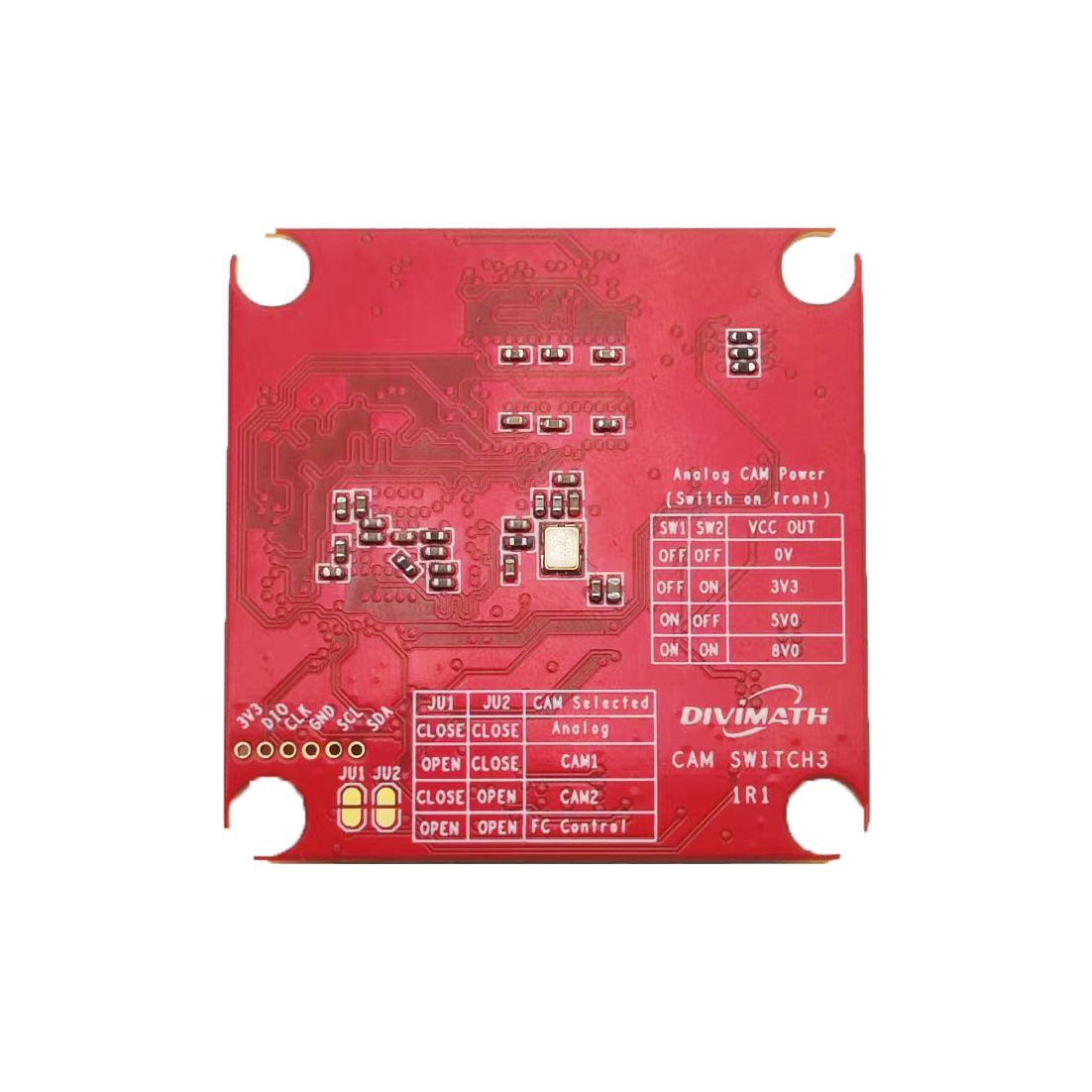

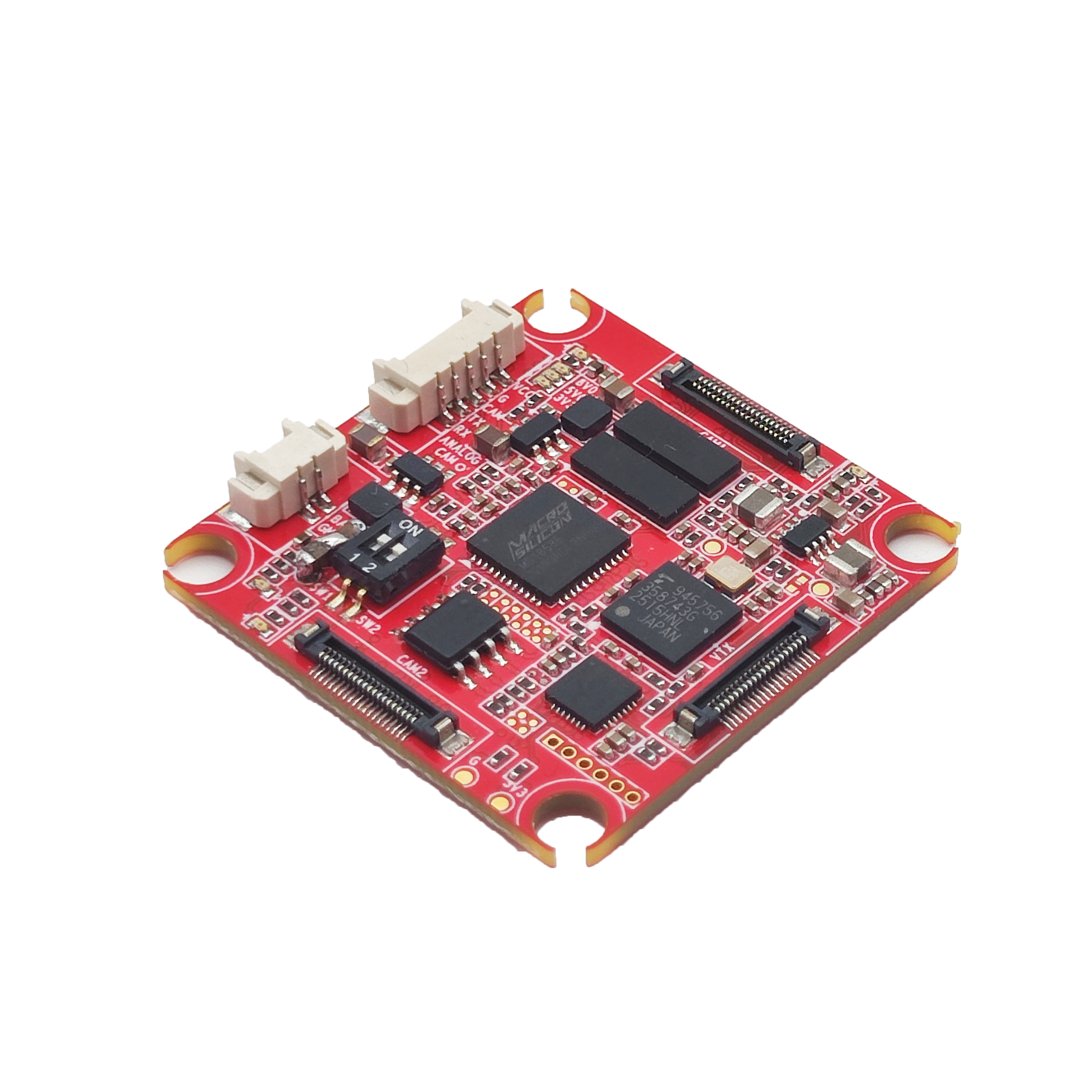

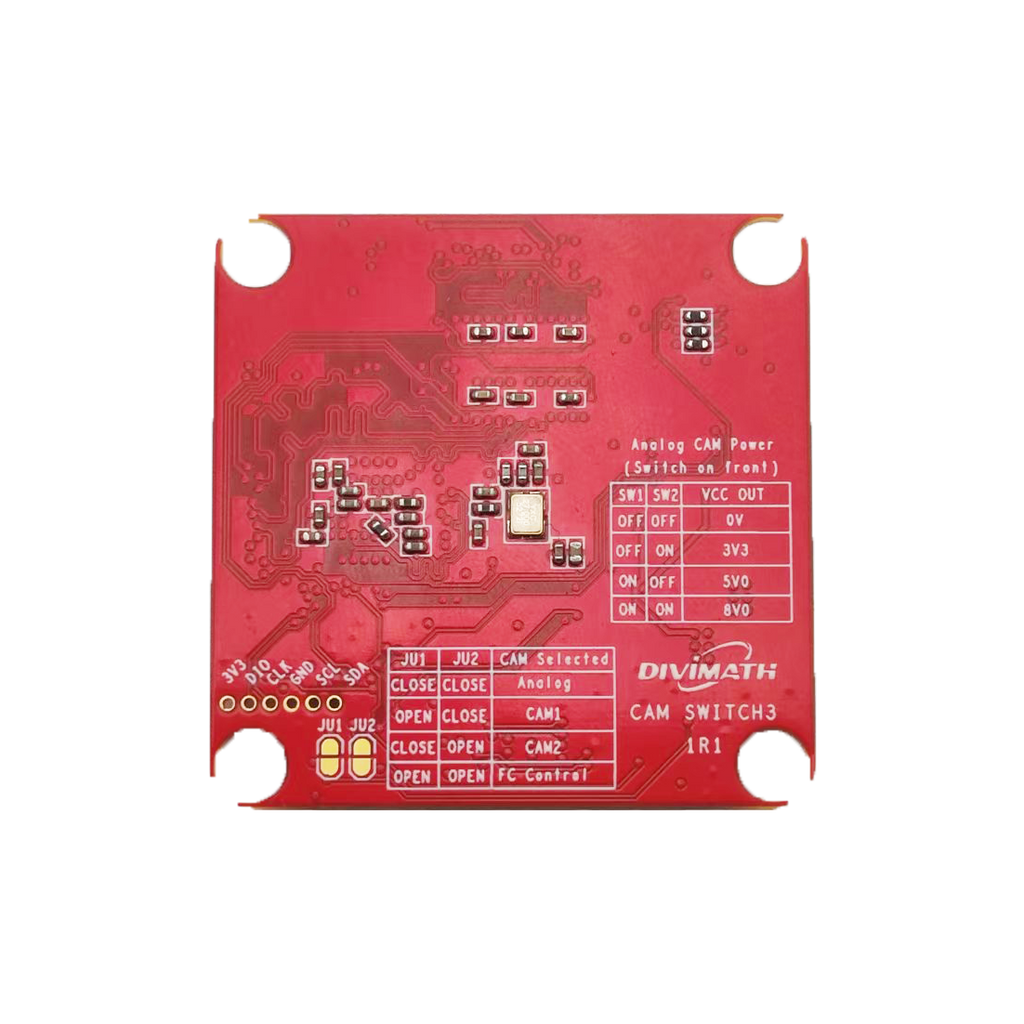

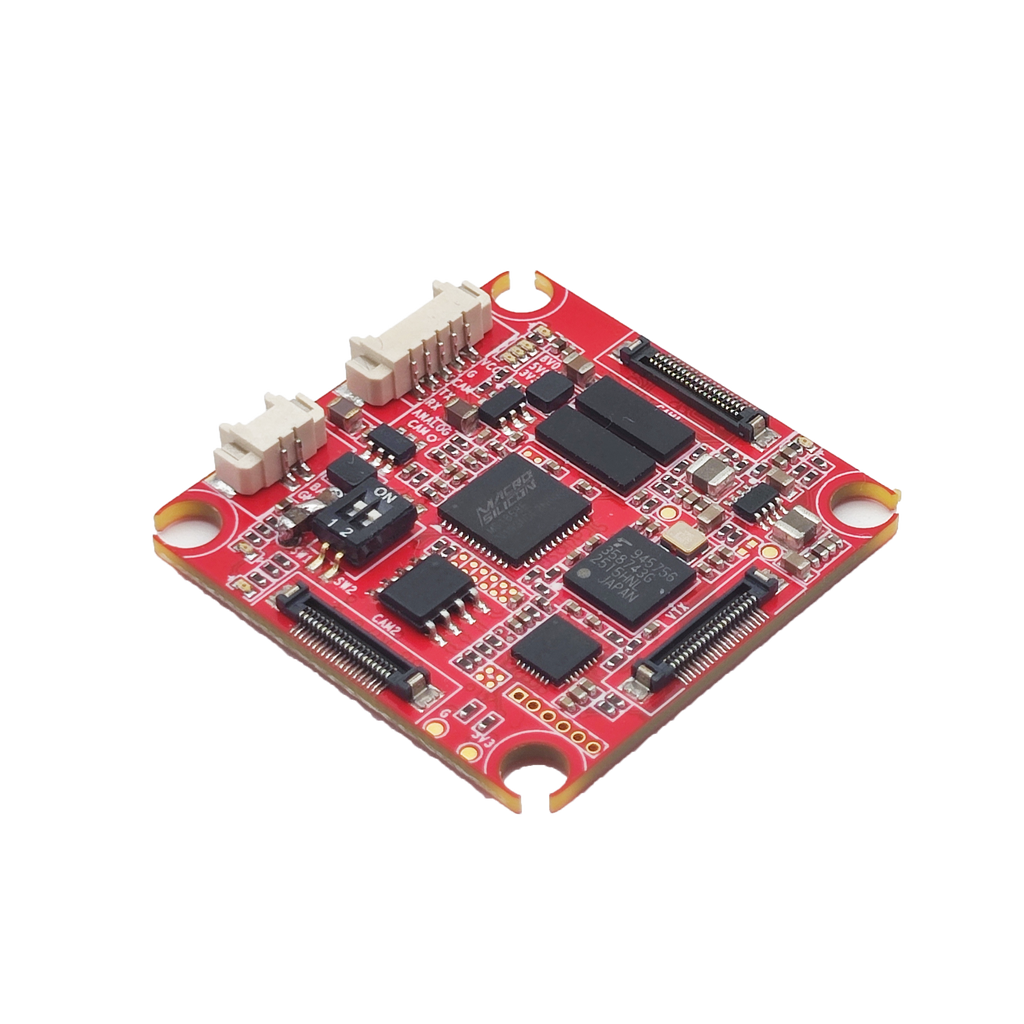

下單前請先聯繫我們確認有無現貨。 Analog / HDZero Camera Adapter The Analog / HDZero Adapter allows analog cameras to be used with HDZero digital video systems by converting standard CVBS NTSC analog signals into a digital MIPI format compatible with HDZero VTXs. In addition to analog conversion, the adapter functions as a 3-to-1 camera switcher, supporting mixed camera configurations in a single system. Key Features Converts analog CVBS NTSC camera signals to digital MIPI for HDZero VTXs Integrated 3-to-1 camera switcher Supports two digital MIPI cameras and one analog camera Seamless camera switching via firmware and flight controller integration Ideal for multi-camera setups and mixed analog/digital builds 30x30 soft mounting Camera Switching Camera switching can be achieved in several ways: manually with dip switches or via software. The simplest method is software-based FC control, which integrates directly with Betaflight. Switching can be assigned using Betaflight’s Cam1 / Cam2 / Cam3 switch mode options for quick and reliable camera selection. Requirements HDZero VTX firmware v1.7.1 or higher Analog cameras must output CVBS NTSC video This adapter provides a flexible solution for pilots who want to combine analog and digital cameras while remaining fully within the HDZero ecosystem.

下單前請確認型號、版本、接頭、供電與 HDZero 系統相容性；安裝或接線前請先斷電。
