GEPRC MATEN 1.2G 2W VTX｜FPV 圖傳設備

GEPRC MATEN 1.2G 2W VTX｜FPV 圖傳設備

GEPRC 官方FPV 圖傳設備，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The MATEN 1.2G 2W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 4 adjustable power levels and a maximum power of up to 2000mW.The transmission signal is very stable and the penetration ability is excellent.

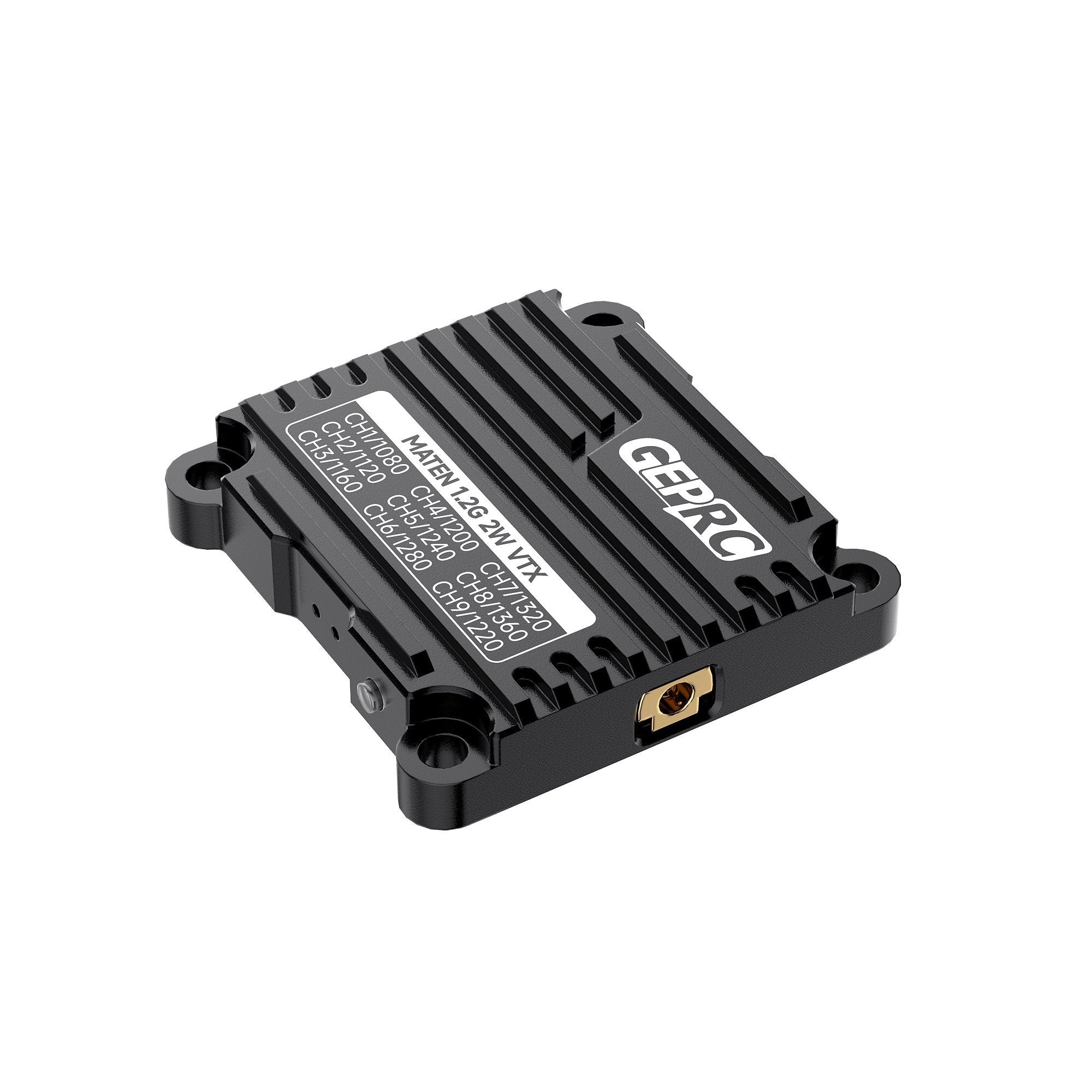

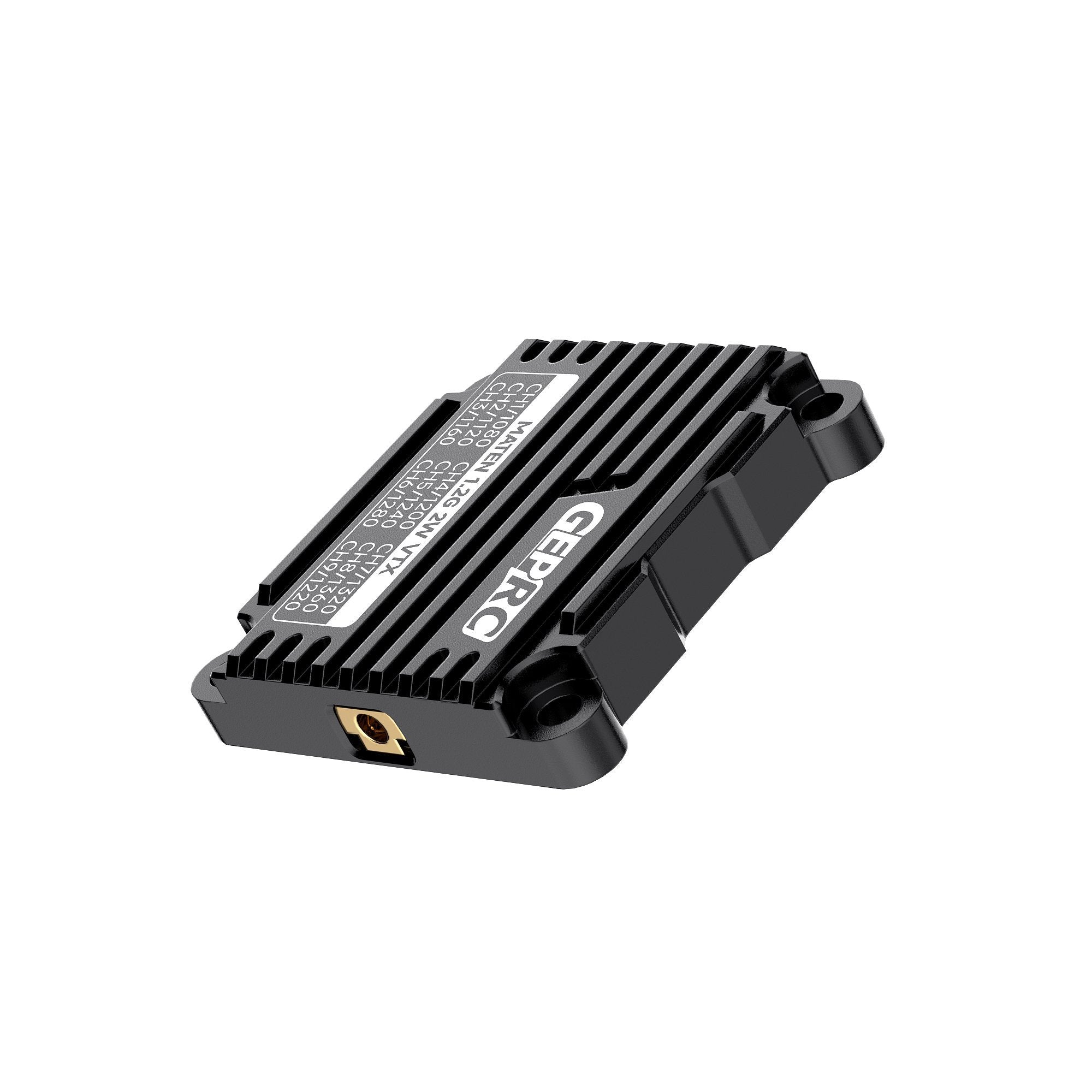

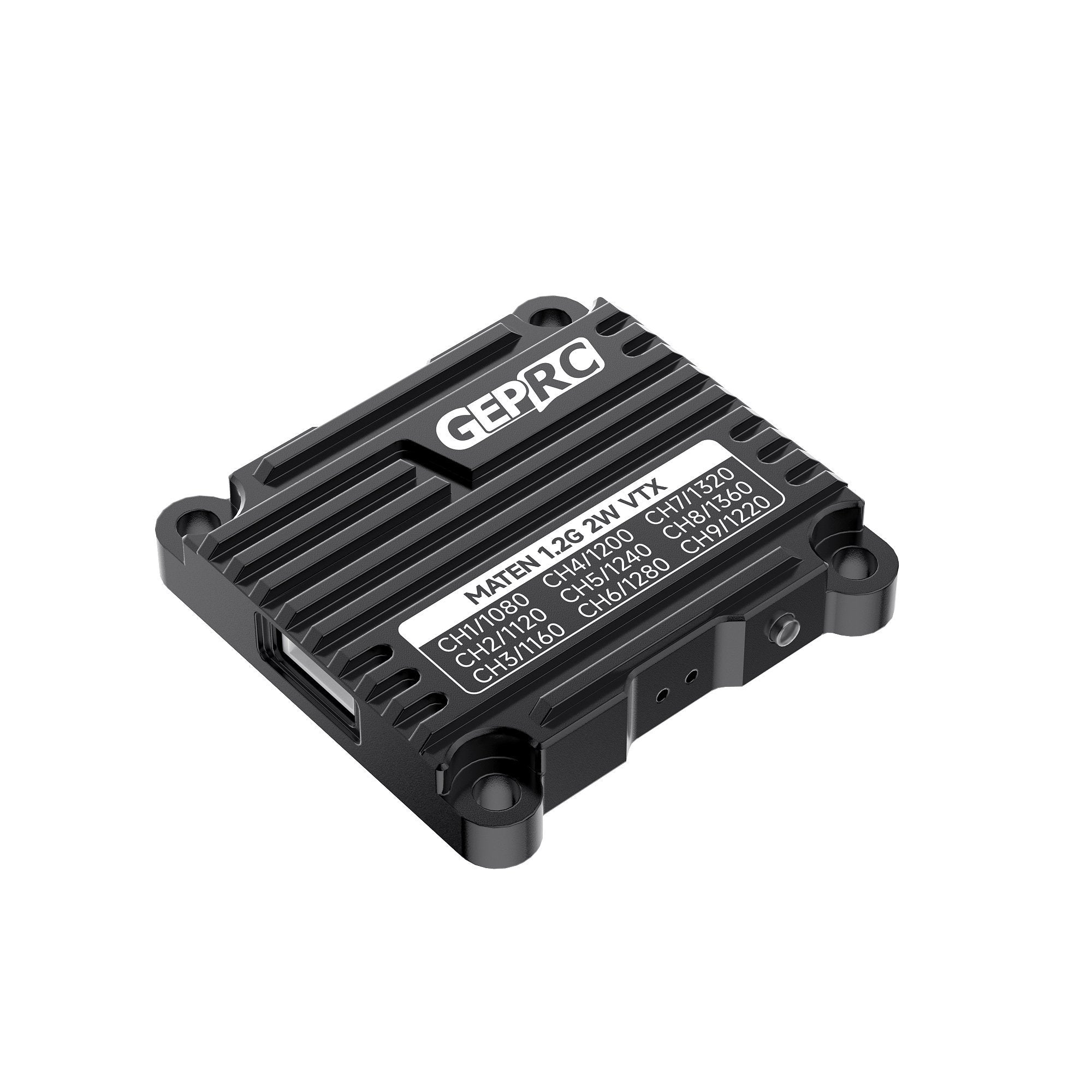

MATEN 1.2G 2W VTX uses high-strength aluminum alloy CNC shell to assist heat dissipation.The unique appearance design stronger impact resistance and better heat dissipation performance.

It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.

It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burnin

g.Support 30.5×30.5mm(M3) insta

llation hole position.

Feature

Four levels of adjustable power, up to 2000mW, suitable for long distance flight

optional channels

Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation

Wide voltage input, Supports 7V-36V Voltage input.

One function buttons, two indicator lights, easy to control.

VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

Temperature control protection function that can prevent high temperature burning

Support

30.5×30.5mm(M3)

installation hole position

Specifications

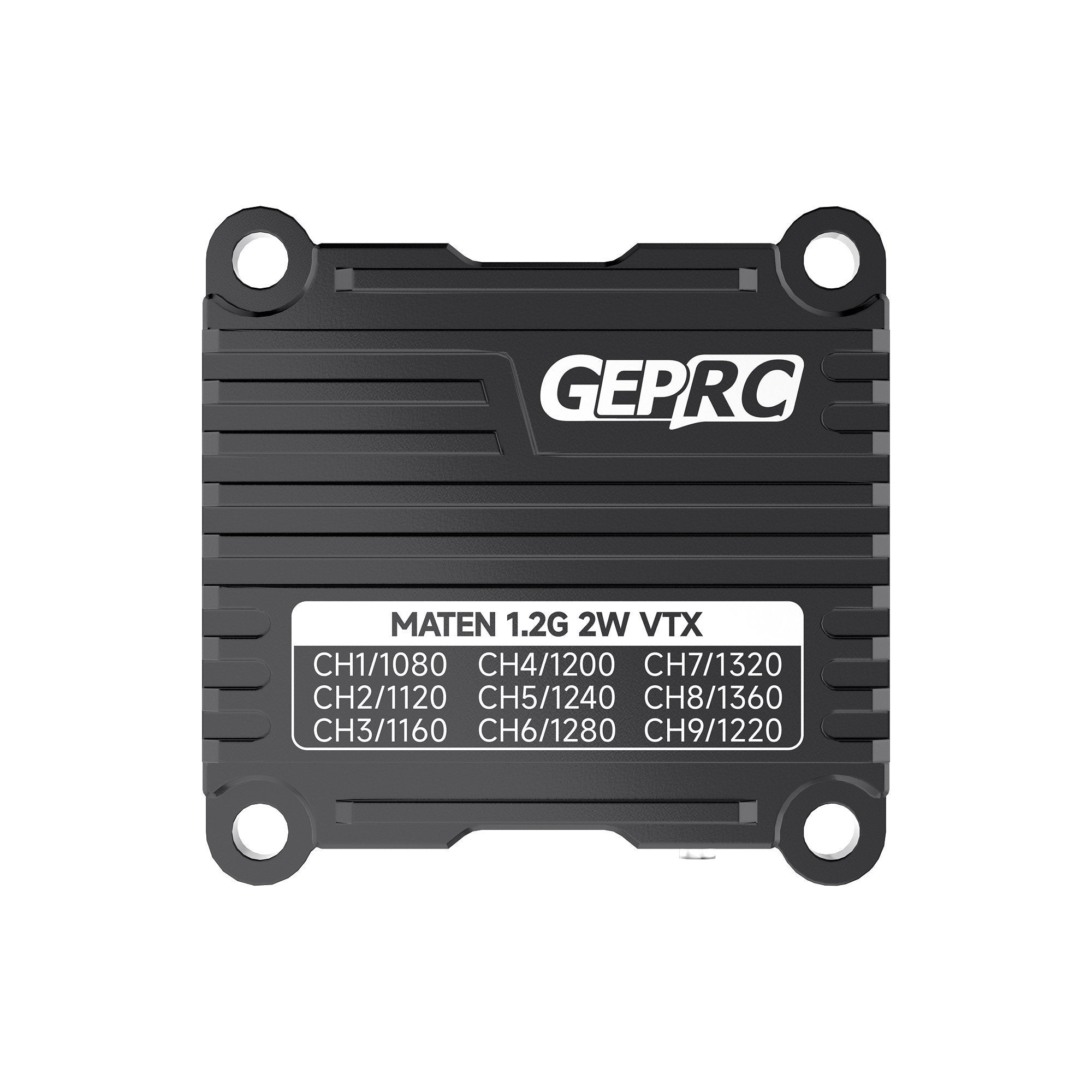

Model：GEPRC MATEN 1.2G 2W VTX

Size：

36.4×36.4

x7.4mm

Mounting hole：30.5×30.5mm(M3)

Frequency band：1080MHz-1360MHz

Channel customer：9

Channel Frequency：1080/1120/1160/1200/1240/1280/1320/1360/1220(MHz)

Output power：25mW/400mW/800mW/2000mW/Pit mode

Frequency Stability：±100KHz (Typ.)

Frequency precision：±200KHz (Typ.)

S/N(Fo±3MHz)：>70dBc

Antenna Port：50 Ohms

Input voltage：DC7-36V（2-8S Battery）

Output voltage：5V@600mA

Protocol：IRC Tramp

Antenna interface：MMCX

Cable interface：sh1.25 6pin

Video format：PAL/NTSC

Operating Temperature：-10℃~+60℃

Weight：14.5g（VTX only）

Notes

Install Antenna before use.

To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

Includes

1 x MATEN 1.2G 2W VTX

1 x MMCX to SMA（internal needle）connector

1 x 1.2G antenna(SMA inner hole)

1 x sh1.25 6P Connecting cable

5 x M3*7 screws

5 x M3*8 screws

5 x M3 x 10 hexagon

5 x M3*5 isolation column

5 x M3 nylon nut

1 x product description
