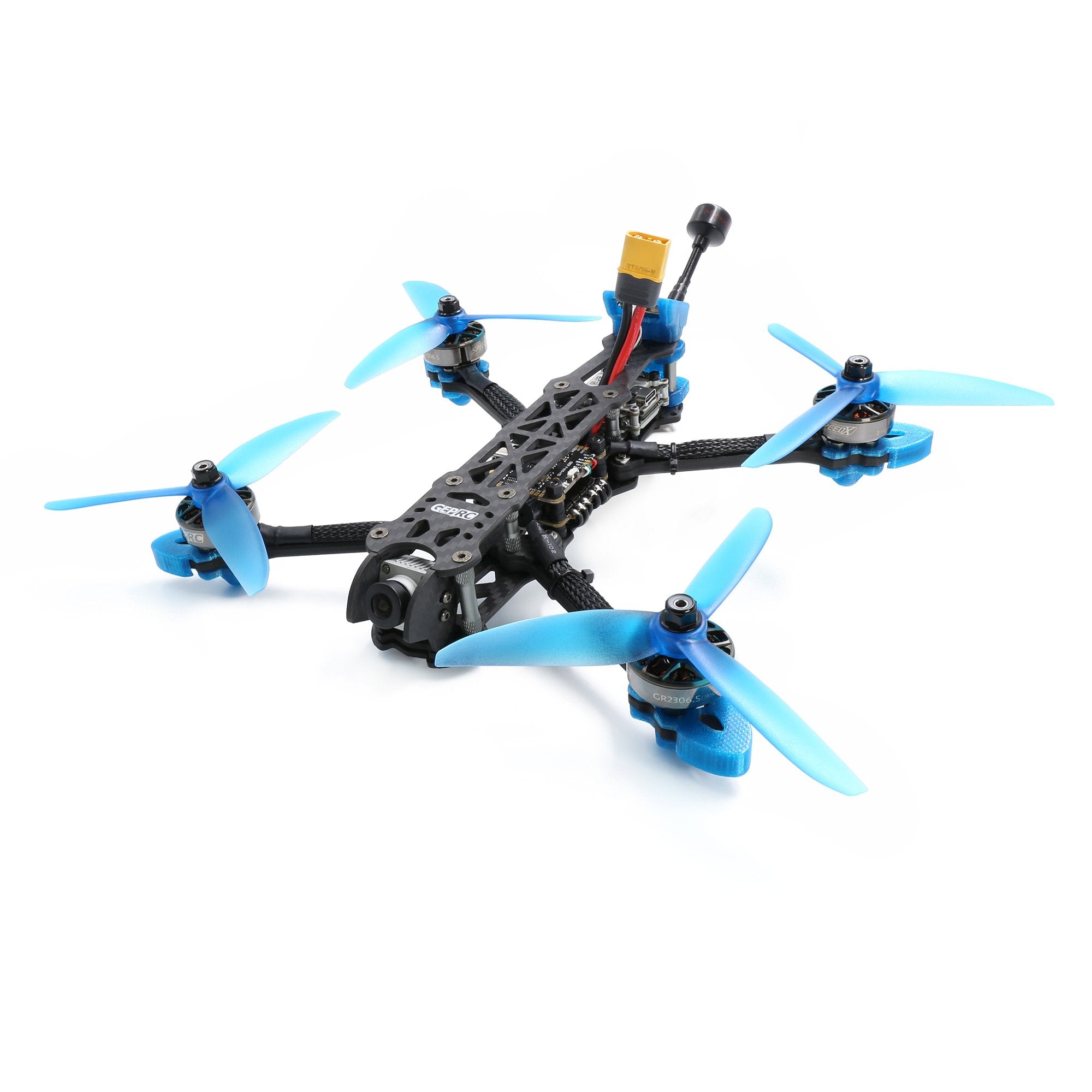

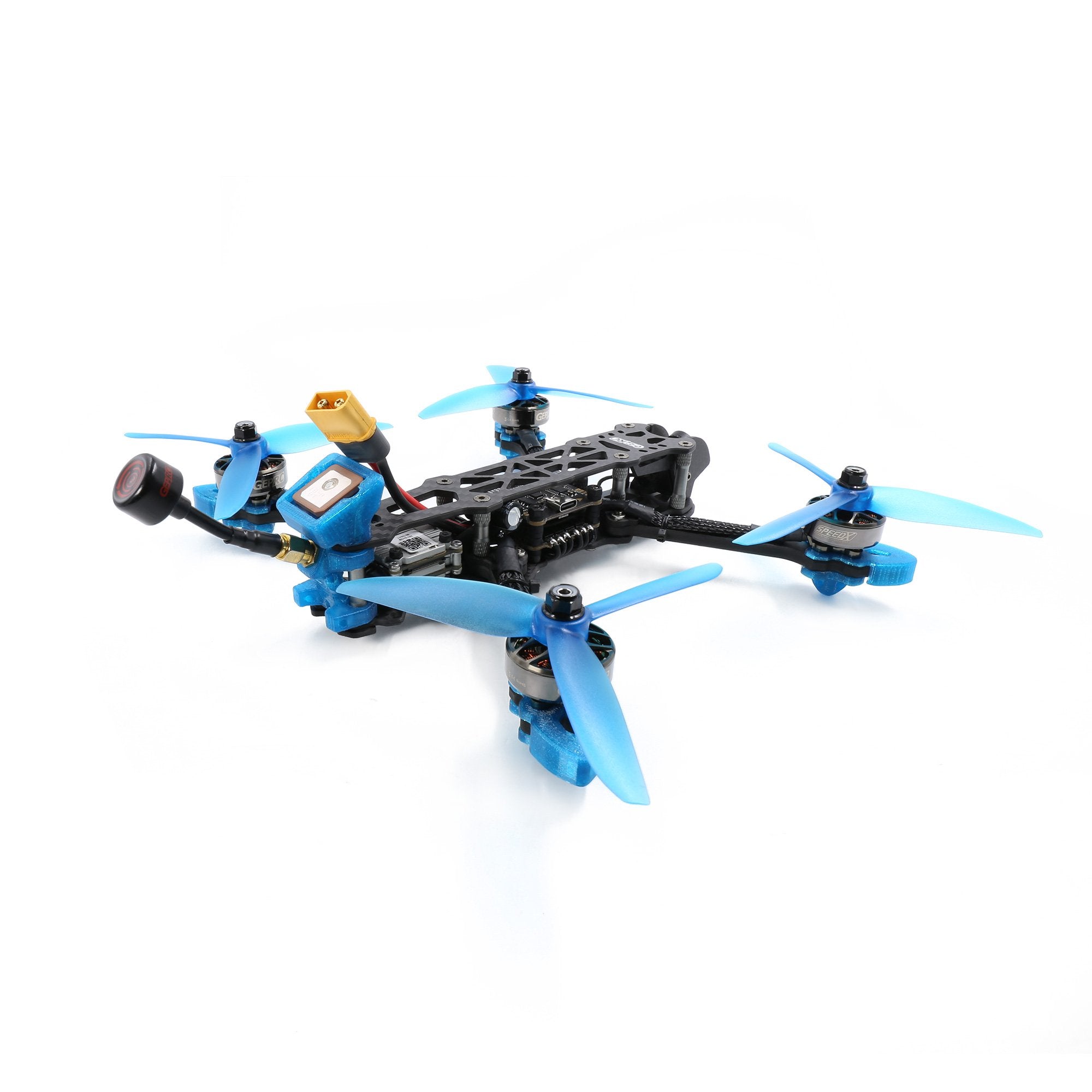

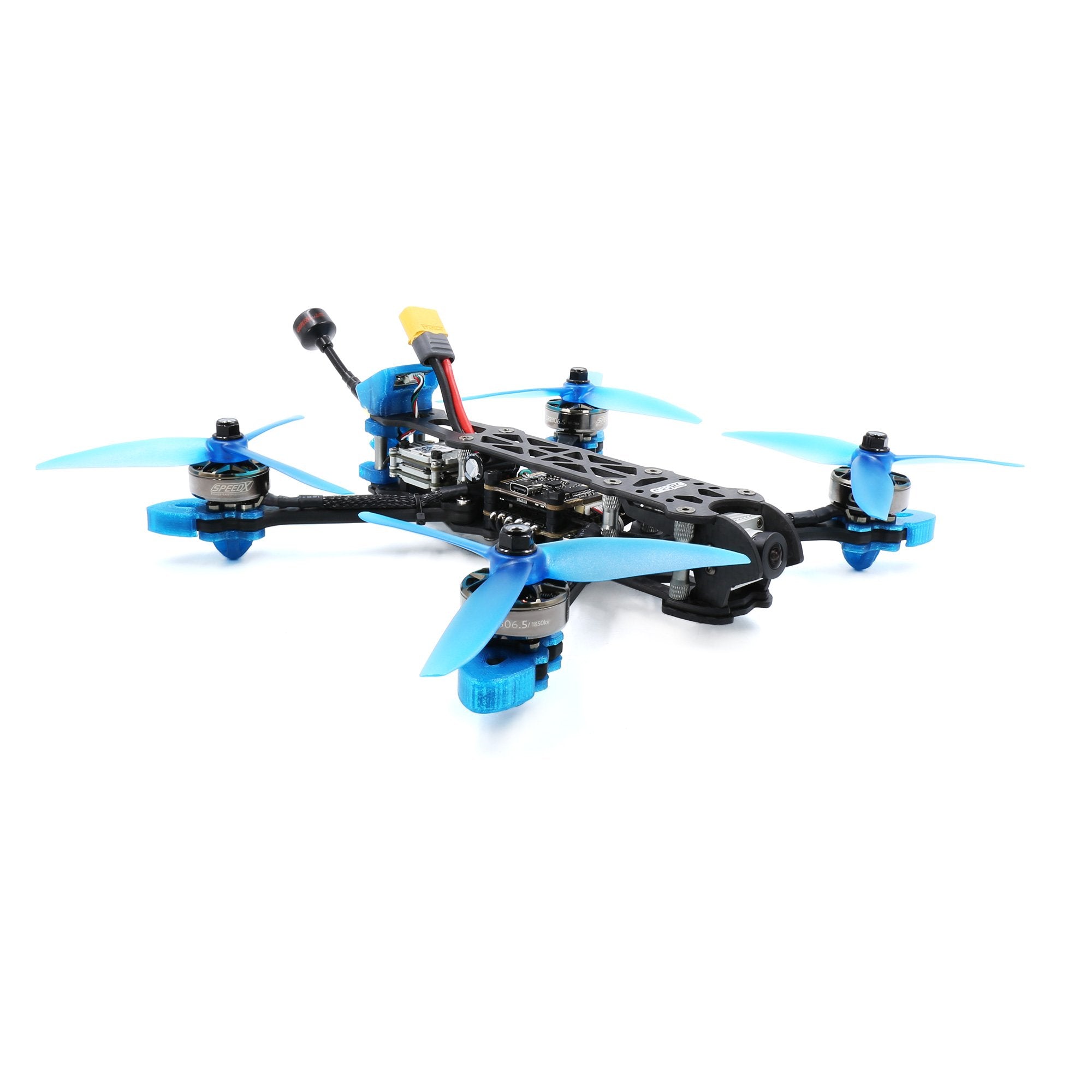

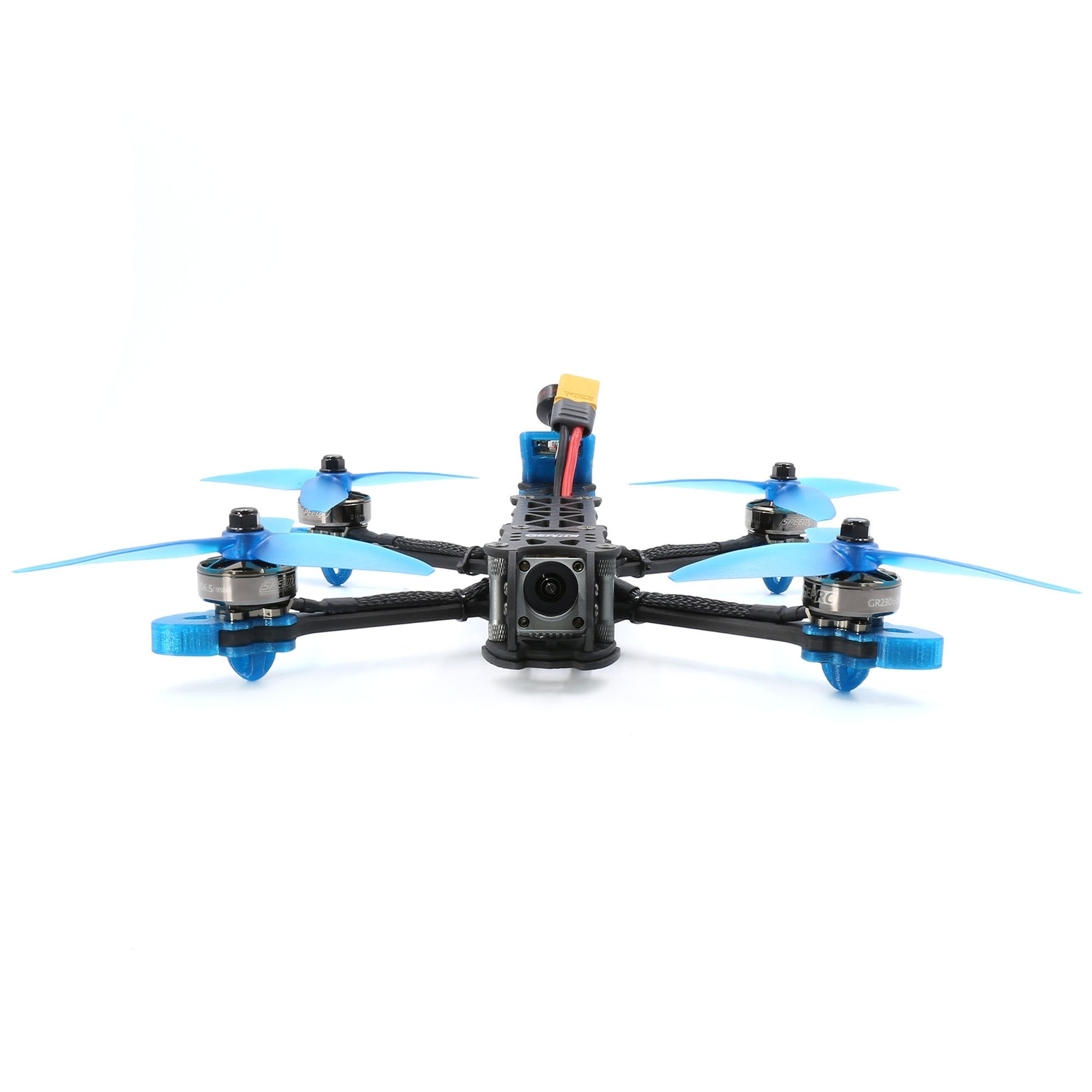

GEPRC MARK4 HD GPS FPV Drone|FPV 穿越機
GEPRC 官方FPV 穿越機,已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。
https://www.youtube.com/watch?v=bioyzUVnm8E&fbclid=IwAR0zoUHSRIGA3dCShdCKjXXc-ajOoKAzx1CLzRml46fSMupKOcTVOjL4Ym0
Introduction:
Today, The latest Mark4 HD GPS has finally launched. After abundant of time testing by GEPRC team, so happy to see it. Mark4 HD GPS is mainly used for daily freestyle flying or taking HD video of long-distance flight. Using the latest GEPRC Span F405 HD flight control system, Combined with Caddx Polar Vista HD transmission system, it can bring extreme stable experience with delicate feel.
Mark4 HD GPS has an independent GPS seat with a GPS module. When the signal lost or VTX losing control, Rescue mode of betaflight can be activated (in emergency, the FPV should fly back to the approximate position of the base; When the signal is obtained again, You should operate the FPV and let it land manually.) ,The Rescue mode cannot land automatically.
In terms of POWER, it is equipped with the new upgraded G2306.5 motor, There are two versions : 4S and 6S . The 4S uses 2450kv and the 6S uses 1850kv. The flight time of 4S is about 40 seconds shorter than 6S.
Mark4 HD GPS is professionally assembled and tested by GEPRC team, The frame has optimum structure quality, durability, and stability.
It’s incredible how fantastic freestyle
Features:
Ultra-lightweight design
Integrated GPS, able to return to base in emergency
Caddx Polar Vista HD FPV(Low Latency Mode (720p 120fps): 21-28ms)
Full 3K Carbon Fiber
Black Box: 8Mb onboard flash memory.
GR2306.5 Motors
A little props in view
Full Soft Mounted FC System: Provides a clean operating environment for gyro.
Exquisite Assembly Process: Eliminate any potential installation problems.
Weight:392g without battery
Receiver:PNP(DJI receiver) / Frsky R-XSR / Frsky XM+ / TBS Nano RX
Specifications:
Frame:
MARK4 HD GPS Frame kits(Improved version)
Full 3K Carbon Fiber
Motor to motor:225mm
Size:138*176mm
Mounting Holes: 30.5*30.5mm/20*20mm
Arms plate : 5mm
Side plate : 2.5mm
Top plate : 2.5mm
Bottom plate : 2.5mm
Protect plate : 2mm
Power System:
4S Battery
:
Motors:
GR2306.5 2450KV
Battery:4S 1300~1550mAh
6S Battery:
Motors
:
GR2306.5 1850KV
Battery:6S 1050~1300mAh
Propeller
:
GEPRC G5x4.3×3
Electronic System
Flight Controller:
GEP-F405-HD
MCU: STM32F405
Gyro: 6-Axis
DJI FPV Air Unit Supported.
BlackBox: 16Mb onboard Flash
Type-C USB interface
OSD: BetaFlight OSD w/ AT7456E chip
Baro:BMP280
BEC Output: 5V,9V BEC
Integrated LC Filter
Firmware target:GEPRCF405
Size: 36x36mm board, φ4mm with Grommets φ3mm
6x UART
BL32 50A ESC 4IN1
:
MCU: STM32FO51K86(32bit 48mHz)
Continuous Current: 50A
Peak Current: 55A (5S)
Current sensor: YES
Telemetry:Supported
Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
Firmware Version:GEPRC-BL32-4IN1
Input Voltage: 3-6S Lipo
BLHeliSuite download:
http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
You might need the following equipment to fly
Remote control: You can choose: Frsky X9d or something like that
Goggle: DJI HD Goggle Only
Battery: The recommends using the 4S 1300mAh battery.
Include:
1x MARK4 HD GPS Quadcopter
