Summary

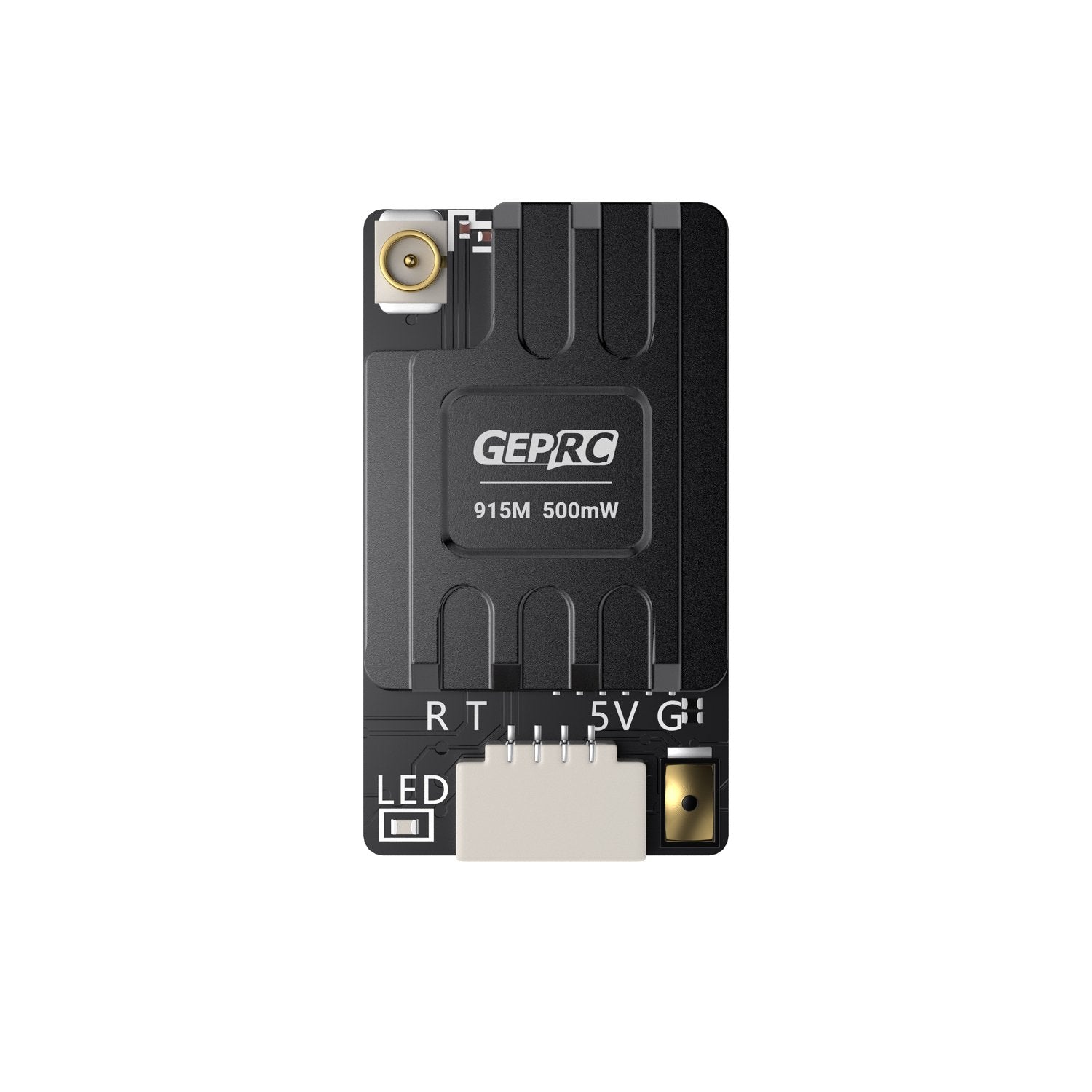

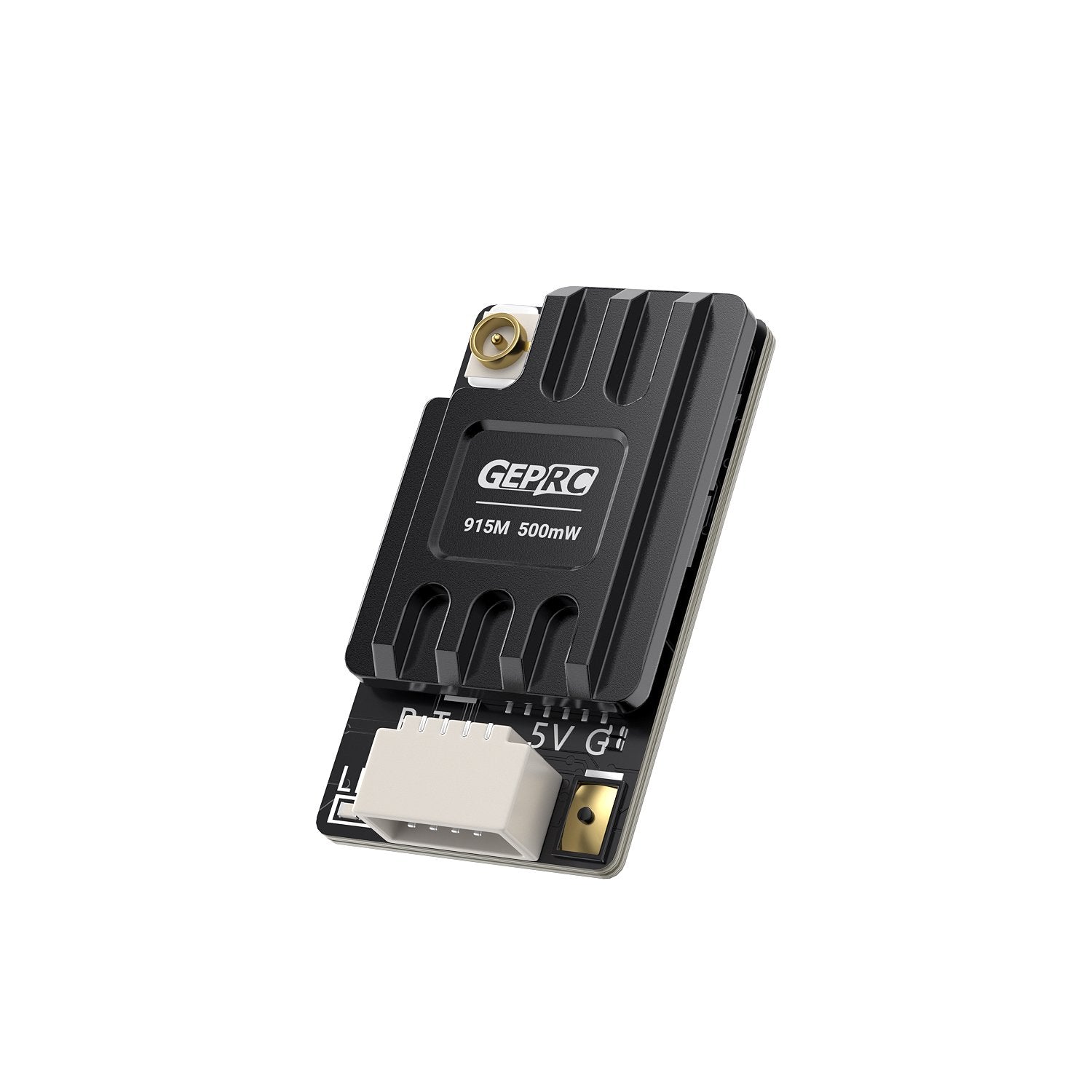

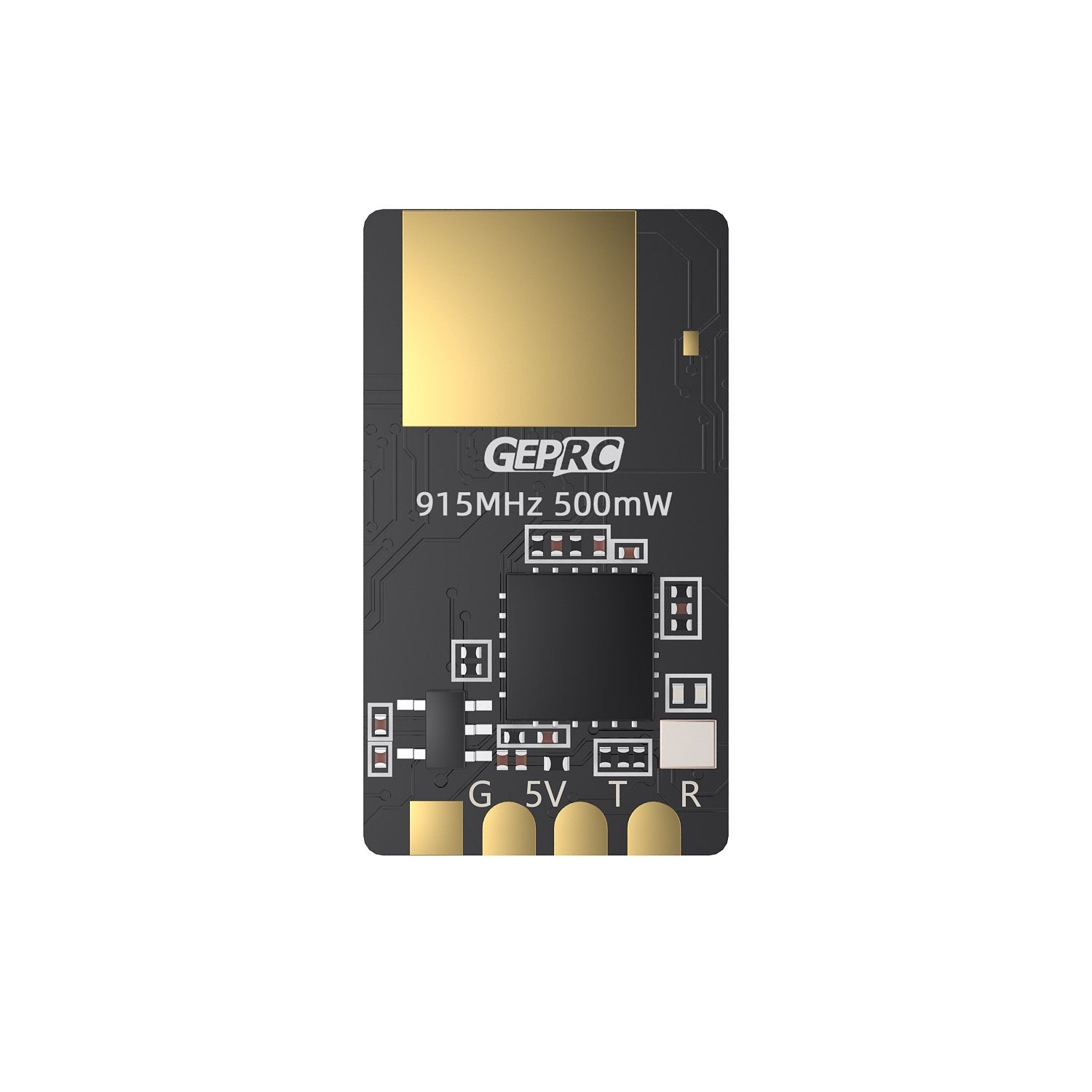

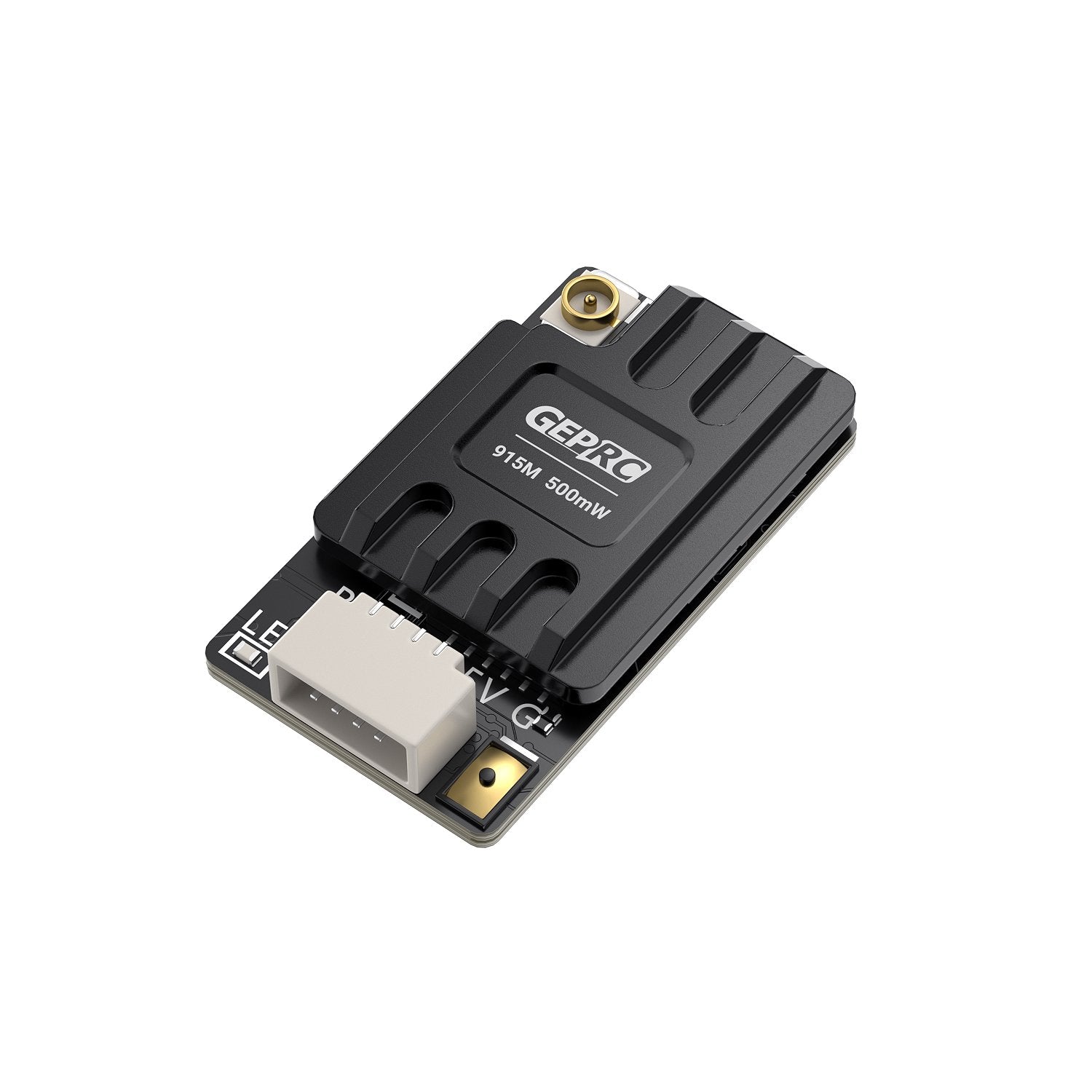

The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.

The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Feature

Compact size of 13x23x5.5mm

Weighing only 1.9g

WIFI firmware upgrade

ELRS open-source project, long-range remote control

Maximum refresh rate of 200Hz

Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations

Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW

Equipped with an sh1.0 connector for easy installation

Adopts an aluminum alloy CNC shell to optimize heat dissipation

Specifications

Model: GEPRC ELRS Nano 915M PA500 receiver

Dimension: 13x23x5.5mm

Weight: 1.9g (RX only)

Chips: ESP8285, SX1276

Crystal Oscillator: TCXO

Frequency Band: 915MHz FCC /868MHz EU

Refresh Rate: 25Hz-200Hz

Operating Voltage: 5V

Antenna Connector: ipex1

Telemetry Power: 500mW

Firmware: GEPRC Nano 915M PA500 RX

Includes

1 x ELRS Nano 915M PA500 receiver

1 x Antenna

1 x Heat shrink tube

1 x 4pin silicone cable

1 x User manual
