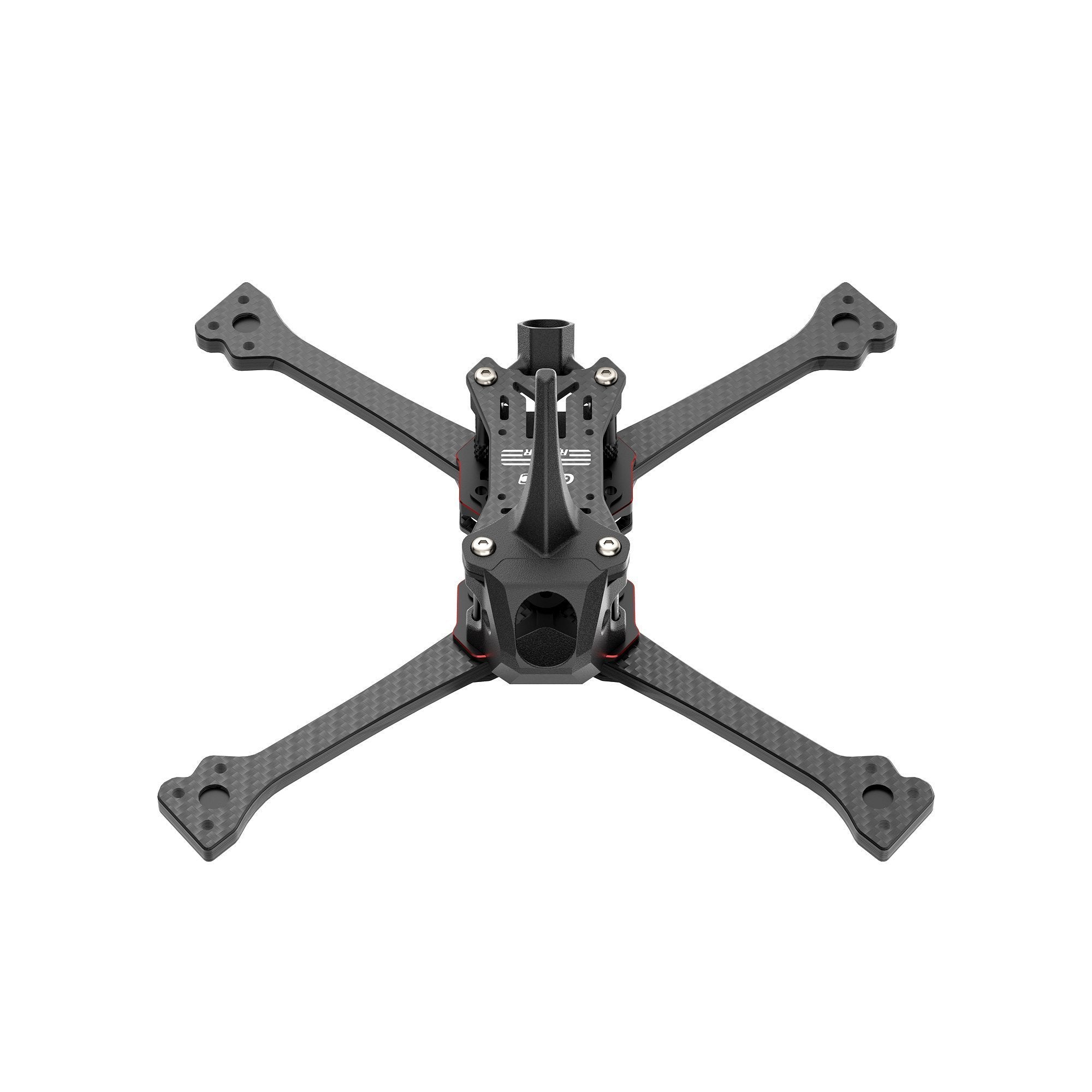

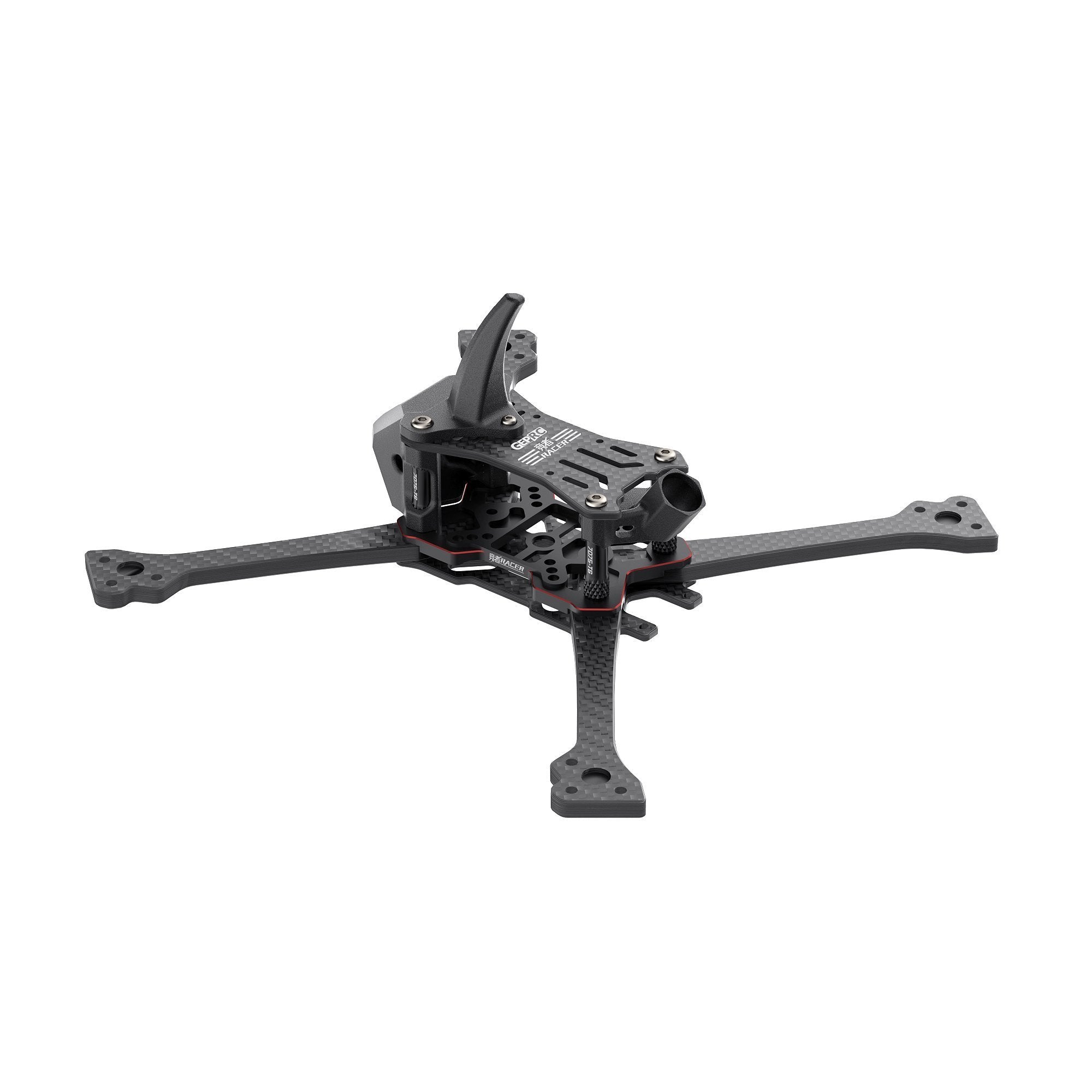

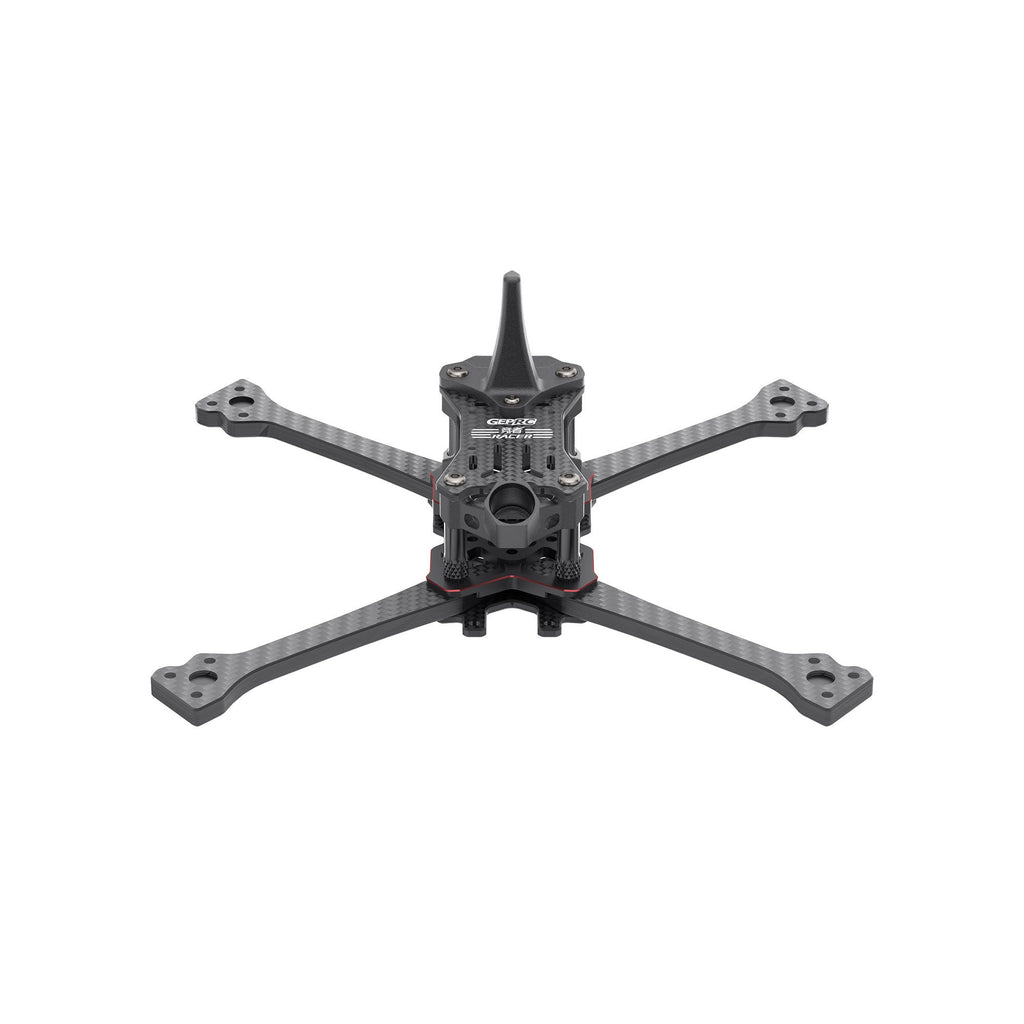

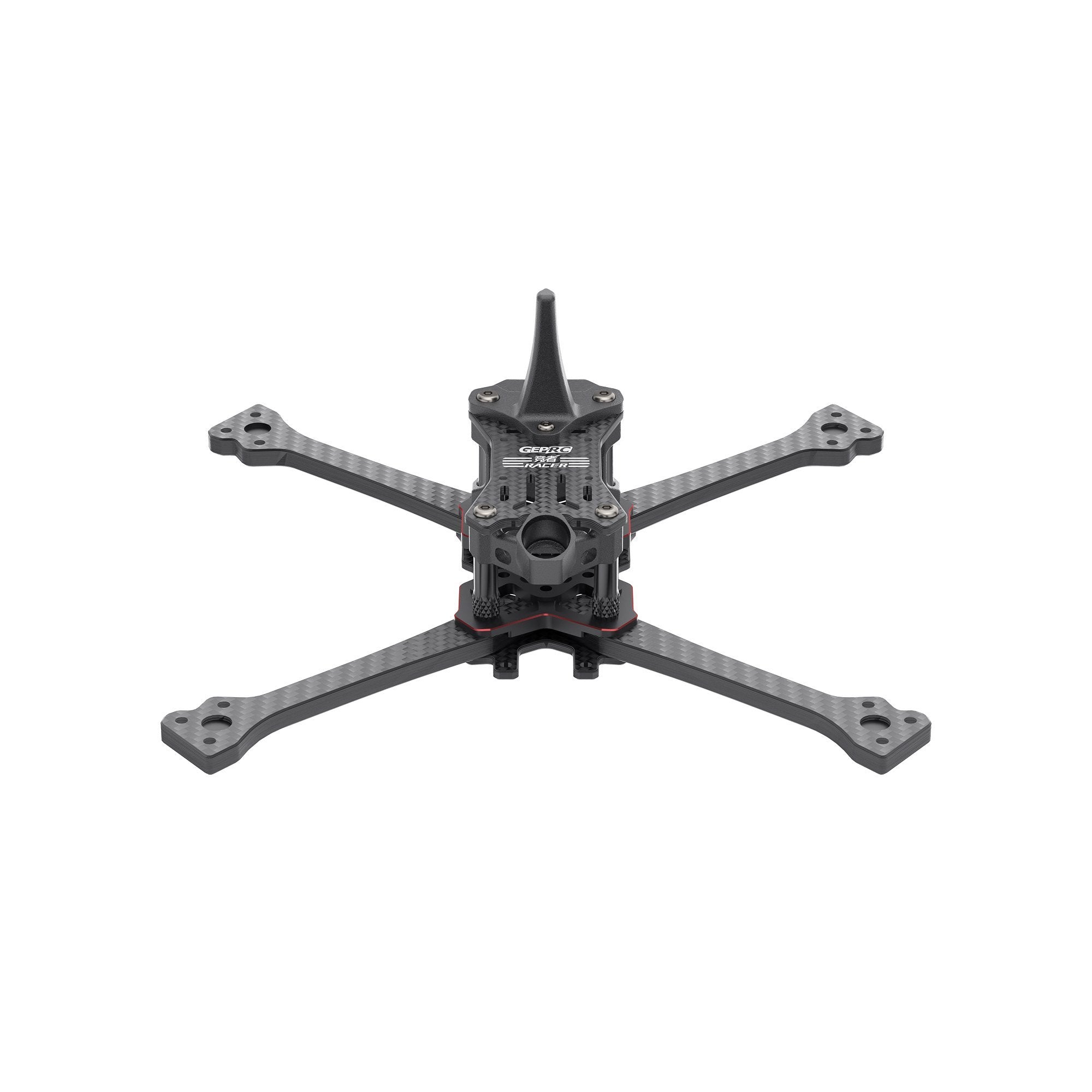

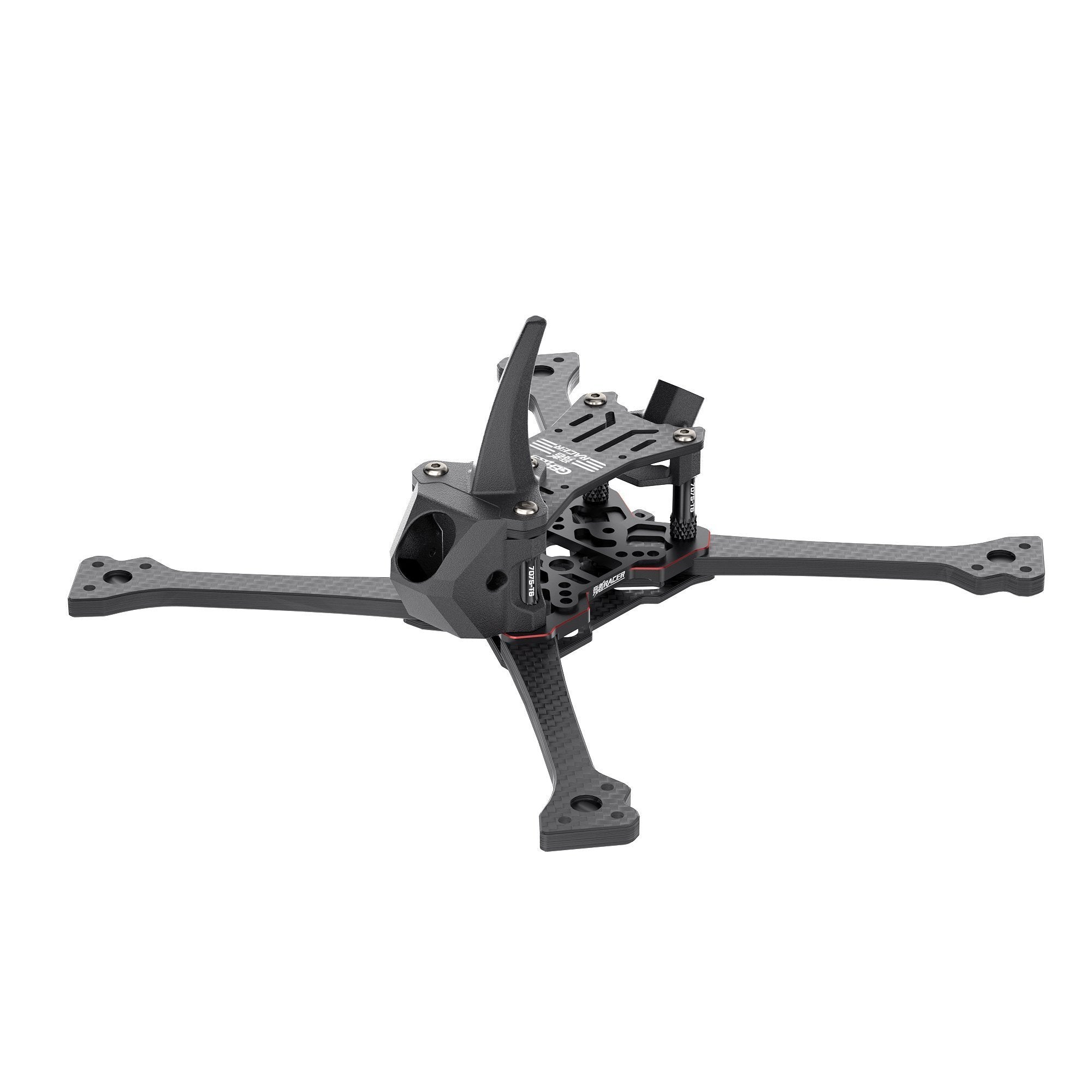

GEP-Racer Frame｜FPV 機架

GEP-Racer Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing frame specially designed for the competition. The GEPRC Racer was thus born.

The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm.

Feature

1. High-strength 7075 aviation aluminum alloy splint

2. T700 carbon fiber plate material

3. Design shark fin support,easy to flip over after crash.

4. Quick-release design of the arm is convenient for maintenance.

5. 25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.

6. Compatible with HDZero VTX

Specification:

Model: RACER FPV Frame

Frame: GEP-RACER Frame

Dimensions: 175mm×173mm

Wheelbase: 208mm

Top plate: 2.0mm

Aluminum plate: 2.0mm

Bottom plate: 2.0mm

Arm thickness: 5.0mm

Aluminum column size: M3*6*24mm

FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm

VTX mounting hole: 20mm*20mm

Motor mounting hole: 16mm*16mm

Camera installation space: 14mm

Propeller: 5 inches

Weight: 78g ± 2g

Includes

1 x Top plate

1 x Bottom plate

1 x Aluminum plate

1 x Camera mount

1 x VTX antenna mount

1 x Shark fin print

4 x M3*6*24mm aluminum column

2 x 20*250mm battery cable ties

2 x Battery anti-skid pads

1 x Screw pack

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2mm
