Foxeer 4.9G Low band Goggles Module Set｜FPV 飛行眼鏡
Kit / 訂金預購
$3,987.00
跳到商品資訊
Old version 2.5W 72CH Reaper VTx Frequency Table
New version 80CH 4.9~6G VTx Frequency Table
Foxeer 4.9G Low band Goggles Module Set｜FPV 飛行眼鏡
$3,987.00
結帳時計算運費。
全額付款說明
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
訂金預購說明
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

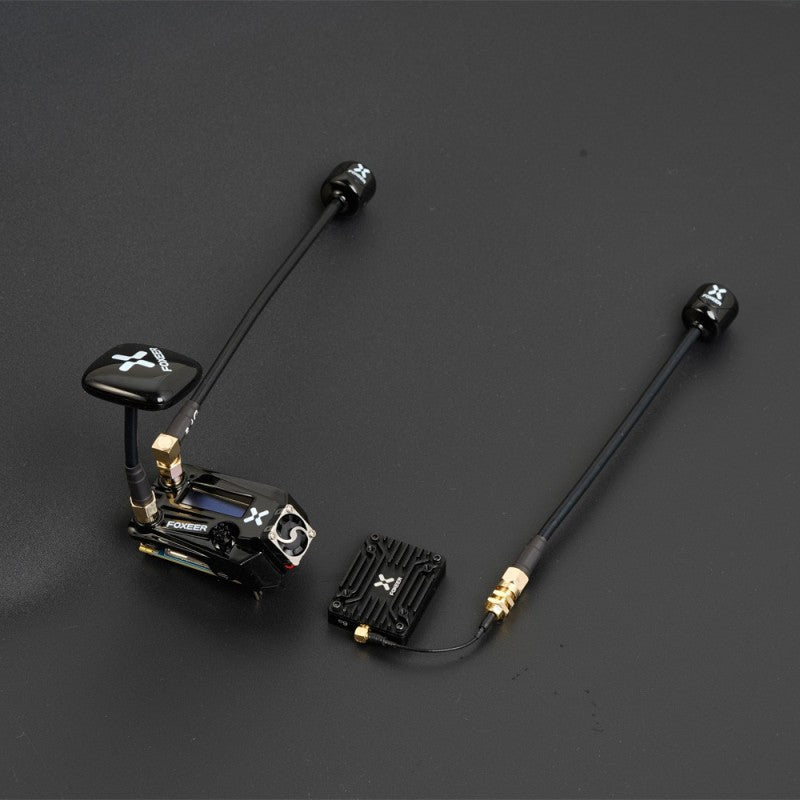

Foxeer 4.9G Low band Goggles Module Set｜FPV 飛行眼鏡
The VTx is upgraded to 80CH 4.9~6G(SKU:MR1844), old VTx is 72CH 4.9G(SKU:MR1819)
| Model | Foxeer 4.9G 80CH Low Band Goggles Module Set |
| Frequency | 4.9G~6G |
| VTx | Foxeer Reaper 2.5W Extreme VTx with 80CH (old version is 72CH) |
| Protocol | Tramp |
| Antenna | Foxeer 4.9G Lollipop Antenna / Foxeer 4.9G Echo 2 Patch antenna |
| Goggles Module | Foxeer 4.9G Wildfire Dual Receiver |
| Package Includes | 1*Goggles Module, 1* 2.5W 4.9G Reaper Extreme VTx, 2*4.9G Lollipop 4+ Antenna, 1*4.9G Echo 2 Patch Antenna, 1*MMCX to SMA Cable |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band X(R) | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
New version 80CH 4.9~6G VTx Frequency Table
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Foxeer Wildfire Dual Receiver Frequency Table
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
