- New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.
CaddxFPV Walksnail Avatar HD VTX V2 模組｜數位 FPV 圖傳套裝
8G / 訂金預購
$1,297.00
跳到商品資訊
Bullet Point
CaddxFPV Walksnail Avatar HD VTX V2 模組｜數位 FPV 圖傳套裝
$1,297.00
全額付款說明
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
訂金預購說明
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
CaddxFPV Walksnail Avatar HD VTX V2 模組｜數位 FPV 圖傳套裝
CaddxFPV／Walksnail 官方 數位 FPV 圖傳套裝，已依台灣使用者習慣整理繁體中文名稱與規格。下單前請確認型號、版本、接頭、尺寸及相容設備；套裝內容以所選規格為準。
Bullet Point

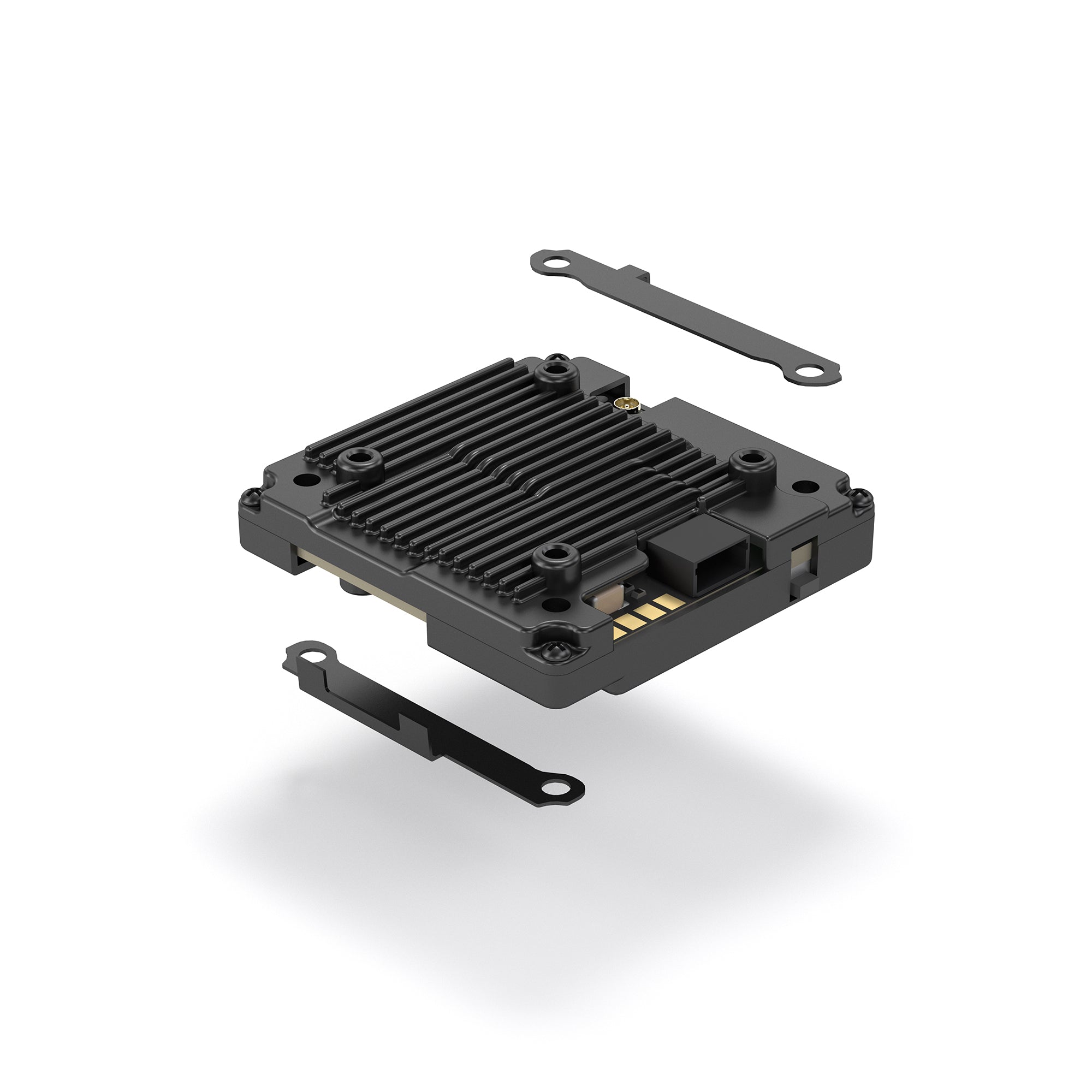

- Except the original 25*25mm mounting holes, now added 20*20mm holes for greater compatibility with a wider range of FPV drone models.
- Updated the design of PCB board and shell, improved the quality of VTX, more durable.

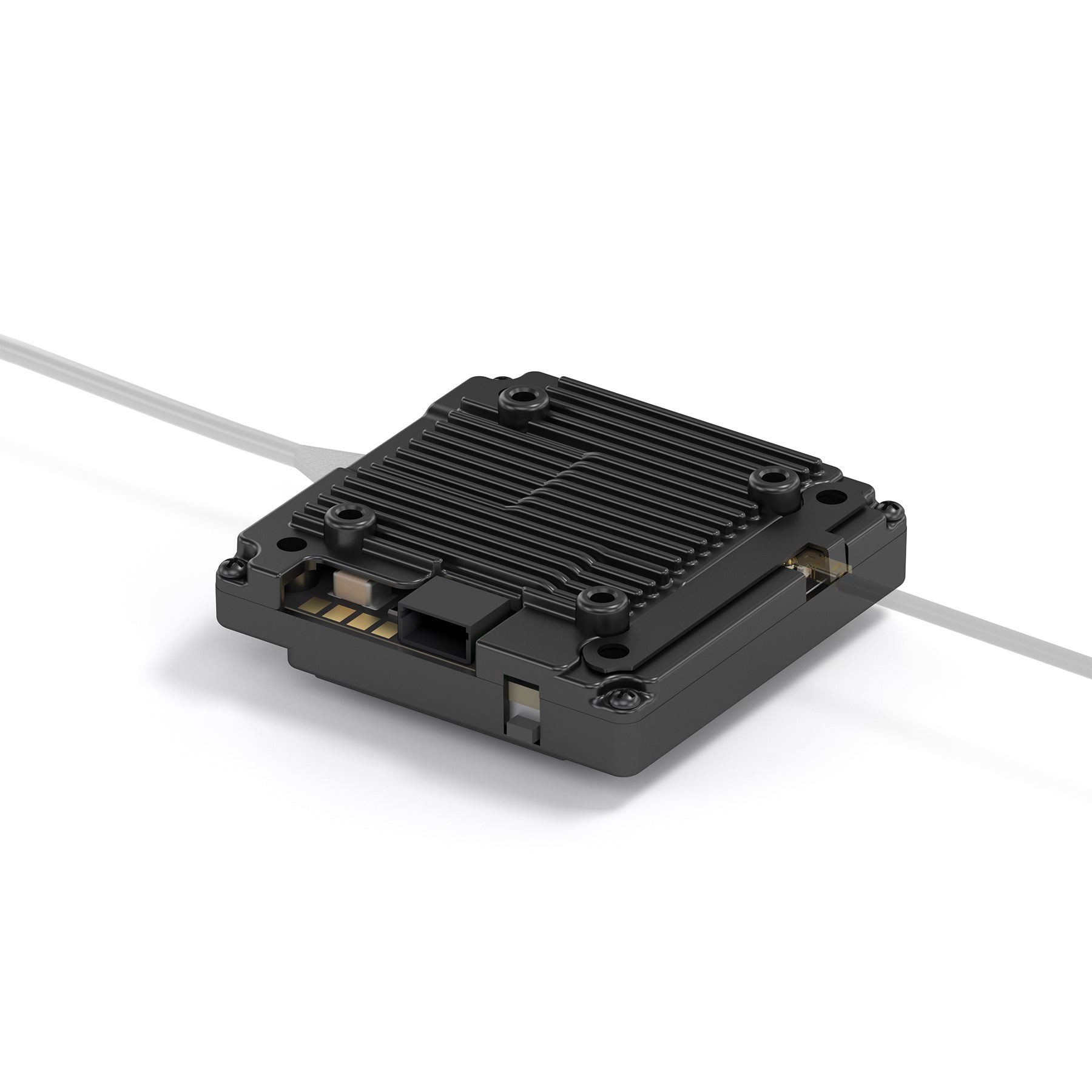

- Optimized the installation place of the antenna, it's better to protect the VTX.
- The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
- The kit includes a spare power pad, providing an extra opportunity for welding.
- The Avatar VTX comes with 8g built-in storage it can record 1080P or 720P HD fly videos without interference.
| Specification | |
| VTX | |
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm；20*20mm |
| Dimensions | 33*33*10.5mm |
| Storage | 8G |
| Recording | 1080P/720P |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss; |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
