CaddxFPV 納克索翼 Walksnail Avatar HD Pro 套裝數位 FPV 圖傳套裝

CaddxFPV Walksnail Avatar HD Pro 套裝｜數位 FPV 圖傳套裝

$1,892.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

CaddxFPV Walksnail Avatar HD Pro 套裝｜數位 FPV 圖傳套裝

CaddxFPV／Walksnail 官方數位 FPV 圖傳套裝，已依台灣使用者習慣整理繁體中文名稱與規格。下單前請確認型號、版本、接頭、尺寸及相容設備；套裝內容以所選規格為準。

Bullet Point :

1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
Supporting Gyroflow for more stable and smoother footage.

Walksnail Avatar HD VTX V2 Only

Bullet Point:

Add 20*20mm mounting holes for easy installation.
Add 8g built-in storage option.
Updated the design of PCB board and outer shell, more durable.
A spare pad is added to provide two power connection modes.
Optimized antenna base design and frequency button position for greater convenience.

Bullet Point for Avatar HD Pro Kit:

產品特色：

1080P 120fps compatibility
High frame starlight
22ms low latency
Ranging Mode
4km range
Light weight design
FOV160°
Built-in 8G storage
6V-25.2V
Sony Starvis Ⅱ Technology

The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS. Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

The camera ( 8G VTX KIT) supports Gyroflow, take you smooth and stable video quality.

VTX 產品特色：

In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, so as to better protect the VTX.
The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
A spare pad is added to provide two power connection modes.

Partial upgrade display of Walksnail Avatar HD VTX V2

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

Walksnail Avatar HD VTX V2 Only

The Avatar VTX comes with 8g built-in storage it can record 1080p or 720p HD flight videos without interference.

It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

HD 1080p OLED Dual Micro Displays

Specification

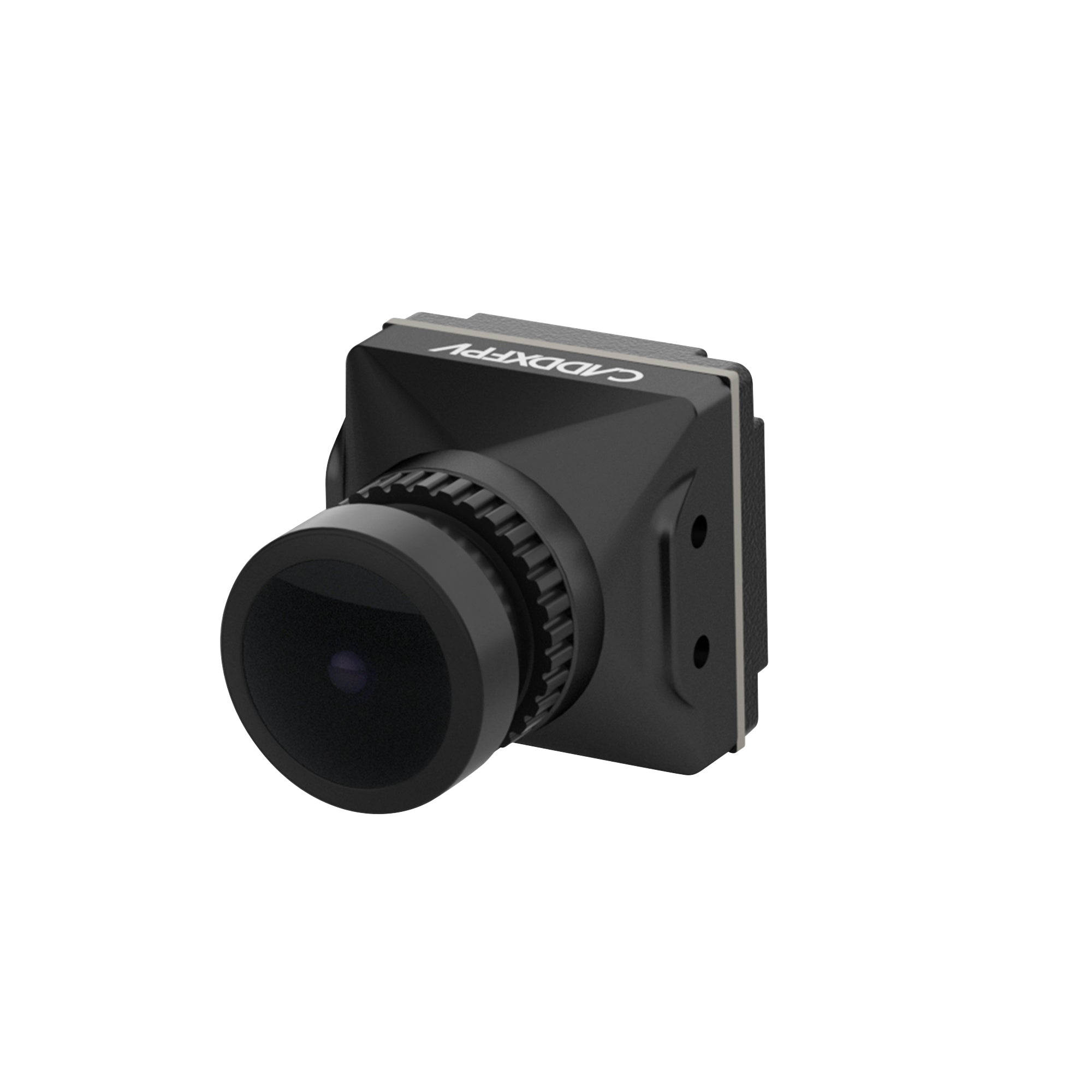

Camera
Model	Avatar HD Pro Camera
Image Sensor	1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution	1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio	16/9; 4/3
Lens	8Mp
FOV	160°
Aperture	F1.6
Shutter	Rolling shutter
Min.Illumination	0.00001Lux
Weight	9.5g
Dimensions	191924mm
Coaxial Cable	140mm
VTX
Model	Avatar V2 Module
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
1/O Interface	JST1.04(Power in)JST0.86(USB)
Mounting Holes	25.525.5mm; 2020mm
Dimensions	33.533.510.5mm
Storage	8G
Recording	1080p/720p
Weight	17.6g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	6V-25.2V
Supported FC System	Betaflight; Inav; Fettec; ArduPilot;Kiss
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	1(IPEX)

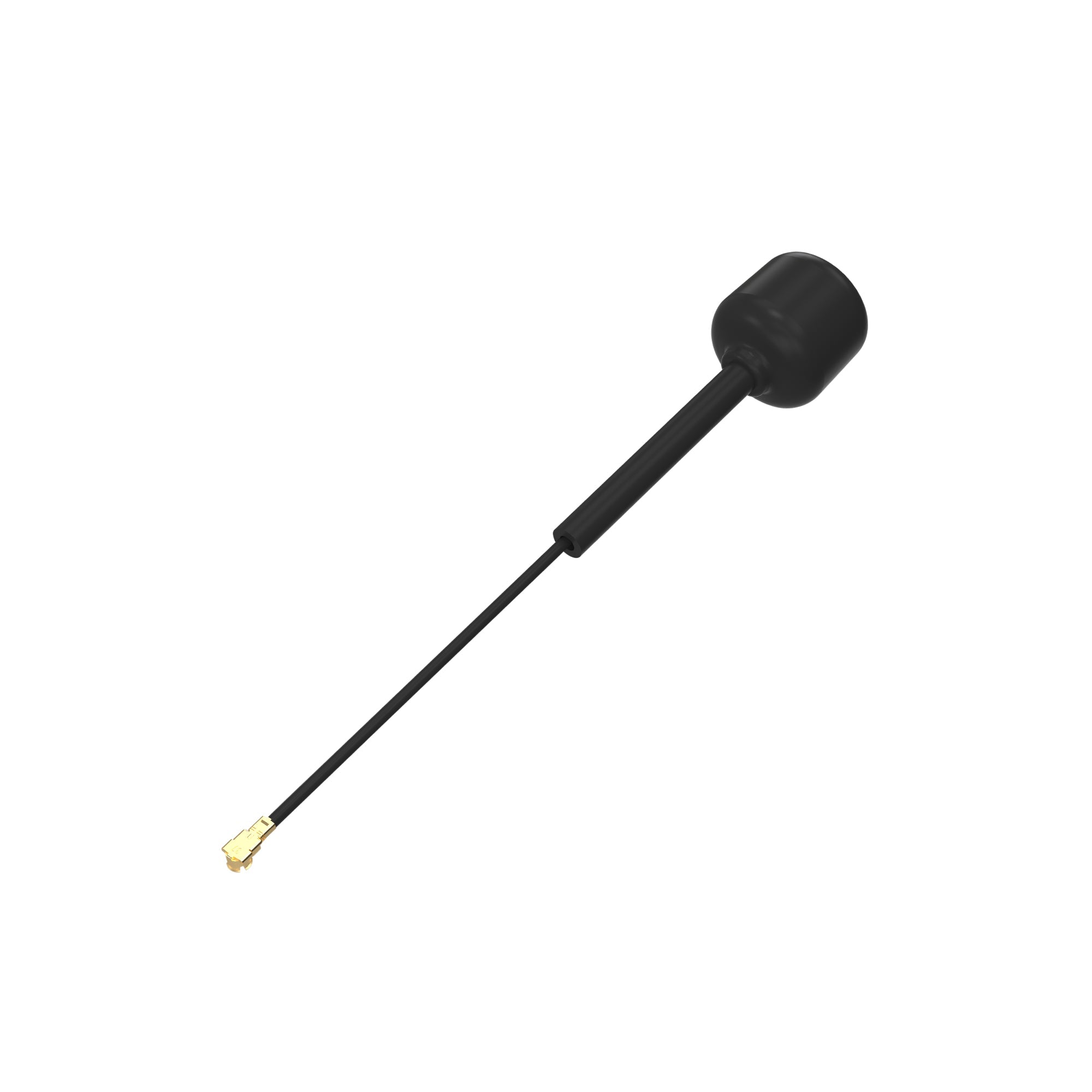

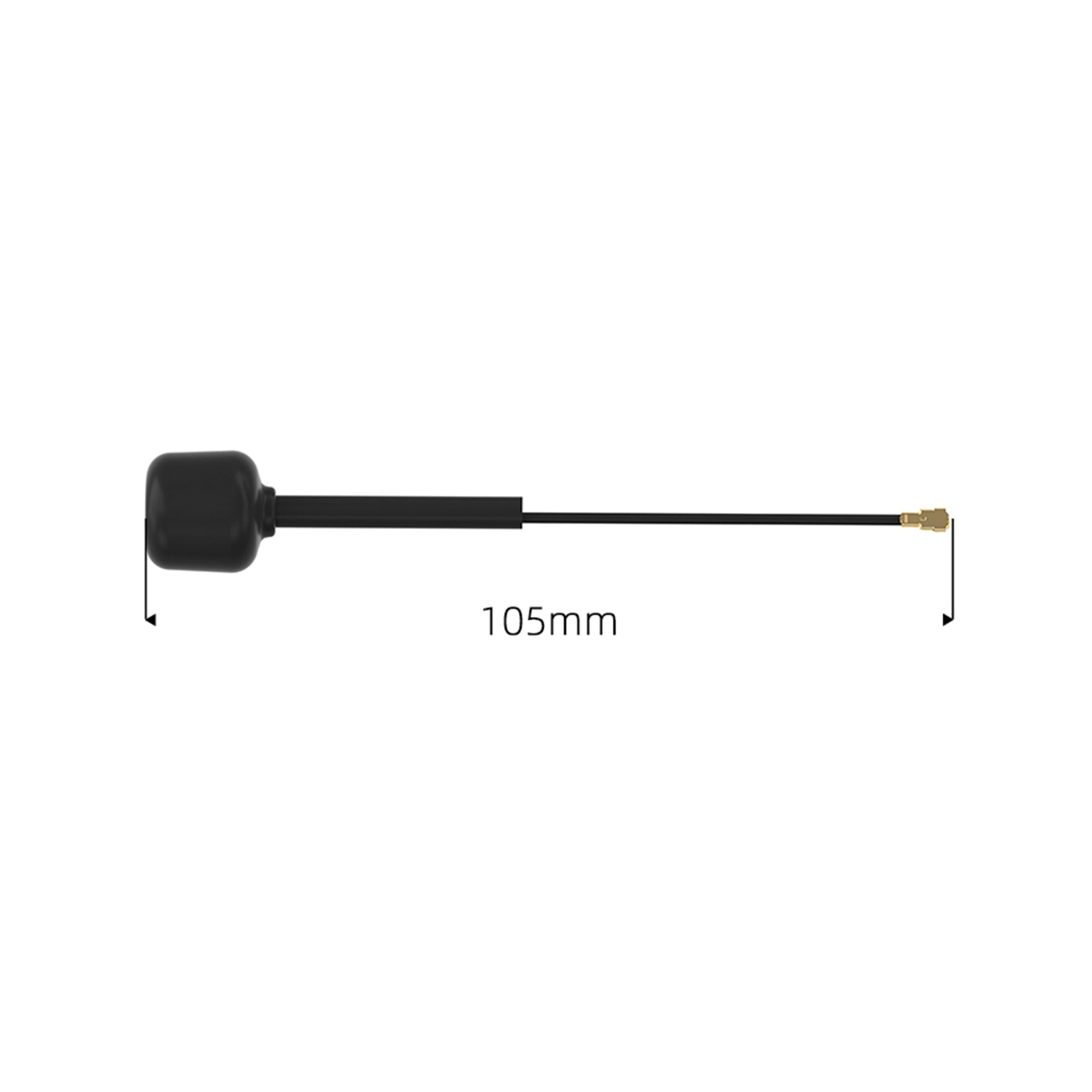

Avatar V2 Antenna
Polarization	LHCP
Frequency range	5600MHz-6000MHz
Gain	1.9dBi
VSWR	≤1.5
Input Impedance	50Ω
Interface	IPEX-1
Size	R15 X 45mm(without cable)
Weight	2g
