CaddxFPV Walksnail Avatar HD Mini 1s Lite 套裝｜數位 FPV 圖傳套裝
CaddxFPV Walksnail Avatar HD Mini 1s Lite 套裝｜數位 FPV 圖傳套裝
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
CaddxFPV Walksnail Avatar HD Mini 1s Lite 套裝｜數位 FPV 圖傳套裝
CaddxFPV／Walksnail 官方 數位 FPV 圖傳套裝，已依台灣使用者習慣整理繁體中文名稱與規格。下單前請確認型號、版本、接頭、尺寸及相容設備；套裝內容以所選規格為準。
產品特色:
| 3.1-13V | 500mW |
| 1080P/60fps | HDMI Out |
| Small Antenna | Canvas mode |
| 7.8g Light Weight | 22ms Low Latency |
| Built-in 8g Storage |
Bullet Points:

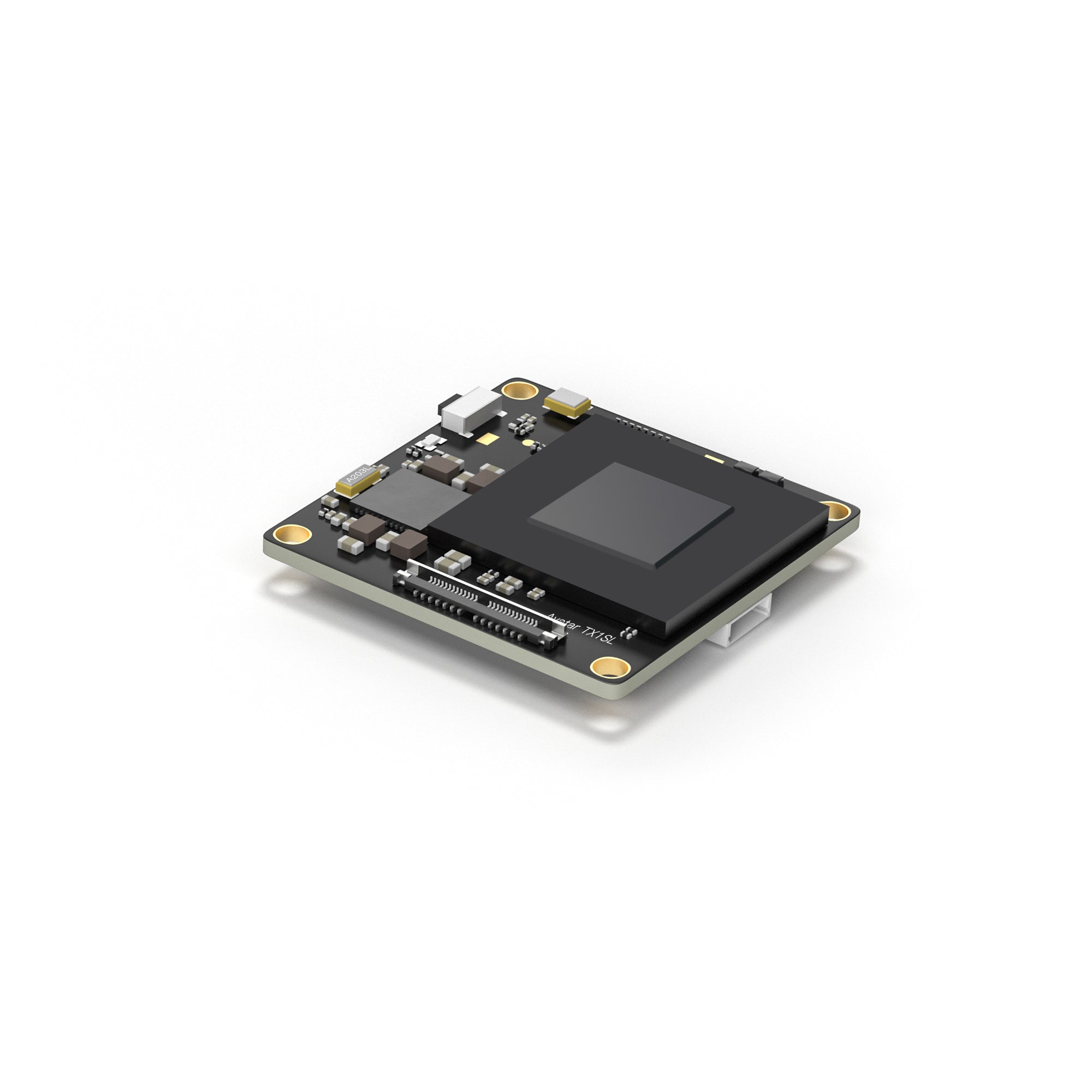

New version of VTX

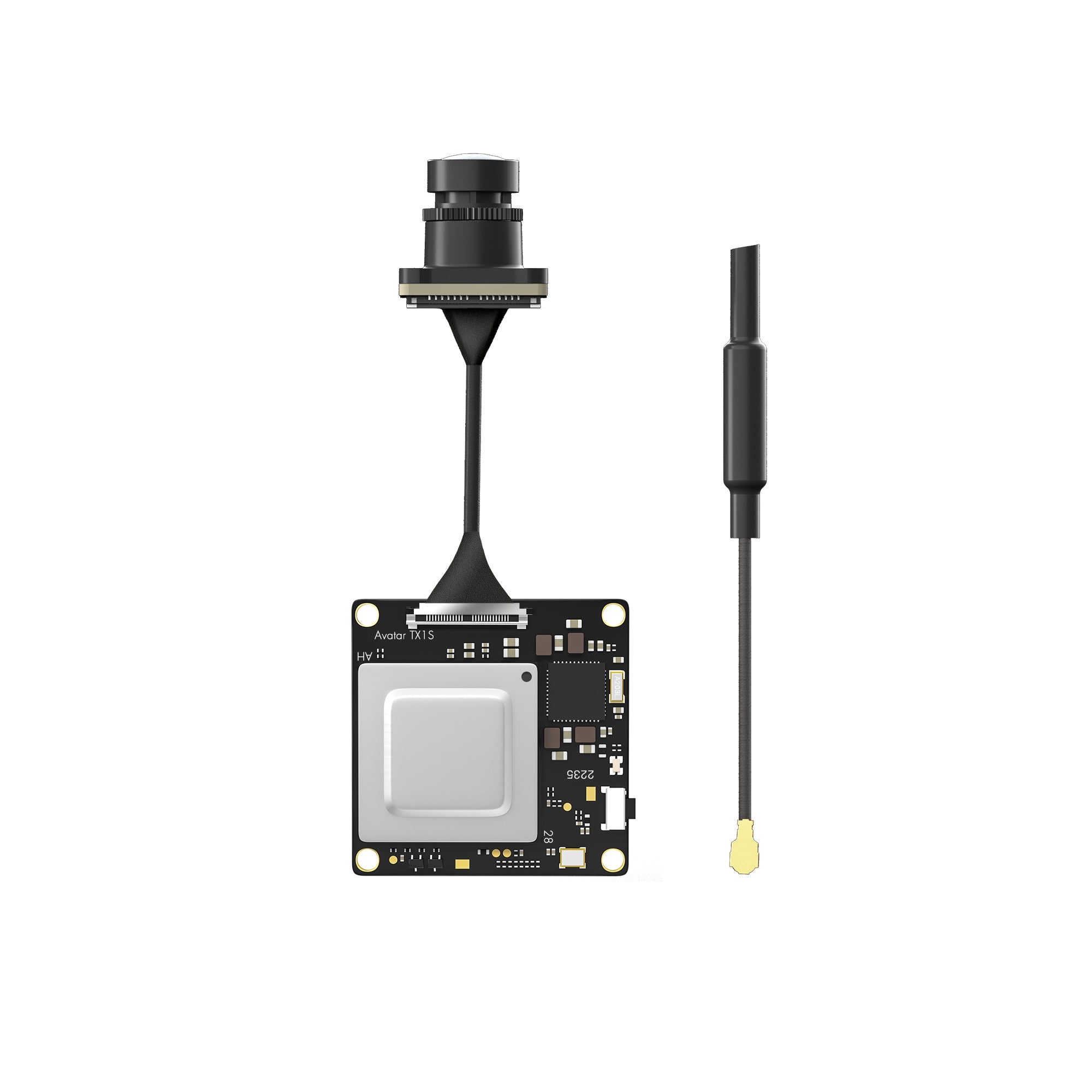

Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

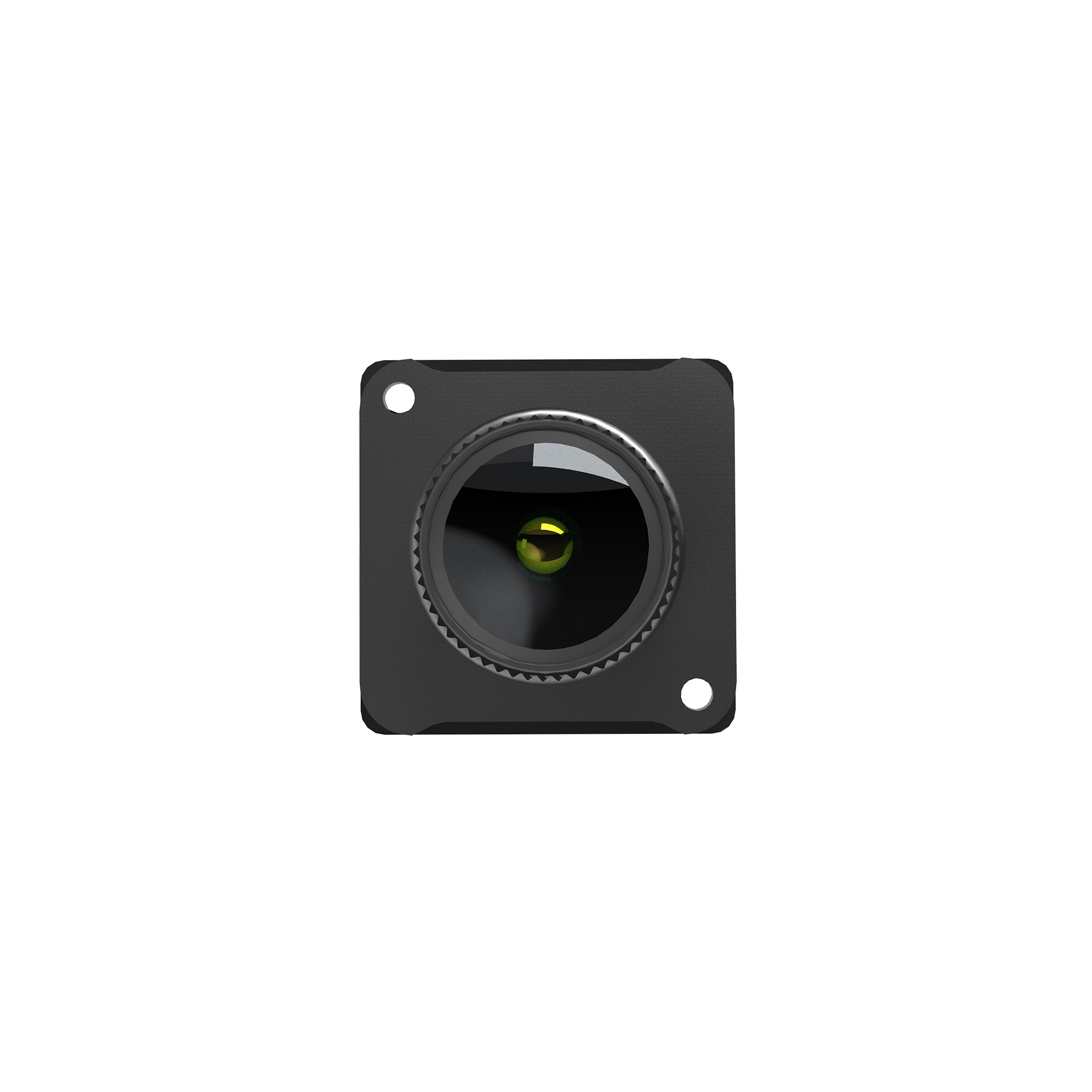

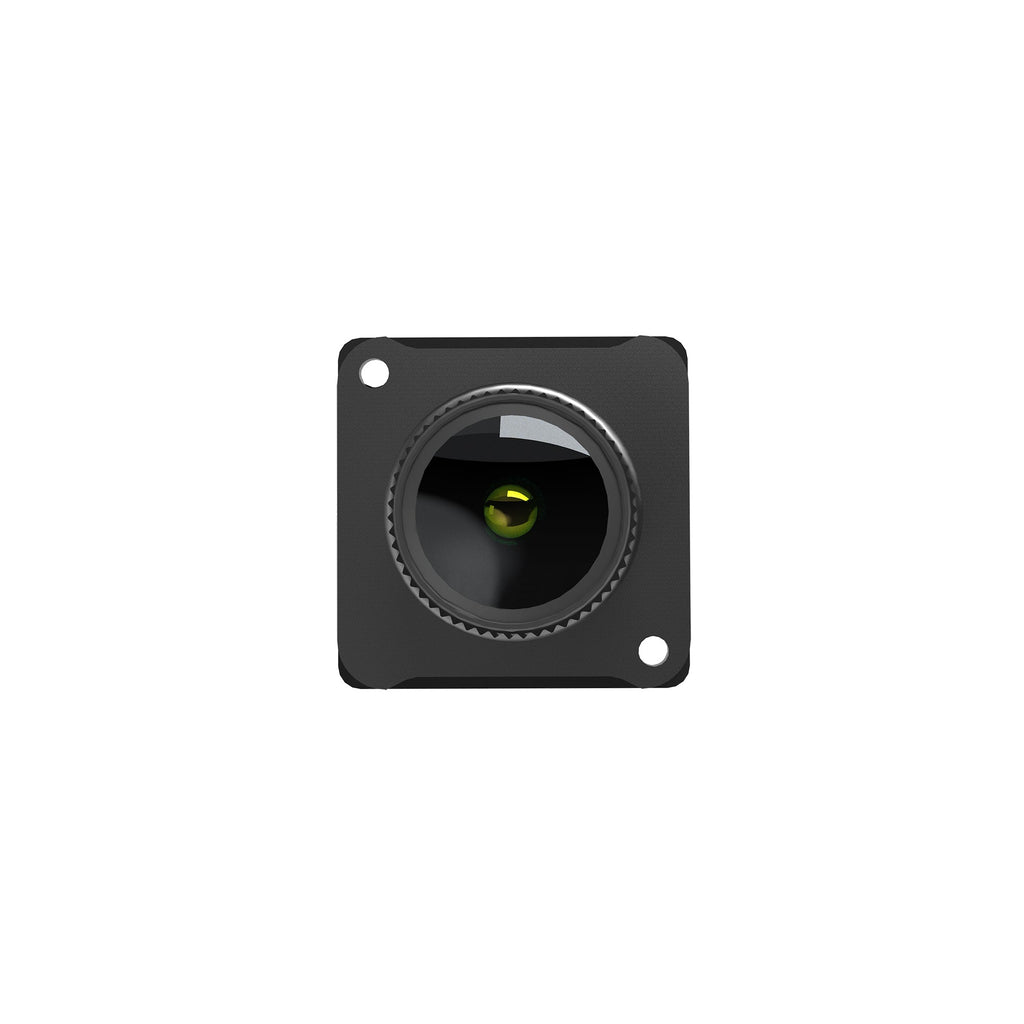

Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.
8G Built-in Storage
The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500ms output
The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

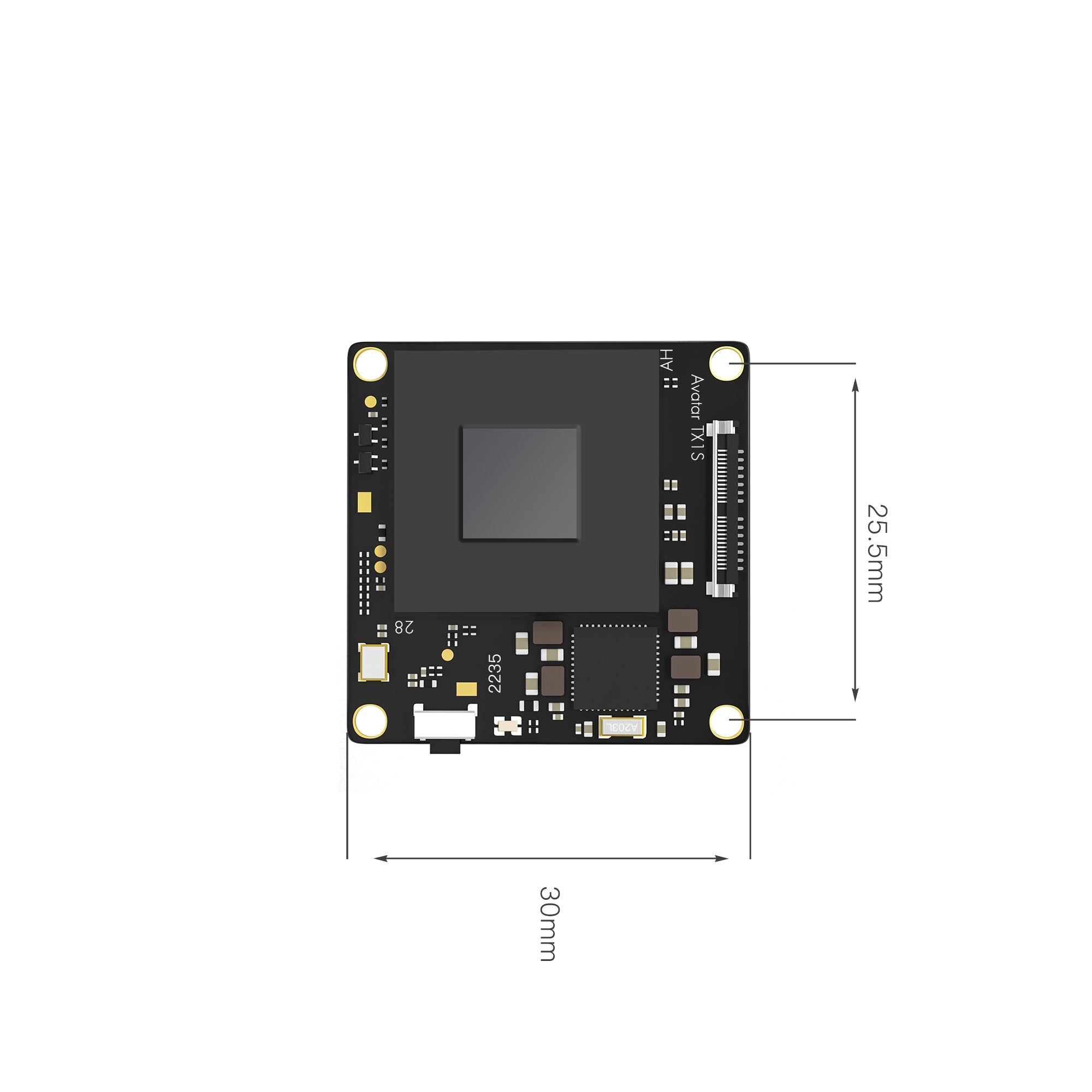

Product Size:
Specification |
|
| Camera | |
| Model | Avatar lite camera |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Weight | 1.8g |
| Dimensions | 14*14*16mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) |
FCC:<27dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*4(Power in)HSG0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average delay 22ms |
| Antenna | IPEX |
| 1s lite antenna | |
| Polarization | Linear |
| Frequency range | 5600-5900MHz |
| Gain | 1.6 dbi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | D5mm*L70mm |
| Weight | 0.5g |
