STABLE F411｜飛控電變飛塔

$880.00

規格 type: STABLE F411 type: STABLE F411 Flight Controller + ESC type: STABLE F411 Flight Controller type: STABLE F411 BLheli_S 4IN1 12A ESC

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

STABLE F411｜飛控電變飛塔

GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Overview:

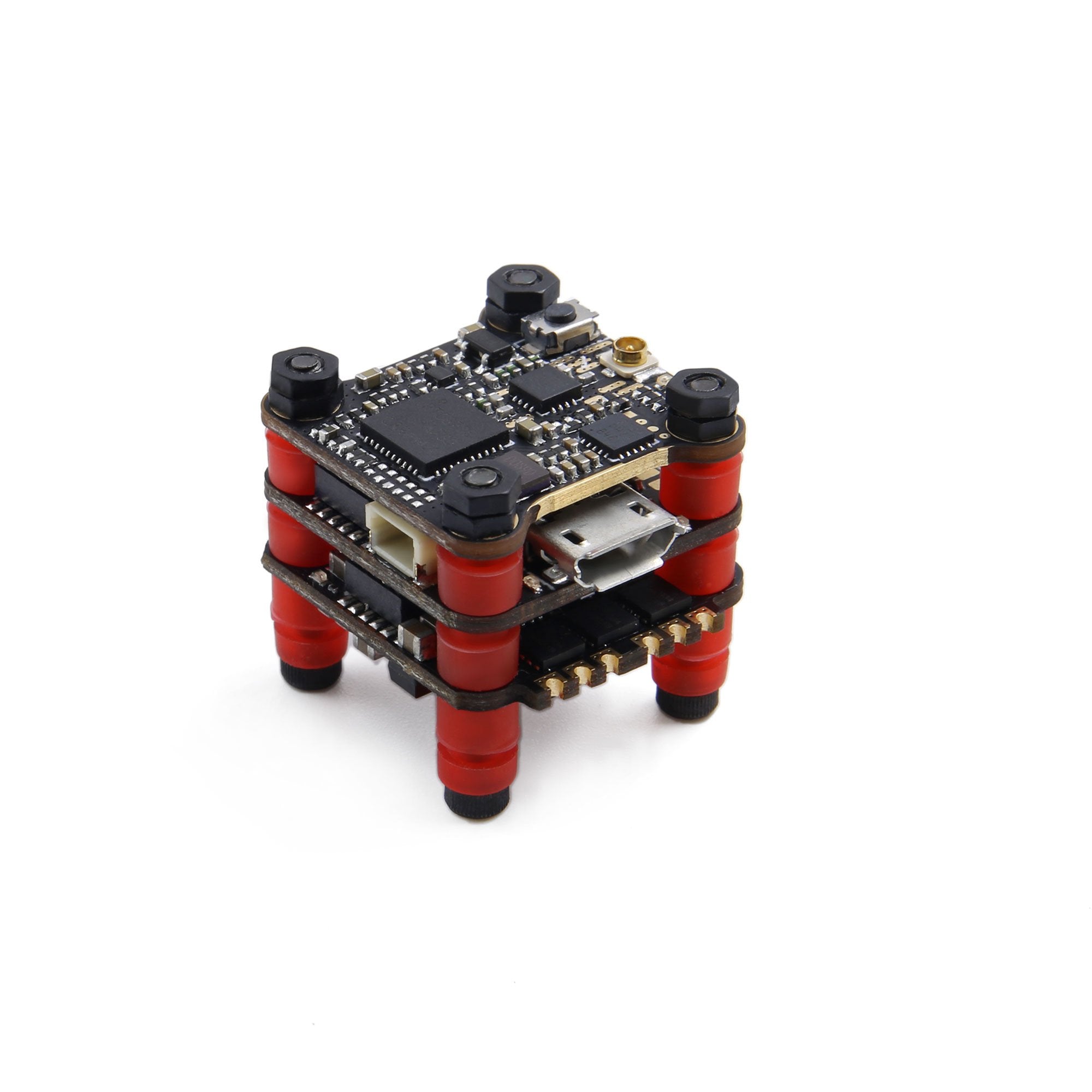

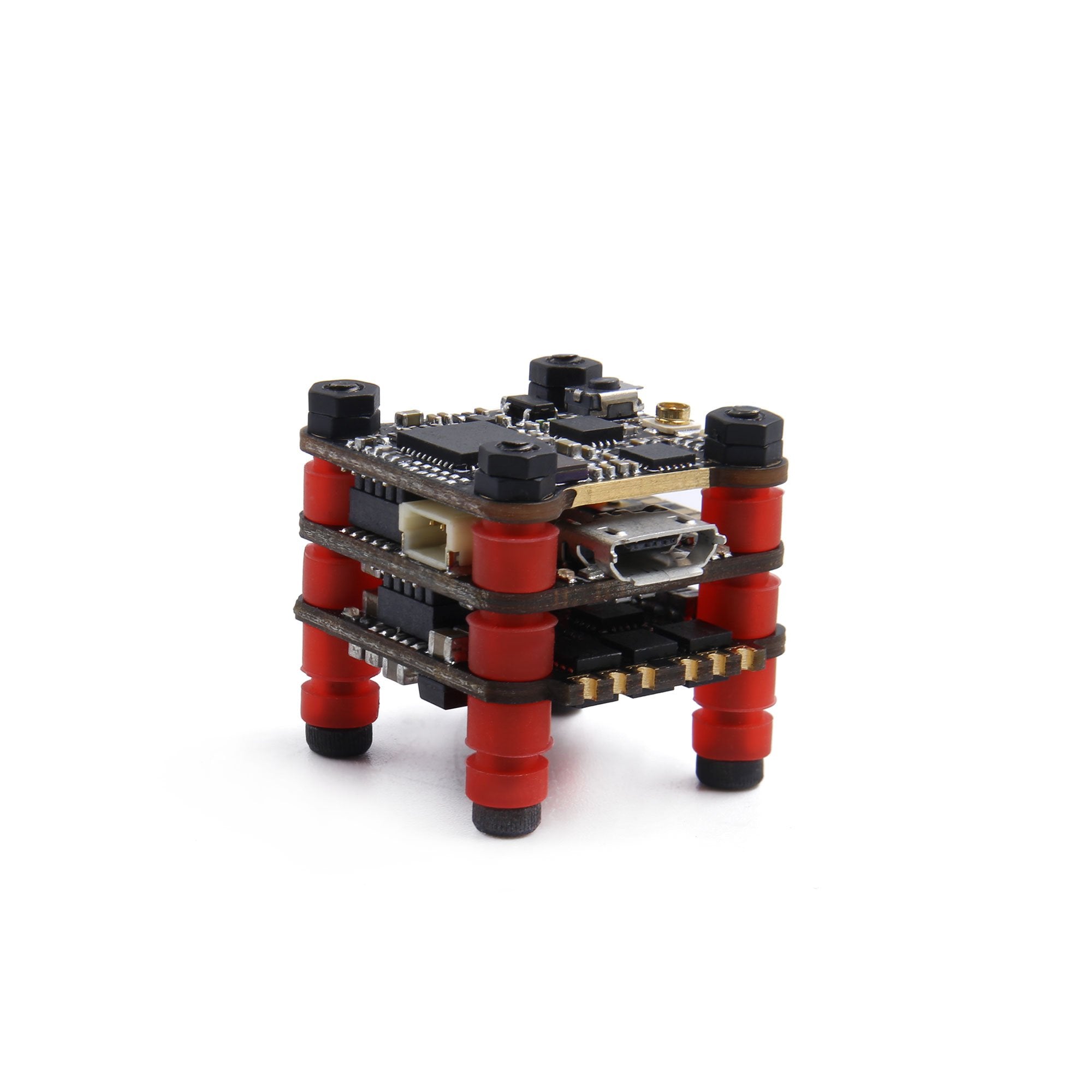

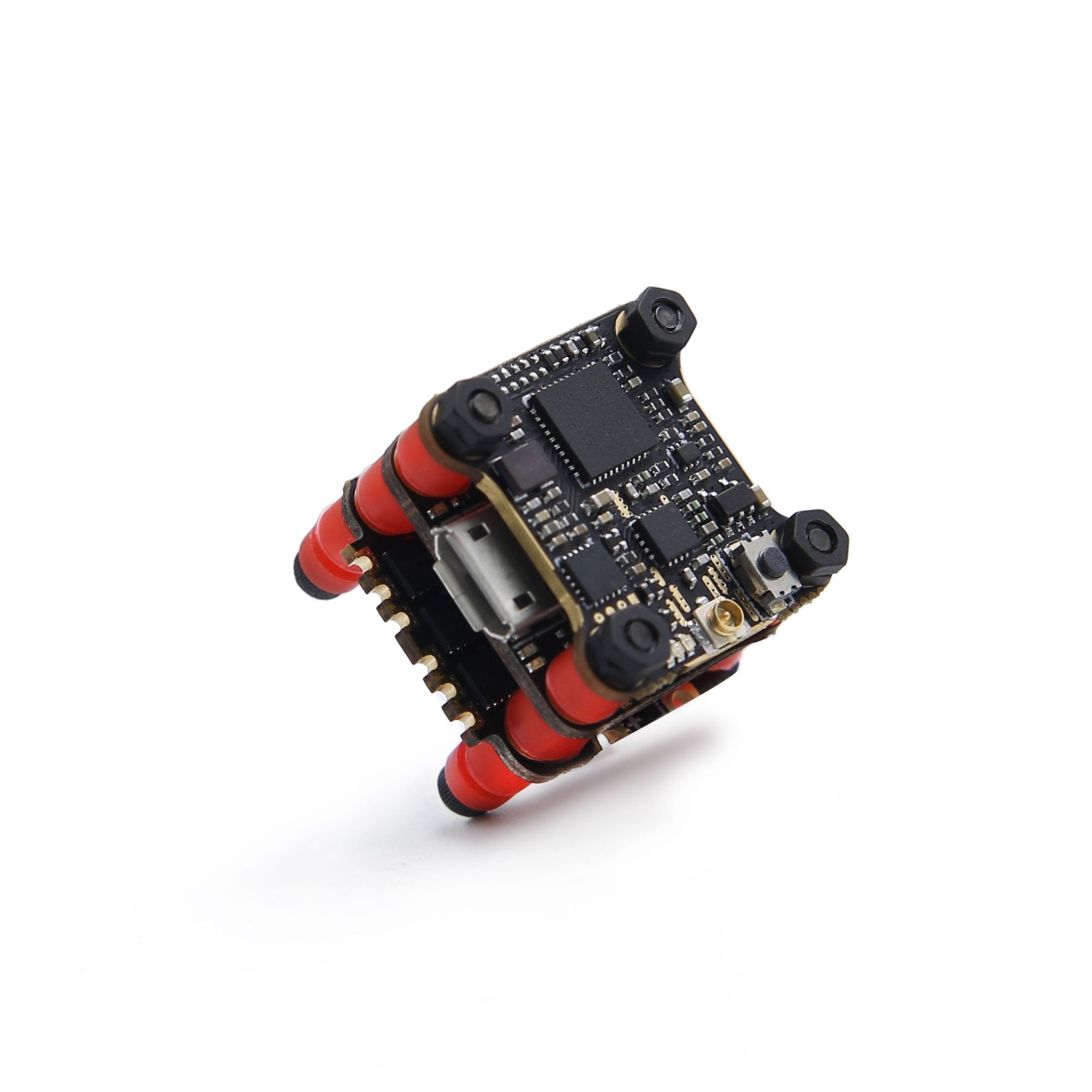

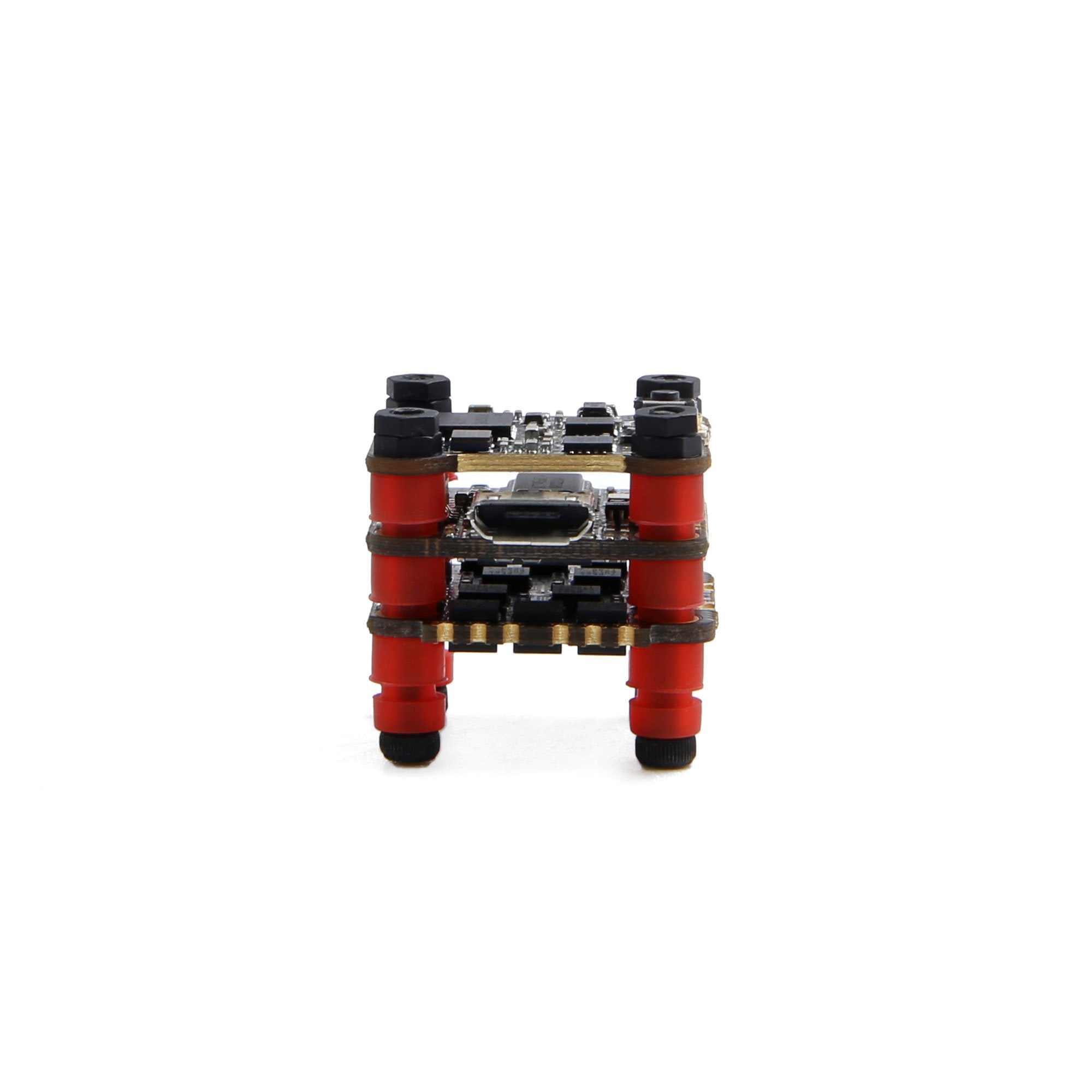

The GEPRC STABLE F411 micro tower electronic system is one of the best electronic system solutions for micro quads on the market.

STABLE F411 is equipped with F411 FC, 4IN1 BLS 12A ESC and 5.8G PIT/25/100/200mW, It supports 2-4S batteries，which could meet all kinds of demand environment. With the three-layer structure design and completely optimized pad structure, wiring is simpler and more reasonable.

STABLE F411 adopts 16*16 mm mounting holes and pin-type modular design. Supporting IRC TRAMP protocol, you can directly adjust VTX frequency, frequency and flight control parameters in the OSD interface, which is very convenient and easy to use. With LED interface, you can program your LED strip with Betaflight Ground Station. You can clearly see aircraft’s voltage, current, battery usage and other information with integrated OSD chip.

STABLE F411 is equipped with a 200 mW VTX, which can easily cope with various flight environments. While the build-in PIT mode (low power mode) is very convenient for competition use, and your VTX will not affect others when adjusting the frequency. A professional 5.8G rod antenna is equipped to achieve ideal transmission effect.

STABLE F411 supports a variety of receivers including Sbus, PPM, CRSF, DSMX, iBus protocols, which can be used with your remote control.

Main Feature:

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

Continuous current: 12A

Input voltage : 2-4S LIPO

Power : PIT/25/100/200mW

Integrated LC Filter

Mounting holes: 16mm*16mm

Support:Sbus,PPM,CRSF,DSMX,iBus

STABLE F411 Flight Controller(16*16mm)

MCU: STM32F411
