GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

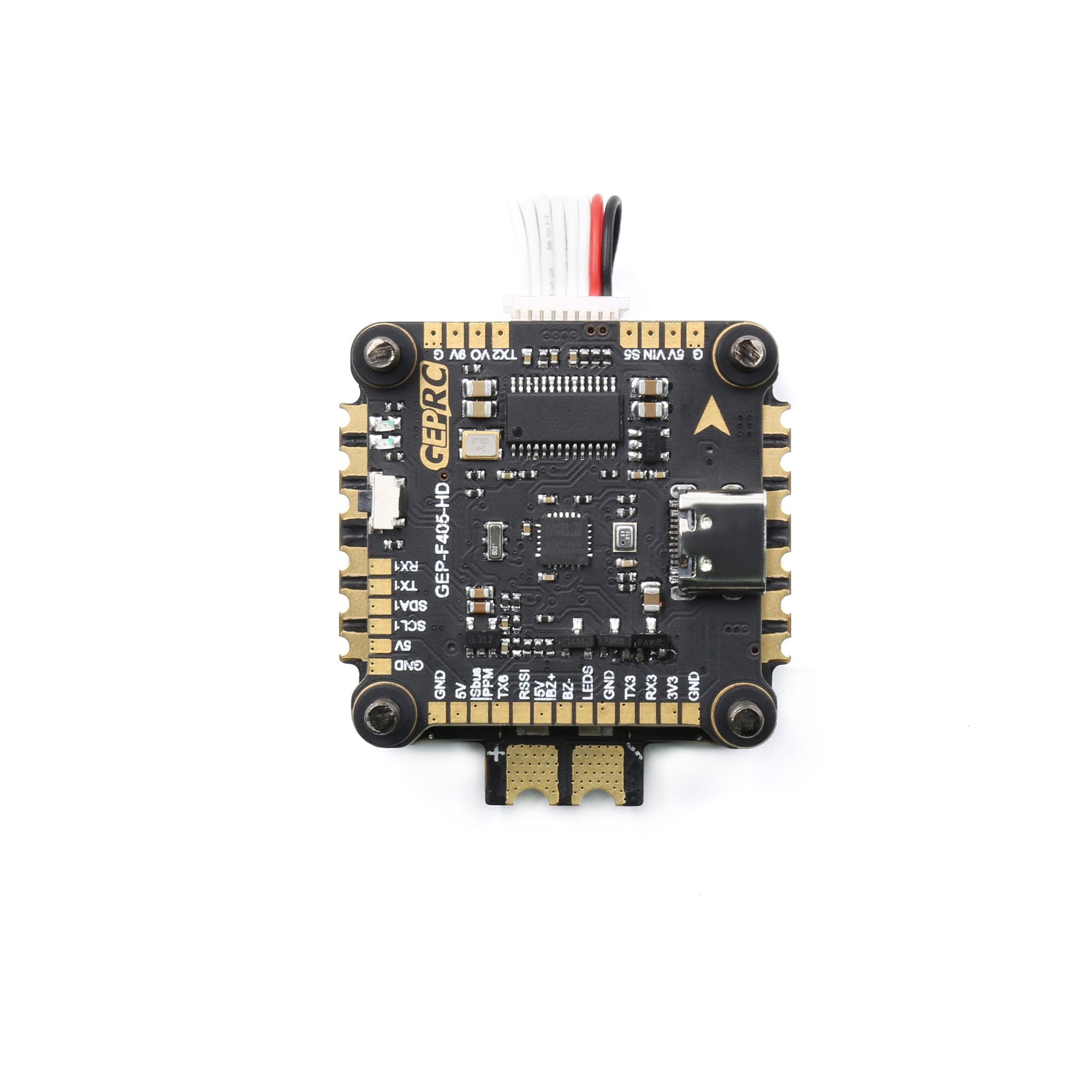

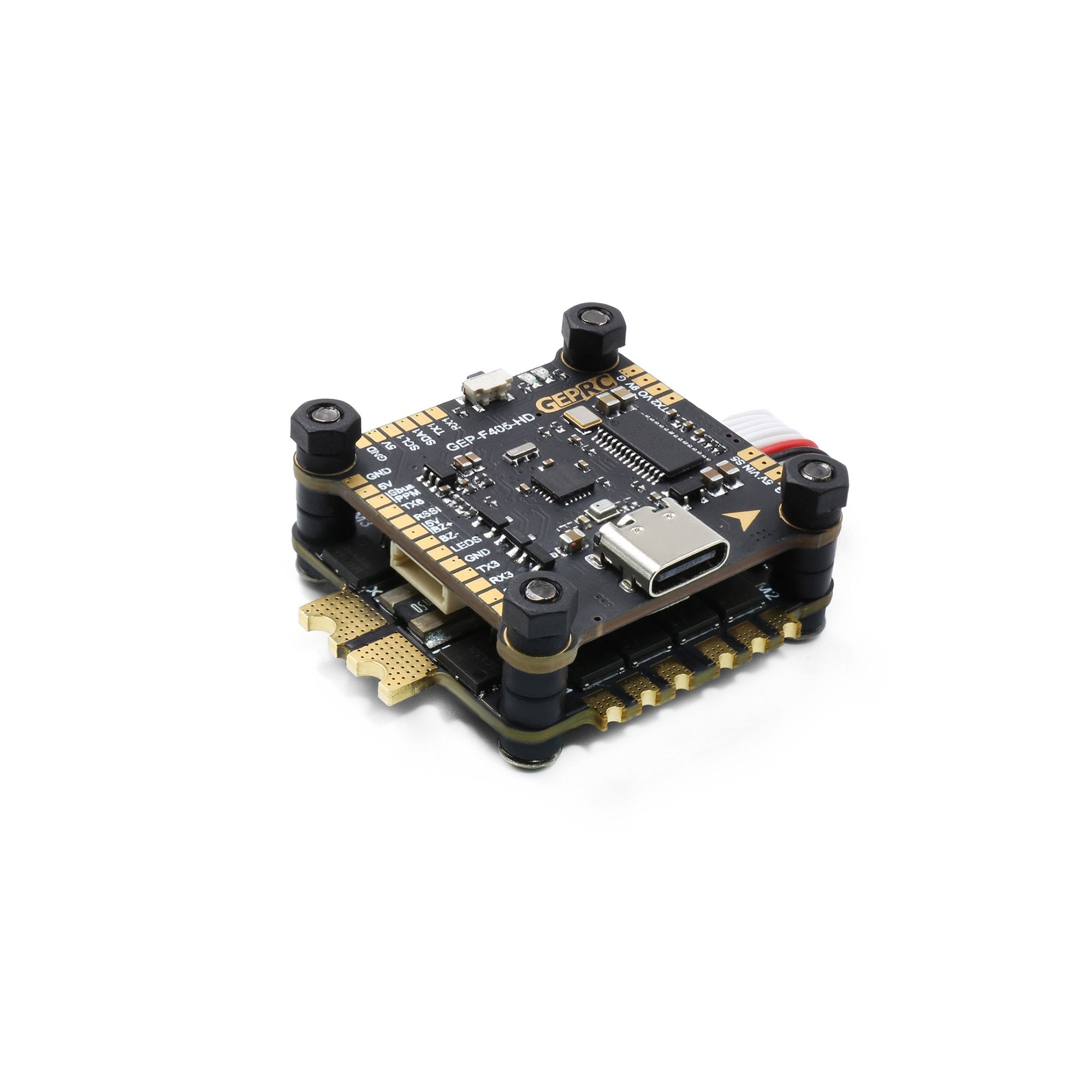

GEP-F405-HD is a plug-and-play flight controller with F405 chip and a tower flight system with BLheli_32 50A 4 and 1 32-bit electrical modulation. It integrates 16Mb black box, MPU6000 gyroscope and barometer for a more delicate hand experience.

GEP-F405-HD supports direct insertion into DJI Digital FPV System, which can avoid the trouble of welding.Upgrade the USB interface of Type-C, greatly improve the life of the socket and reduce the risk of bad contact.

GEP-F405-HD can be used together with GEP-G50A-4IN1 for perfect flight effect.

GEP-F405-HD supports all kinds of receivers, including Sbus,PPM,CRSF,DSMX,iBus, DUMD and so on. You don’t have to worry about the remote control in your hand can’t be used.

Main Feature:

MCU: STM32F405

IMU: MPU6000(SPI)

BlackBox: 16Mb onboard Flash

Integrated LC Filter

Type-C USB interface

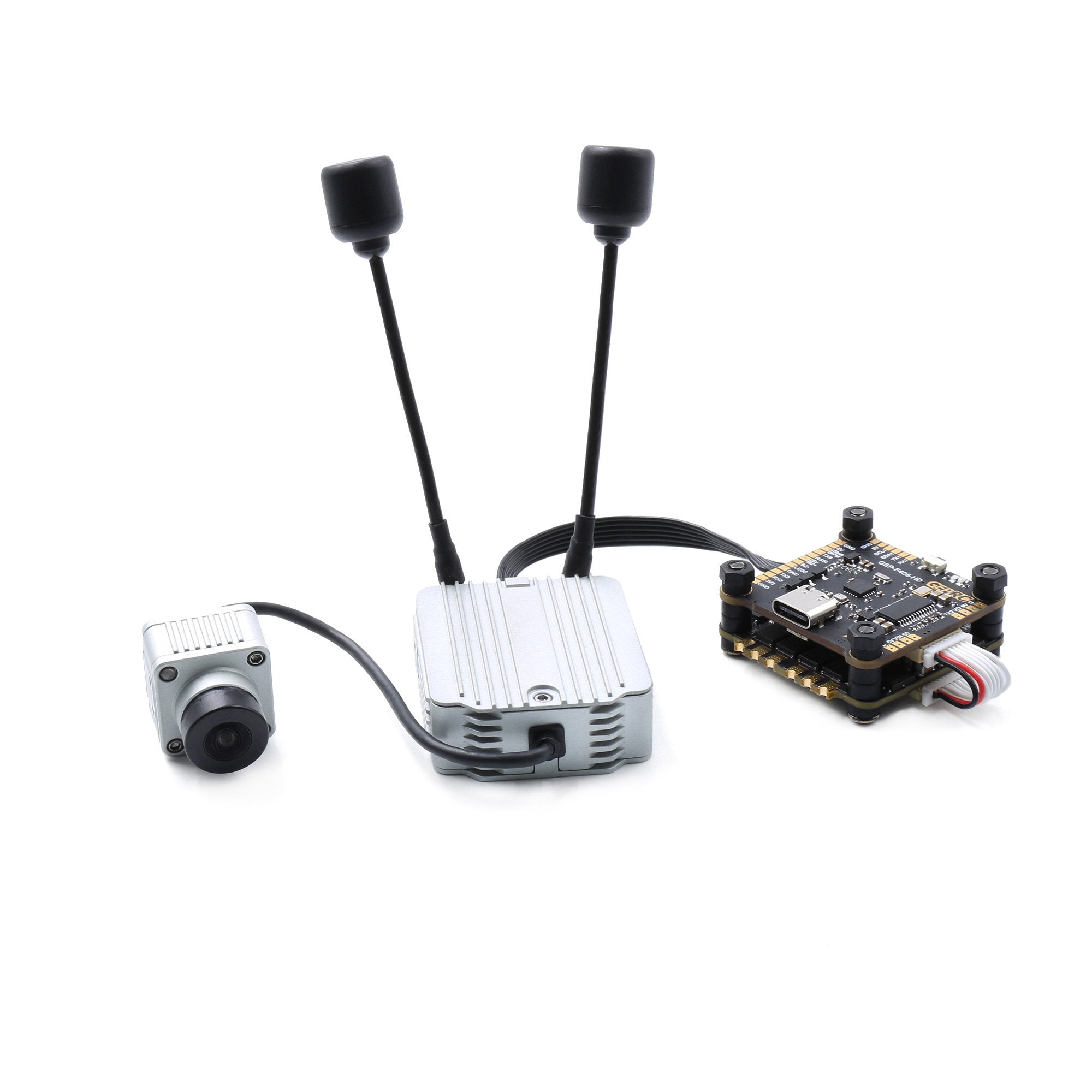

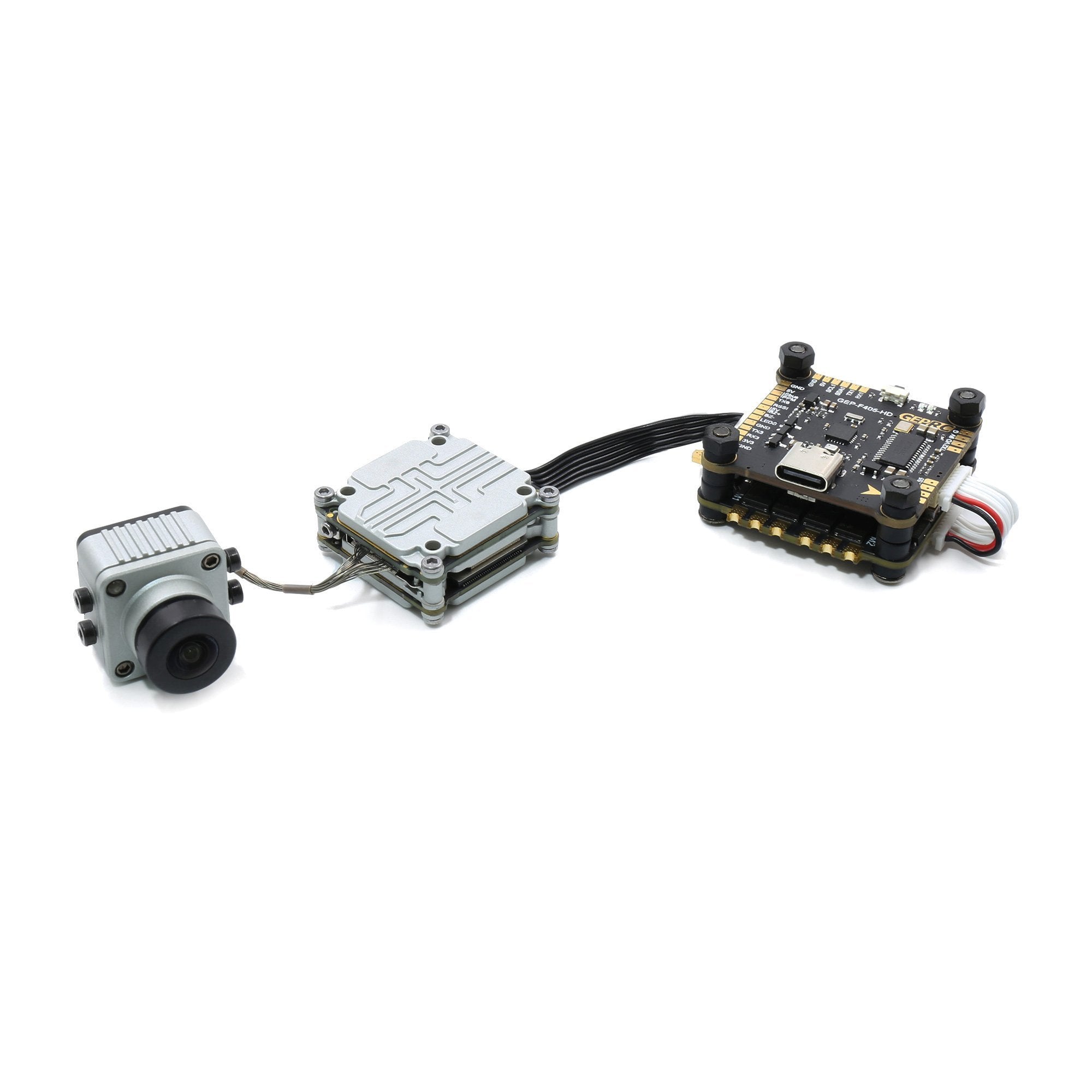

The directly connected DJI Digital FPV System

BLheli_32 50A ESC 4in1

Simple installation method, compact space

Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

MCU: STM32F405

IMU: MPU6000(SPI)

DJI FPV Air Unit Supported.

BlackBox: 16Mb onboard Flash

Type-C USB interface

OSD: BetaFlight OSD w/ AT7456E chip

Baro：BMP280

BEC Output: 5V,9V BEC

Integrated LC Filter

Firmware target:GEPRCF405

Size: 36x36mm board, φ4mm with Grommets φ3mm

Power input: 3-6S LiPo

6x UART

BL32 50A ESC 4IN1:

MCU: STM32F051K86(32bit 48mHz)

Continuous Current: 50A

Peak Current: 55A (5S)

Current sensor: YES

Telemetry：Supported

Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot

Firmware Version:GEPRC-BL32-4IN1

Input Voltage: 3-6S Lipo

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

Include：

1x GEP-F405-HD Flight Controller

1x GEPRC G50A ESC

1x 35V 470uf Capacitor

4x Silicon grommets M4 to M3

4x M3*22mm Screw

4x M3*30mm Screw

1x XT60 Power Cable

1x ESC Cable

1x DJI Cable
