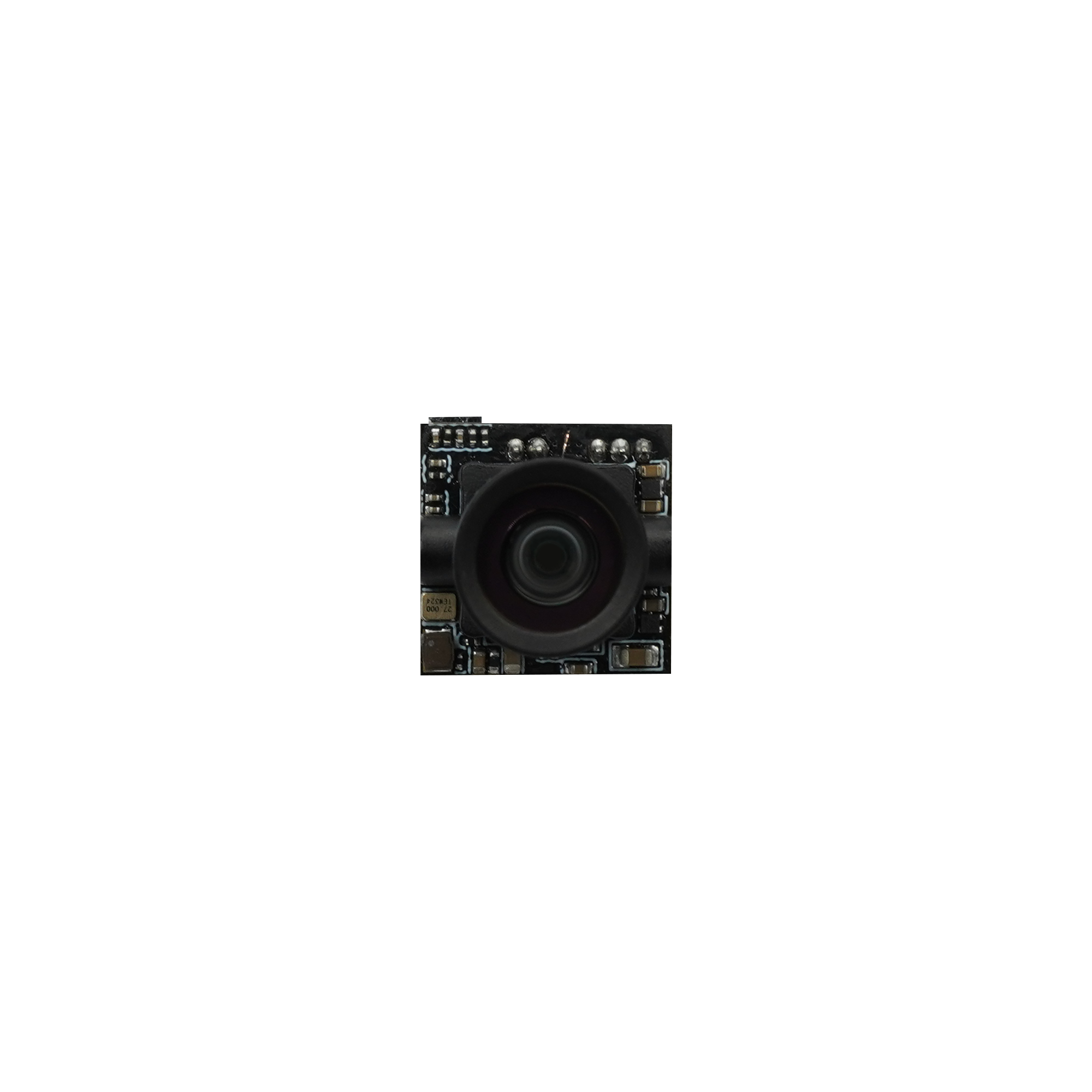

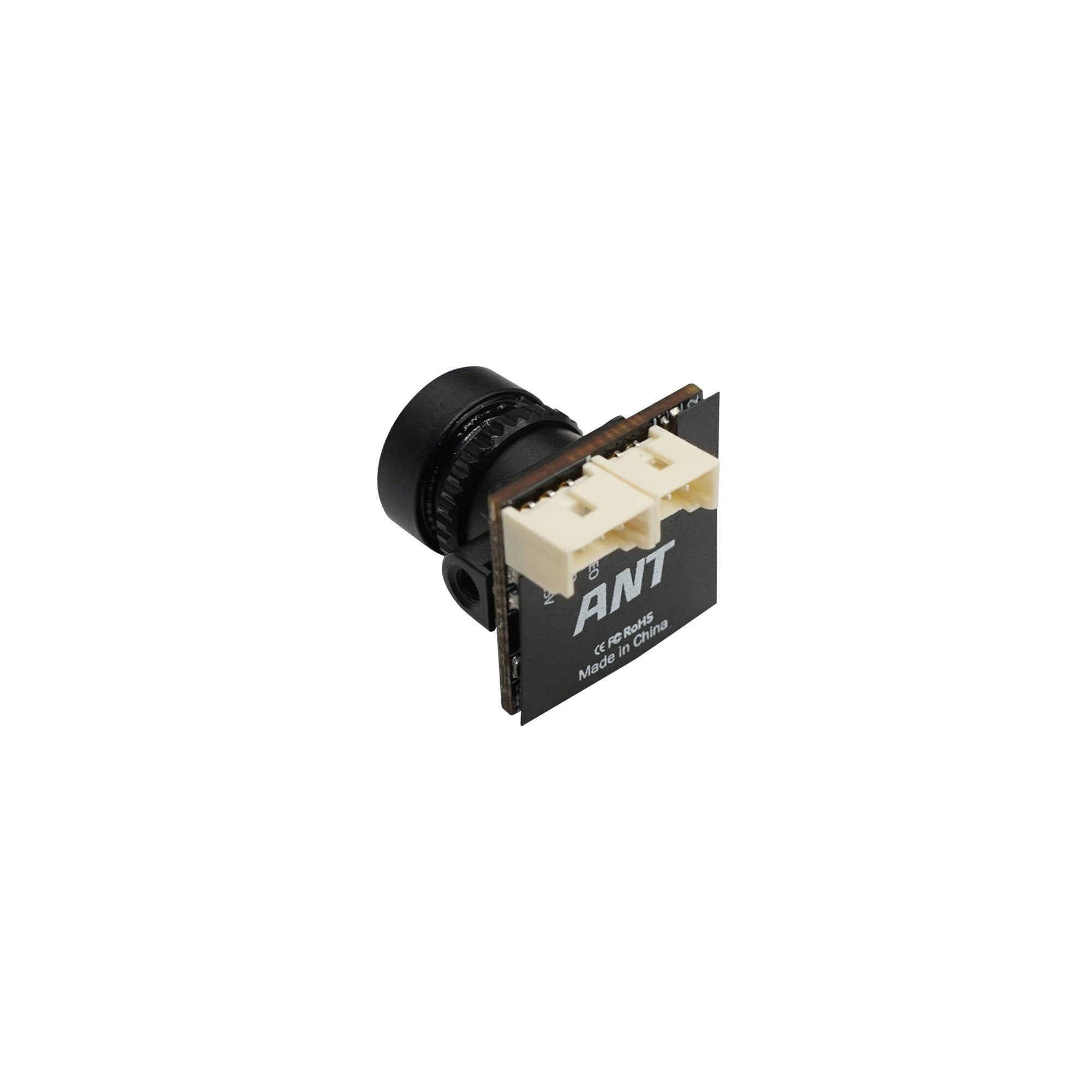

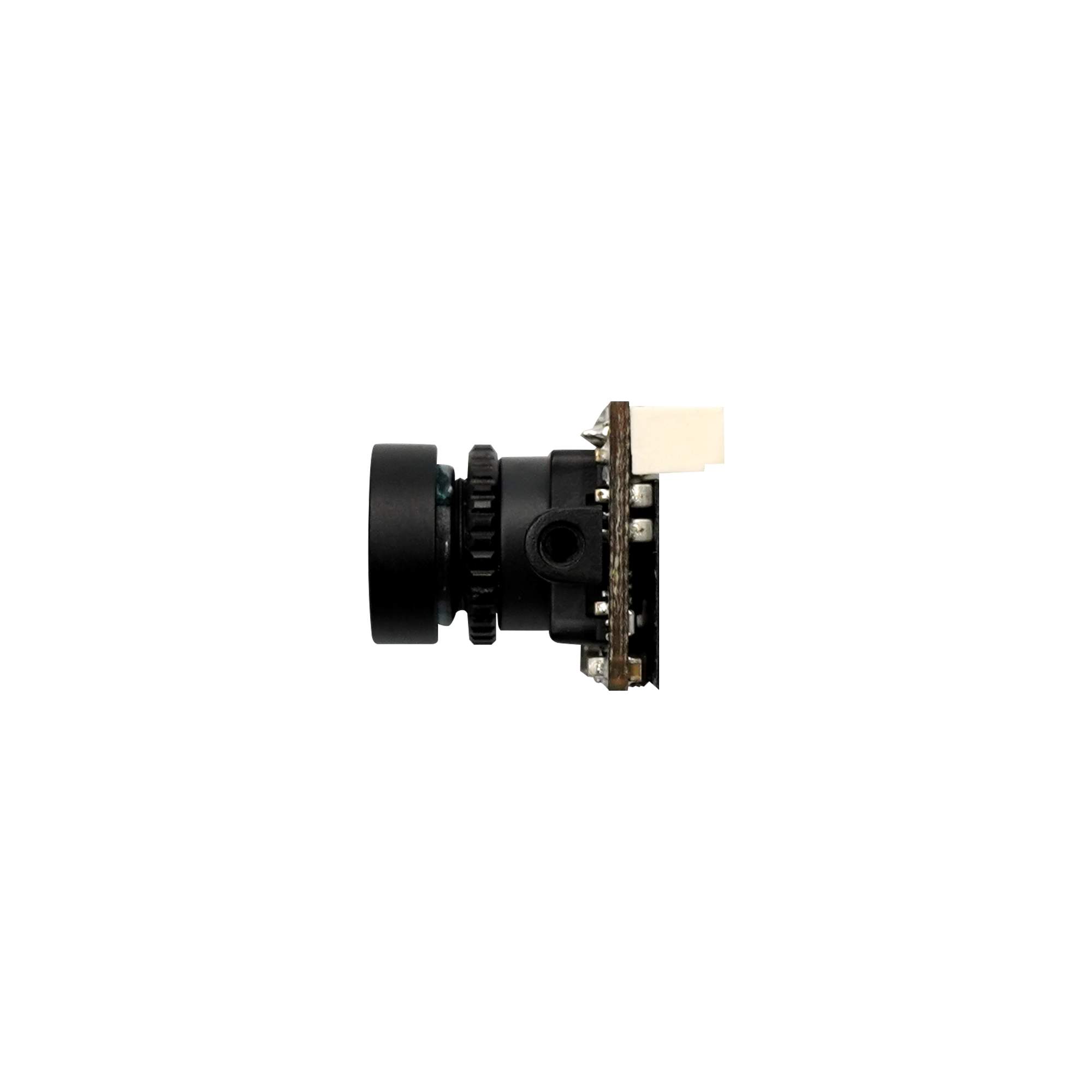

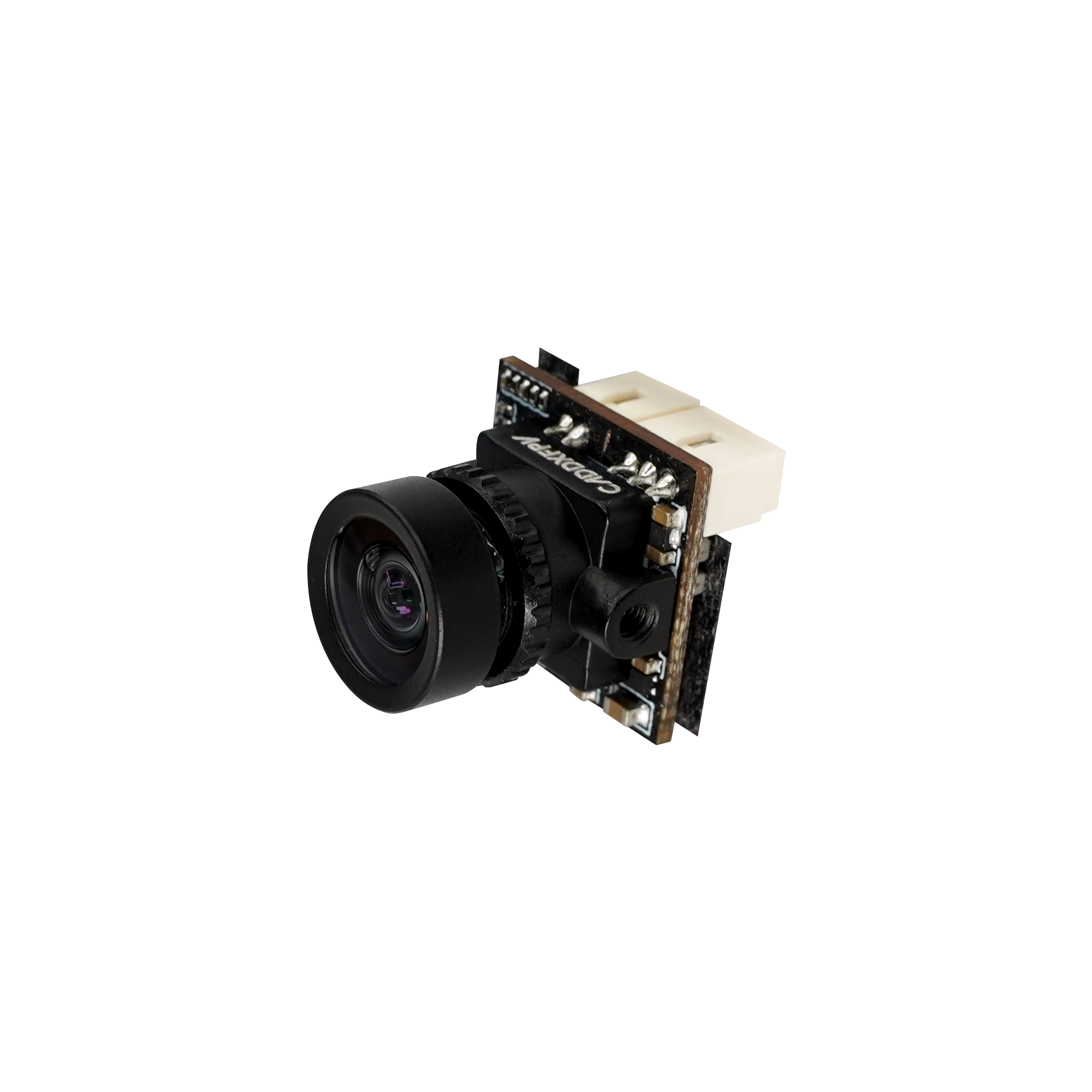

SMART16 Caddx Ant FPV Camera｜FPV 相機與影像配件

SMART16 Caddx Ant FPV Camera｜FPV 相機與影像配件

GEPRC 官方FPV 相機與影像配件，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Specification:

Model:Caddx Ant Camera

Image Sensor :1/3″ CMOs Sensor

Horizontal Resolution :1200 TVL

Video Standard : NTSC and PAL ( switchable )

OSD Support : Yes

Aspect Ratio :16:9 or 4:3

Synchronization : Internal

Electronic Shutter : PAL :1/50-100,000; NTSc :1/60-100,000

S / N Ratio :>52dB( AGc OFF )

Video Output : CVBS

Lens :1.8mm

Min. Illumination :

[email protected]

Auto Gain Control : Yes

BLC : Yes

WDR : Global WDR

DNR :3D DNR

Dimensions :14:14mm( bracket to 19:19mm)

Power input :DC5-25V

Operable Temperature :-20℃-+60℃

Operable Humidity :20%-80%

Weight :2g( N . w .)

Size:14x14mm

Feature:

Caddx Ant Lens with high quality image

Suitable for

SMART16 quadcopter

Includes:

1 x SMART16 Caddx Ant Camera
