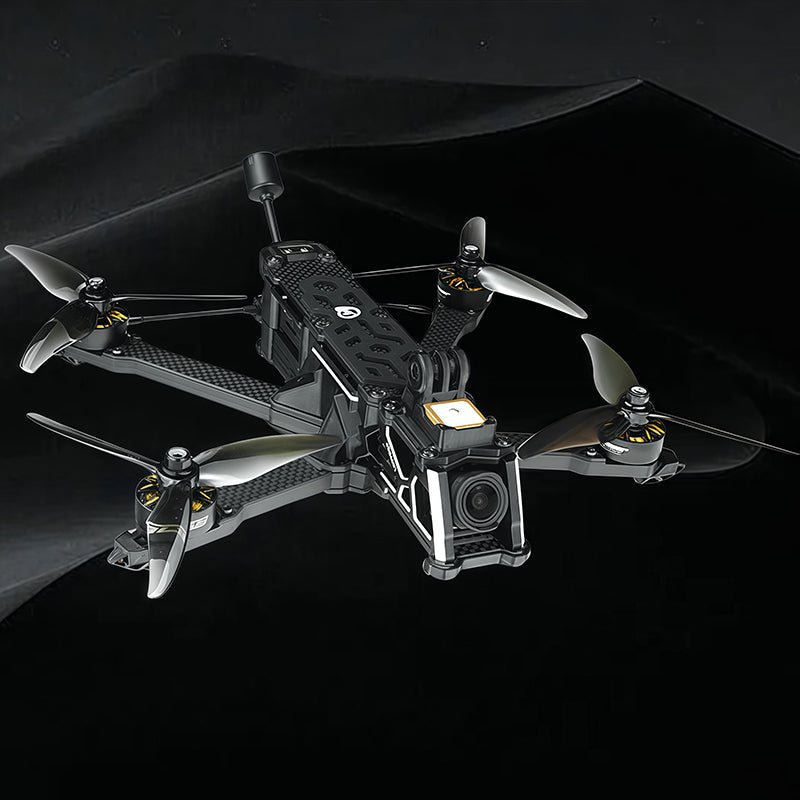

SEQURE Heison 5X／5D 5 吋自由式 FPV 穿越機｜DJI O3／類比
SEQURE Heison 5X／5D 5 吋自由式 FPV 穿越機｜DJI O3／類比
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。
Drones are special products. Shipping usually includes taxes, but for certain regions this may vary. Please confirm with SEQURE official if needed.
Heison5 Review by Joshua Bardwell
Product Description:
(1) 2 Types of racks: Heison 5X & 5D, supporting 6S and 8S battery, DJI or analog VTX.
(2) Equipped with the advanced SEQURE H743 V2 FC & E70 G1 ESC, featuring STM32H743 MCU, ICM-42688P Gyro, and high-performance 32-bit 70A 4IN1 ESC, this specifications ensures an unparalleled flying experience.
(3) It pioneers personality-infused image projection for FPV drones, making it navigable in the dark night. Support DIY patterns to meet different scene requirements.
(4) Innovative Active Cooling System.Special aviation-grade heat dissipation ice armor reduces the heat generated by the VTX.The front air intake and active vortex generator together form a negative pressure air duct for efficient cooling.
(5) Innovative Full Coverage Arms, Motor wiring ingeniously concealed, Effective protection of motor wire safety and a more aesthetically pleasing layout.
(6) Fully enclosed combat armor with distinct edges and corners, Electrifying LED strips pulsate dynamically, Reserved Type-C Port for parameters tuning.
(7) 10th Generation GPS Module. Forward-facing unobstructed GPS design, eliminating VTX interference. Faster satellites searching and locking up to 32 satellites for stable rescue.
(8) The nose is constructed with aviation-grade 7075 aluminum, ensuring enhanced protection for the body and lens. The TPU shock-absorbing design on both sides effectively minimizes image vibrations during flight.
(9) Heison 5X delivers an even more impeccable freestyle feel, with more precise and agile stick response, indulging in the thrill of Freestyle.Heison 5D supports O3 ultra-wide-angle without exposing propellers, enjoying high-speed flights with stunning visuals.
Parameters of Product：
|
Heison 5 |
||
|
Frame |
Heison 5X |
Heison 5D |
|
Wheelbase |
220mm |
225mm |
|
Arm plate |
8mm |
|
|
Top plate |
3mm |
|
|
Bottom plate |
3mm |
|
|
Operating Voltage |
4-8S（14V-35V） |
|
|
Motors |
1800KV（6S），1600KV（8S） |
|
|
Flight Controller |
SEQURE H743 V2 |
|
|
Firmware |
SEQUREH7V2 |
|
|
MCU |
STM32H743 |
|
|
Gyro |
ICM-42688P |
|
|
ESC |
32-Bit 70A 4IN1 ESC |
|
|
OSD Chip |
AT7456E |
|
|
Black Box |
16MB |
|
|
Props |
Gemfan 51466 V2 |
|
|
Buzzer |
YES |
|
|
Recommended Battery |
6S LiPo/LiHV 1200-1500mah (6S Version) |
|
|
Battery connector |
Fixed XT60 |
|
|
Receiver |
PNP/ELRS 2.4G，915M/TBS 915M |
|
|
GPS |
SEQURE M10-18 GPS |
|
|
Video Recording |
Up to 4K at 120fps |
Support external sports camera |
|
Video Transmission |
DJI O3 Air Unit |
VTX 1.3W |
|
Camera |
DJI O3 Air Unit |
Caddx Ratel2 |
|
Ice Armor |
YES |
NO |
|
Cooling Fan |
YES |
YES |
|
LED strip |
YES |
YES |
|
Projector |
YES |
YES |
|
Weight(without battery) |
514.5g* |
486.3g* |
Package included:
DJI O3 version:
Heison 5×1
Gemfan 51466V2 propellers (set) (gray) × 2
Battery Strap M20*270mm ×2
Battery Silicone Pads×2
Instructions×1
Screw accessories pack ×1
3D printed parts×1
DJI O3 Air Unit ×1
DJI O3 antenna ×1
Analog version:
Heison 5×1
Gemfan 51466V2 propellers (set) (gray) × 2
Battery Strap M20*270mm ×2
Battery Silicone Pads×2
Instructions×1
Screw accessories pack ×1
3D printed parts×1
VTX 1.3W ×1
Maple Black RHCP antenna 8cm ×1
Frames & Components:
For spare frames or other components, please contact SEQURE official directly for separate purchase.
Overall Dimension:
(1) Product Size: /
Net Weight Of Product: 500g
(2) Package Size: 270*260*110mm
Packing Weight: 820g
(3) Package Size (Including Outer Carton)：280*270*120mm
Packing Weight (Including Outer Carton)：1050g
