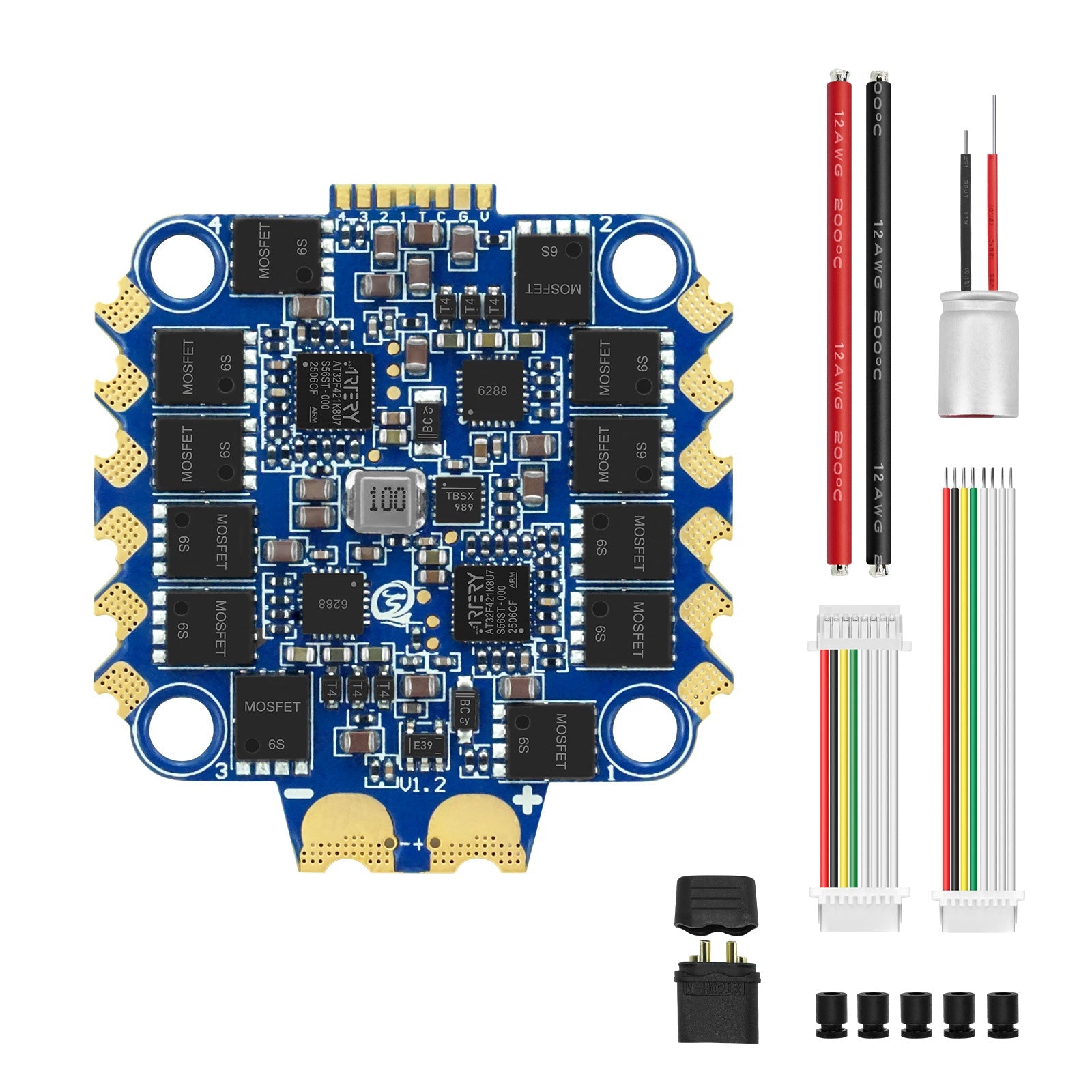

SEQURE Blueson A2 四合一穿越機電變｜6S 65A／8S 70A

SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。

Product Description:

(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
(5) The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.

Parameters of Product:

Package included:

SEQURE Blueson A2 4IN1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5

Overall Dimension:

（1）Product Size: 45.5*42.5*6mm
          Net Weight Of Product: 17g
（2）Package Size: 90*60*36mm
          Packing Weight: 65g
（3）Package Size (Including Outer Carton)：150*100*40mm
          Packing Weight (Including Outer Carton)：115g

商品規格、外觀與包裝內容可能因原廠批次調整；實際出貨以所選變體與最新批次為準。
