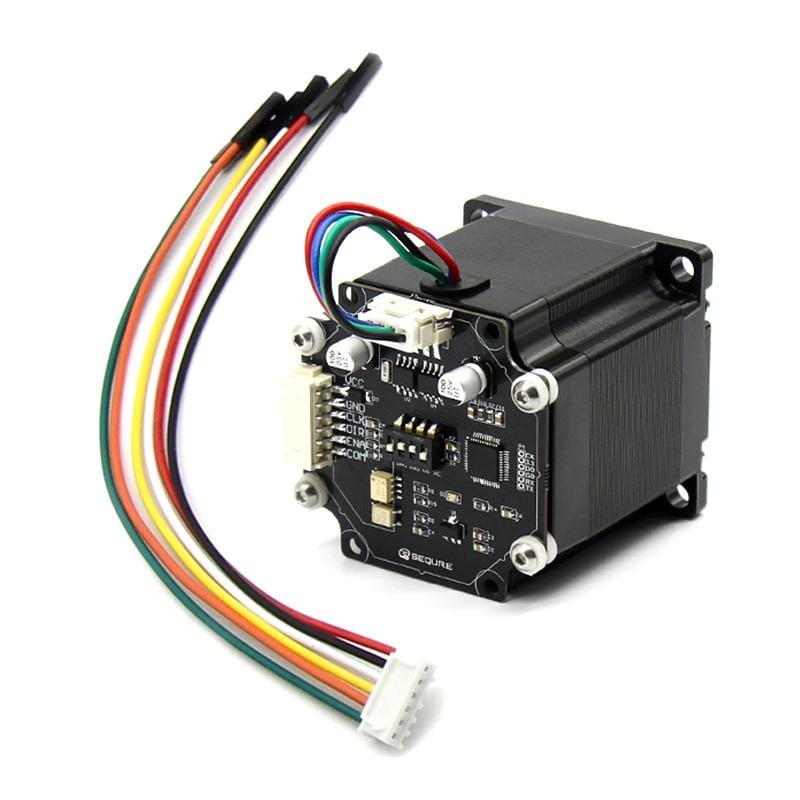

Nema 23 Stepper Motor STM32 Closed-loop 57 Servo Stepper Motor Kit With Driver Board | Suitable for 3D Printing | Compatible Mechaduino

57 Stepper Motor Firmware Download

Motor Parameters:
Product Name: 57 two-phase stepper motor
Step angle: 1.8 °
Driving voltage: 24V
Rated current: 3A
Rotor inertia: 300g.cm²
Maximum speed: 1000rpm (recommended load 600rpm)
Static moment: 1.2N.m
Motor length: 56mm
Phase inductance: 2.5mH
Phase resistance: 0.9Ω

Wiring Instructions:

1. VCC : Connect 12-30V power supply ( Refer to the working voltage of the motor, general 24V )

2. GND: Ground wire

3. CLK : Control signal (Connected to pulse input )

4. DIR: Direction control signal ( Floating forward, ground reverse )

5. ENA: Connect to enable signal ( Default enable, grounding stops working )

6. P2: Connect one phase to the motor on each side ( Refer to the motor parameter description, the motor is divided into two phases AB, pins 1 and 2 are connected to one phase, and pins 3 and 4 are connected to the other phase. )

Products Details

The use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems.

applied motion stepper motor wiring diagram

Motor parameter requirements:

Phase: 2 phases
Step angle: 1.8°
Working voltage: 12-30V
Current: maximum 3.5A
Control method: Pulse control

DIP switch {ON (1) / OFF (0)}:

Div1, Div2 control pulse frequency division

(1) 00: 4 subdivision

(2) 10: 8 subdivision

(3) 01:16 subdivision

(4) 11:32 subdivision

Ctl setting control mode, open-loop / closed-loop

(1) 0 : Open-loop mode

(2) 1 : Closed-loop mode

AC setting calibration

Turn the AC to position 1, and turn on the power. The LED blinks 3 times to start automatic calibration. The motor shaft rotates counterclockwise for one cycle and then clockwise for one cycle. The system automatic calibration complete and the LED continues to flash. The AC dial returns to position 0, and then restart power.

Application examples:

3D printing with fine closed-loop positioningOptical precision aiming (Laser, telescope, camera gimbal,camera slider etc.)Speed loop record playerForce feedback / impedance control robotForce feedback of game controllerAdjustable mechanical impedance: virtual spring, damper, etc.Electric transmission device between two axes such as CNC machine toolsGravity elimination (eg: offset gravity torque on the robot arm, etc.)Load detection and feature description (Used as a balance, etc.)Paper towel / TP distributorVariable load (Brake, generator, etc.)Valve control (Automated garden hose, etc.)

Package includes :

1× complete machine

1× 6P cable

1× instruction manual

Note: The product is installed and tested by our professional staff, and you can use it
normally when you receive the goods.

Motor Size Detail:

Product size: 90 (length) * 60MM (maximum diameter)
Net weight: 680g
Box size: 135 * 80 * 90mm
