SEQURE S99 智慧電烙鐵｜C245 烙鐵頭 PD／QC／DC／PPS
SEQURE S99 智慧電烙鐵｜C245 烙鐵頭 PD／QC／DC／PPS
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。
S99 Product Description:
- Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.
- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.
- Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.
- The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.
- 128*32 OLED display, built-in buzzer for work reminder.
- Sensitivity can be set to reject interference from environmental factors.
- Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.
-Available in three languages： Chinese, English, and Russian
The resistance of the shipped soldering iron tip is about: 5.5 Ω
If you want to buy 2.5Ω soldering iron tip, you can purchase it through this link: https://bit.ly/3QdLDIu
S20/S60/S60P/S99 parameter comparison
|
Model |
S20 |
S60 |
S60P |
S99 |
|
Maximum Voltage |
9V |
12V |
21V |
21V |
|
Maximum Power |
20W |
60W |
60W |
150W（2.5Ω），75W（5.5Ω） |
|
Fastest Melting Tin Time |
3s |
2s |
2s |
2s（2.5Ω），5s（5.5Ω） |
|
Working Temperature |
50-500℃ |
50-500℃ |
50-500℃ |
50-500℃ |
|
Screen Size |
128*32 OLED |
128*32 OLED |
128*32 OLED |
128*32 OLED |
|
Interface Type |
Type-C |
Type-C |
Type-C |
Type-C |
|
Power Supply |
PD，QC，DC |
PD，QC，DC |
PD，QC，DC，PPS |
PD，QC，DC，PPS |
|
Protocol Selection |
not support |
not support |
support |
support |
|
Host Size |
116*13*15mm |
118*13*15mm |
118*13*15mm |
124*13*15mm |
|
Host Weight |
22g |
22g |
22g |
22g |
|
Soldering Iron Tip Length |
45mm |
80mm |
80mm |
99mm |
|
Soldering Iron Tip Weight |
1g |
2g |
2g |
5g |
|
Host+Soldering Iron Tip Size |
135*13*15mm |
145*13*15mm |
145*13*15mm |
165*13*15mm |
|
Host+Soldering Iron Tip Weight |
23g |
24g |
24g |
28g |
|
Application |
Nano welding, chip flying lead |
Mobile computer repair |
Mobile computer repair |
Drone, RC model welding |

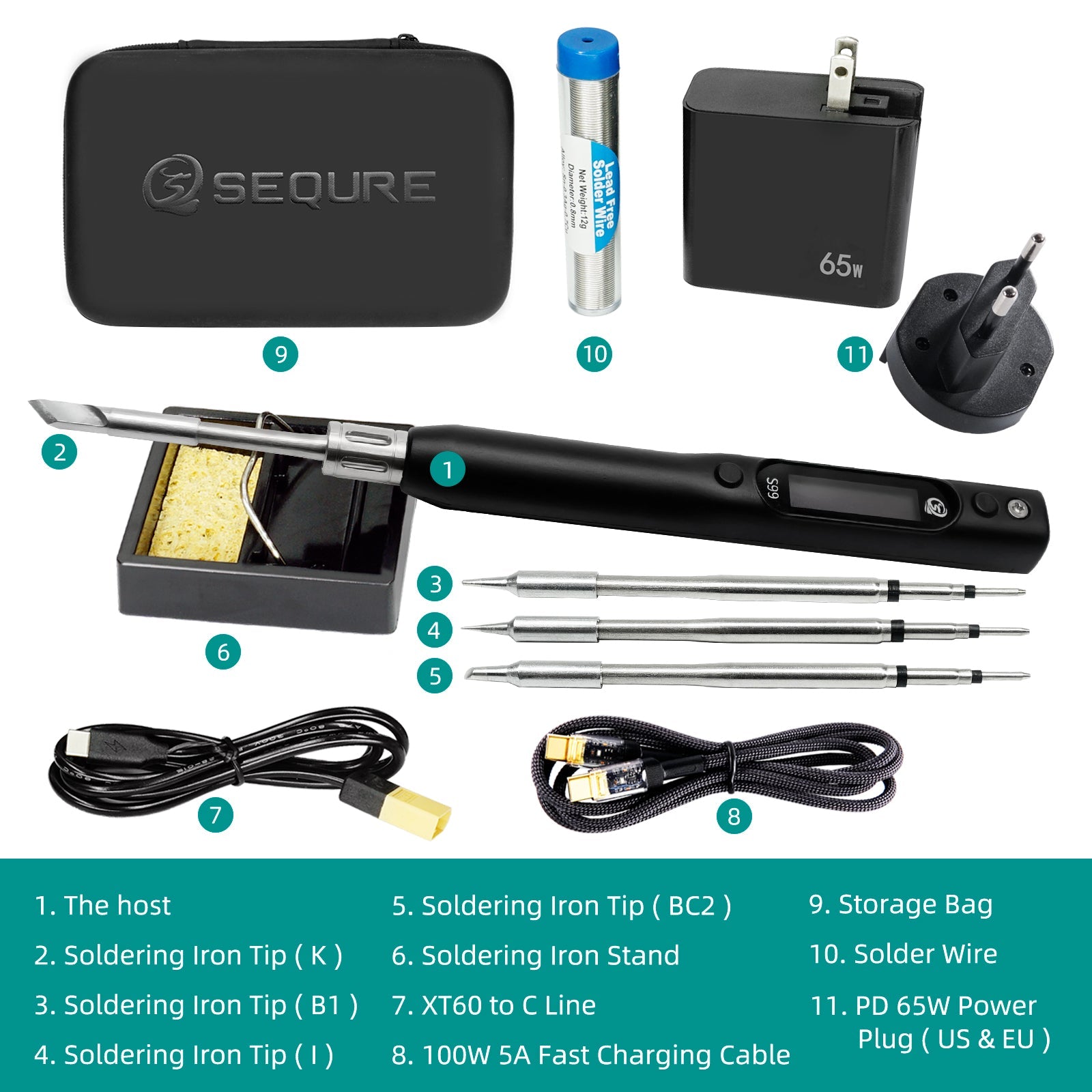

Package included:
-
Host × 1
-
Soldering iron tip × 1
Overall Dimension:
S99（K/I/B1/BC2）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 125*35*23mm
Packing Weight: 44g
- Package Size (Including Outer Carton)：205*115*40mm
Packing Weight (Including Outer Carton)：85g
S99（K+I+B1+BC2）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 125*50*25mm
Packing Weight: 76g
- Package Size (Including Outer Carton)：205*115*40mm
Packing Weight (Including Outer Carton)：117g
S99 Kit（K/I/B1/BC2）-（US+EU）/（US+AU）/（US+UK）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 190*125*60mm
Packing Weight: 358g
- Package Size (Including Outer Carton)：235*130*110mm
Packing Weight (Including Outer Carton)：470g
S99 Kit（K+I+B1+BC2）-（US+EU）/（US+AU）/（US+UK）
- Product Size: 124*13*15mm
Net Weight Of Product: 22g
- Package Size: 190*125*60mm
Packing Weight: 390g
- Package Size (Including Outer Carton)：235*130*110mm
Packing Weight (Including Outer Carton)：500g
商品規格、外觀與包裝內容可能因原廠批次調整；實際出貨以所選變體與最新批次為準。
