SEQURE ODESC3.6 雙驅無刷馬達控制器｜FOC BLDC
SEQURE ODESC3.6 雙驅無刷馬達控制器｜FOC BLDC
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。
Description: SEQURE ODESC 3.6 high-performance brushless drive is based on the open-source project ODrive for hardware optimization and enhancement, stable performance, and matching the original firmware of Odrive. The supporting USB connection to the PC terminal can realize motor debugging and complex multi-axis control. And it can realize FOC control for most brushless motors on the market. With the use of encoders, it can also achieve arbitrary torque, speed loop, position loop, current loop, and position control based on trajectory planning, etc. It can be widely used in joint flexible robots, robotic arms, 3D printing, camera gimbals, Gimbal slide, CNC milling machine, ship model, car model, SimRacing,RC planes, hoverboard and other DIY industrial and automation fields.
|
Product Parameters |
|
|
Hardware Version |
ODESC3.6 Dual Drive |
|
PCB description |
4 layer 4 * 2oz = 8oz |
|
Applicable Voltage |
8-56V |
|
Current Parameter |
50A continuous/120A peak |
|
Support Encoder |
Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047 |
|
Communication Interface |
USB-Protocol Open Source (PC, Raspberry Pie, Ros) , UART (Embedded Devices) , PWM (RC Remote) , STEP/DIRECTION（PLC）、GPIO、CAN、ANALOG INPUT |
|
Voltage Protection |
Programmable Voltage Protection to Prevent Excessive Battery Discharge |
|
Movement Pattern |
Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc. |
|
Overcurrent cooling |
PCB integrates high-current opening skylights, tin pillars, and CNC customized heat sinks, continuous and stable overcurrent, and more efficient heat dissipation |
|
Contour Dimension |
155*50*30mm |
|
Product Weight |
160g |
Overall Dimension
Product Size: 155*50*30mm
Net Weight Of Product: 160g
Package Size: 180*130*30mm
Packing Weight: 270g

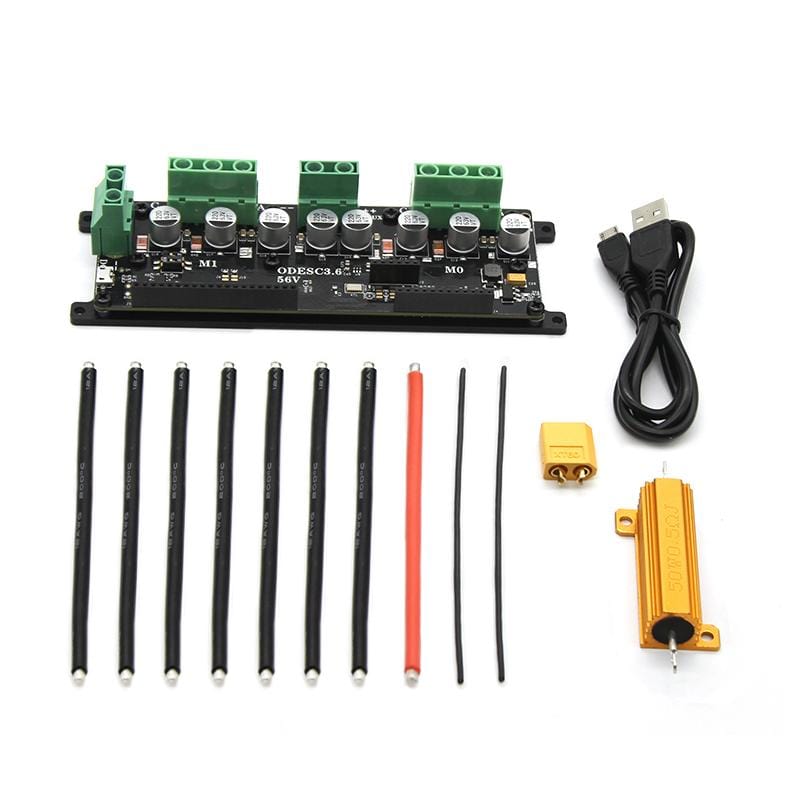

Packing list
Driver board ×1
Power resistance ×1
XT60 male x 1
USB cable ×1
20AWG resistance cable ×2
12AWG motor cable ×6
12AWG power cable ×2
