SEQURE ELRS 2.4GHz 單天線接收機

SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。

Product Description:

(1) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
(2) High-speed data transmission, supports F1000Hz and F500Hz ultra-high refresh rates, meeting the low-latency requirements of racing players.
(3) Onboard temperature-compensated crystal oscillator (TCXO), rejects the impact of ambient temperature on flight, maintains stable operation in high or cold environments, making flight safer.
(4) Integrated with a high-power PA+LNA low-noise amplifier and 100mW (20dBm) telemetry return, returning the flight data is more stable.
(5) Supports SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.

Parameters of Product:

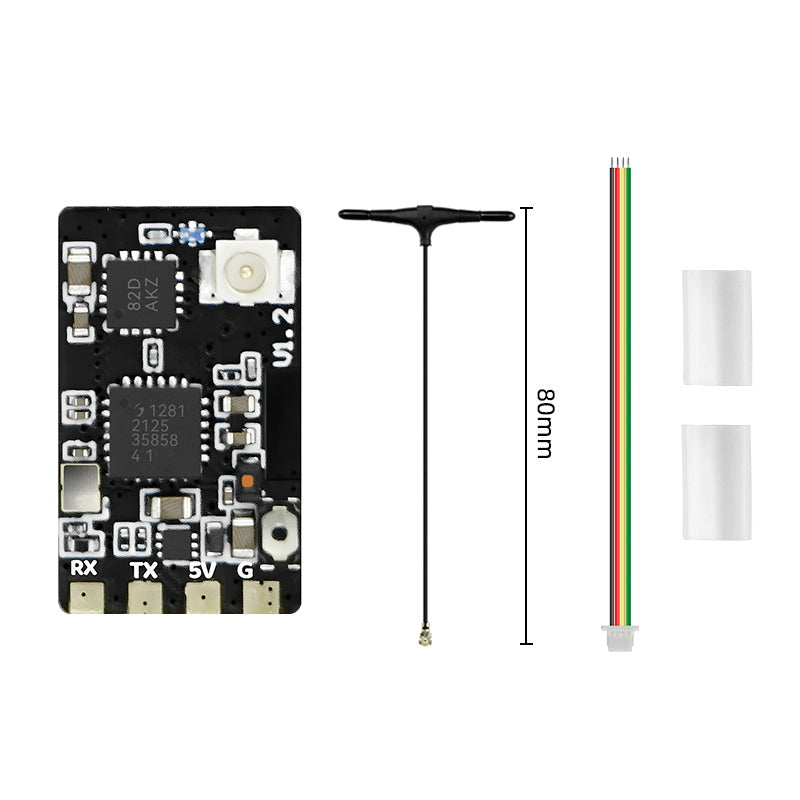

Package included:

SEQURE ELRS 2.4GHz Single RX×1
2.4G Antenna 80mm×1
30AWG 100mm Single-end SH1.0-4P Cable×1
12*30mm Heat Shrink Tube×2

Overall Dimension:

(1)  Product Size: 18*10.8*5mm
      Net Weight Of Product: 0.7g

(2)  Package Size: 150*100*15mm
      Packing Weight: 8g

(3)  Package Size (Including Outer Carton)：200*110*40mm
      Packing Weight (Including Outer Carton)：52.5g

商品規格、外觀與包裝內容可能因原廠批次調整；實際出貨以所選變體與最新批次為準。
