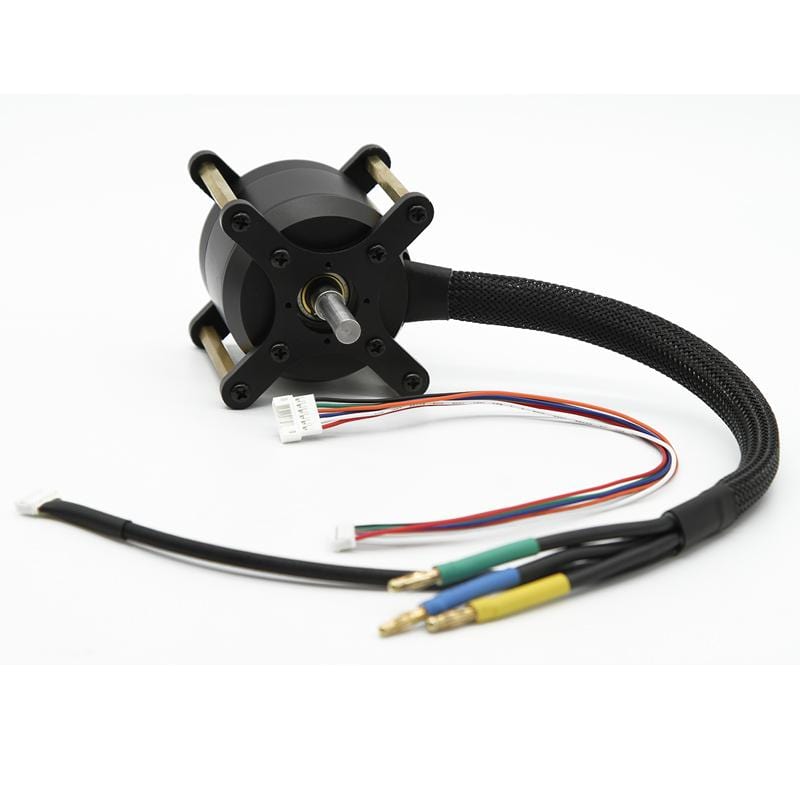

SEQURE 6354 無刷馬達鋁合金固定座｜ODESC／ODrive

SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。

Motor Parameters:

Maximum power: 2450W
Maximum current: 65A
Maximum voltage: 12S
Maximum torque: 7Nm
Motor resistance: 0.053Ohm
Recommended driver: ODESC
Motor weight: 1.23lb / 0.56kg
Motor length: 54mm
Motor diameter: 63mm
Number of motor poles: 14
Motor wire: 320mm silicone wire 12AWG wire, with 4.0mm gold bullet male head
Motor line configuration: blue=A, black=B, yellow=C

8mm round short shaft 6354 Brushless DC Motor drawing

8mm round long shaft 6354 Brushless DC Motor drawing

Package Included:
6354 motor × 1
Aluminum bracket × 2
M4*10 screw × 12
55mm copper pillar × 4
Hall extension cord × 1

Package Size:

Product Size: 95*68*68mm
Net Weight Of Product: 740g

Package Size: 150*95*90mm
Packing Weight：813g

商品規格、外觀與包裝內容可能因原廠批次調整；實際出貨以所選變體與最新批次為準。
