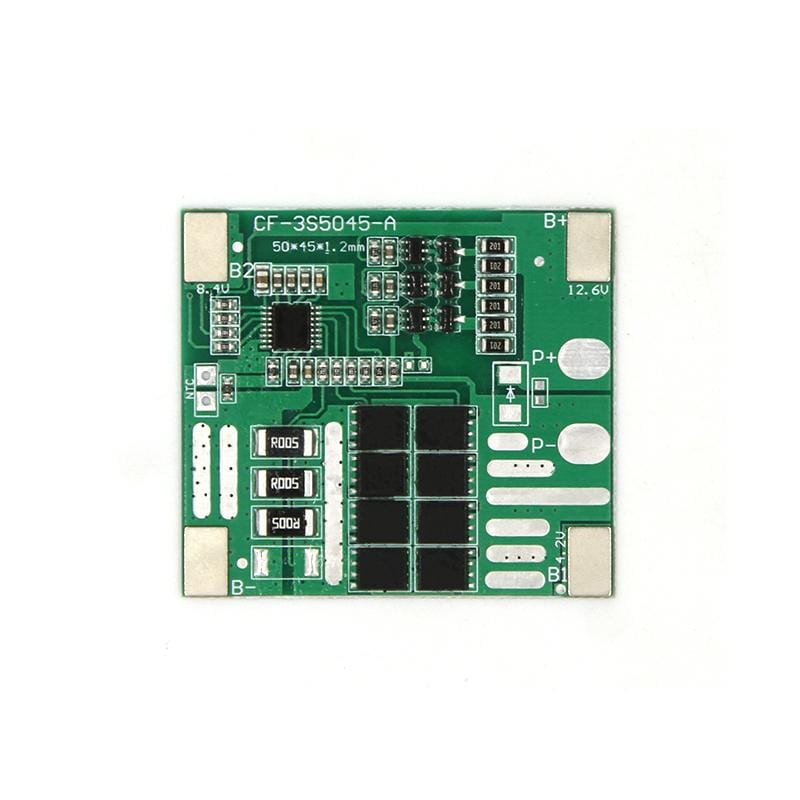

3S 25A Lithium Battery 18650 Charger PCB BMS Protection

SEQURE 3S 25A 18650 鋰電池 BMS 保護板

$63.00

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

SEQURE 原廠商品。請依頁面變體選擇正確型號、版本、接頭與套裝內容。

3S 25A Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell

Feature：

Application: nominal voltage 3.7V ternary lithium battery, 18650 etc.

Charging Voltage: 12.6V

Max Output Current: 25A

Product Parameter
Overcharge protection	Detection voltage：4.25±0.025V
	Detection delay：100±50ms
	Release voltage：4.15±0.05V
Over discharge protection	Detection voltage：2.7±0.1V
	Detection delay：100±50ms
	Release voltage：3.0±0.1V
Balanced voltage	Detection voltage：4.2±0.025V
	Detection delay：100±50ms
	Balanced voltage：42±5mA
Discharge overcurrent protection	Detection voltage：100mV
	Detection delay：1000±500ms
	Current protection：60±10A
Short circuit protection	Trigger condition: external short circuit
	Detection delay：300us
	Release condition: disconnect the load
Temperature control protection	Charging working temperature: can be customized
	Discharge working temperature: can be customized
	Release condition: recover within working temperature
Self-consumption	Work power consumption：≦35uA
	Sleep over discharge power consumption：≦10uA
	range of working temperature：-30/+80℃

Note: Lithium batteries are inherently dangerous. In order to reduce accidents, please know the professional knowledge of this module before buying. Assemblers need to have professional operating knowledge and experience. Non-professionals should not use it without authorization.

Package Included:

1*PCB Protection Board

Overall Dimension

Product Size: 45*50*2mm

Net Weight Of Product: 8g

Package Size: 90*80*5mm

Packing Weight: 10g
