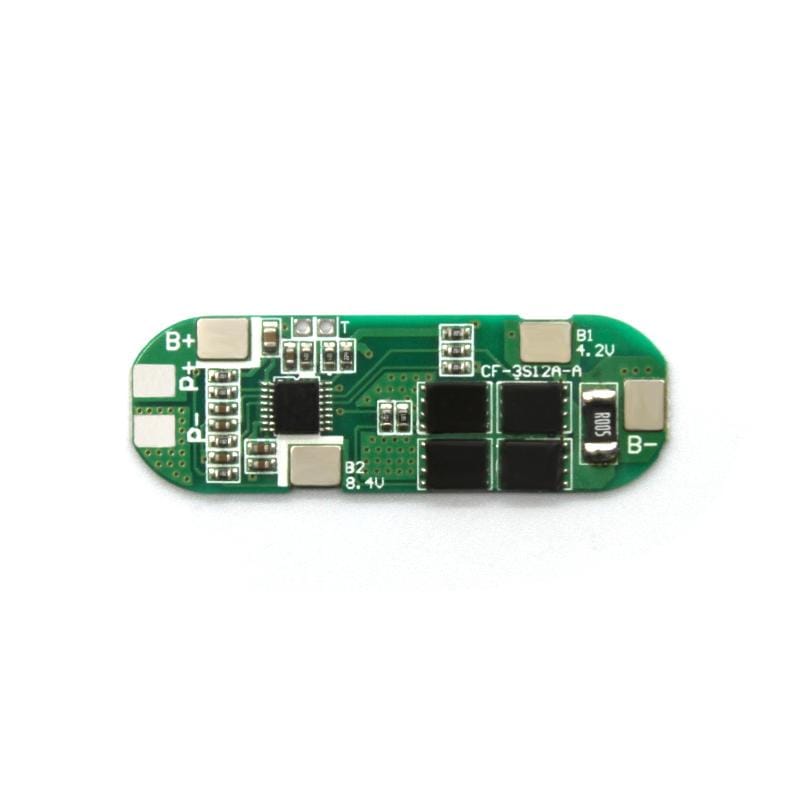

3S 10A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell

Feature:

Application: nominal voltage 3.7V ternary lithium battery, 18650, etc.

Charging Voltage: 12.6V

Max Output Current: 10A

Product Parameter
Overcharge protection	Detection voltage：4.25±0.025V
	Detection delay：100±50ms
	Release voltage：4.15±0.05V
Over discharge protection	Detection voltage：2.7±0.1V
	Detection delay：100±50ms
	Release voltage：3.0±0.1V
Balanced voltage	Detection voltage：NA
	Detection delay：NA
	Balanced voltage：NA
Discharge overcurrent protection	Detection voltage：100mV
	Detection delay：1000±500ms
	Current protection：20±5A
Short circuit protection	Trigger condition: external short circuit
	Detection delay：300us
	Release condition: disconnect the load
Temperature control protection	Charging working temperature: can be customized
	Discharge working temperature: can be customized
	Release condition: recover within working temperature
Self-consumption	Work power consumption：≦35uA
	Sleep over discharge power consumption：≦10uA
	range of working temperature：-30/+80℃

Note: Lithium batteries are inherently dangerous. In order to reduce accidents, please know the professional knowledge of this module before buying. Assemblers need to have professional operating knowledge and experience. Non-professionals should not use it without authorization.

Package Included:

1*PCB Protection Board

Overall Dimension

Product Size: 52*17*2mm

Net Weight Of Product: 2.5g

Package Size: 90*60*5mm

Packing Weight: 4g
