RUSHFPV BLADE F722 V2＋60A Extreme 模擬版｜30×30 飛控電變飛塔

RUSHFPV BLADE F722 V2＋60A Extreme 模擬版｜30×30 飛控電變飛塔

RUSHFPV 官方 飛控電變飛塔，已依台灣使用者習慣整理繁體中文商品名稱與規格。下單前請確認頻段、接頭、極化方向、尺寸與法規需求。

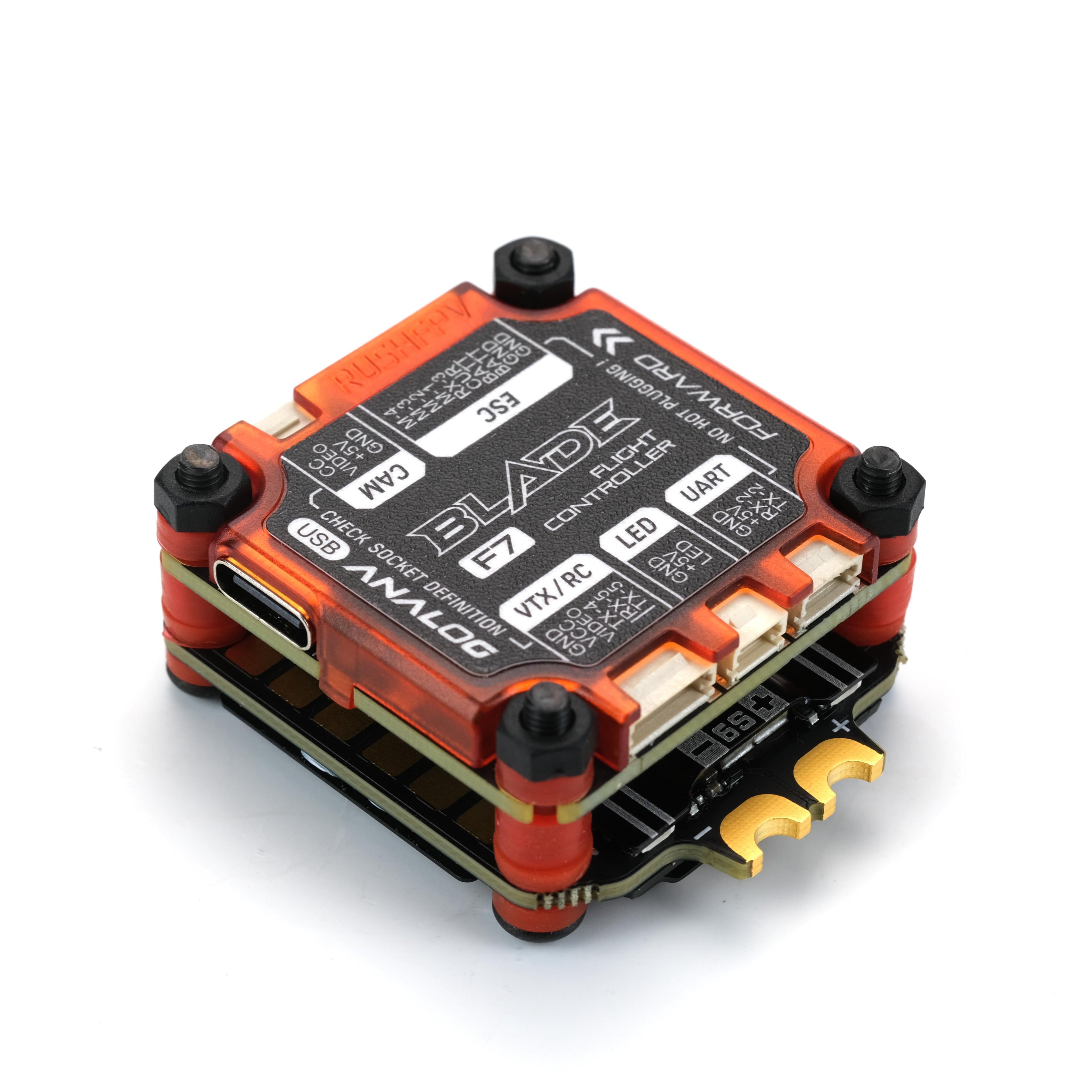

The RUSH BLADE F722 Stack for analog FPV System by RUSHFPV features the RUSH BLADE F722 Analog Flight Controller and RUSH BLADE 60A 3-6S 128kHz 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.

產品規格:

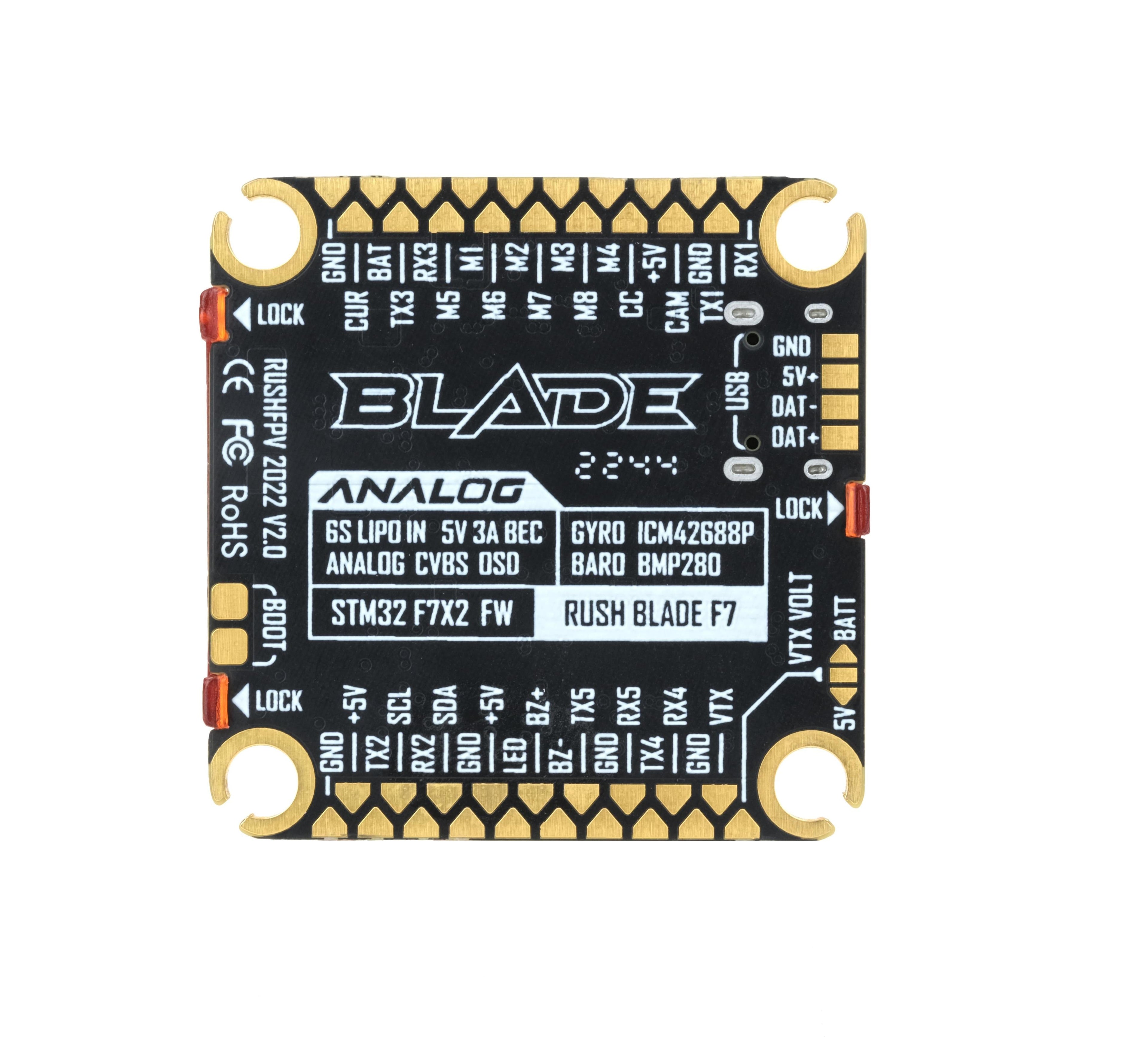

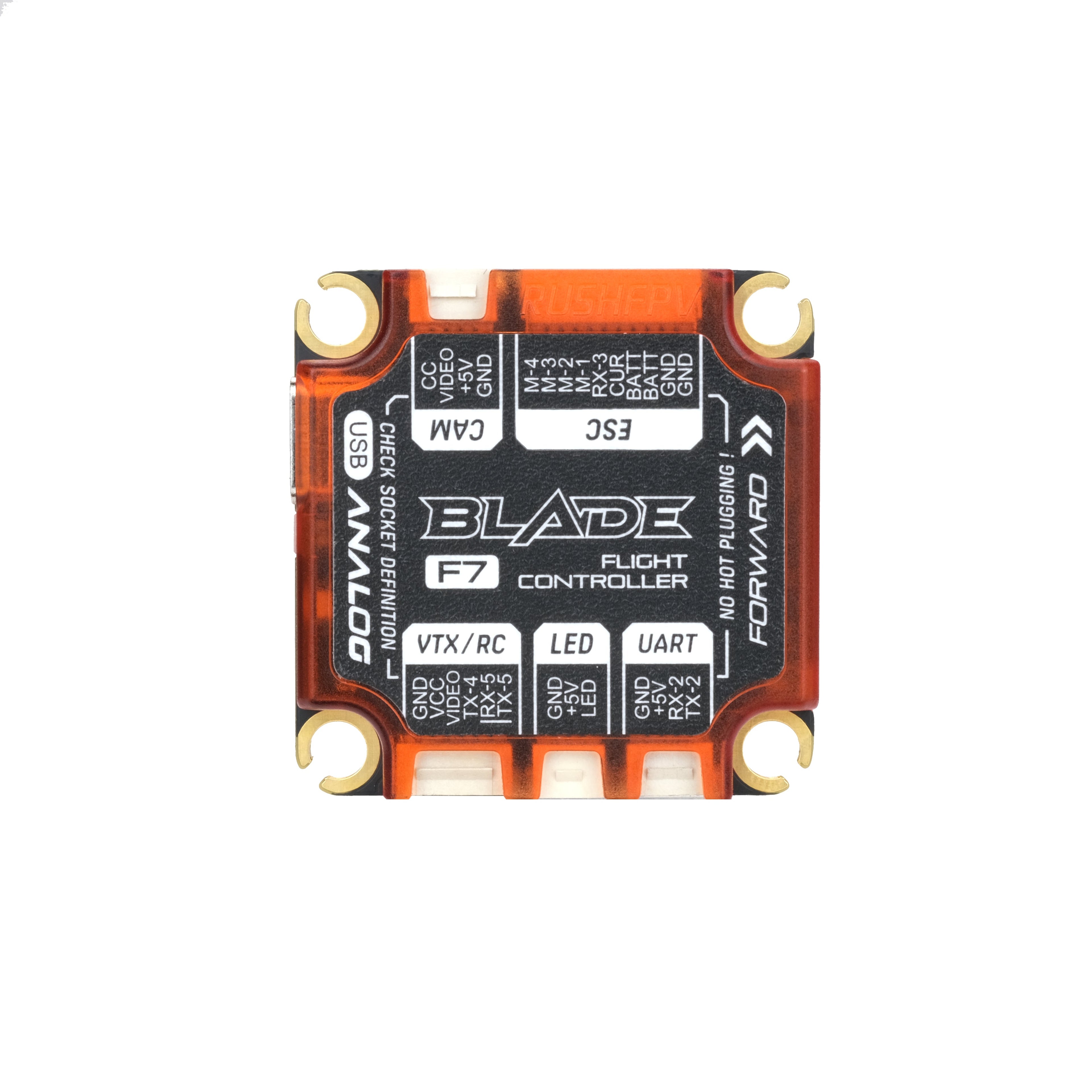

RUSHFPV RUSH BLADE F722 ANALOG FLIGHT CONTROLLER

• MCU：STM32F722RET6
• GYRO：ICM42688P
• BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A
• OSD ：AT7456E CVBS OSD
• BLACKBOX ：16MB FLASH
• TARGET： RUSH_BLADE_F7
• PORT ：8×PWM 5×UART 1×I2C
• ADC： V-BATT / CURR-ESC
• LED：WS2812 LED STRIP
• BARO：BMP280
• MOUNTING HOLES： 30.5*30.5mm
• SIZE ：36.5mm*37mm*5.2mm
• WEIGHT： 11g(without cable)

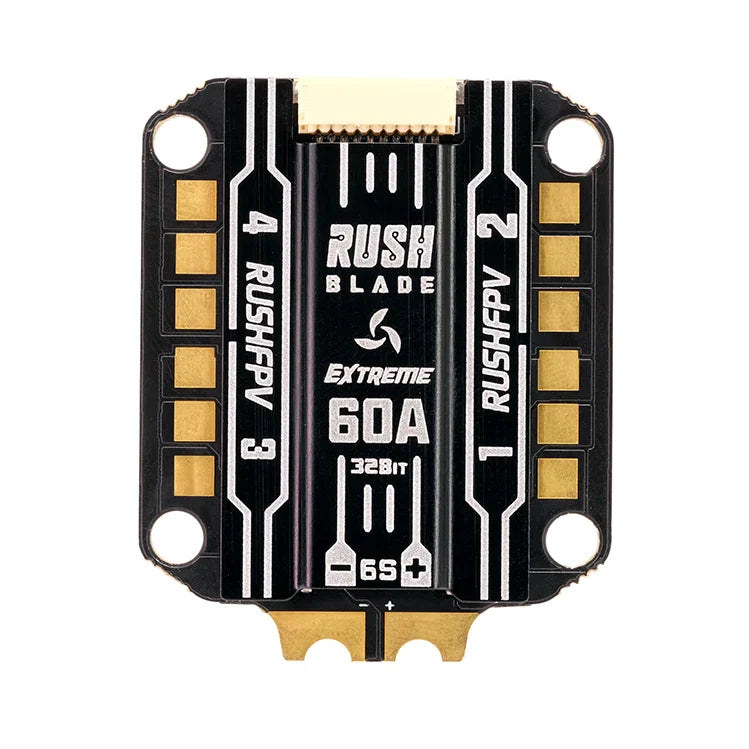

RUSHFPV RUSH BLADE 60A 128KHZ 3-6S 4-IN-1 ESC - EXTREME EDITION

• Rated Current: 60A
• Peak Current: 80A
• Input Voltage: 3-6S Lipo
• MCU: F4 @ 200MHz
• PWM FREQ: 24-128KHz
• LED Color: Orange
• Weight：16.5g
• Dimension: 45*36.5*7.5mm
• BL32 FW: RUSH_BLADE_EXTREME

PACKAGE 包裝內容:

• 1 x RUSHFPV RUSH BLADE F722 Analog Flight Controller V2 Version
• 1 x RUSHFPV RUSH BLADE 60A 3-6S 128kHz 4-in-1 ESC - Extreme Edition
