RadioMaster ER8 2.4GHz ELRS PWM 8 通道接收機

RadioMaster ER8 2.4GHz ELRS PWM 8 通道接收機

RadioMaster 原廠接收機，依官方目前在售規格整理，並提供全額付款與訂金預購選項。

RadioMaster 官方產品頁

The RadioMaster ER series of PWM receivers is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications.

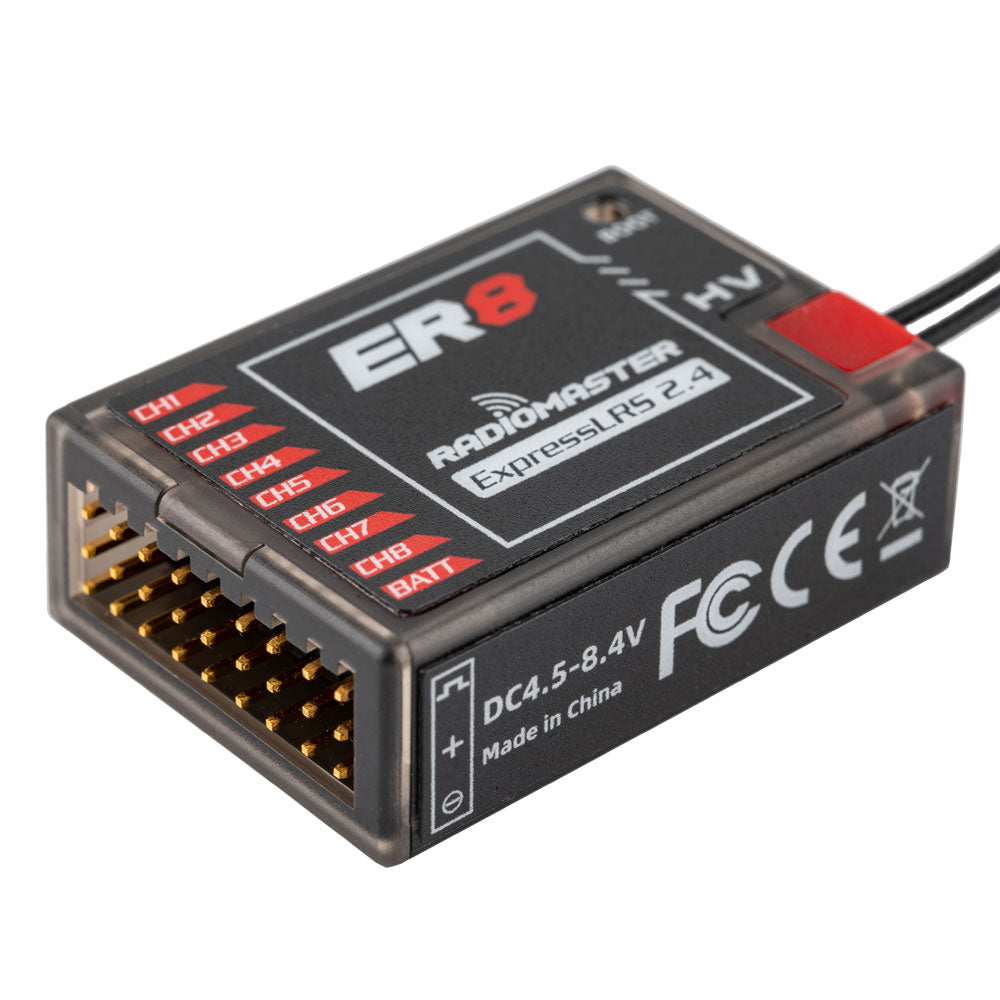

The RadioMaster ER8 receiver has been specially designed for users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, low latency, and strong link quality

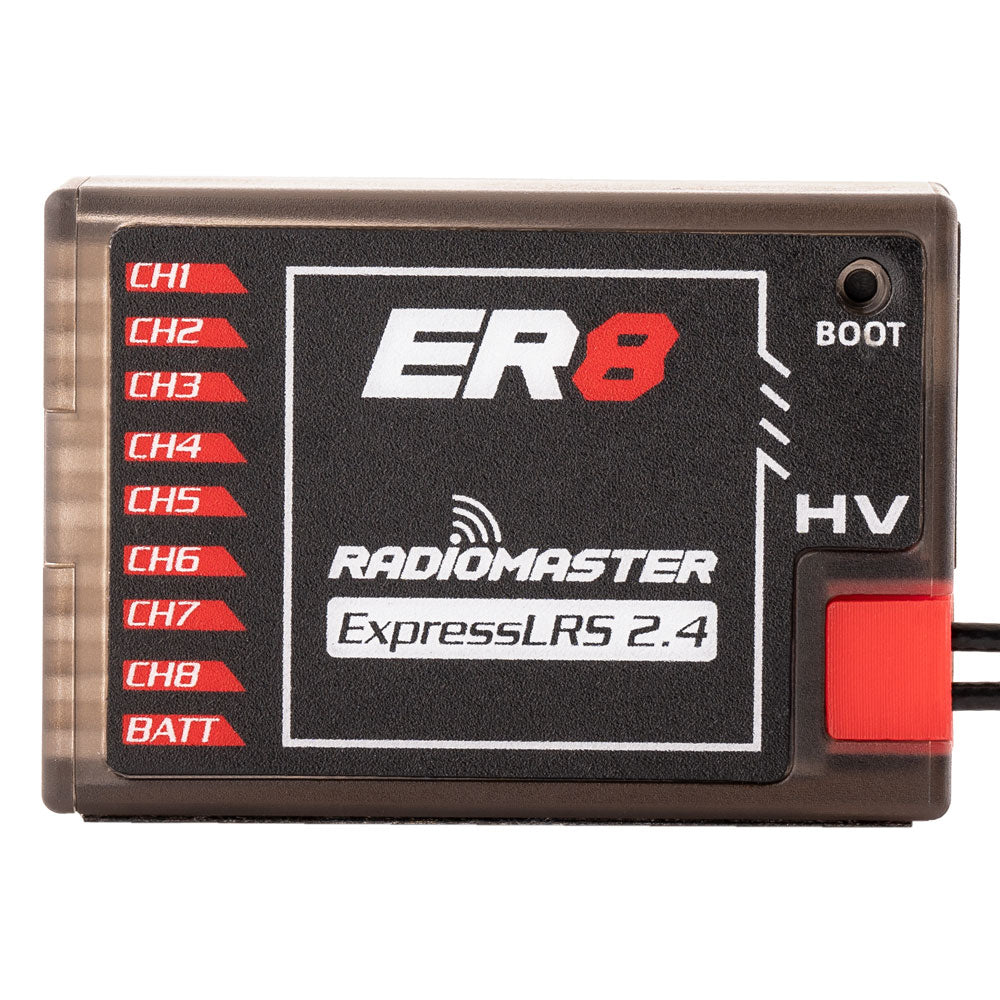

• Support 8 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• Supports Wi-Fi updates and WEBUI configuration
• High quality 2.54 mm connector
• Standard 20 cm High Sensitivity Antenna

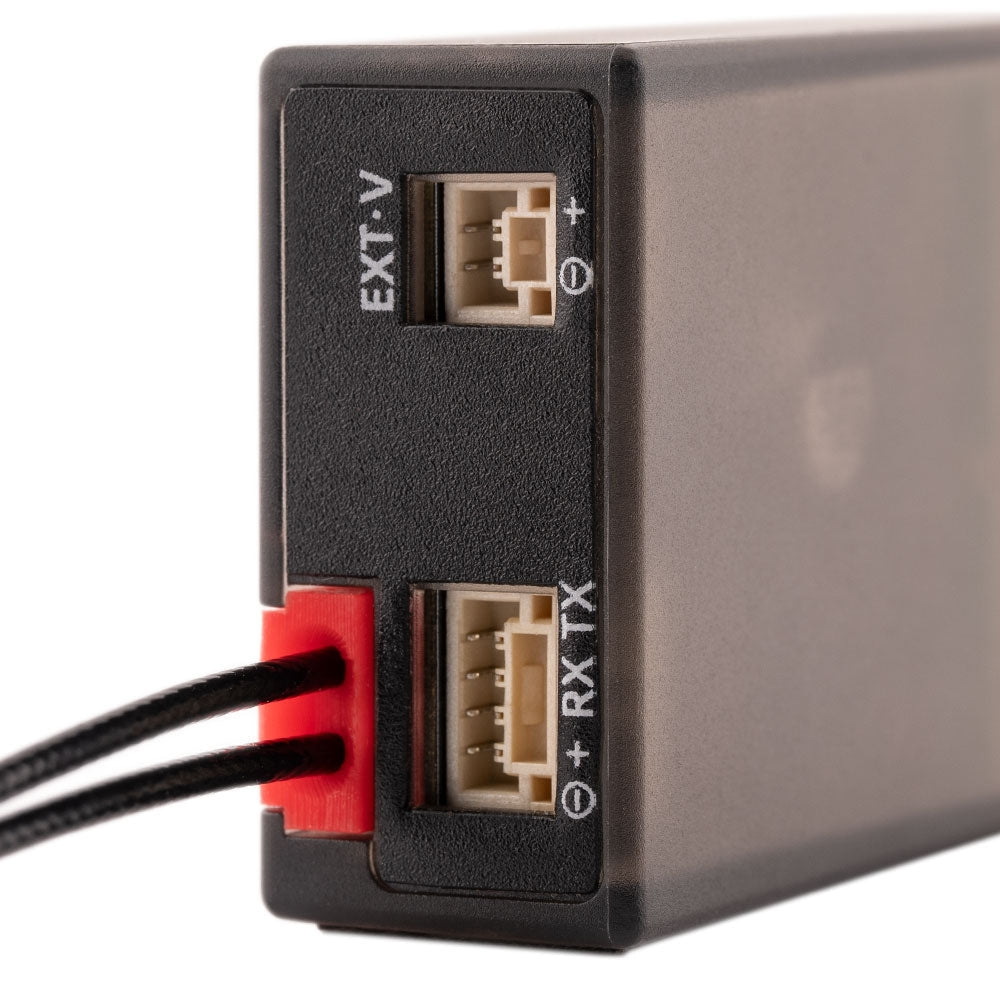

• Reserve 4pin CRSF input port

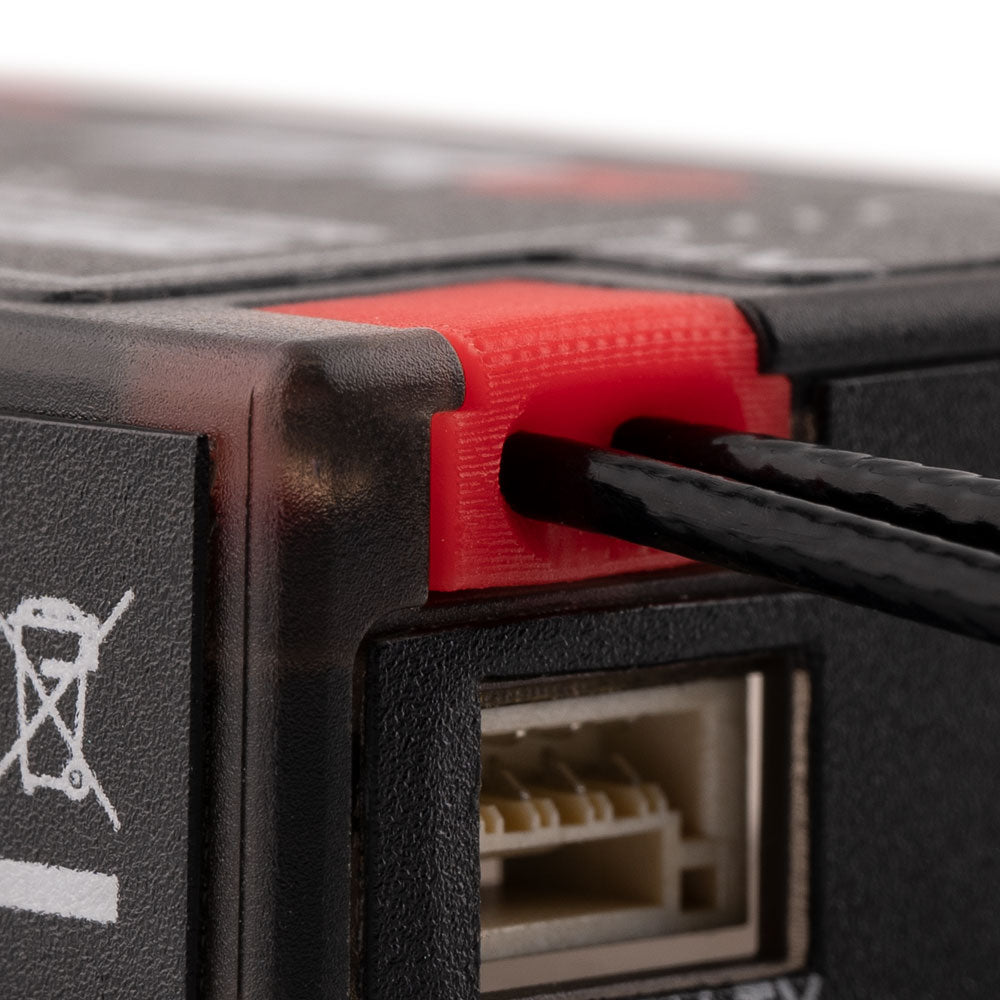

• Shell adopts one-piece molding process with high structural strength
• For many applications
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification

• Item: ER8 2.4GHz ELRS PWM Receiver

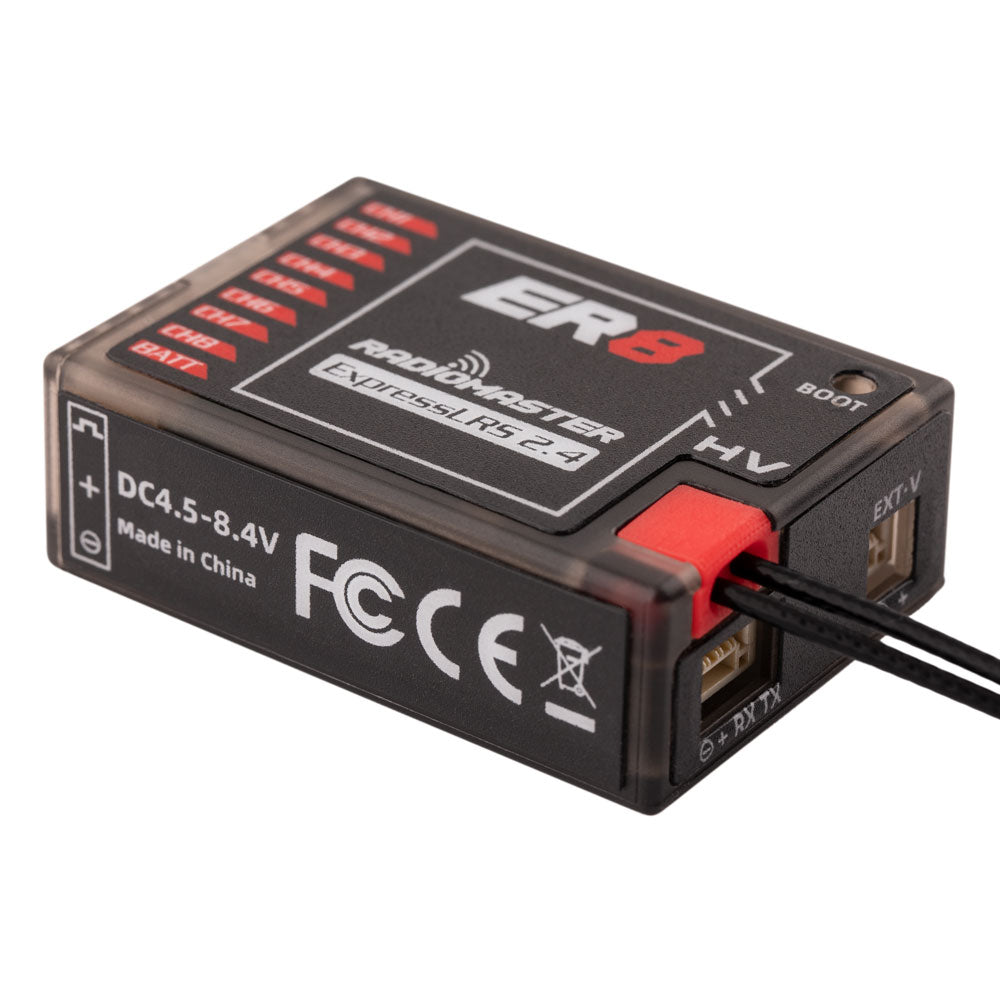

• Power supply: DC 4.5 - 8.4V

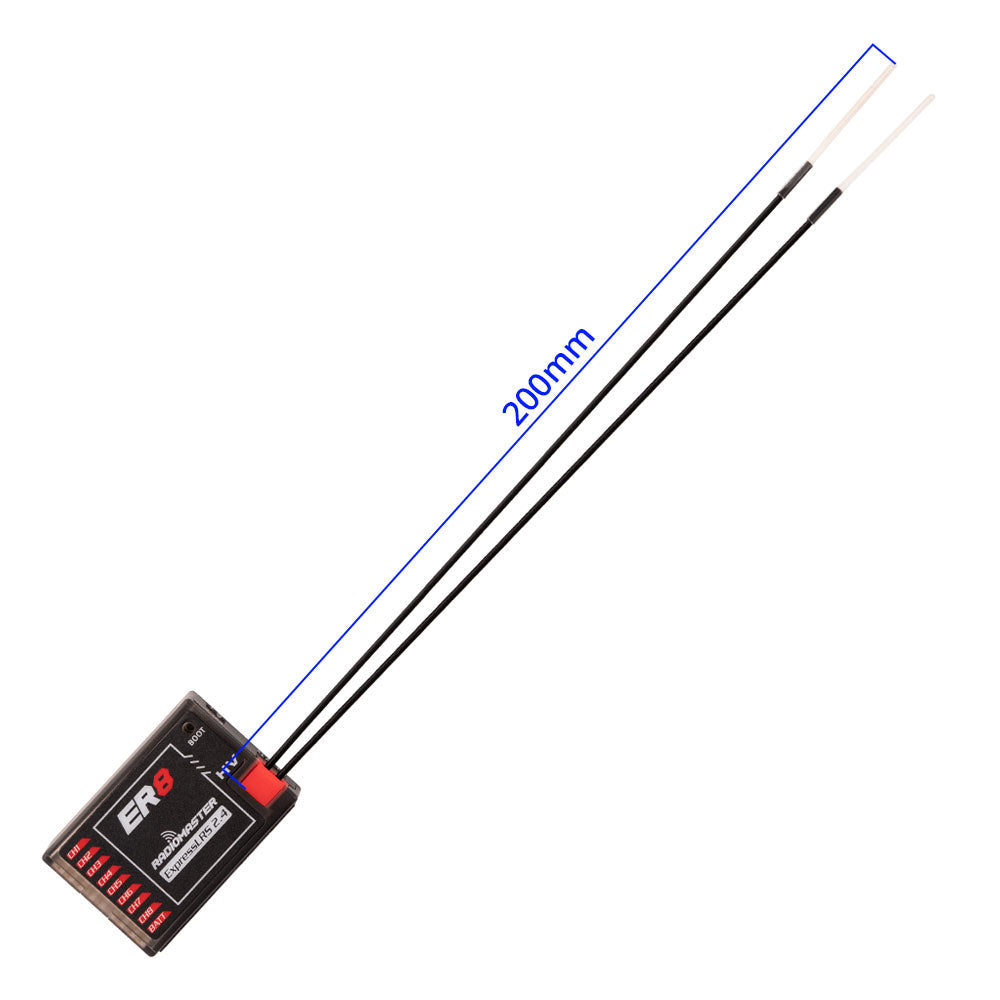

• Antenna type: 20cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 8CH PWM
• Serial Output: CRSF / Sbus
• Telemetry power: maximum 100mw (LUA Adjustable)
• Battery voltage detection range: DC 4.0 - 35V
• Bus interface: CRSF
• Weight: 16.5 grams

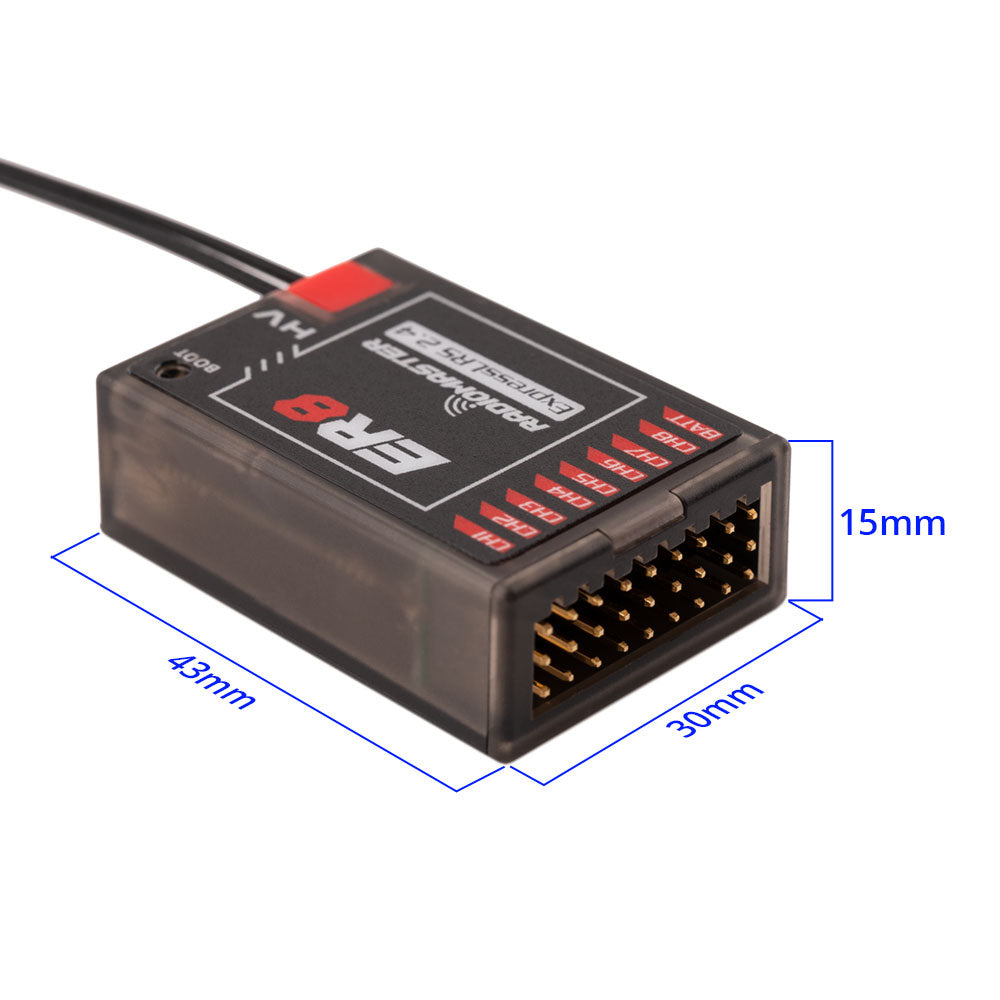

• Size: 43*30*15mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2.4GHz Diversity+8xPWM RX

Size

RadioMaster ER Series Receivers

• ER4 ELRS PWM Receiver
• ER6 ELRS PWM Receiver
• ER8 ELRS PWM Receiver
• ER6G/ER6GV ELRS PWM Receiver
• ER8G/ER8GV ELRS PWM Receiver

Package Includes

• 1 * ER8 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-B)
• 1 * CRSF wire
• 1 * ELRS- RX- SBUS wire
• 1 * User Card

ER8 Receiver is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.

Find out more about ExpressLRS here
