GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Overview:

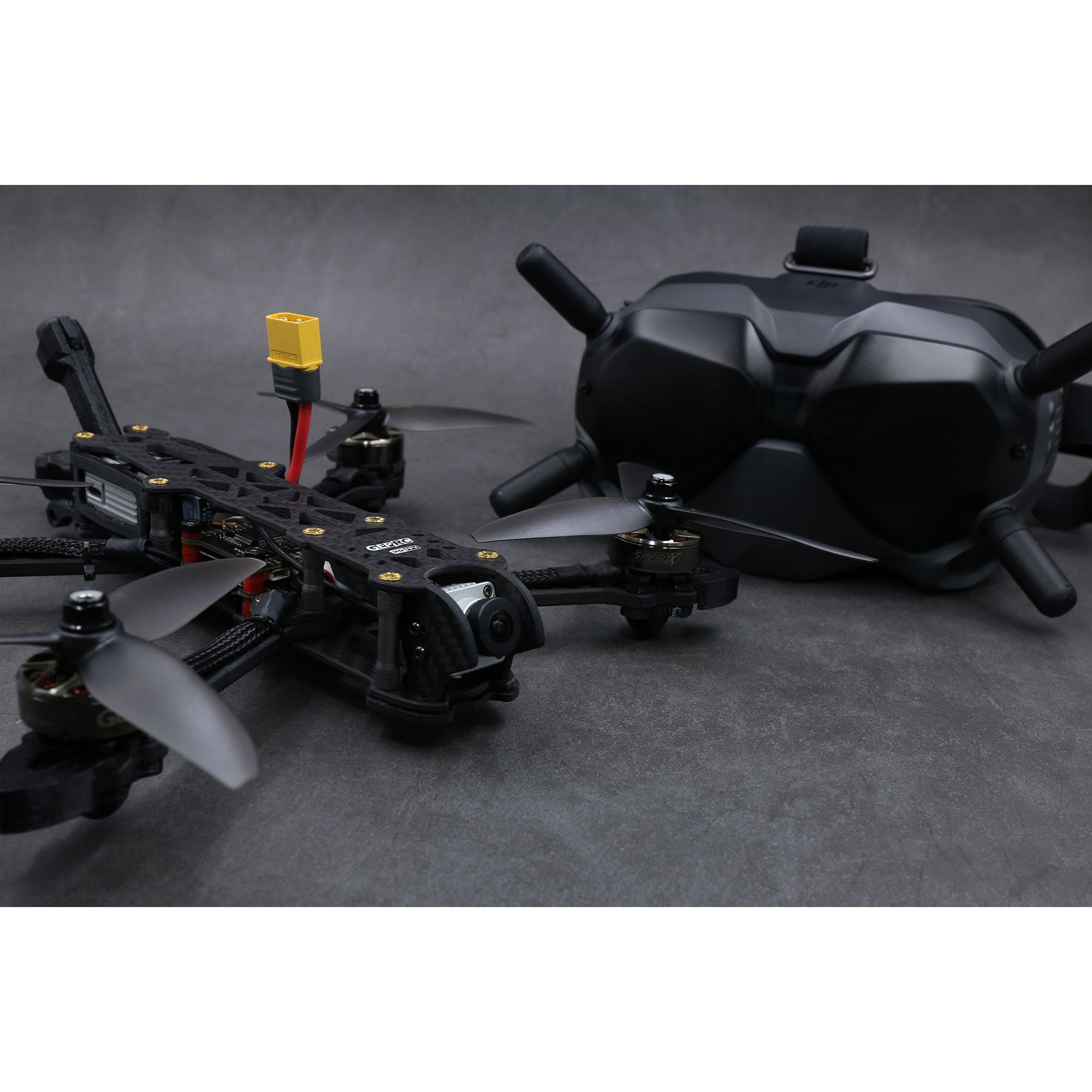

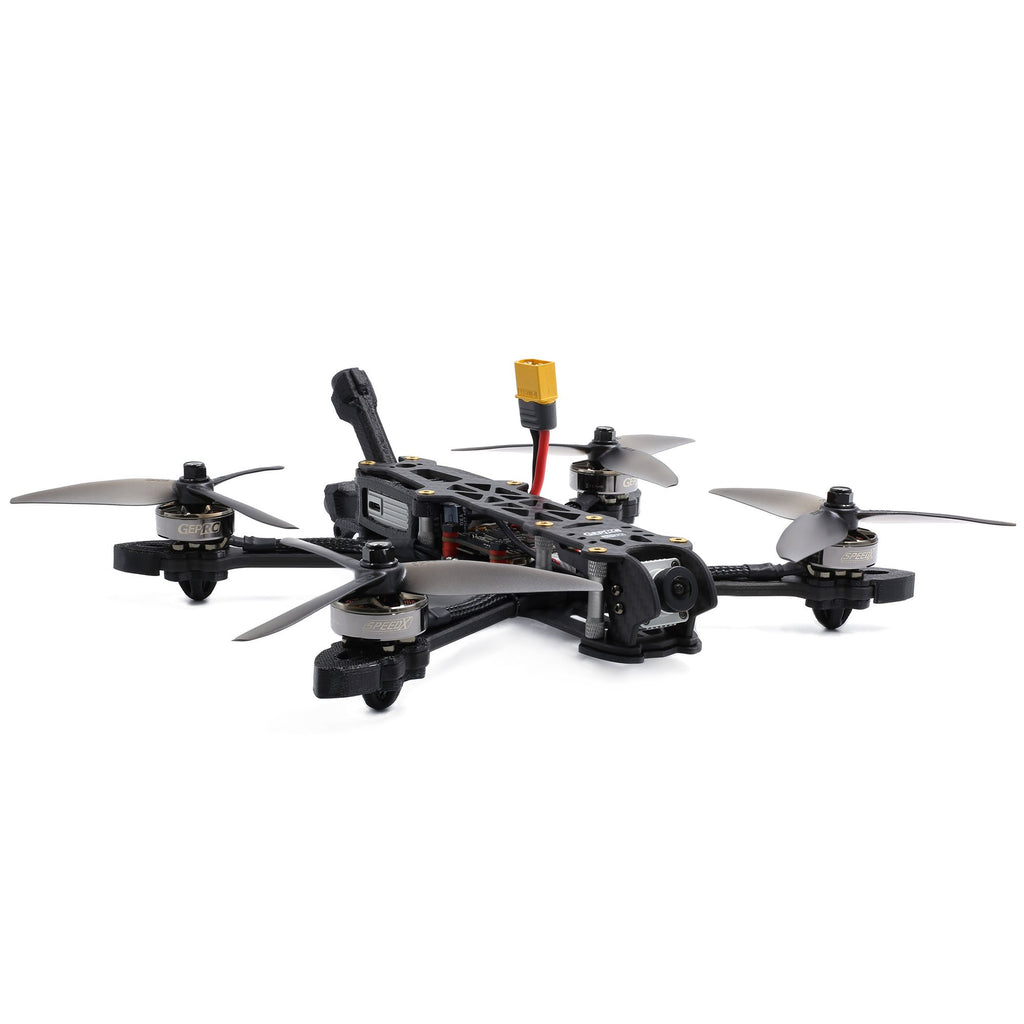

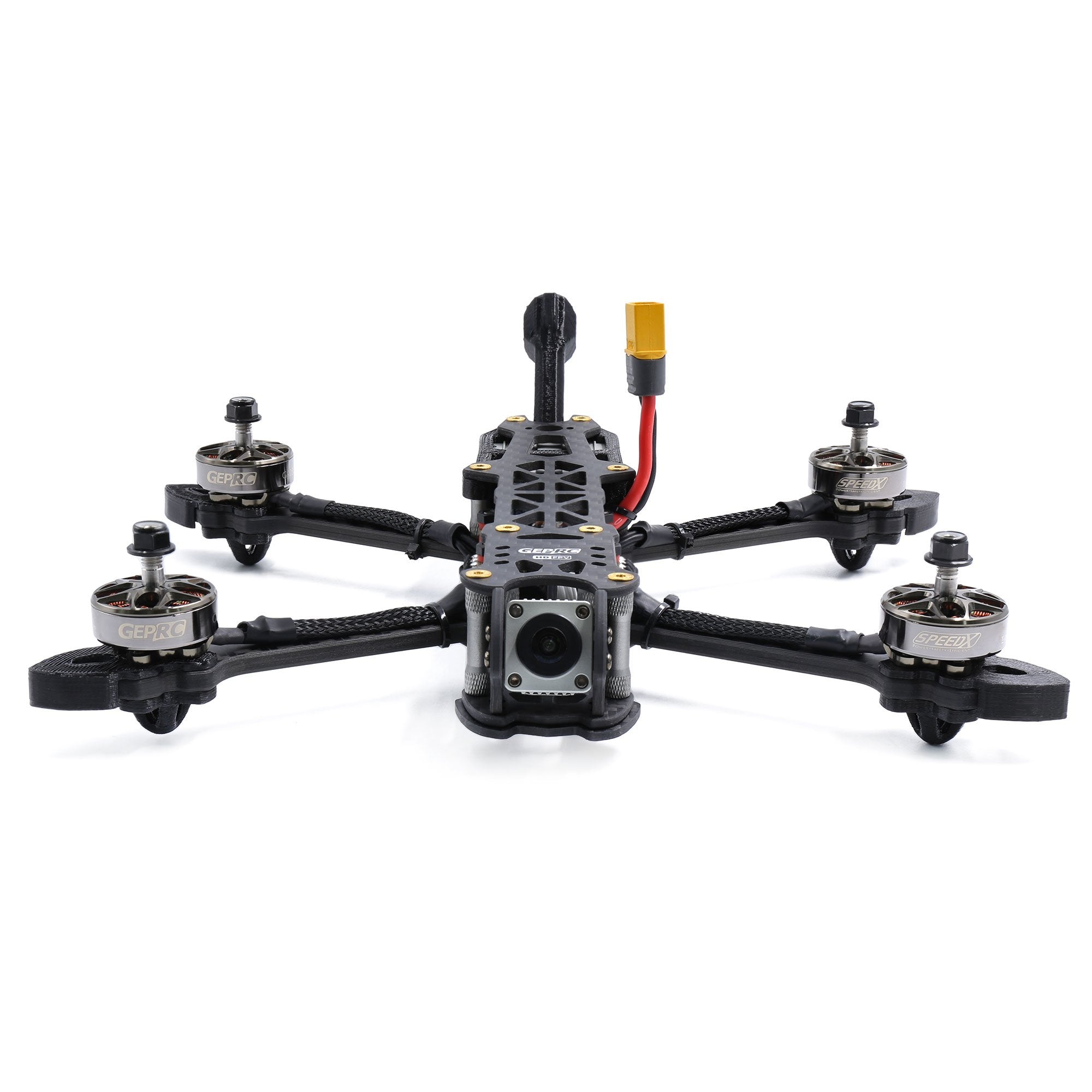

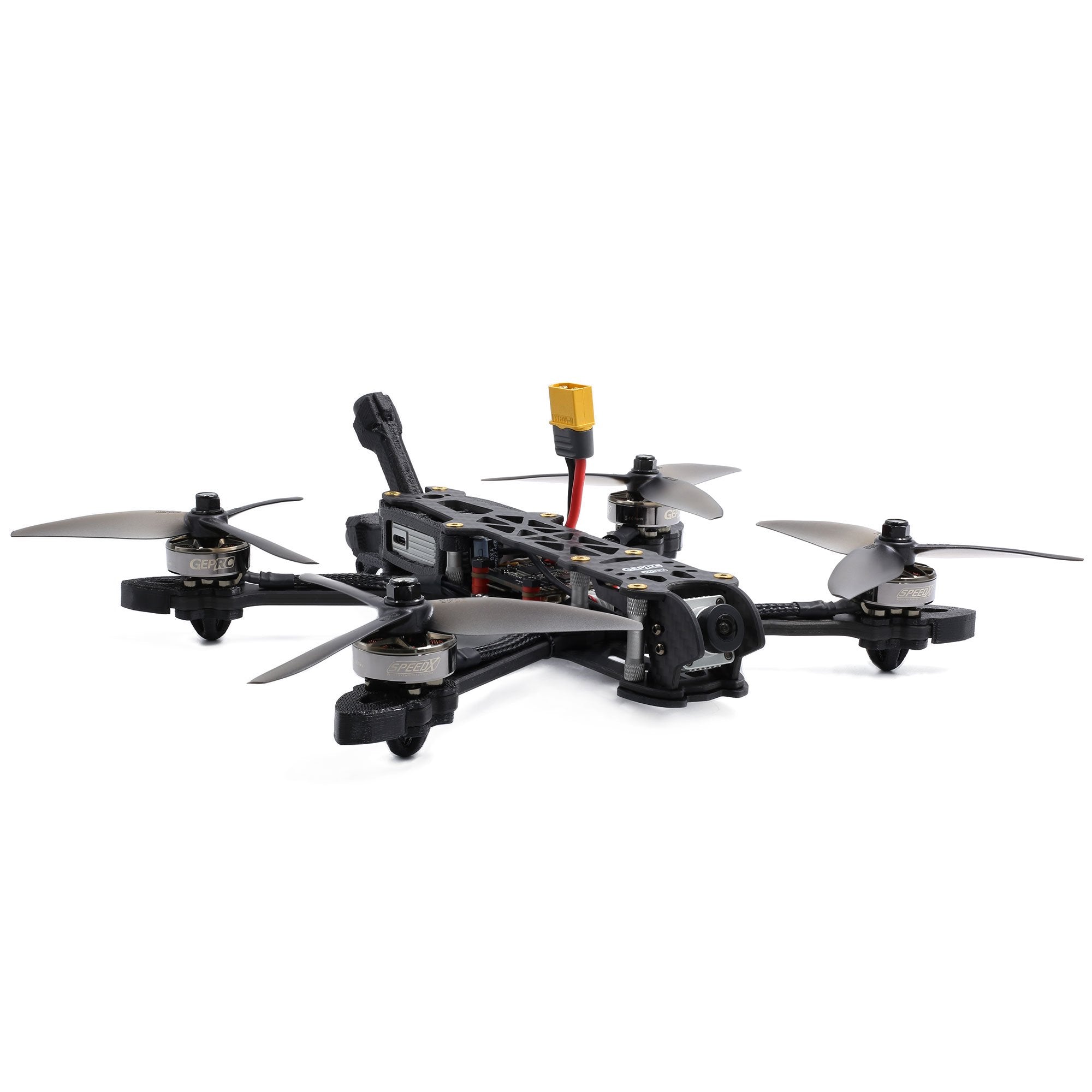

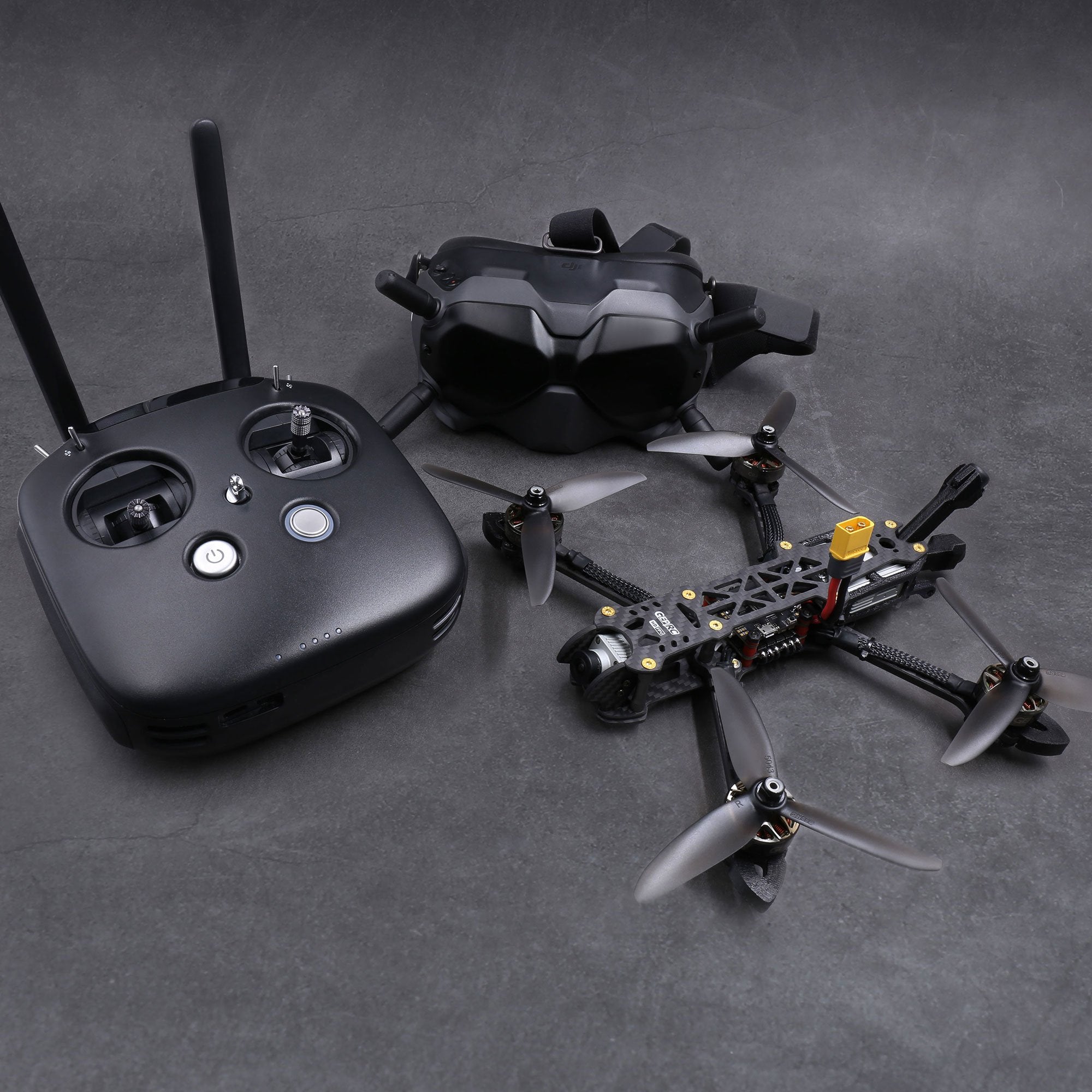

MARK4 HD5 is newly designed DJI FPV HD Quadcopter.DJI has redefined the drone racing industry with the new Digital FPV System. It delivers lower latency rates within 28 ms, a 4km maximum transmission range, stunning HD 720p/120fps resolution, and, most importantly, an unforgettable FPV flying experience.

Features:

No Propellers in the view.

Perfect for DJI FPV HD

Full 3K Carbon Fiber

720p 120fps FPV

System:GEP-F722-BT

Build-In: BlueTooth wireless adapter

Black Box: 32Mb onboard flash memory.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Exquisite Assembly Process: Eliminate any potential installation problems.

Weight:400g without battery

Specifications:

Frame:

MARK4 HD5 Frame kits

Full 3K Carbon Fiber

Motor to motor：224mm

Size：138*176mm

Mounting Holes: 30.5*30.5mm/20*20mm

Arms plate : 5mm

Side plate : 2.5mm

Top plate : 2.5mm

Bottom plate : 2.5mm

Protect plate : 2mm

FPV SYSTEM : DJI FPV Air Unit

Operating Frequency: 5.725-5.850 GHz

Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm

Min. Latency (end-to-end)

Low Latency Mode (720p/120fps): <28 ms

High-Quality Mode (720p/60fps): <40 ms

Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km

Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)

I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Input Power: 7.4-17.6 V, about 4-9 W

Sensor: 1/3.2” CMOS; Effective Pixels: 4 M

Lens: 2.1 mm, f/2.1

Shutter: Rolling shutter

ISO: 100-25600

FOV: 150°(D); 122°(H); 93°(V)

Dimension: 22.1 × 21.1 × 20.1 mm

Propeller

:

5040*3

Or

G5-4.3*3

Power System:

4S Battery

：

Motors:

GR2306.5 2450KV

Battery：4S 1300~1550mAh

6S Battery：

Motors

:

GR2306.5 1850KV

Battery：6S 1050~1300mAh

Electronic System(

SPAN-F7-BT-HD

):

F722 DUAL ICM20689 Flight Controller:

MCU: STM32F722RET6

IMU: 2x ICM20689(SPI)

Build-In: BlueTooth wireless adapter (SpeedyBee APP)

BlackBox: 32Mb onboard Flash

OSD: BetaFlight OSD w/ AT7456E chip

Baro:BMP280

BEC Output: 5V@2A / 9V@2A

Integrated LC Filter

Firmware target: EXF722DUAL

Size: 36x36mm board, φ4mm with Grommets φ3mm

Power input: 3-6S LiPo

5x UART

8x Motor outputs

BLheli_32 50A ESC 4IN1:

MCU: STM32FO51K86(32bit 48mHz)

Continuous Current: 50A

Peak Current: 55A (5S)

Current sensor: YES

Telemetry：Supported

Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot

Firmware Version:GEPRC-BL32-4IN1

Input Voltage: 3-6S Lipo

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

SpeedyBee App Download

Android:

https://play.google.com/store/apps/details?id=com.runcam.android.runcambf

iPhone:

https://apps.apple.com/us/app/speedybee-app/id1150315028

Flight Controller Firmware（EXF722DUAL）:

https://github.com/betaflight/betaflight/releases

Include：

1x MARK4 HD5 Quadcopter
