GEPRC Vapor-D5 WTFPV FPV Drone|FPV 穿越機
GEPRC 官方FPV 穿越機,已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。
Summary

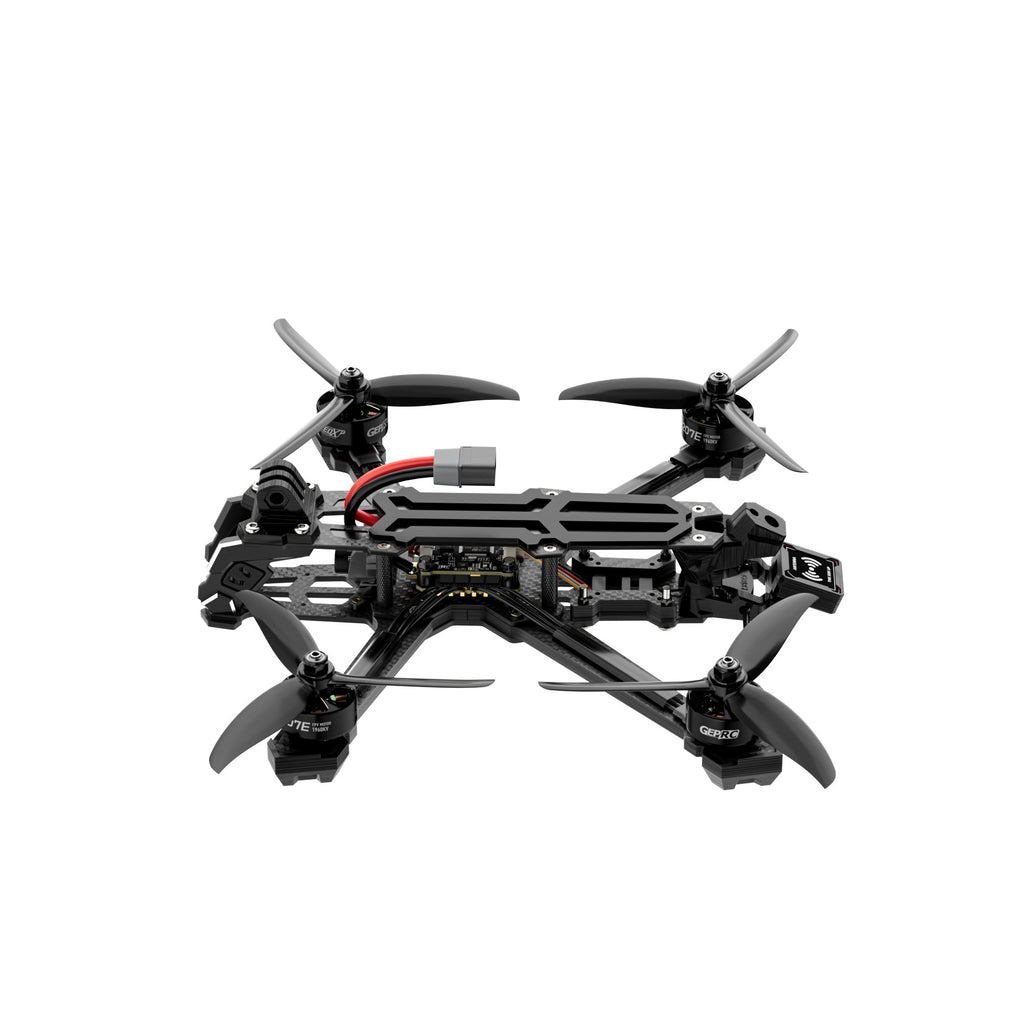

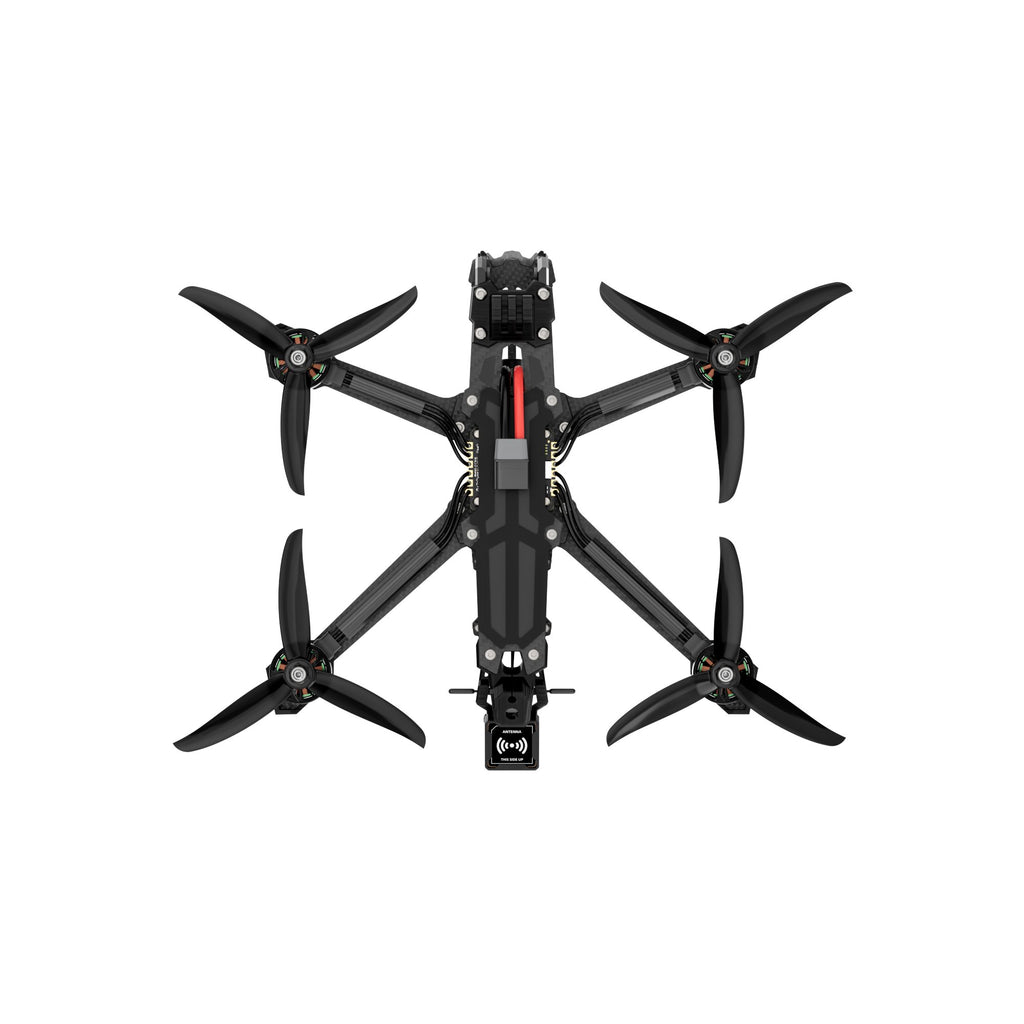

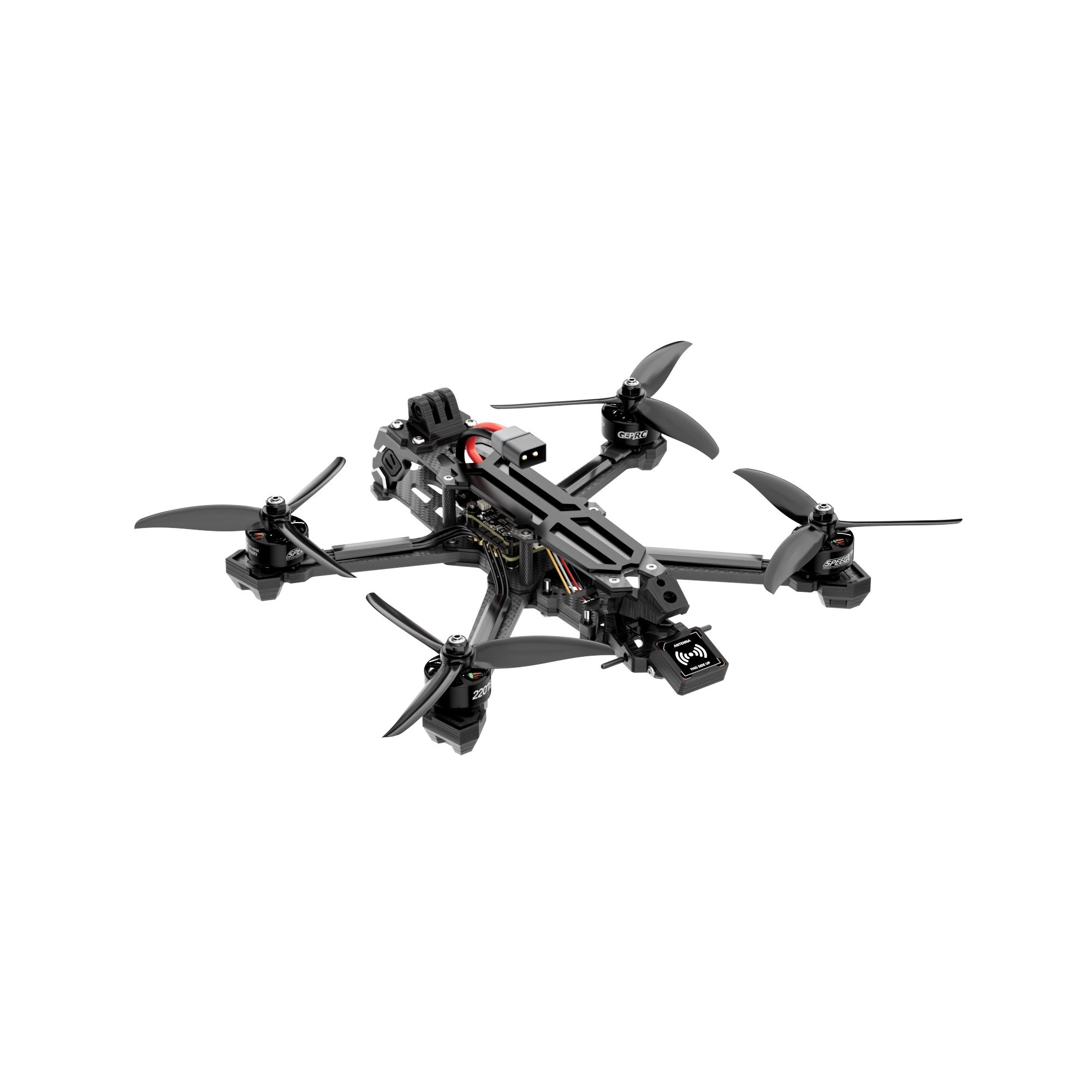

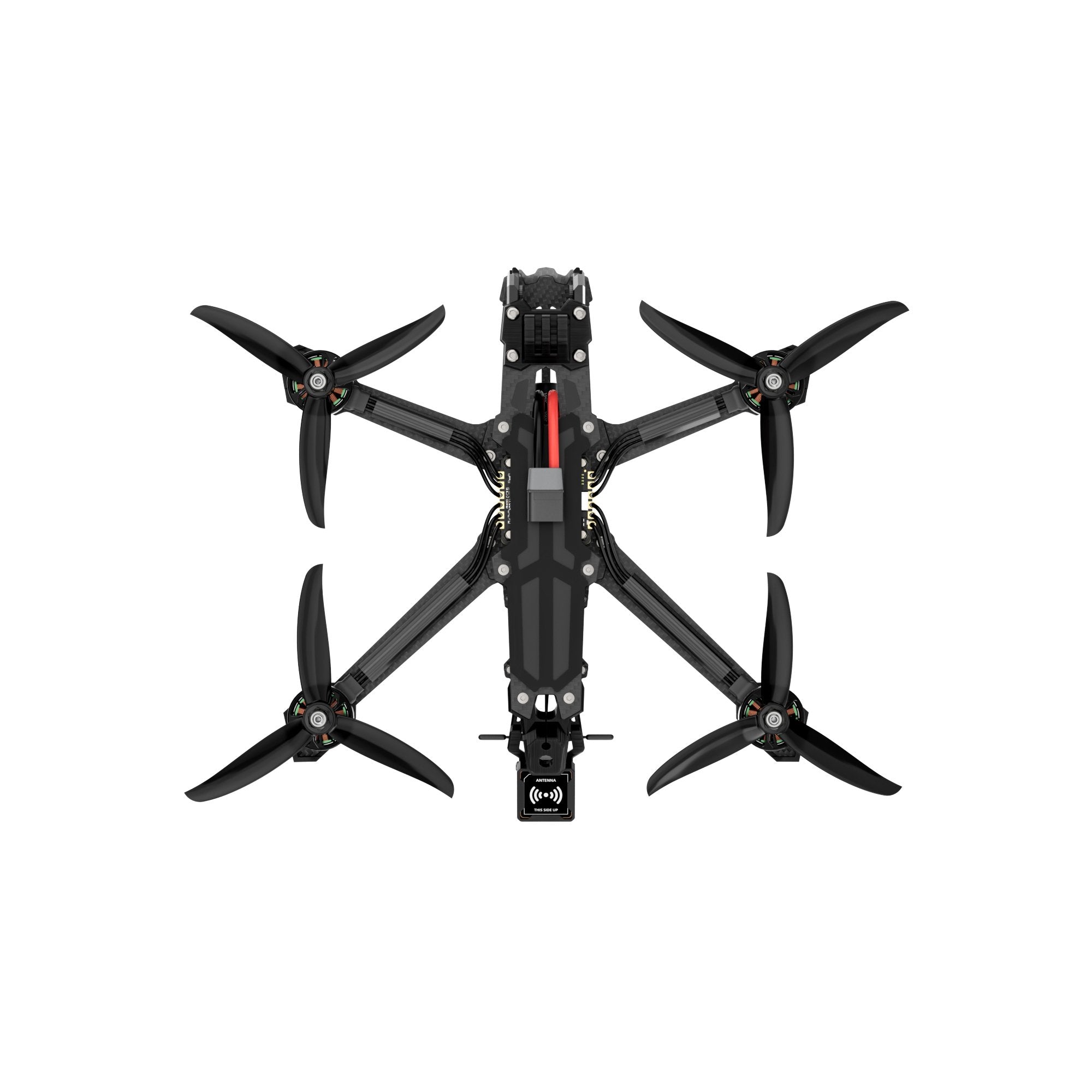

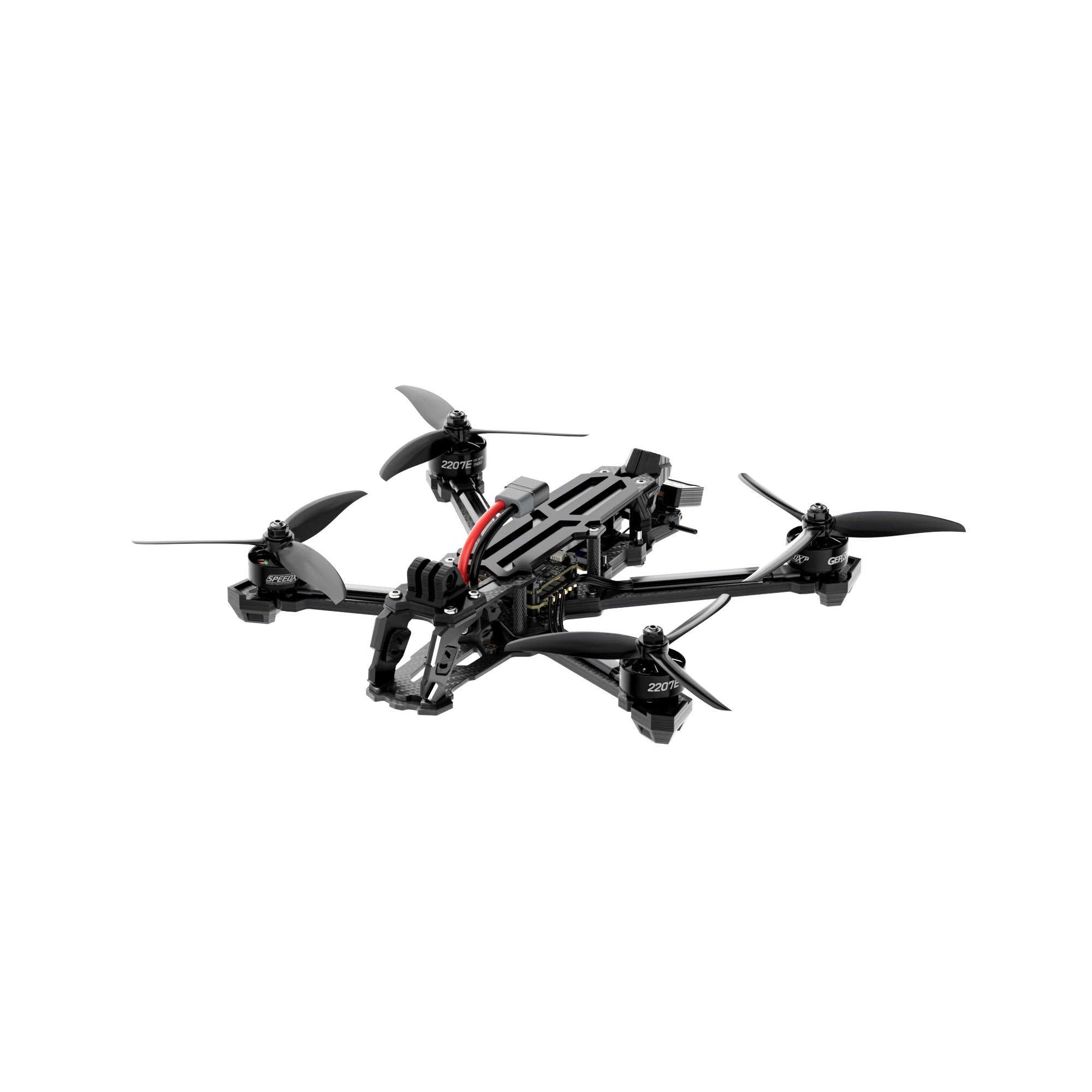

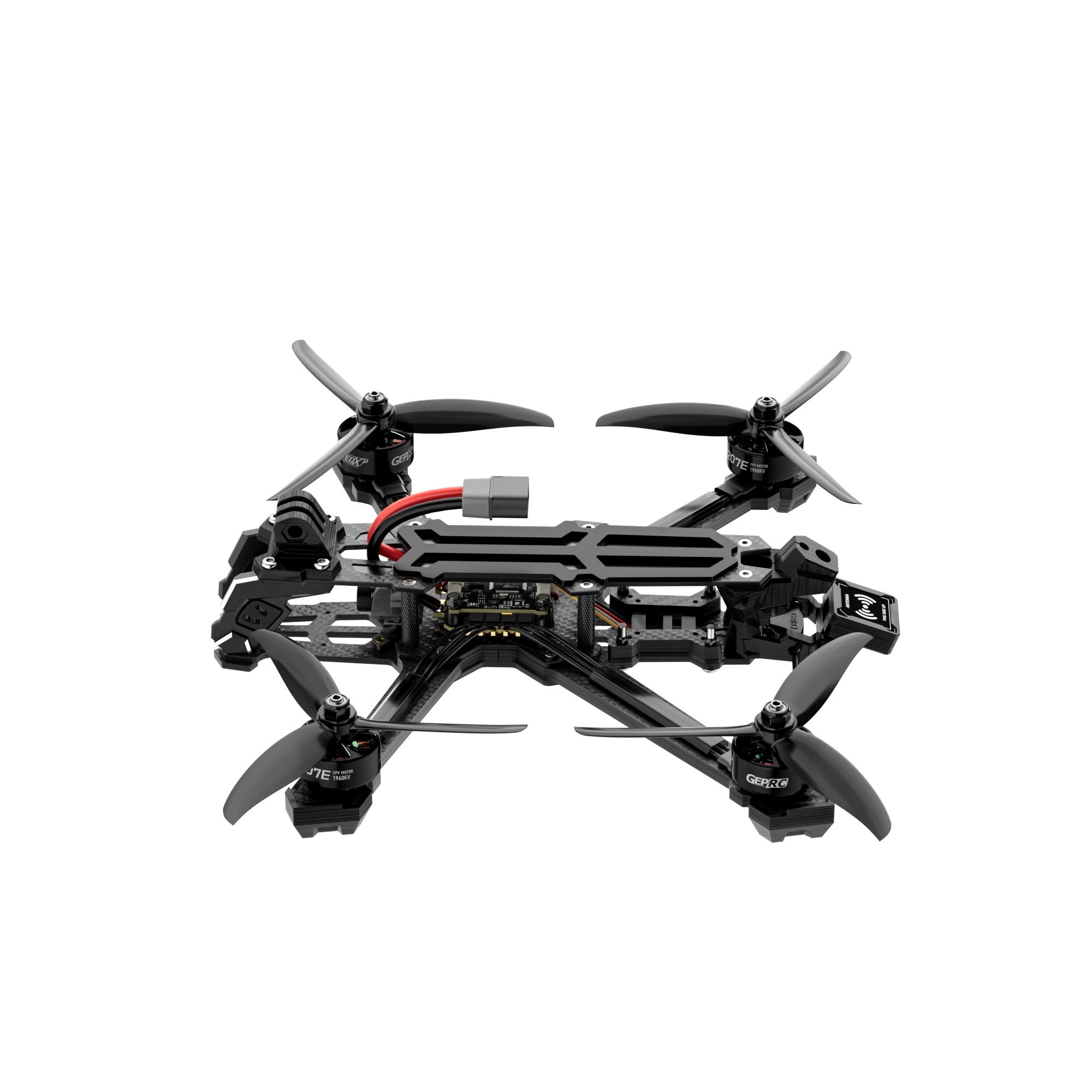

The Vapor-D features a DC structure that evolves from the Wide X version.
It delivers exceptional flight performance with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 flight controller. Its unique DC design ensures the camera does not capture the propellers in view, boosting both video quality and flight enjoyment. With sleek CNC aluminum alloy side panels, the Vapor-D offers a perfect blend of style and strength.
Available in both 5-inch and 6-inch models, it’s made for every pilot and every flying need
Feature
The DC structure, paired with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC, ensures stable flight and excellent shooting.
Boost maneuverability and power for stunning aerial footage with GEPRC SPEEDX2 E-series motors.
The sleek side panels, crafted from CNC aluminum alloy, provide stylish yet sturdy protection for the camera.
The front lens guard provides reliable protection during flights.
The DC structure enhances both shooting quality and flying fun.
Choose between 5-inch and 6-inch models to fit your flying preferences.
Specifications
Model: Vapor-D5 WTFPV Quadcopter
Frame: GEP-Vapor-D5 frame
Wheelbase: 238.43mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate:2.5 mm
Arm Thickness:5.0 mm
FC:
GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /
Antenna: /
Connector: XT60
Optional GPS:
GEP-M10 GPS
5-inch Motor:
GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-D5 WTFPV PNP Version Weight: 397g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
Recommended Battery: 6S LiPo 1550mAh – 2200mAh
Flight Time: 13-17 min
Includes
1 x Vapor-D5 WTFPV Quadcopter
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
