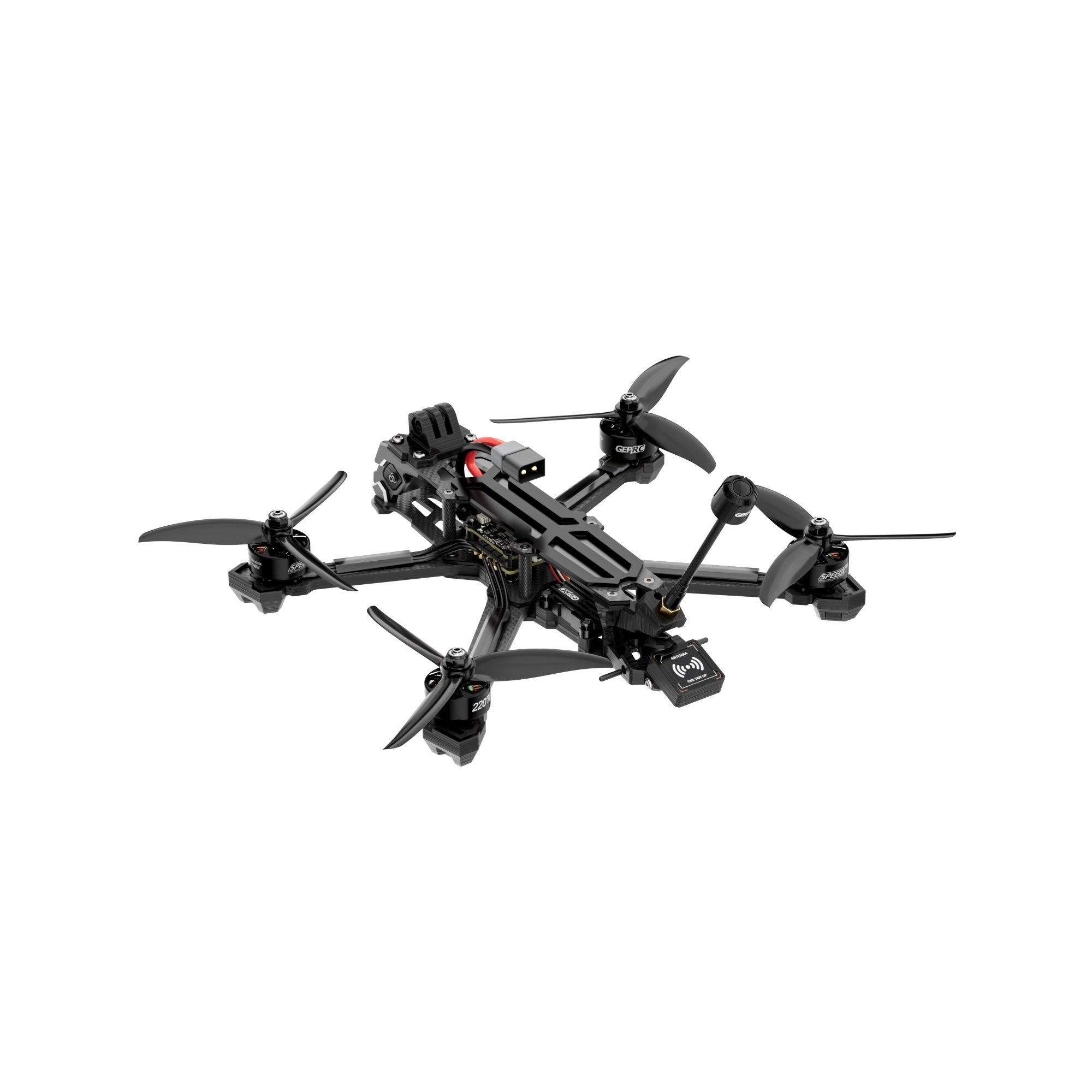

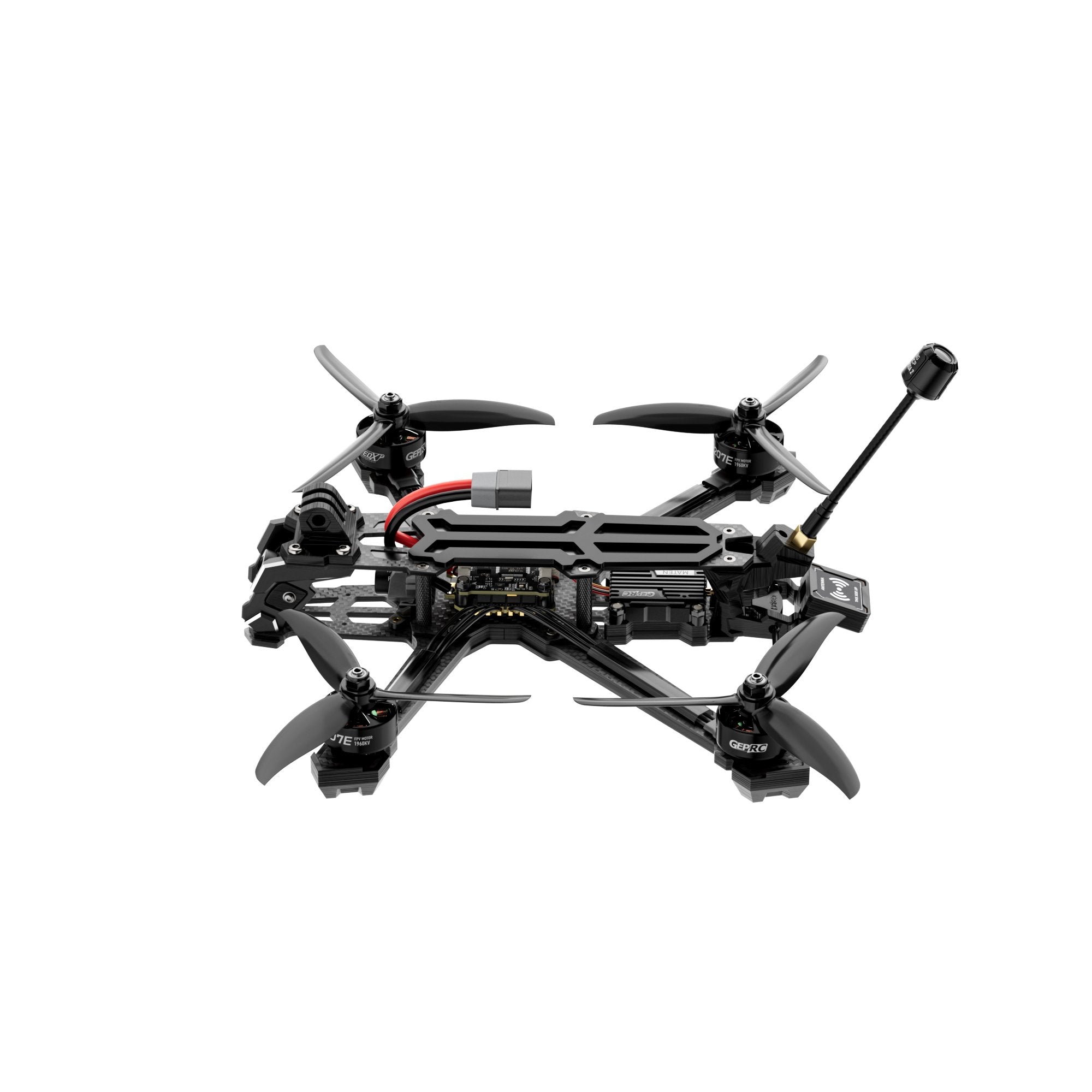

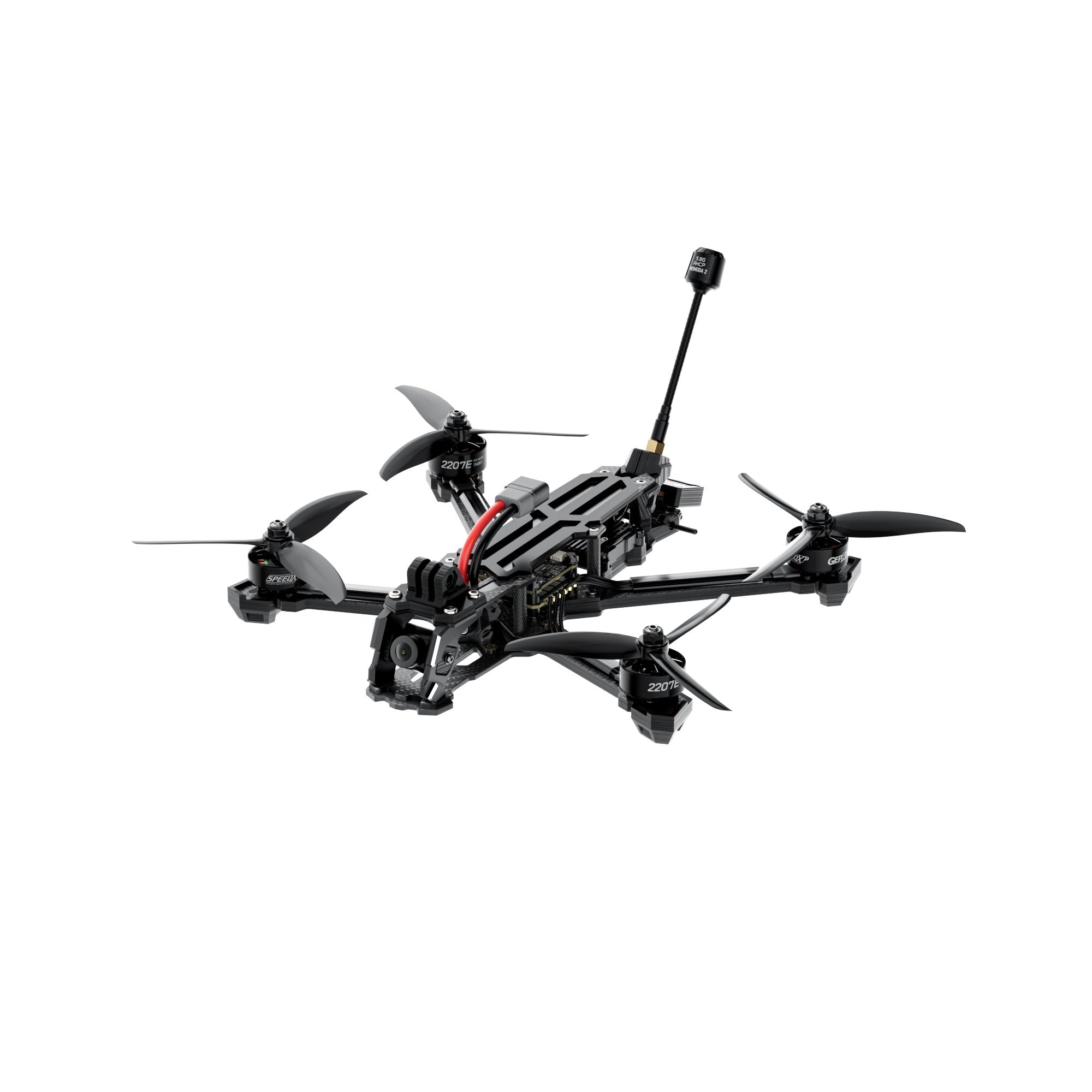

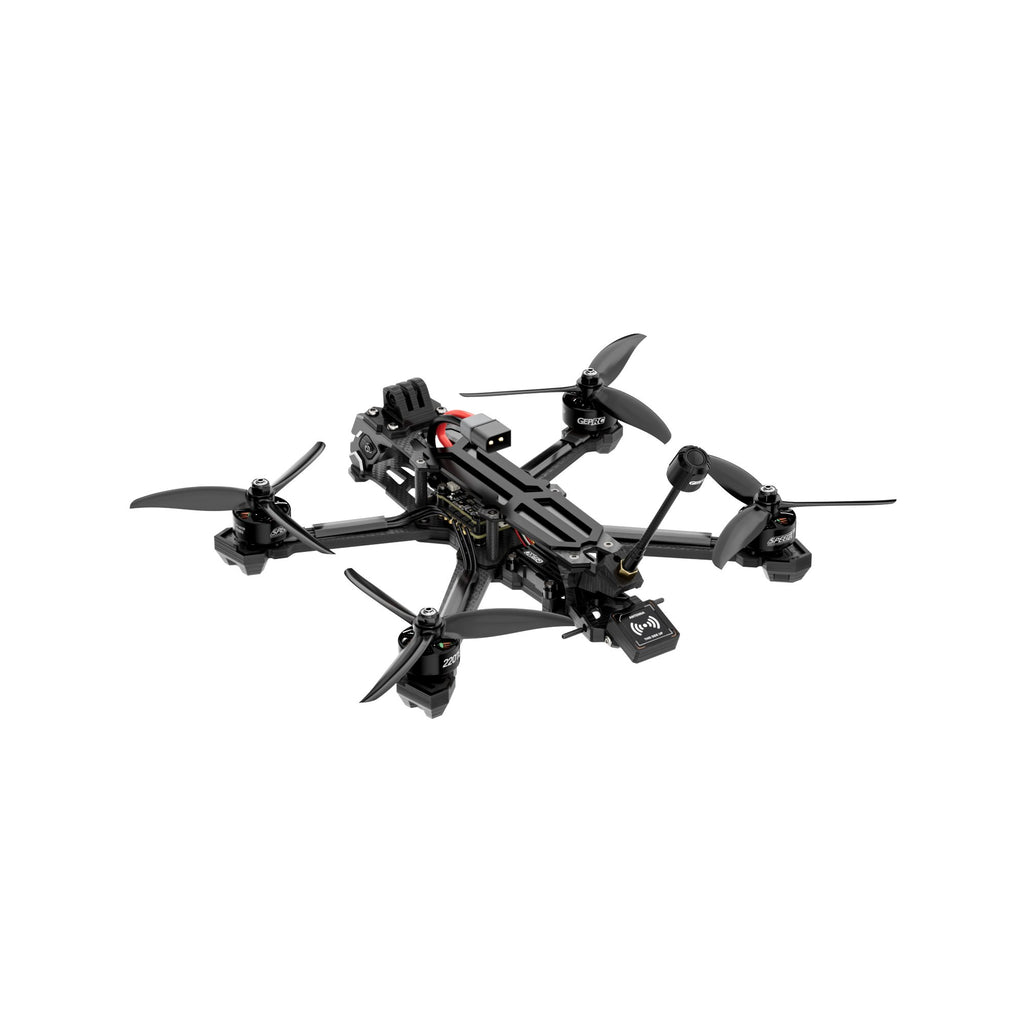

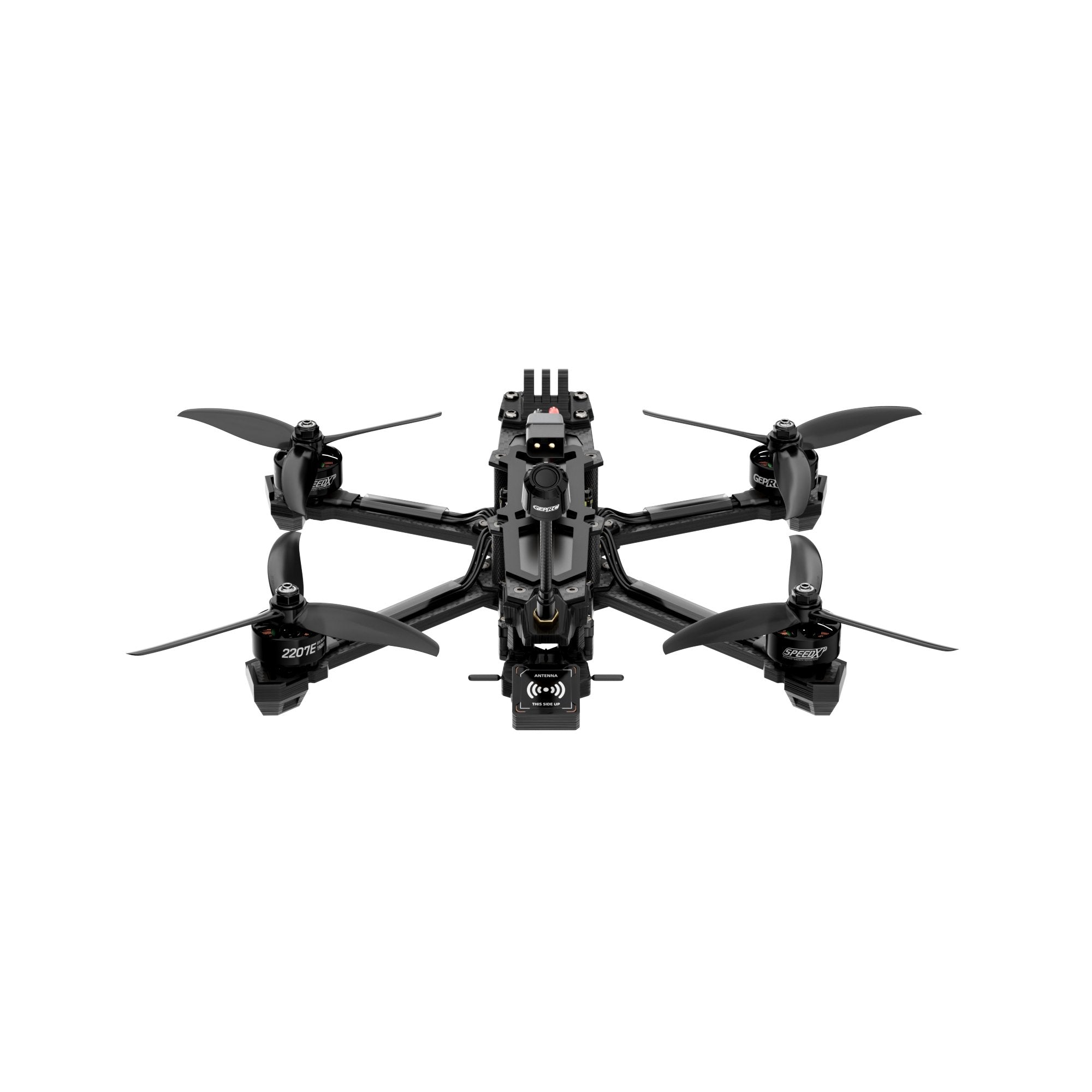

GEPRC Vapor-D5 Analog FPV Drone

GEPRC Vapor-D5 Analog FPV Drone|FPV 穿越機

options: PNP / 訂金預購
$2,934.00
跳到商品資訊
GEPRC Vapor-D5 Analog FPV Drone

GEPRC Vapor-D5 Analog FPV Drone|FPV 穿越機

$2,934.00
規格
付款方式

商品價格與庫存以實際確認為準;如遇缺貨或價格異常,我們將主動聯絡並提供退款或取消訂單。

GEPRC Vapor-D5 Analog FPV Drone|FPV 穿越機

GEPRC 官方FPV 穿越機,已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The Vapor-D features a DC structure that evolves from the Wide X version.

It delivers exceptional flight performance with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 flight controller. Its unique DC design ensures the camera does not capture the propellers in view, boosting both video quality and flight enjoyment. With sleek CNC aluminum alloy side panels, the Vapor-D offers a perfect blend of style and strength.

Available in both 5-inch and 6-inch models, it’s made for every pilot and every flying need

Feature

The DC structure, paired with the TAKER H60_BLS 60A 4-in-1 ESC and GEP-F722-HD V2 FC, ensures stable flight and excellent shooting.

Boost maneuverability and power for stunning aerial footage with GEPRC SPEEDX2 E-series motors.

The sleek side panels, crafted from CNC aluminum alloy, provide stylish yet sturdy protection for the camera.

The front lens guard provides reliable protection during flights.

The DC structure enhances both shooting quality and flying fun.

Choose between 5-inch and 6-inch models to fit your flying preferences.

Specifications

Model: Vapor-D5 Analog

Frame:

GEP-Vapor-D5 frame

Wheelbase: 238.43mm

Top Plate: 2.0 mm

Middle Plate: 2.0 mm

Bottom Plate:2.5 mm

Arm Thickness:5.0 mm

FC:

GEP-F722-HD v2

MCU: STM32F722

Gyro: ICM42688-P(SPI)

Barometer: BMP280

OSD: Betaflight OSD w/AT7456E

ESC: TAKER H60_BLS 60A 4IN1 ESC

VTX:

MATEN 5.8G 1.6W VTX

Camera: Caddx H1

Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm

Connector: XT60

Optional GPS:

GEP-M10 GPS

5-inch Motor:

GEPRC SPEEDX2 2207E 1960 KV

5-inch Propeller: GEMFAN 5136

Vapor-D5 Analog PNP Version Weight: 428g±5g

Receiver: PNP/GEPRC ELRS24/TBS Nano RX

Recommended Battery: 6S LiPo 1550mAh – 2200mAh

Flight Time: 13-17 min

Includes

1 x Vapor-D5 Analog

2 x GEMFAN 5136

2 x Battery anti-slip pads

1 x Spare screw pack

2 x M20*250mm battery straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount
