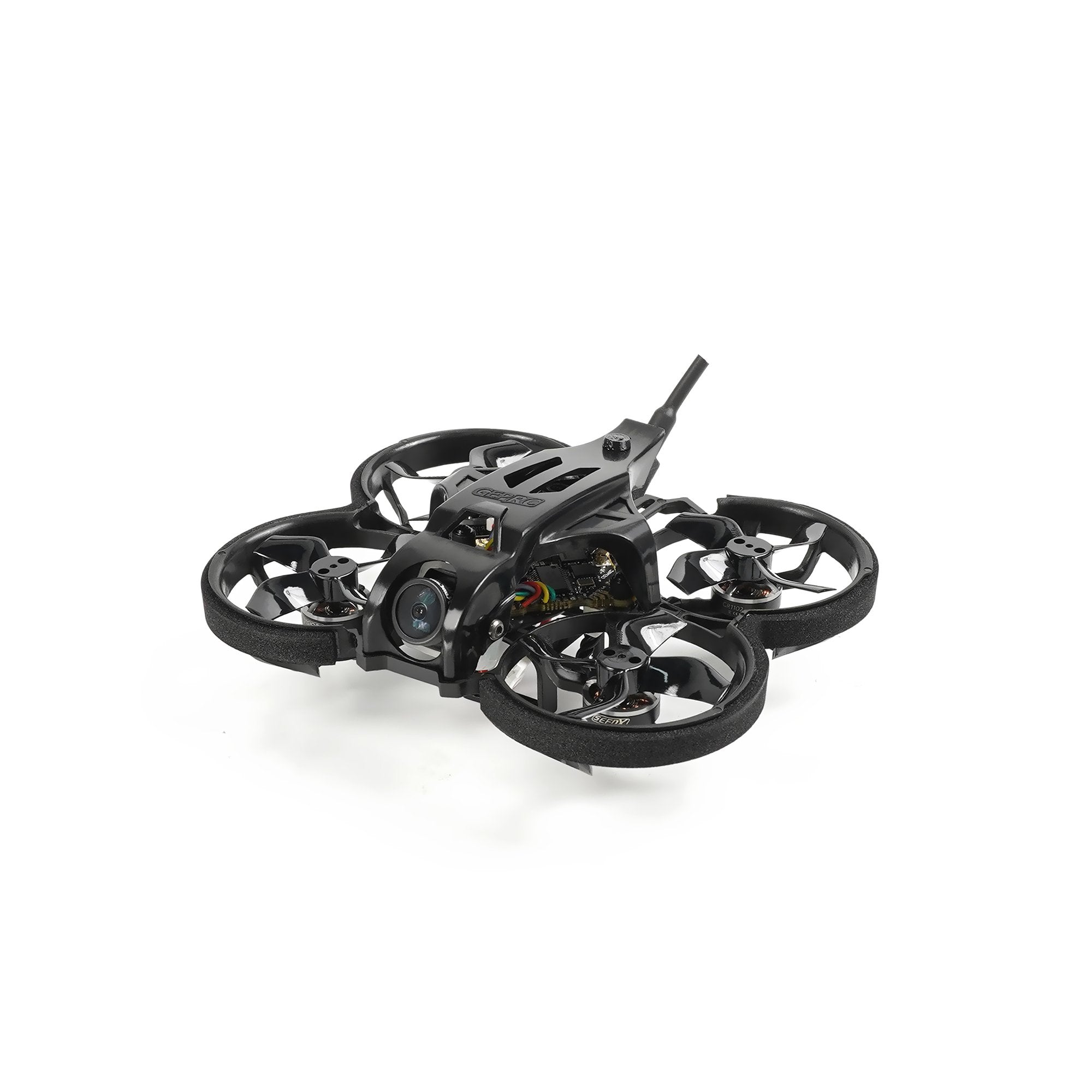

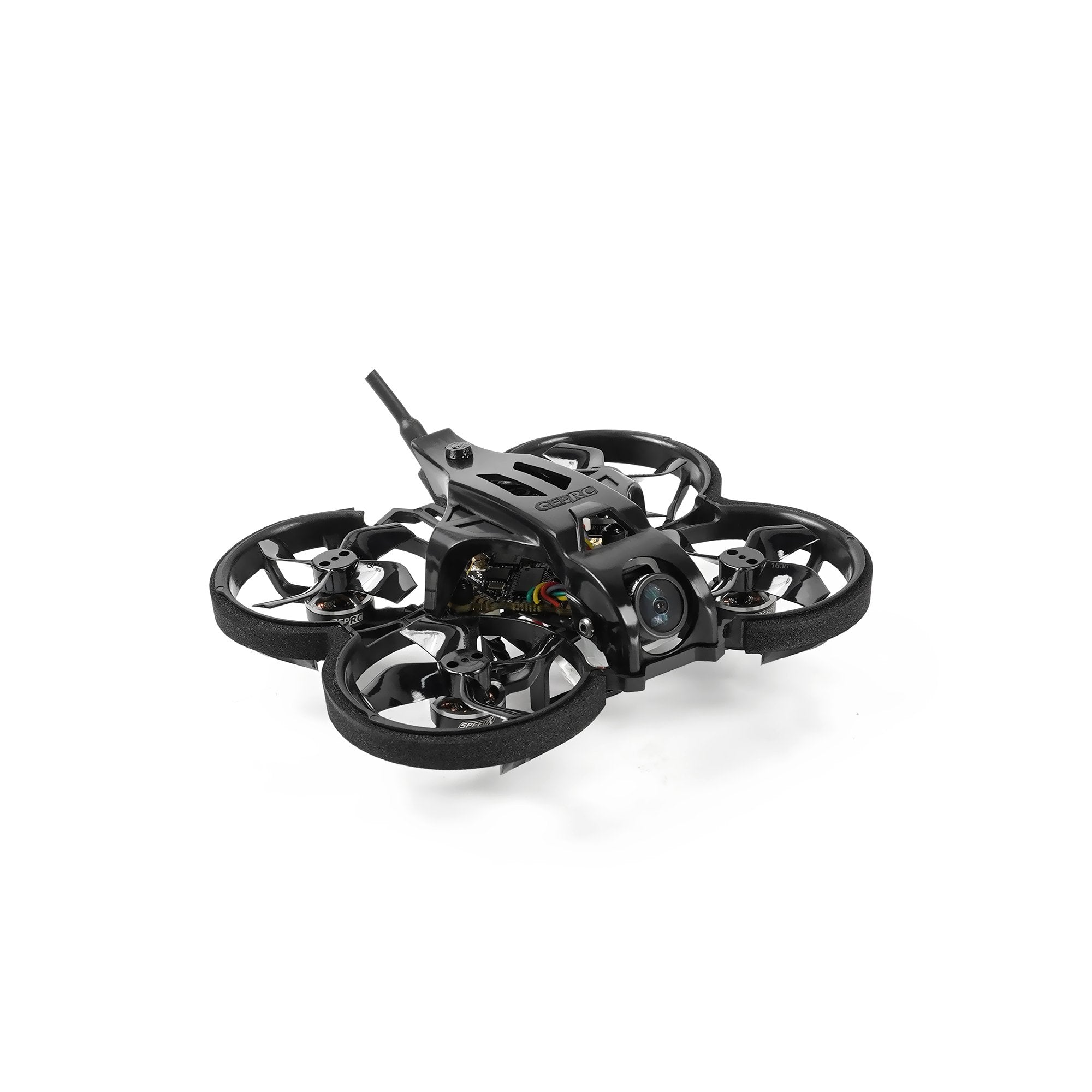

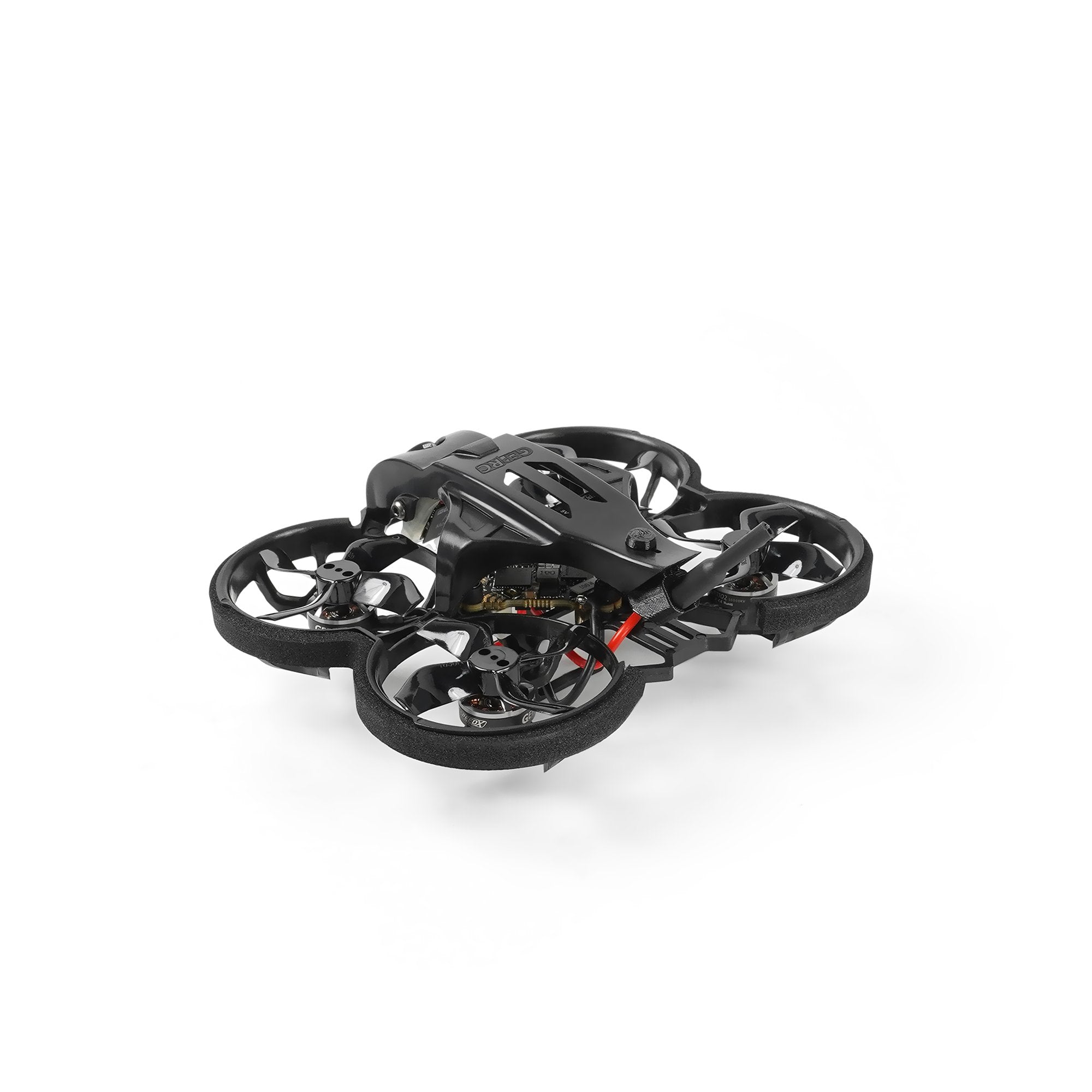

GEPRC TinyGO Racing FPV Whoop RTF｜FPV 穿越機

GEPRC TinyGO Racing FPV Whoop RTF｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

GEPRC Happy to announce a new member of our family “ TinyGO” Ready To Fly Kit which is suitable for any novice from scratch and Indoor flight. Through a great number of tests, Better technical indexes and Good performance were obtained.TinyGO currently has two versions: the Indoor version and the 4K professional version. 4K can record 4K 60fps video.

TinyGO is RTF Kit for Indoor Flight. The Kit contains a high-definition 800x480px FPV Goggle and the latest TinyRadio GR8 Remote Controller. It supports 8 channels and is specially designed for indoor and novices. The remote control has a good feeling of control and It is lightweight and easy to carry. The good point is that you don’t need to carry heavy equipment. With our customized GEPRC Fly Bag, it’s very convenient to go to the field, travel, and Indoor flight.

TinyGO can use its own charger to charge. The charger uses the Type-C interface. You can use the movable power bank to charge as well. Using conveniently and quickly.

TinyGO can be flight more than 6 minutes (Depending on flight habits). Its stable electronic equipment and extremely strong and tough frame material make the FPV very stable and durable for crash. There is an EVA protection foam around the frame, More elastic and hard to damaged and deformed.

TinyGO is carefully assembled and assembles by GEPRC team, with excellent performance. You can start a whole new journey and enter into FPV World, TinyGO will be the best choice for your first FPV Drone.

This looked like the beginning of a terrific flight Experience Literally

Changelog

January 12, 2022:TinyGo shipped from today are the new remote controller, the new charger version.

December 16, 2022: VTX changed from 5.8G 25~200mW VTX to RAD Whoop 5.8G 400mw VTX.

December 16, 2022: The flight controller changed from GEP-12A-F4 to TAKER F411 8Bit 12A FC.

May 26, 2023: The remote controller changed from TinyRadio GR8 to TinyRadio ELRS 2.4G.

May 26, 2023: The flight controller changed from TAKER F411 8Bit 12A AIO without ELRS version to TAKER F411 8Bit 12A built-in ELRS version.

Note: If you buy a drone only, If you have a new TinyRadio GR8 remote controller, it can be directly bound, and the old version of GEPRC GR8 remote controller should be bound by flashing the old version of the CLI.

Tips: Tinygo Racing version does not support SD card recording of the drone itself, but it can record video through Goggle.

Feature:

TinyGO is very suitable for indoor flight, More than 6 minutes of flight time

Using TAKER F411 8Bit 12A FC system, reliable and stable

No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture

The Newly Developed TinyRadio GR8 Remote Controller is specially designed for Novice and indoor flight

High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver

Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.

There are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.

Configuration

Name: TinyGO

Brand: GEPRC

Frame: GEP-TG16

Motor to Motor: 79mm

FC:

TAKER F411 8Bit 12A

MCU: STM32F411

IMU: 42688-P

Blackbox: 16Mb

OSD: BetaFlight OSD w/ AT7456E chip

ESC: 8Bit 12A

VTX:

RAD Whoop 5.8G 25~400mw VTX

Camera: Runcam Nano2/Caddx Loris 4K 60fps

Propeller:

GEMFAN 1636*4

(4 pairs)

Motors: GR1102 10000Kv

Receiver: Integrated ELRS SPI receiver

TinyGO Racing Weight: 48 Grams

Remote Controller

TinyRadio ELRS 2.4G Remote Controller

Radio Frequency: 2.4GHz

Radio Frequency: 2.4GHz

Range: 1000+ meter

Channel: 8

Transmit Power:<500mW

Antenna interface : SMA

Low Voltage alarm: <6.6v

Batteries: 2 x 18650 Batteries (not included)

TinyRadio ELRS Remote Controller

Radio Frequency: 2.4GHz

Radio Protocol: FHSS

Channel: 8

Transmit Power: < 20 dBm

Antenna interface: SMA

Low Voltage alarm: <6.6v

Batteries: two 18650 batteries or a 2S battery.(not included)

FPV Goggle：

Resolution: 800*480px

Size of Screen: 4.3 inch

Whole Size: 155mmx144mmx113mm

In-built batteries: 3.7v/2000mAh

Working Hours: 2.5 Hours

Weight: 314.6 Grams

FPV Batteries：

Batteries Capacity: 530mAh

Voltage: 4.35v 1S1P

Discharge rate: 90C

Size:（61mmx16.7mmx7mm）

Weight: 12.7 Grams

Interface: PH2.0

Charger：

Input power:5v（USB & Type C）

Full charged Voltage:4.35v

Output current : 500mAh

Charging:It can charge 2 PCS 1s HV lipo 4.35v HP2.0/GNB27 plug batteries at the same time

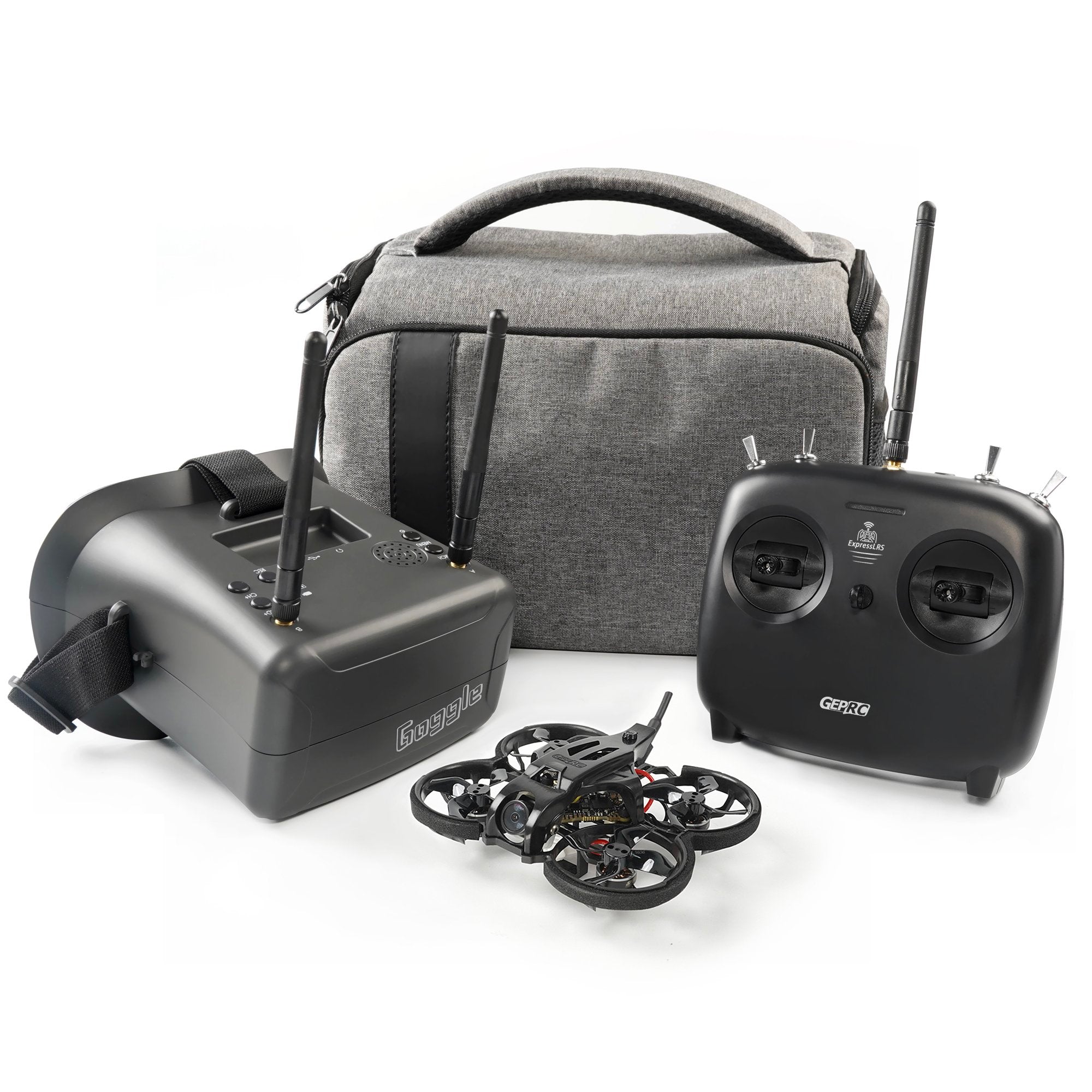

Include:

1x TinyGO TinyWhoop

1x TinyRadio ELRS 2.4G Transmitter

1x GEPRC FPV RG1 Goggle

4x GEPRC LiHV 4.35v 90C Battery

1x Battery strap

4x Gemfan 1636*4 Props(pairs)

1x GEPRC Fly bag

1x Screwdriver
