GEPRC TAKER S60 BLS 60A ESC｜電子變速器

GEPRC TAKER S60 BLS 60A ESC｜電子變速器

GEPRC 官方電子變速器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Feature

Self-contained MOS heat sink for efficient cooling under high current loads, ensuring more stable performance.

Wide battery voltage compatibility, with high-quality MOS for stable operation under high power.

Compatible with BLHeli_S and BlueJay firmware — switch freely for more versatile flight options.

Custom-molded heat-dissipating case with a hollow design to enhance cooling efficiency.

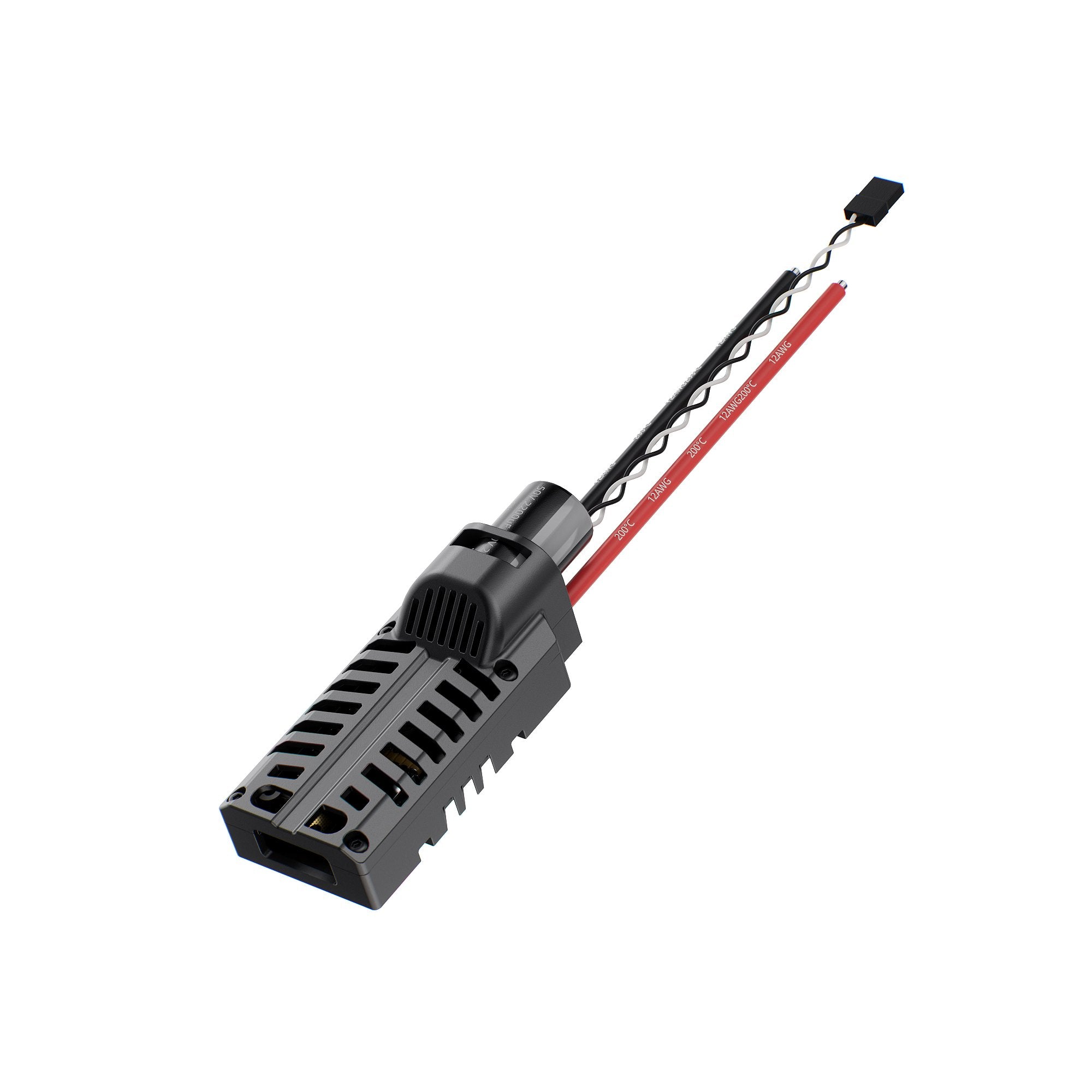

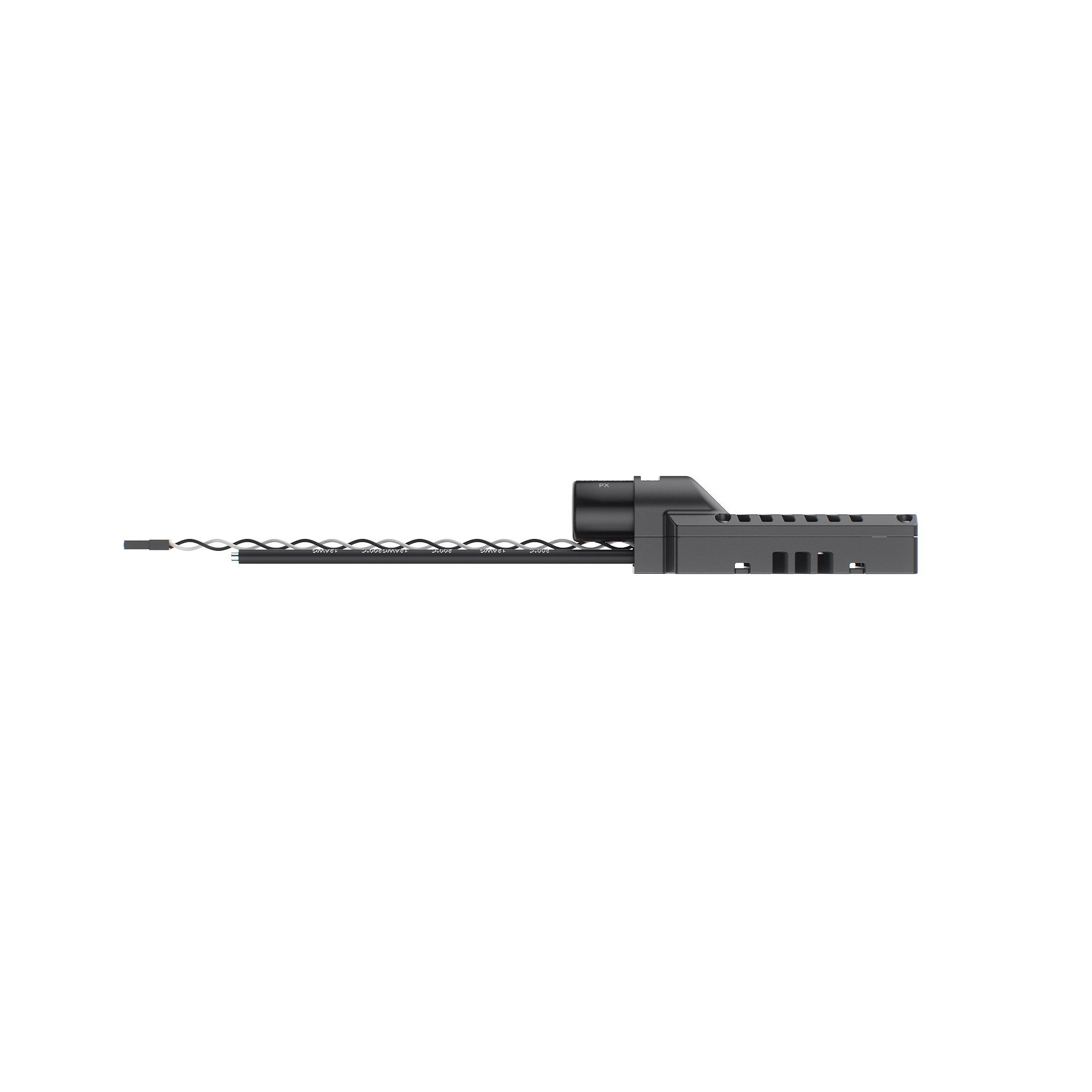

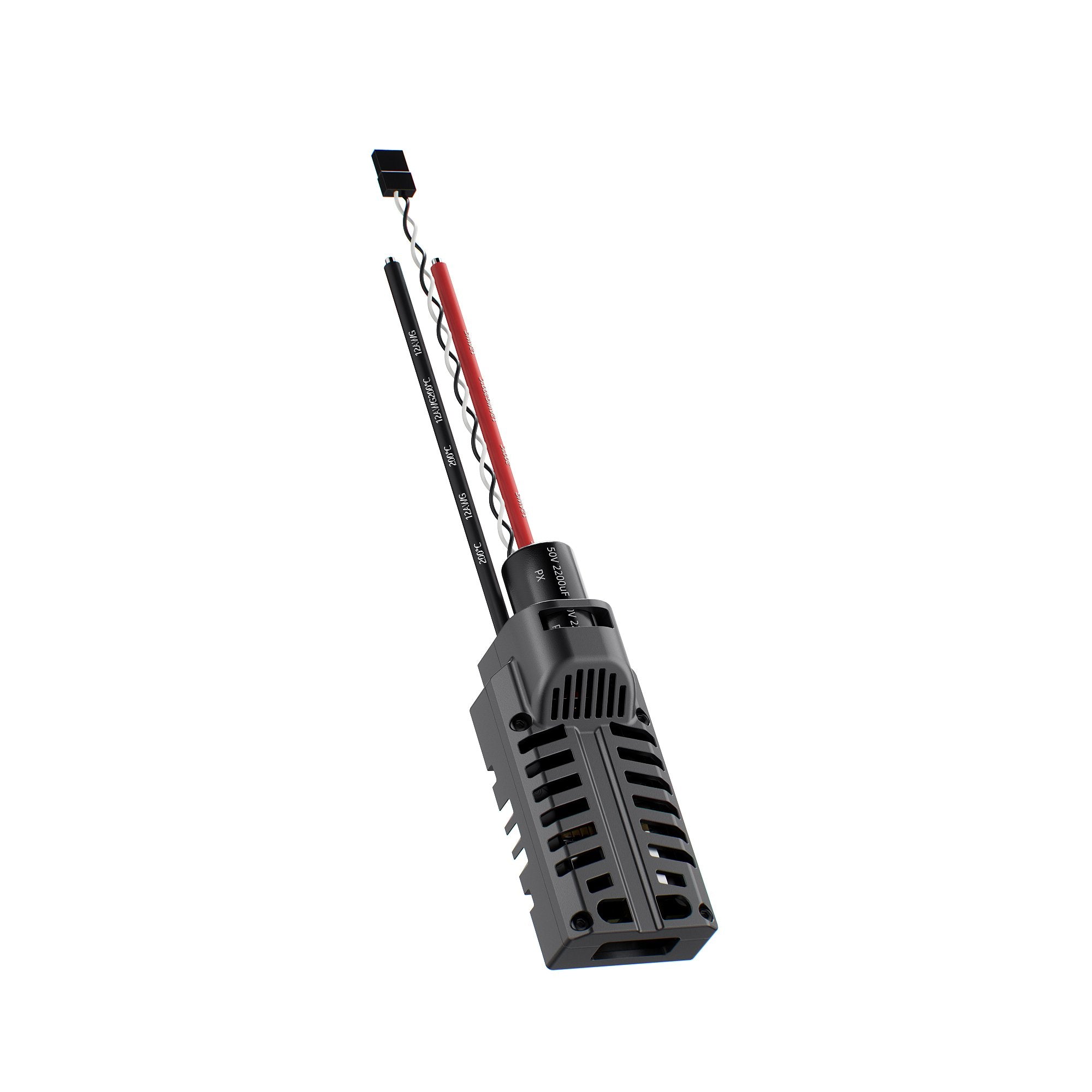

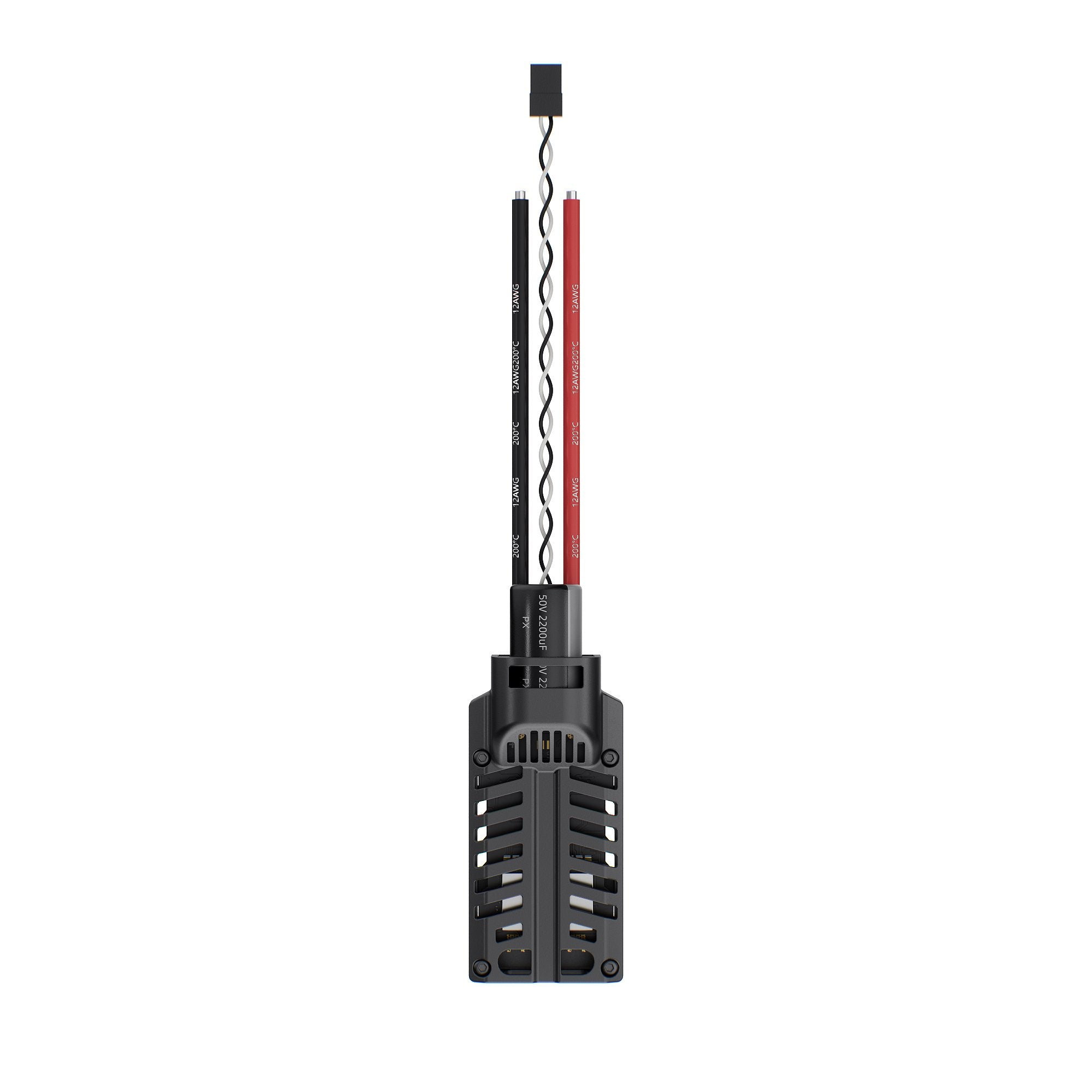

GEPRC TAKER S60 BLS 60A ESC (With Case Version)

Specifications

Input Voltage: 3-6S Lipo

Ammeter: Not Supported

Continuous Current: 60A

Burst Current: 65A(5 seconds）

Protocols Supported: Dshot 150/300/600

ESC Dimension: 32.5x55mm

Mounting Holes: 29.6×48.5mm

Case Material: PC

Case Dimension: 36x76mm

Weight: 57.2g

Includes

1 x TAKER S60 BLS 60A ESC

1 x 50V 2200μF Capacitor

1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)

1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)

1 x Single ESC Top Case (Black) Molded Part

1 x Single ESC Bottom Case (Black) Molded Part

8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]

GEPRC TAKER S60 BLS 60A ESC

Specifications

Input Voltage: 3-6S Lipo

Ammeter: Not Supported

Continuous Current: 60A

Burst Current: 65A(5 seconds）

Protocols Supported: Dshot 150/300/600

Dimension: 32.5x55mm

Mounting Holes: 29.6×48.5mm

Weight: 11.2g

Includes

1 x TAKER S60 BLS 60A ESC

1 x 50V 2200μF Capacitor

1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)

1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
