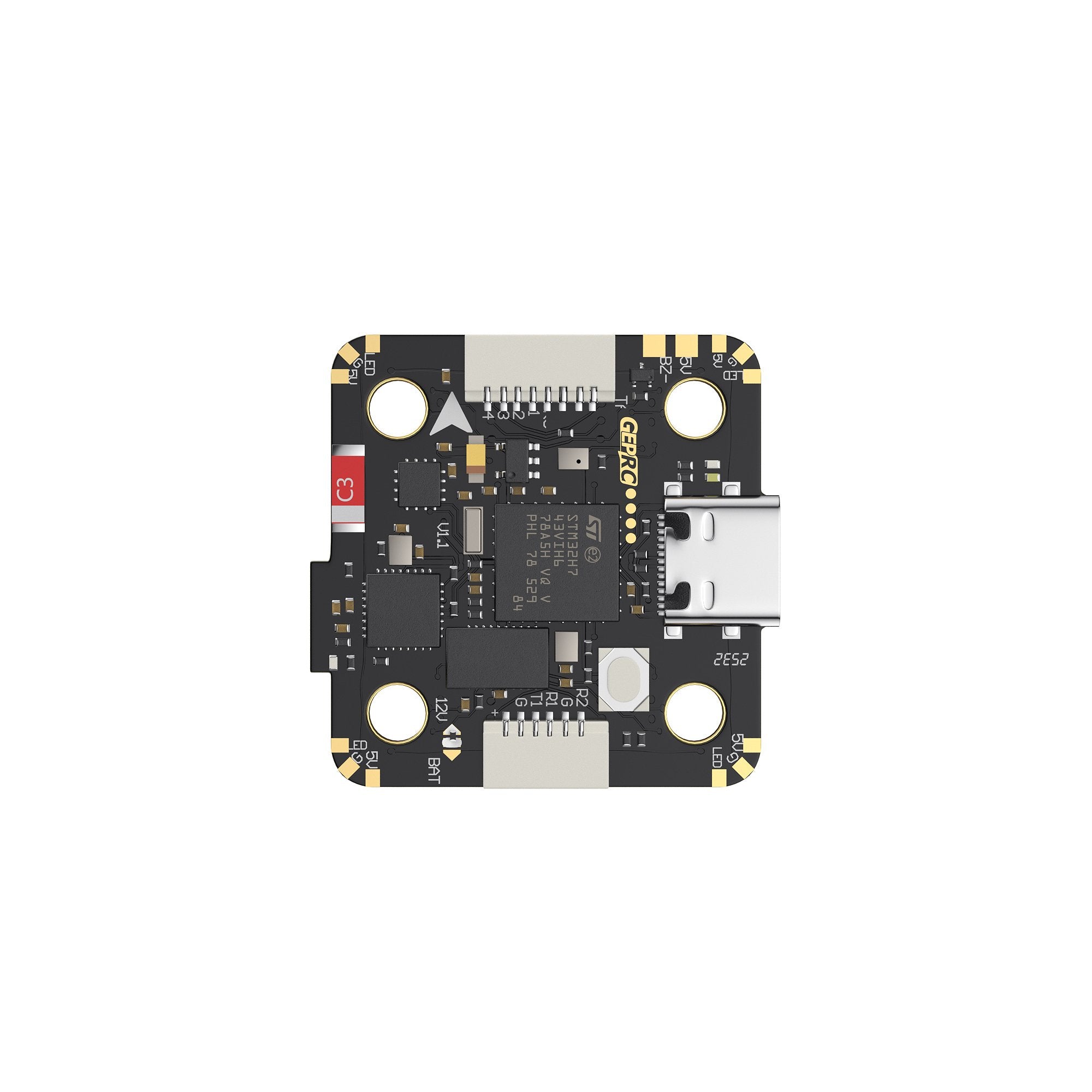

GEPRC TAKER H743 MINI Flight Controller｜飛行控制器

GEPRC TAKER H743 MINI Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Specifications

FC Model: TAKER H743 MINI Flight Controller

MCU: STM32H743

IMU: ICM42688-P (Gyro)

Air Unit Connector: DJI Plug & Play

Blackbox: 16MB onboard

Bluetooth: Supported

BEC Output: 5V@3A,

[email protected]

(Dual)

USB: Type-C

OSD: Betaflight OSD AT7456E

Barometer: Supported

Firmware Target: GEPRC TAKER H743 MINI

Input Voltage: 3–8S LiPo

FC Dimensions: 31×31mm

Mounting: 20×20mm

Power Filtering: Integrated LC filter

UART: 7 (UART8 reserved for Bluetooth)

Weight: 6.1g
