GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

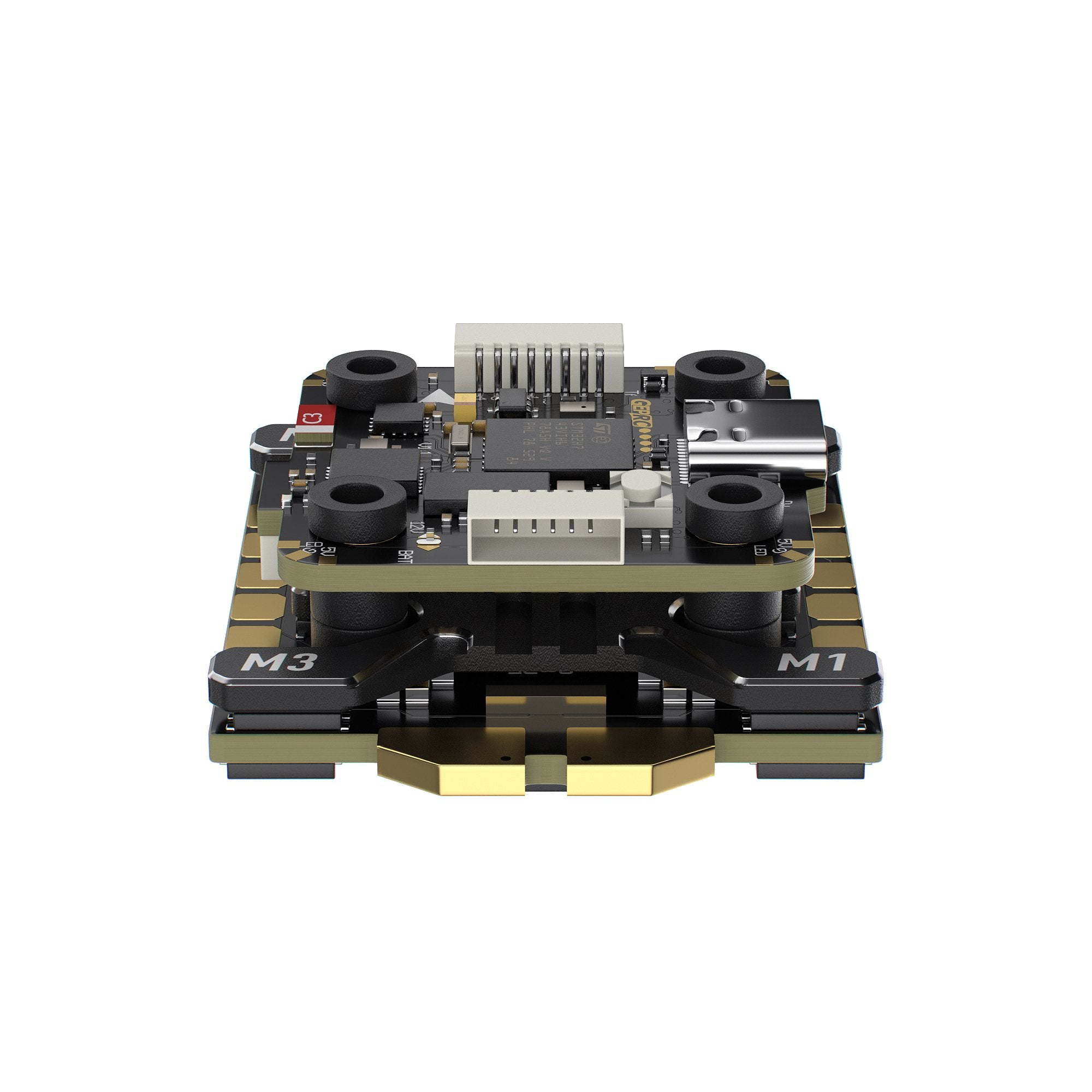

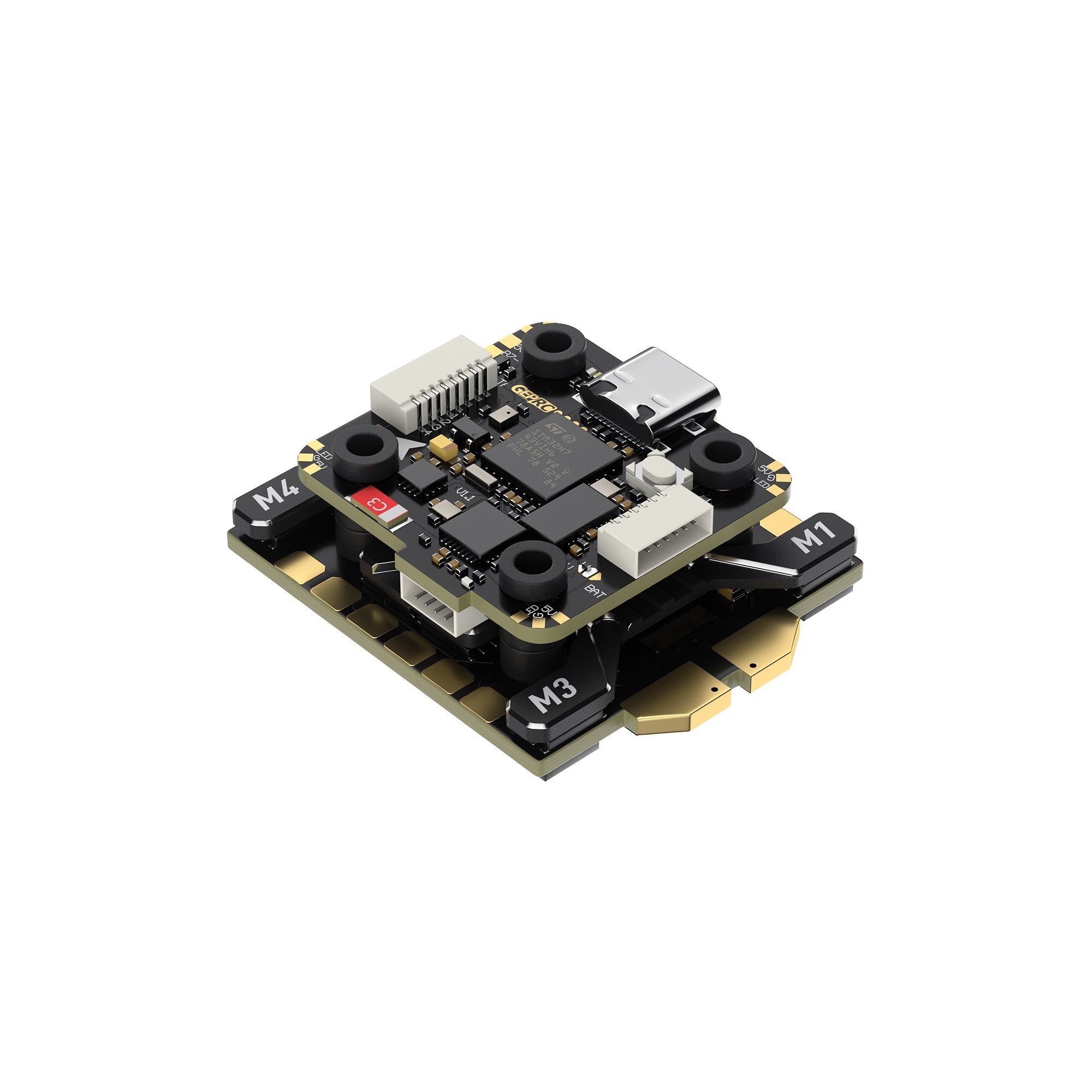

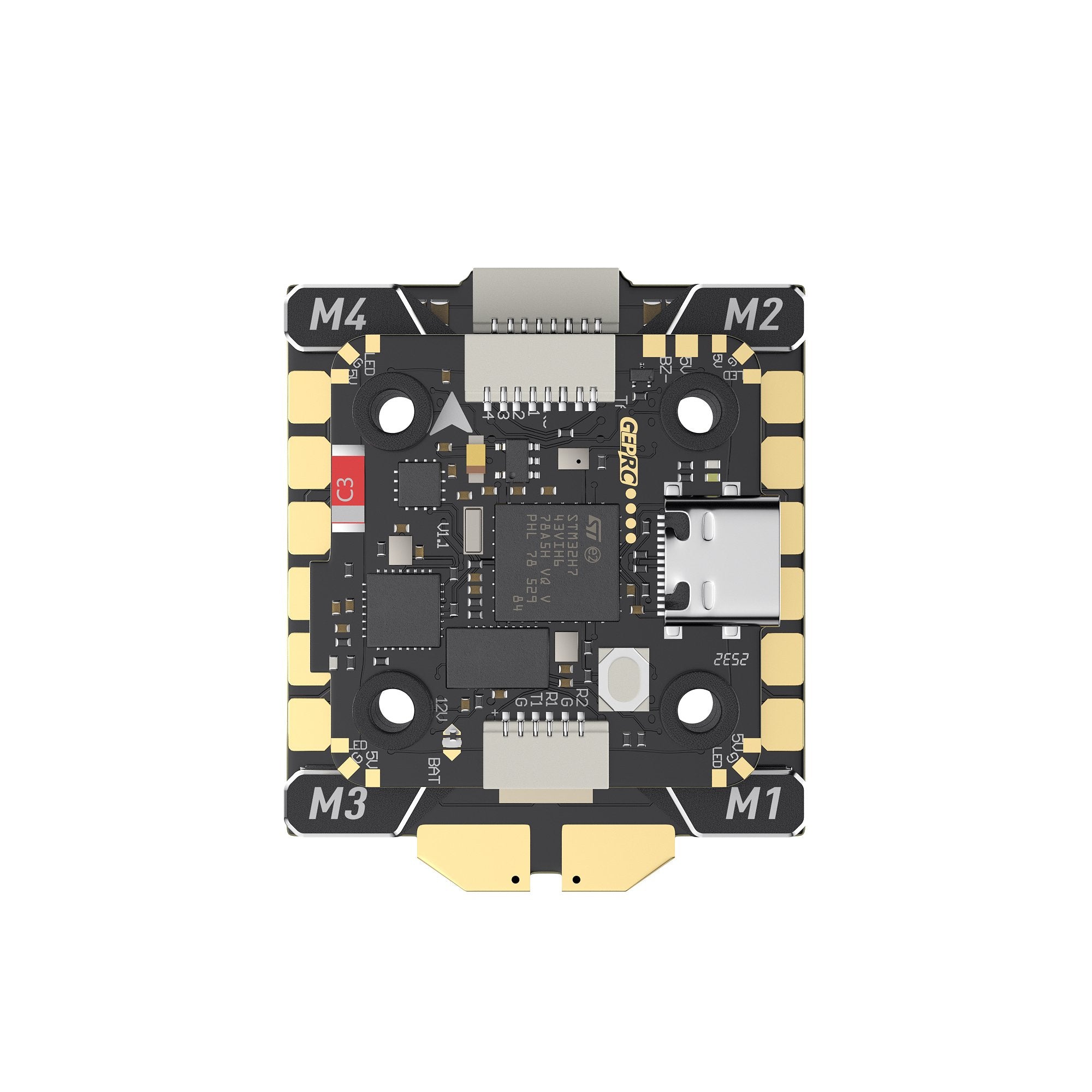

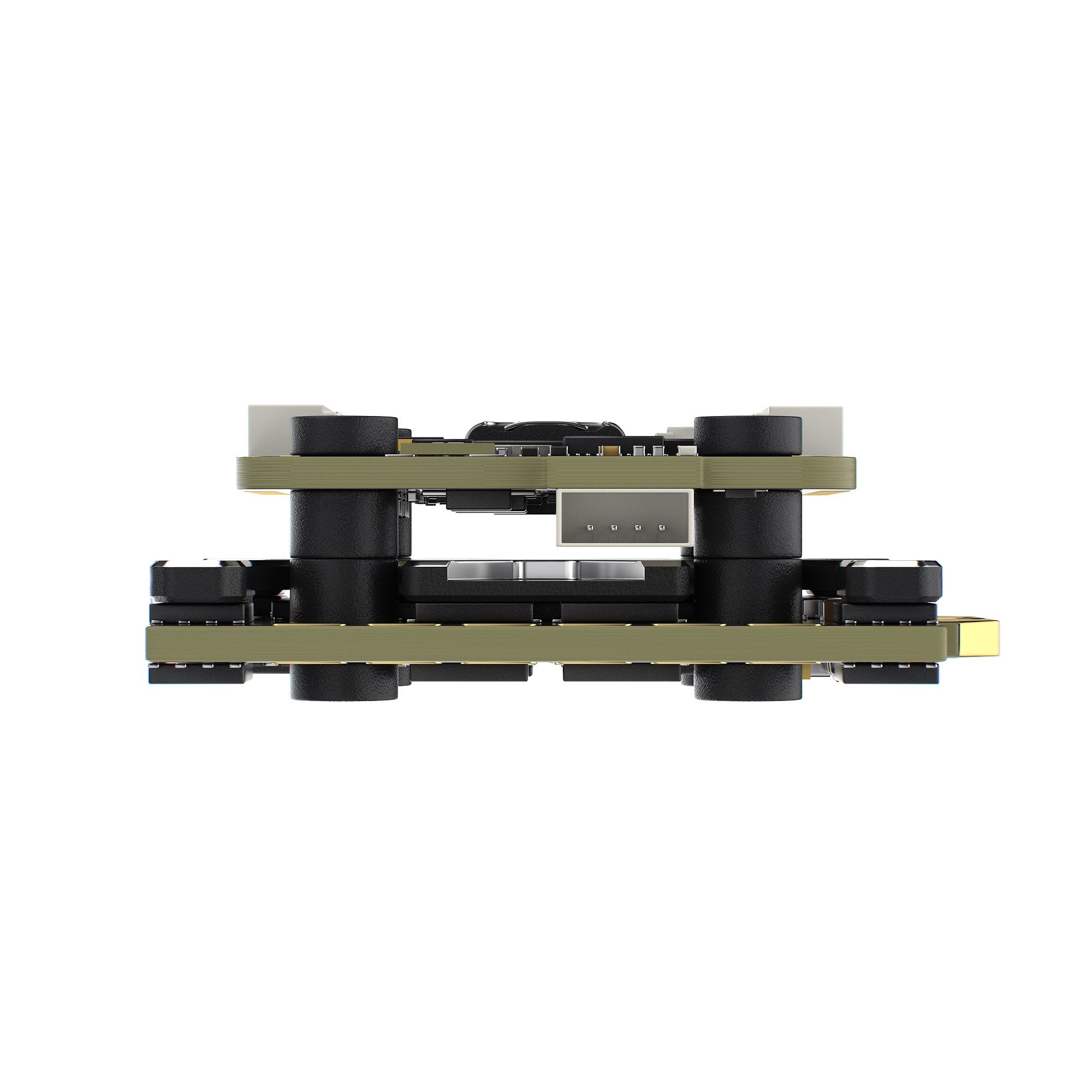

TAKER H743 MINI 32Bit 60A Stack is GEPRC’s next-gen mini flight stack, powered by an STM32H743VIH6 (Cortex-M7) MCU and ICM42688-P gyro. With high PSRR LDO filtering and external gyro clock support, it delivers stable and precise flight performance.

Paired with the TAKER H60 MINI 60A 4-in-1 ESC (AM32 pre-installed), supporting 3–8S LiPo input. High-spec MOSFETs and TVS protection ensure reliable power and fast response for smooth, controlled flight.

Feature

Equipped with ICM42688-P gyroscope

Supports external gyro clock input

Built-in 16MB Blackbox storage

Bluetooth wireless tuning supported

Integrated barometer

8 motor outputs, supports X8 configuration

Dual independent BEC:

[email protected]

+ 5V@3A

Onboard TVS spike protection design

Specifications

GEPRC TAKER H743 MINI 32Bit 60A STACK

FC model:

TAKER H743 MINI Flight Controller

FC Model: TAKER H743 MINI

MCU: STM32H743

IMU: ICM42688-P (Gyro)

Air Unit Connector: DJI Plug & Play

Blackbox: 16MB onboard

Bluetooth: Supported

BEC Output: 5V@3A,

[email protected]

(Dual)

USB: Type-C

OSD: Betaflight OSD AT7456E

Barometer: Supported

Firmware Target: GEPRC TAKER H743 MINI

Input Voltage: 3–8S LiPo

FC Dimensions: 31×31mm

Mounting: 20×20mm

Power Filtering: Integrated LC filter

UART: 7 (UART8 reserved for Bluetooth)

Weight: 6.1g

ESC Model:

TAKER H60 MINI AM32 60A 4IN1 ESC

Input Voltage: 3–8S LiPo

Continuous Current: 60A

Burst Current: 65A (5s)

Protocol: DShot150/300/600

ESC Dimensions: 43×36mm

Weight: 17g (with aluminum heat sink)

Mounting: 20×20mm

Firmware: AM32 GEPRC 4IN1 F421

Includes

1× TAKER H743 MINI Flight Controller

1× TAKER H60 MINI 32bit ESC

1× 50V 1000µF Capacitor

1× DJI Air Unit Cable (SH1.0-6P)

1× FC Cable (SH1.0-8P)

1× FC to GPS RX Cable (SH1.0-4P)

1× XT60 Power Cable (12AWG, 55mm)

10× M3 Silicone Dampers

5× M3*22 Stack Screws

6× M3 Nylon Lock Nuts

5× M3 Hex Nuts
