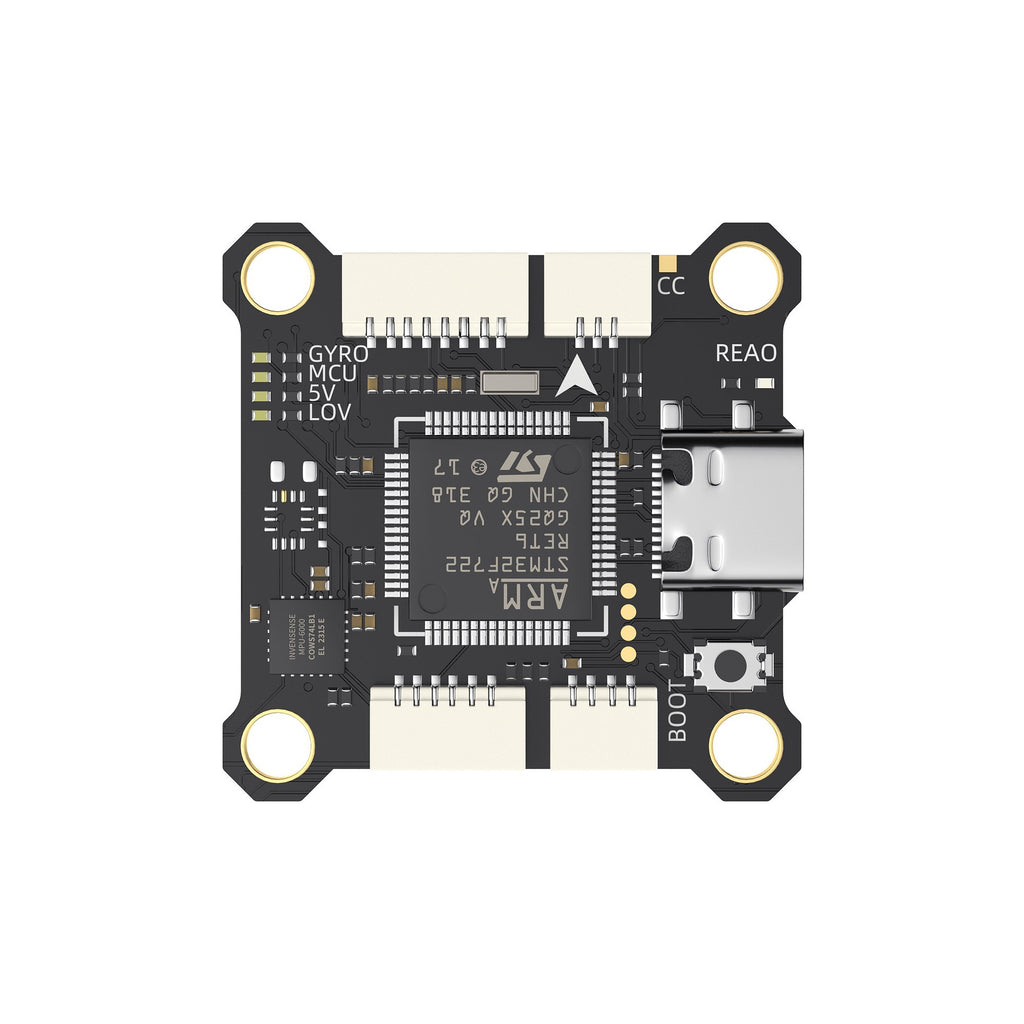

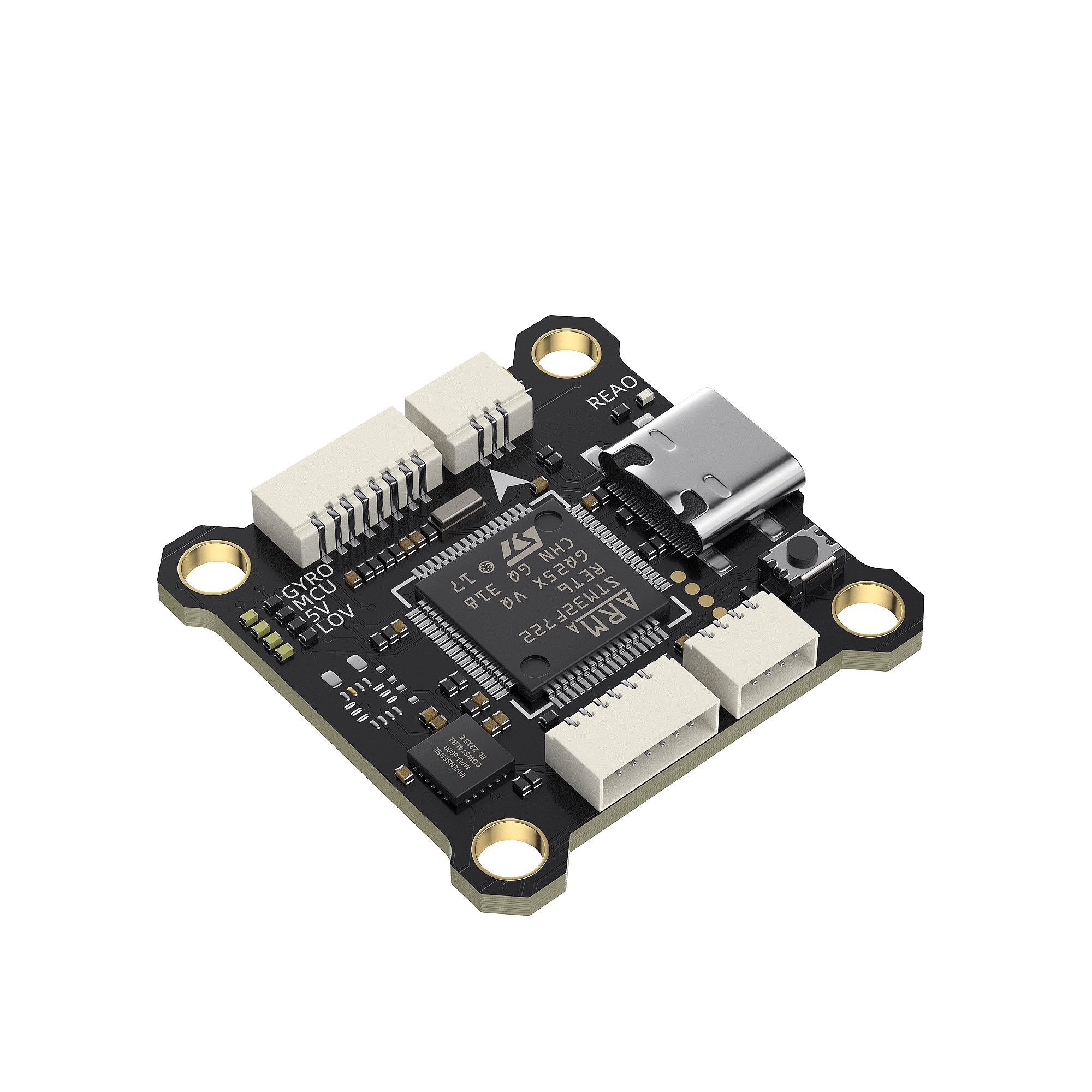

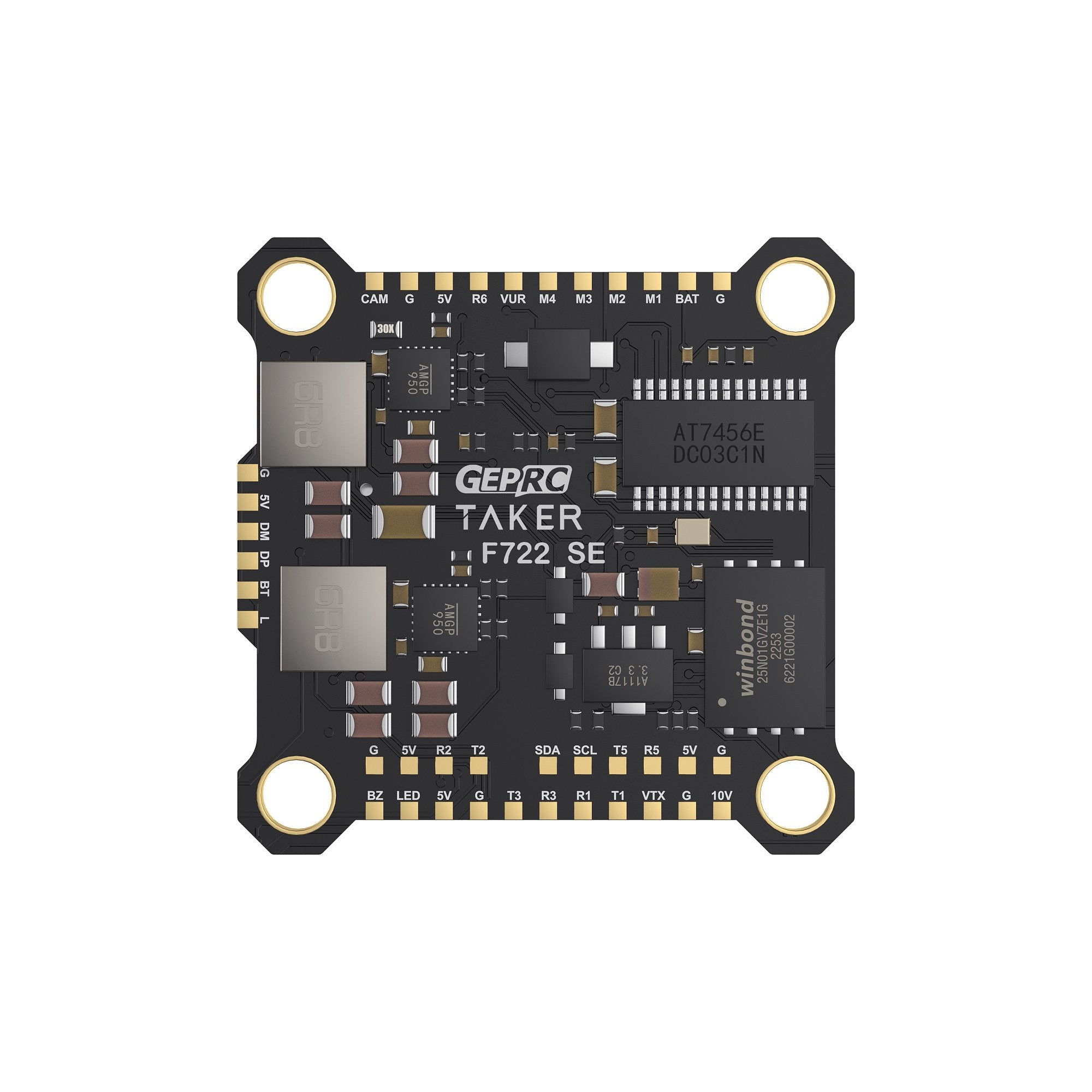

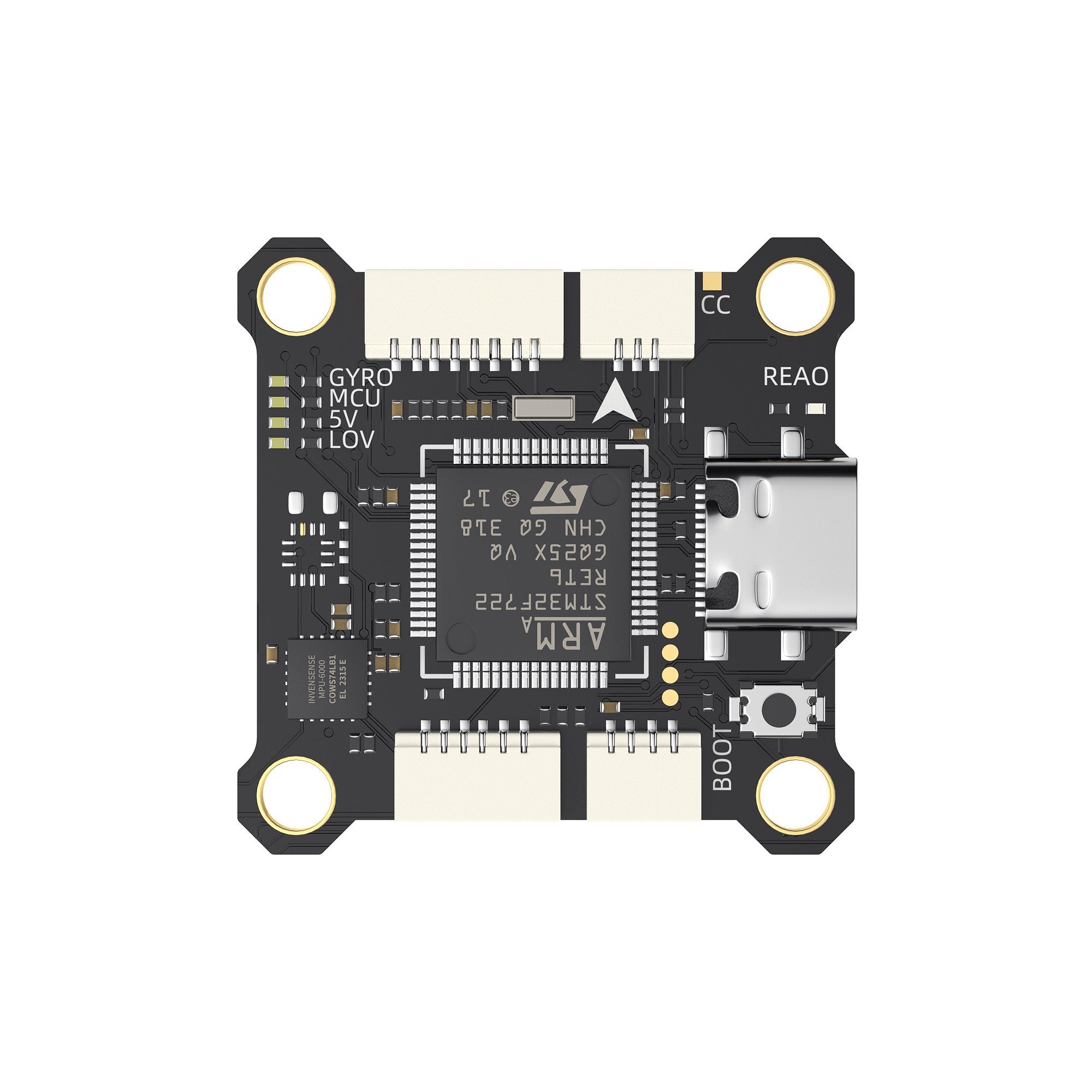

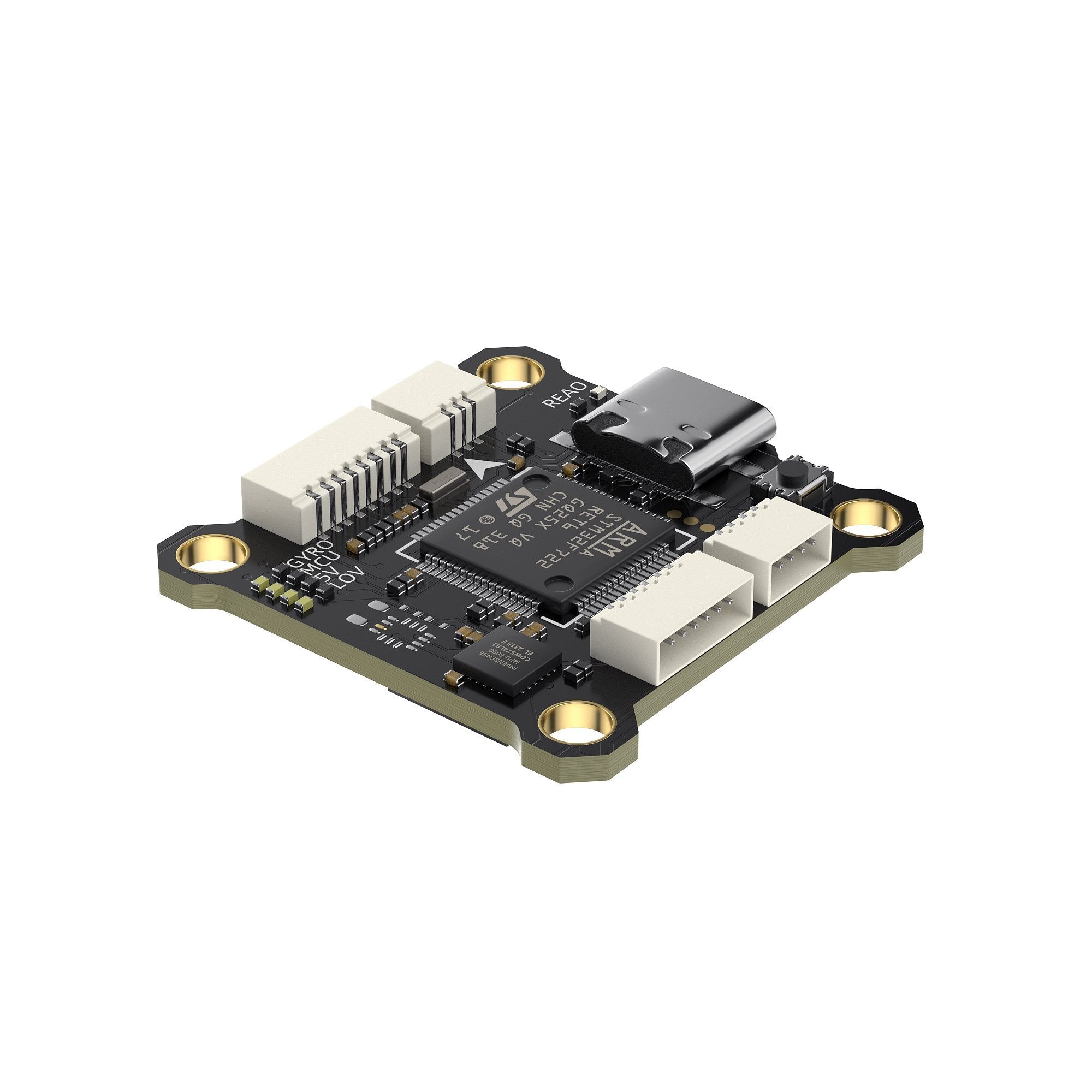

GEPRC TAKER F722 SE Flight Controller｜飛行控制器

GEPRC TAKER F722 SE Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Specifications

Model: TAKER F722 SE FC

MCU: STM32F722RET6

IMU: MPU6000

Black Box: 32Mb Flash

USB: Type-C

OSD: BetaFlight OSD w/ AT7456E chip

BEC output:

[email protected]

，10V@2A dual-output BEC

Firmware Target: TAKERF722SE

Dimension: 31.7×31.5mm

Moutning hole sizes：25.5×25.5mm，mounting hole size is φ4mm, use vibration reduction silicone to transform the fixing screws into 3mm or 2mm.

Input voltage: 7.4V-25.2V（LiPo 2-6S)

UART: 6 UARTS(for Uart6 ESC only)

Power Filter: Integrated LC filter

Weight: 6.0g
