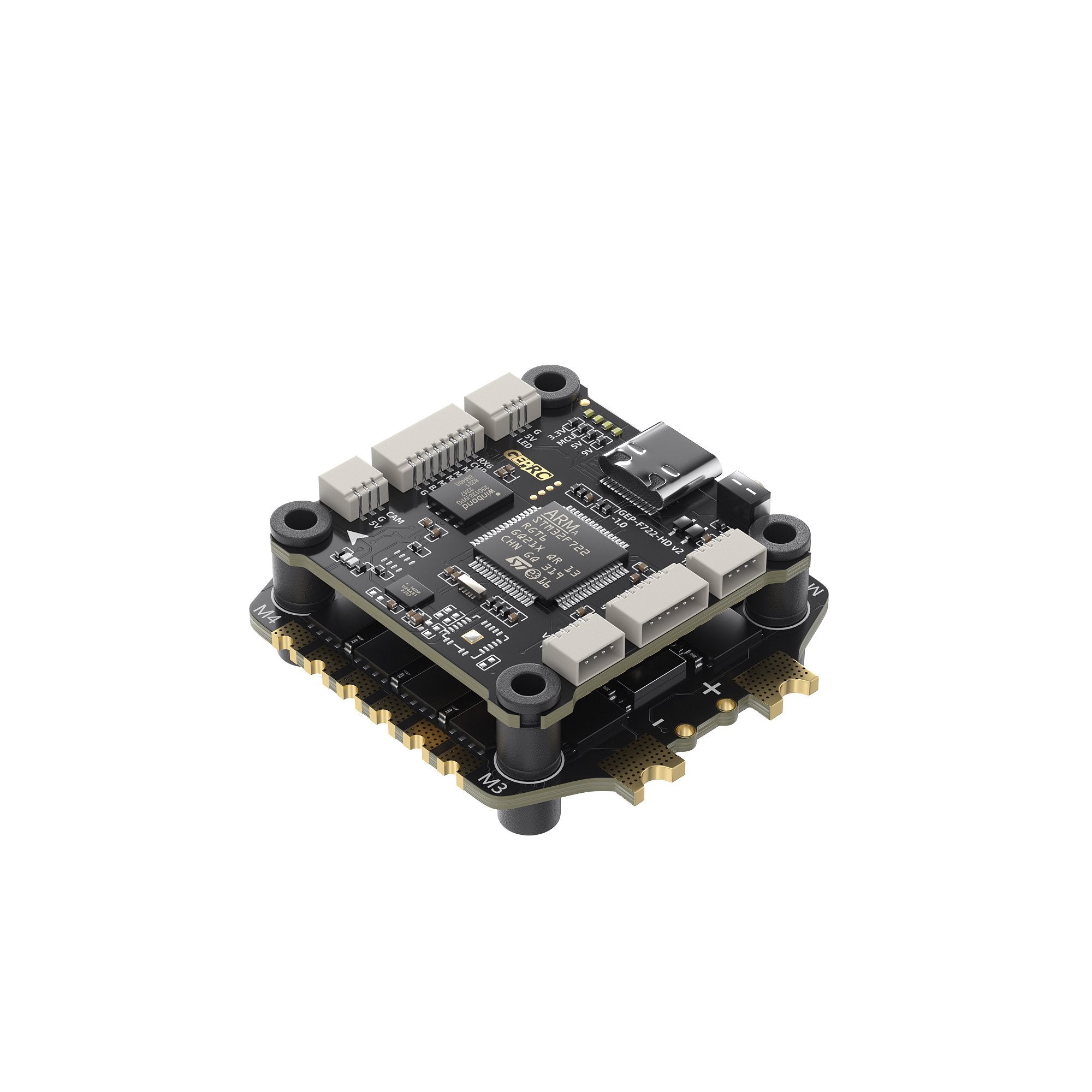

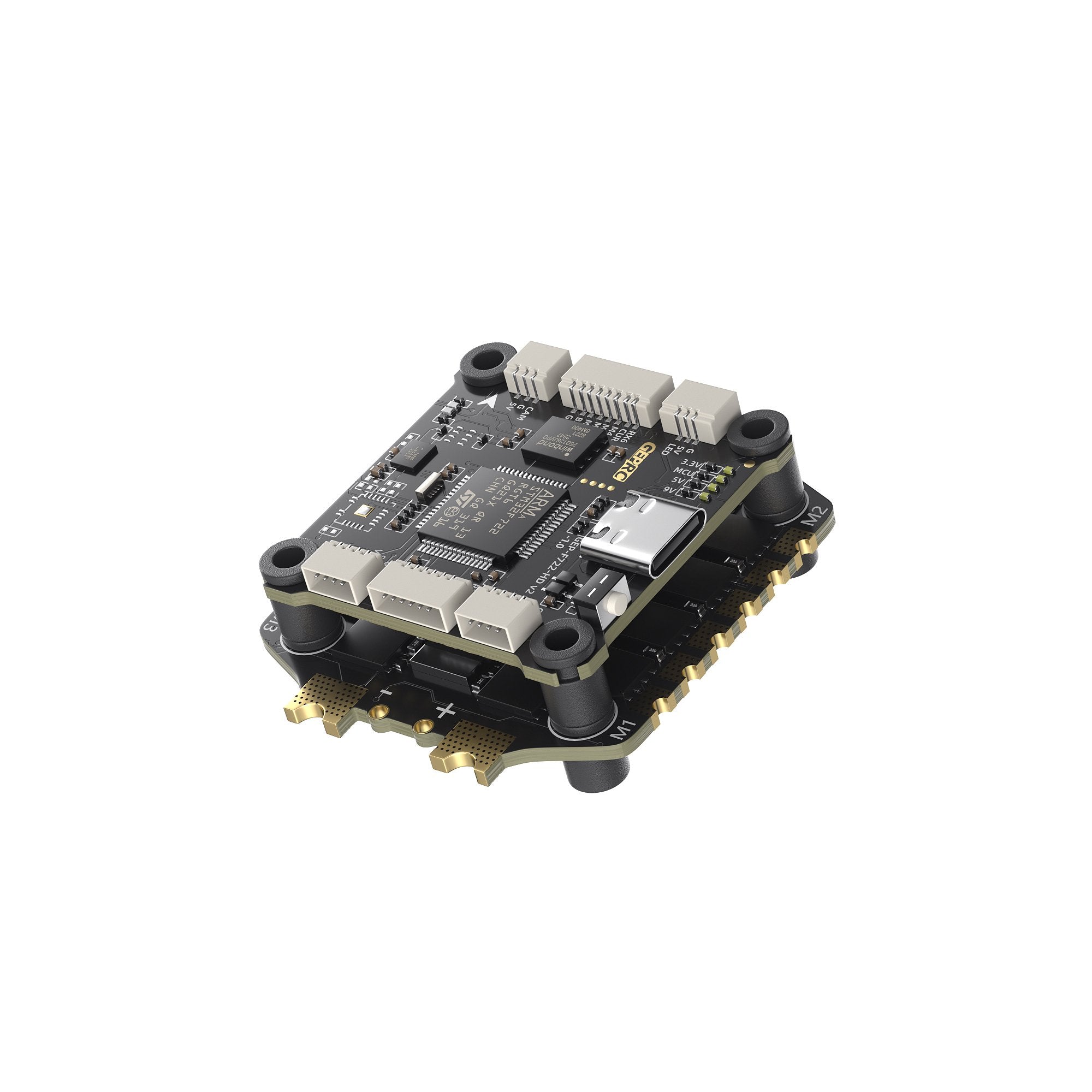

GEPRC TAKER F722 BLS 65A V2 STACK｜飛控電變飛塔

GEPRC TAKER F722 BLS 65A V2 STACK｜飛控電變飛塔

GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features

Uses the mainstream STM32F722 chip

Equipped with the latest 42688-P gyroscope

16M onboard black box storage

Integrated LC filter

Upgraded Type-C USB interface

Directly plugs into the DJI Air Unit

Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience

Simple and efficient installation method with shock absorbers for stable gyroscope performance

Dual independent BECs:

[email protected]

and 5V@3A

Specifications

GEP-F722-HD v2 Flight Controller

MCU: STM32F722

IMU: ICM42688-P(SPI)

Air Unit Connection: Direct plug-in to DJI Air Unit

Black Box:16M onboard

USB Interface: Type-C

Barometer: supported

OSD: BetaFlight OSD w/ AT7456E chip

BEC: 5V@3A,

[email protected]

dual BEC

Firmware Target: GEPRCF722

Dimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

Input Voltage: 3-6S LiPo

UART: 5

Power Filter: Integrated LC filter

Weight: 8.1g

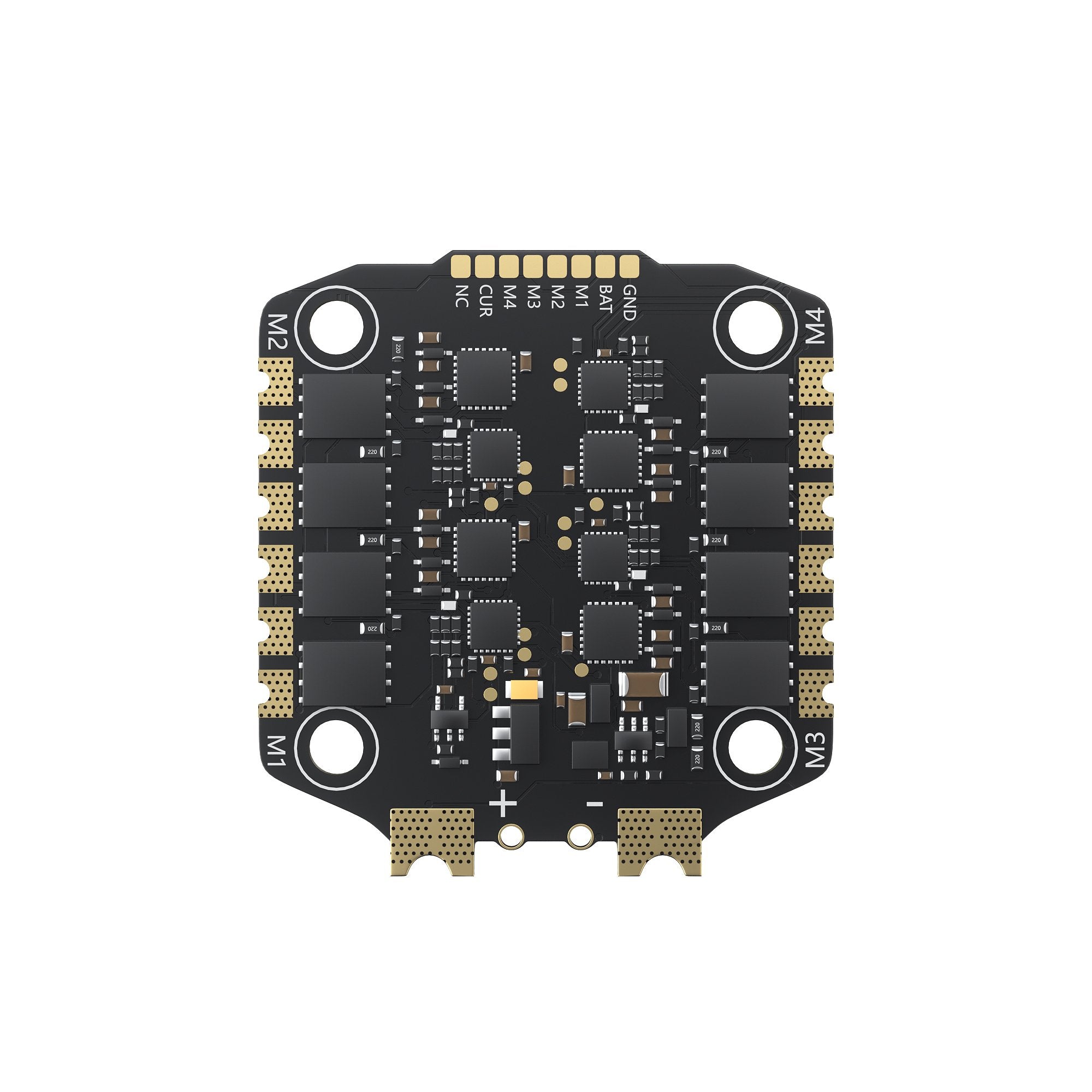

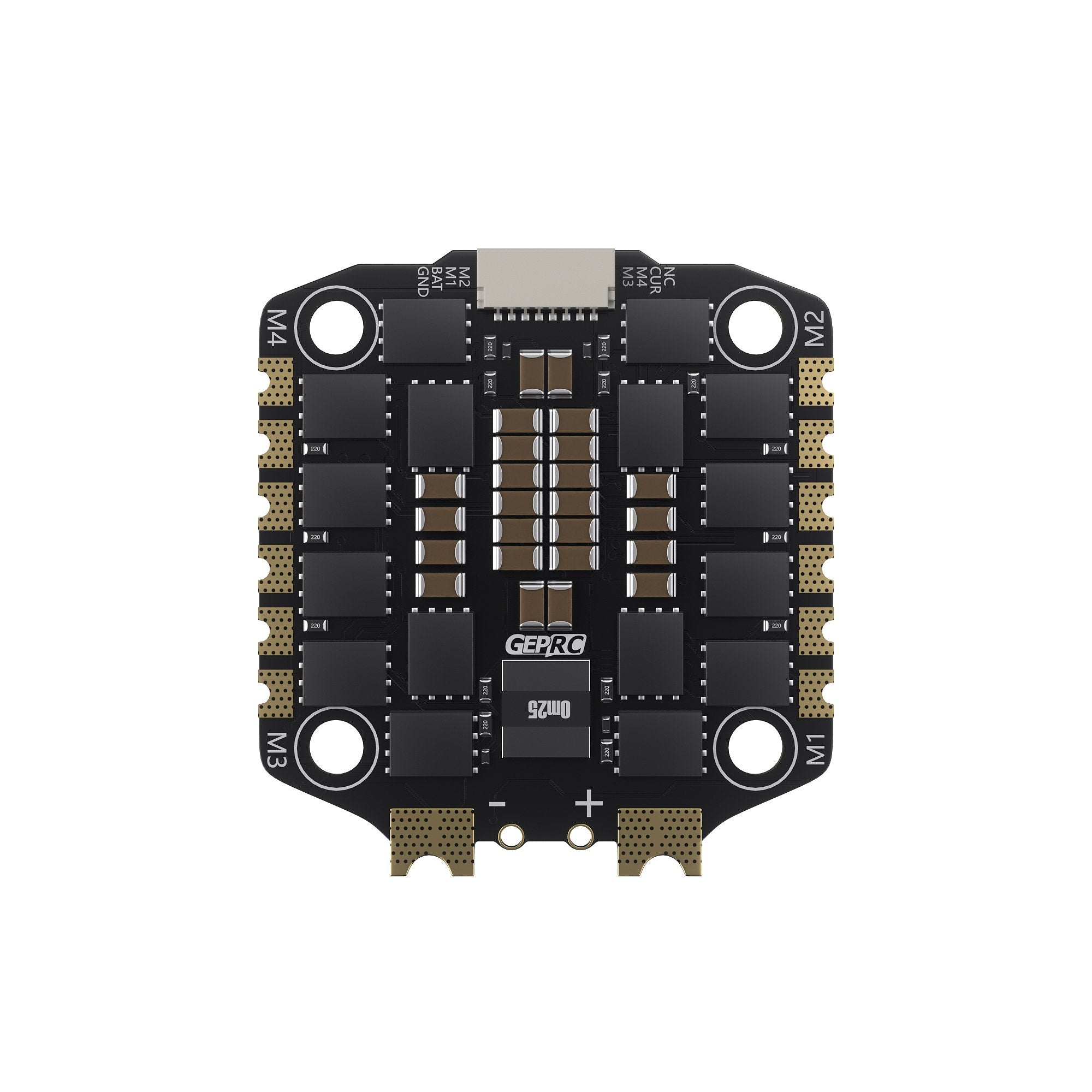

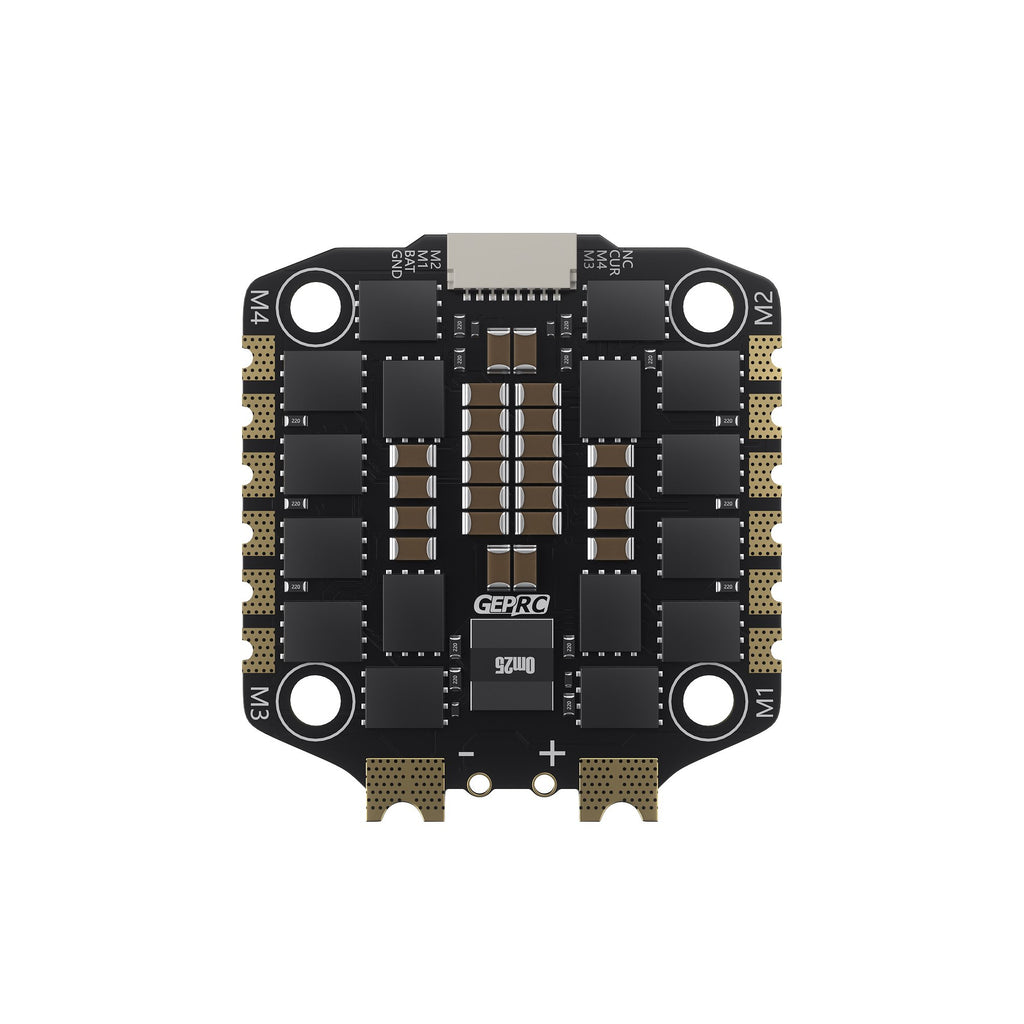

TAKER H65_8S_BLS 65A 4IN1 ESC

Input Voltage: 3-8S Lipo

Ammeter: Supported

Continuous Current：65A

Burst Current：70A（5 seconds）

Support Protocol: Dshot 150/300/600

Dimension：42×45.7mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.

Weight: 14.9g

Firmware Target: B_X_30

Includes

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI Air Unit adapter cable

1 x Flight controller adapter cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

8 x Silicone anti-shake pads

2 x sh1.0 4pin silicone cable

1 x Camera connection cable
