GEPRC TAKER F405 20A ELRS2.4G 2~4S AIO｜一體式飛控

GEPRC 官方一體式飛控，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

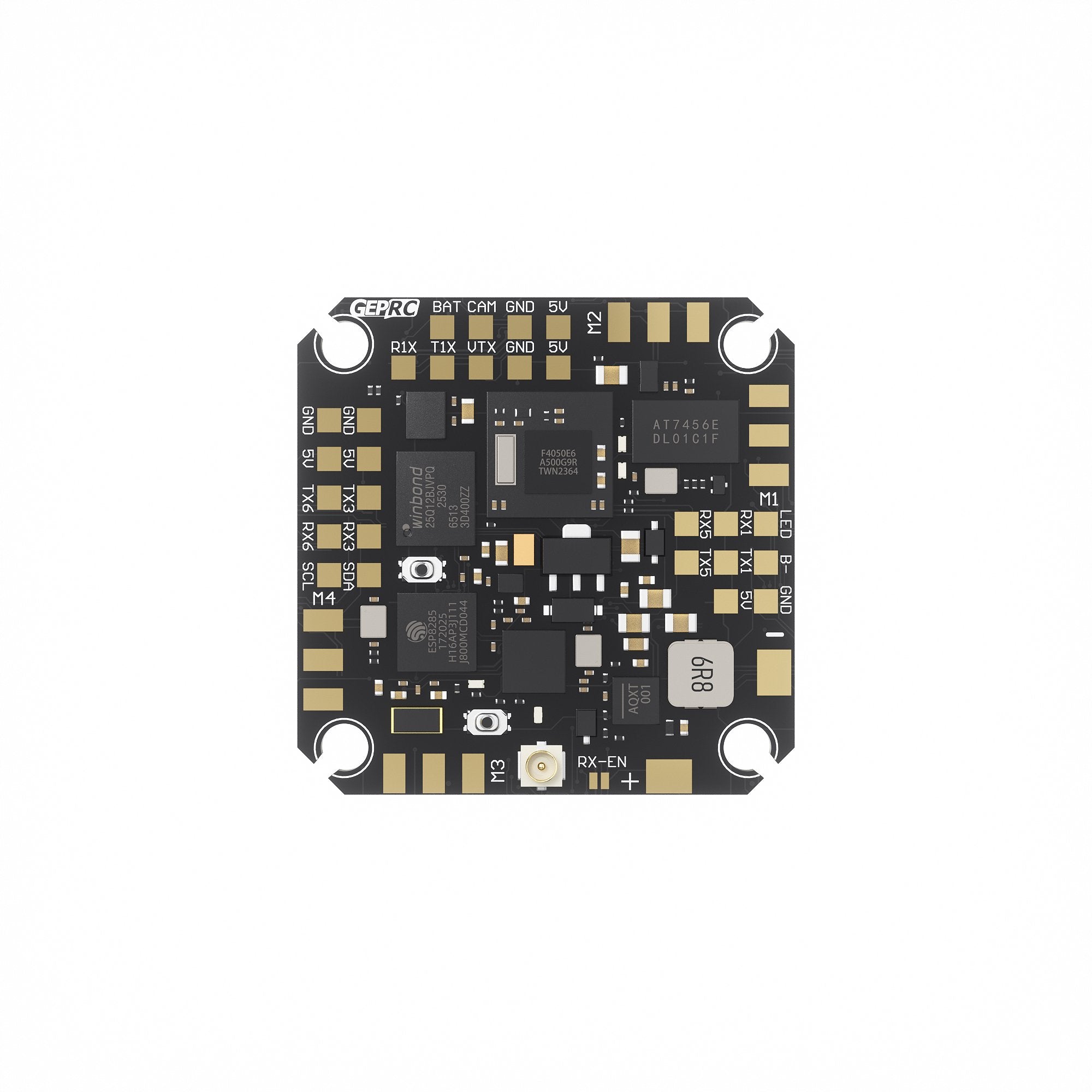

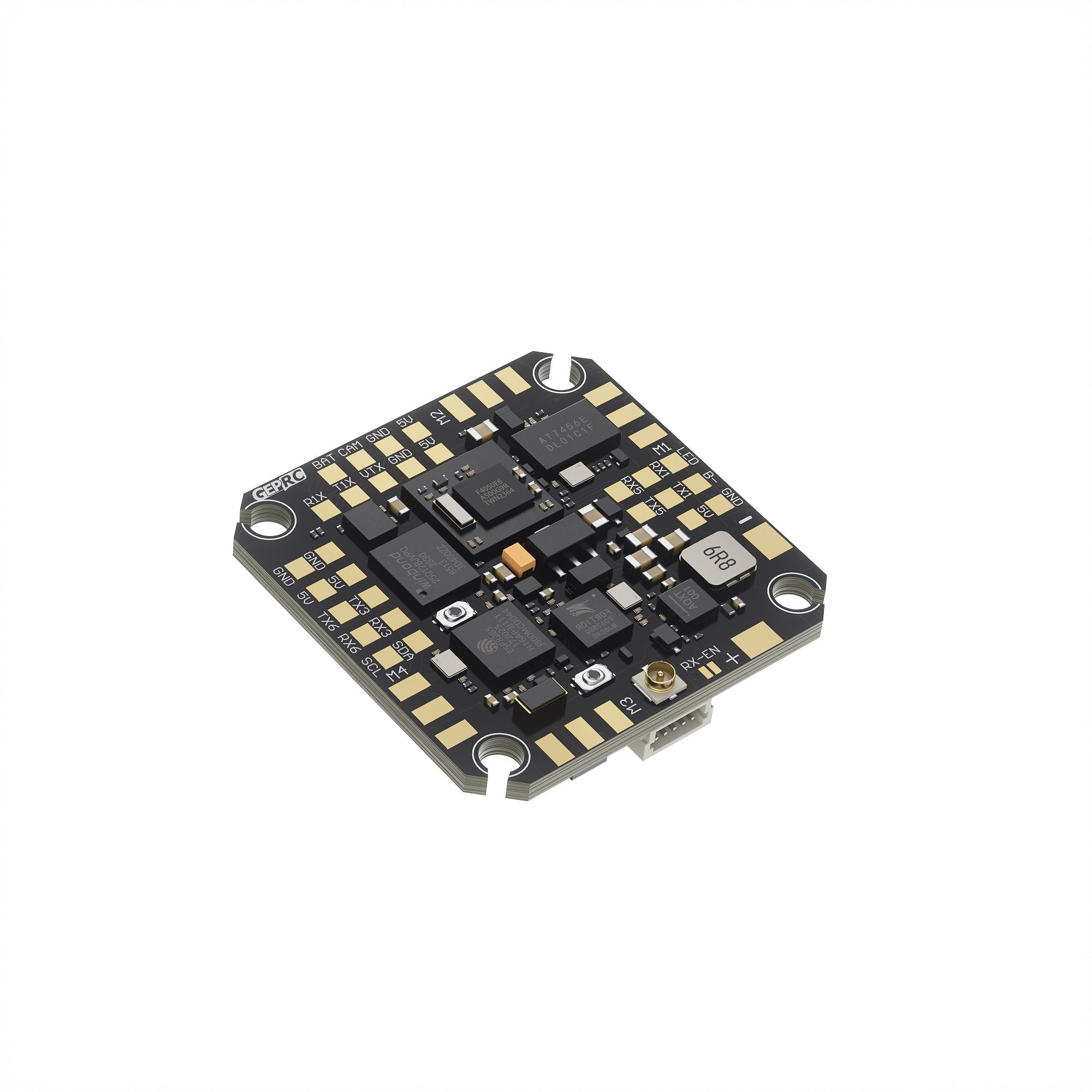

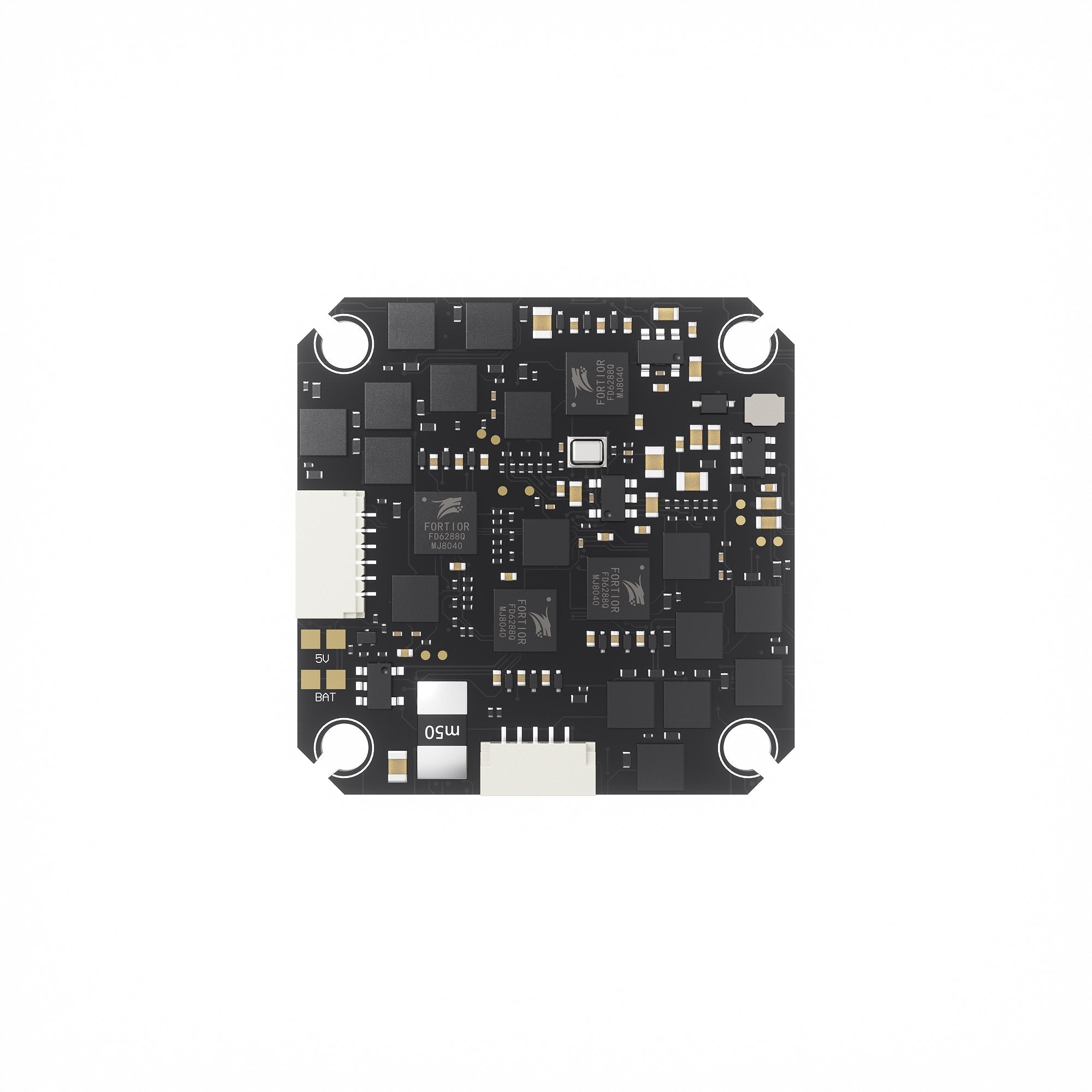

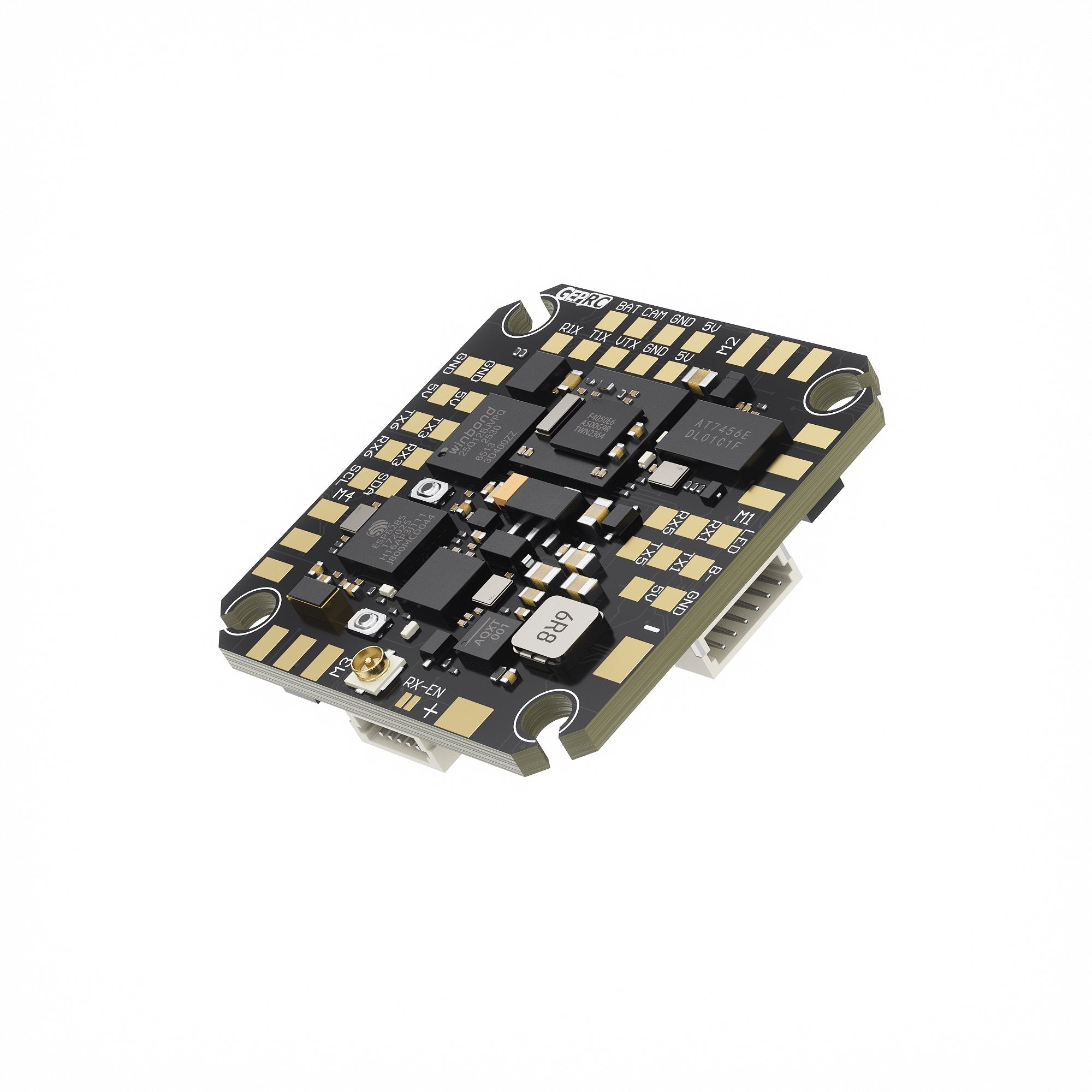

The TAKER F405 20A ELRS2.4G 2–4S AIO features a compact STM32F405 BGA MCU paired with an ICM42688-P (SPI) gyroscope, delivering a highly integrated design that occupies minimal space.

With a built-in ELRS 2.4GHz receiver, the overall build is cleaner and more streamlined.

It offers 5 full UART ports, providing ample connectivity for common peripherals. An independently designed 6-pin connector on the bottom of the flight controller allows direct plug-in of various HD digital VTX systems, significantly reducing soldering effort.

The AIO uses Bluejay ESC firmware for smooth and responsive throttle performance. It supports a continuous current of 20A and a burst current of 25A (10 seconds), with compatibility for 2–4S LiPo batteries.

Additional features include OSD tuning, buzzer, and LED support.

Weighing only 7g, it is ideal for 1.6-inch to 2.2-inch micro FPV builds.

Feature

STM32F405 BGA MCU with AT7456E compact OSD chip for a space-efficient layout

Integrated ELRS 2.4GHz receiver for simplified installation

5 full UART ports with support for direct HD VTX connection

Bluejay ESC firmware for smooth and refined flight feel

Ultra-lightweight 7g design, suitable for 1.6″–2.2″ FPV drones

Specifications

Product Name: TAKER F405 20A ELRS2.4G 2–4S AIO

MCU: STM32 F405 BGA

MU: ICM42688-P (SPI)
