GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

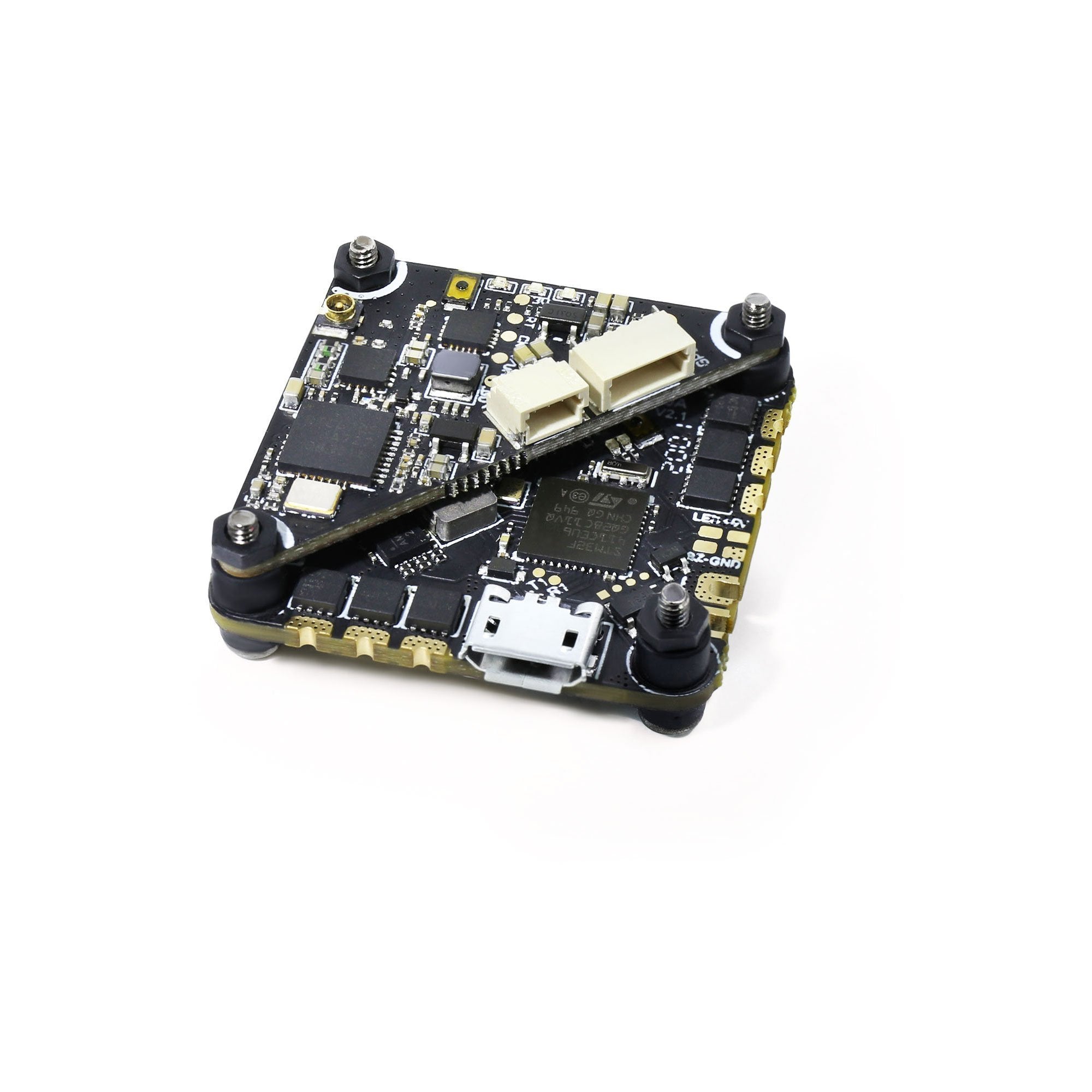

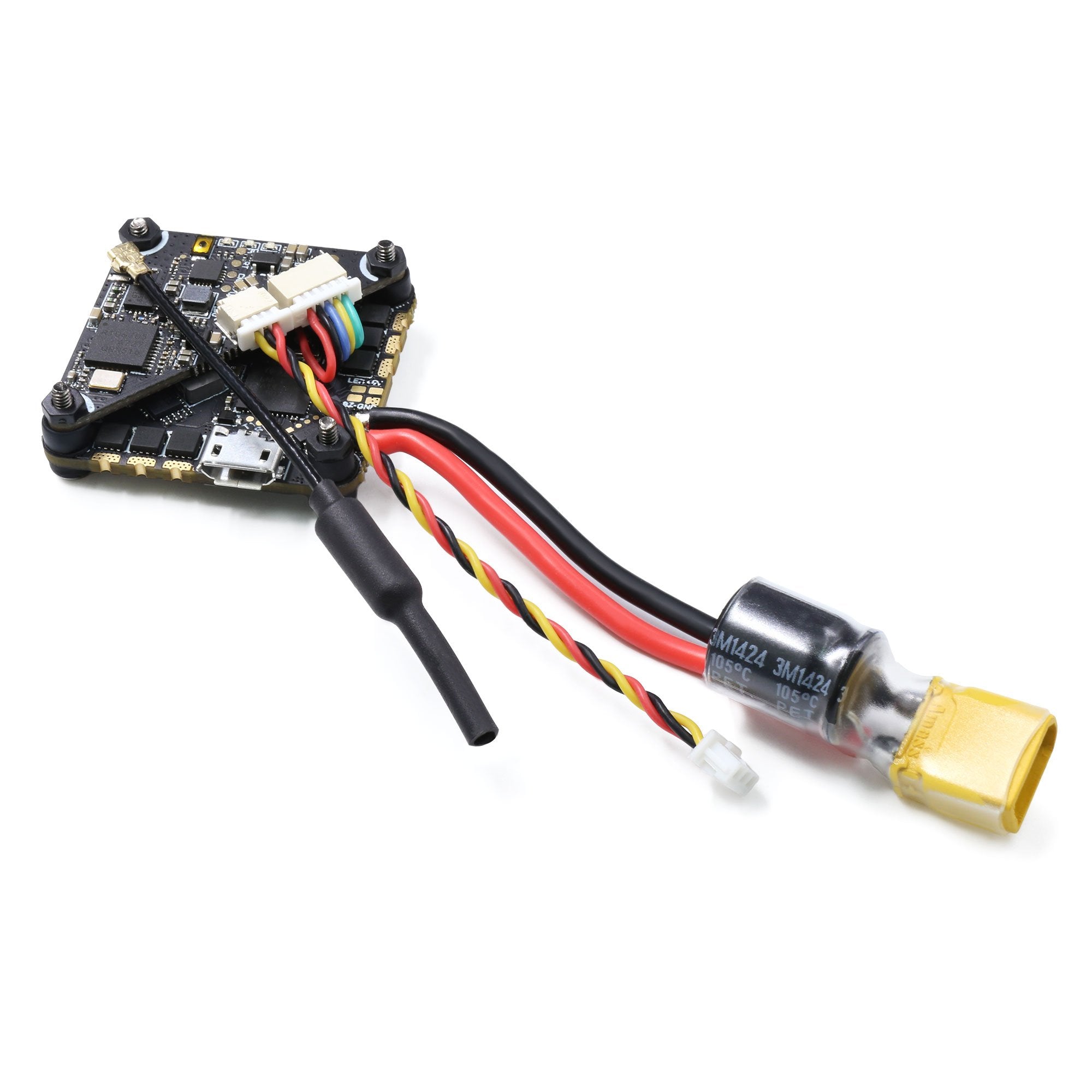

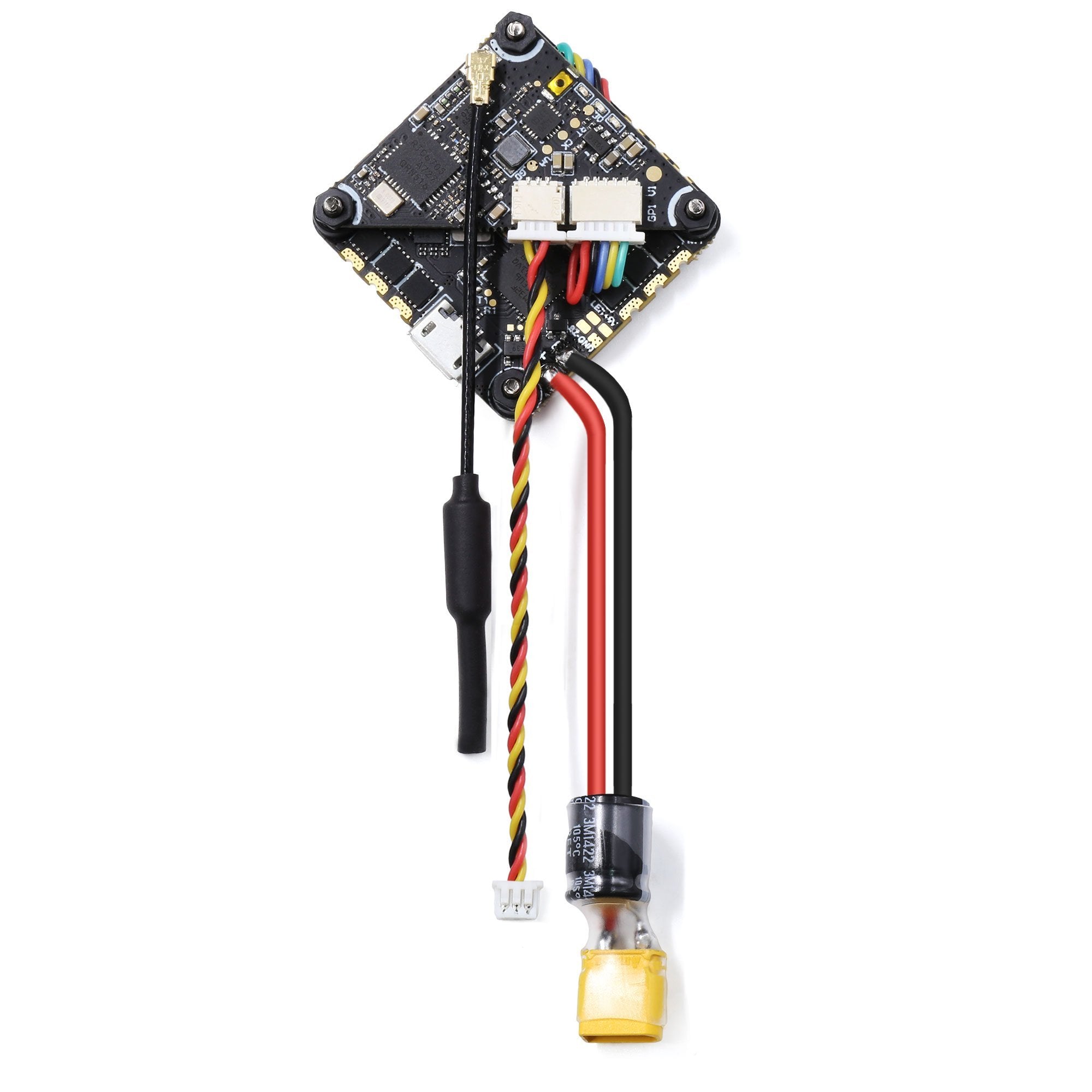

A new high-performance AIO brushless FC, GEP-20A-F4 is added to the NEW members of the toothpick FPV Micro Quad’s

Compared with the previous 12A version of GEP-20A-F4, the new GEP-20A-F4 can achieve 20A continuous current and burst current can reach 30A. Supports up to 4S batteries. It is recommended to use 12XX-15xx motors with 3 “- 4” propeller. This GEP-20A-F4 has powerful flight performance, comes with OSD tuning, extremely light weight, allowing you to build a toothpick FPV Micro Quad’s with perfection performance.

Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.

GEP-20A-F4 Flight contorller:

Specifications:

Model Name:GEP-12A-F4

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

FC Firmware target: GEPRCF411

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

Current Monitoring : Support

Betaflight OSD : Support

External Buzzer : Support

LED : Support

USB Port: MicroUSB

BEC Output: 5V@1A

Integrated LC Filter

ESC MCU: BB21F16G

Continuous current: 20A

Peak current: 30A

Input:2-4s lipo

Supports Dshot600 ,Oneshot,Multishot

Current meter: 210

Target: G_H_30

Size: 32x32mm board,26.5mm mounting holes (M2)

Installing Hole: 26.5×26.5mm, M2

VTX Specifications:

Model Name:GEP-VTX200-Whoop

Item name: 25~200mw 48CH VTX FPV Transmitter

Output power: Pit/25/100/200mw switchable

Channels: 48CH

Input voltage: 4.5V – 5.3V

Current consumption: 300mA(type)

Antenna: RG178 antenna U.FL interface

Frequency: 5.8GHz 5 bands 48 channels With Raceband

Video Format:PAL/NTSC

Control protocol：IRC Tramp

Weight: 2g without antenna

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

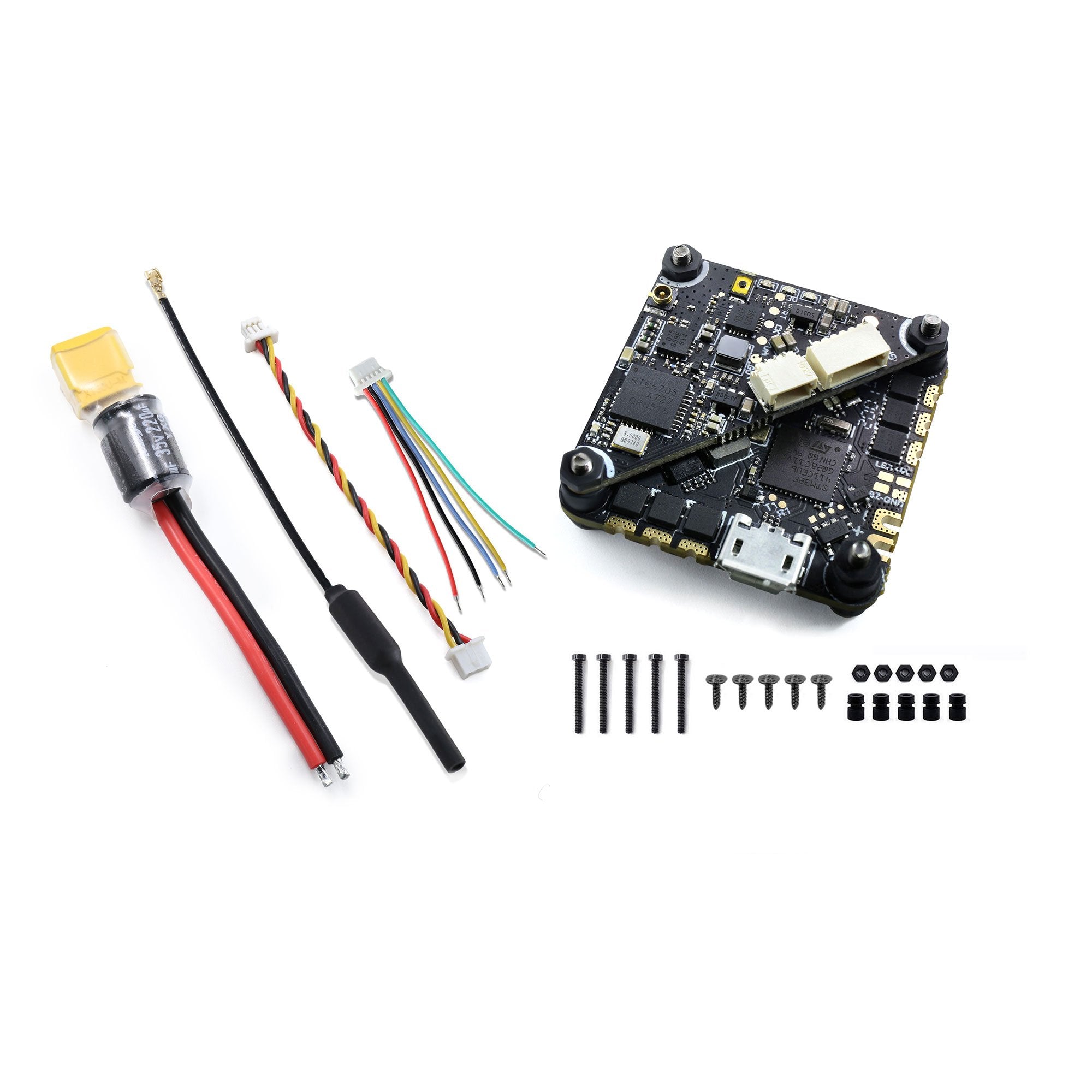

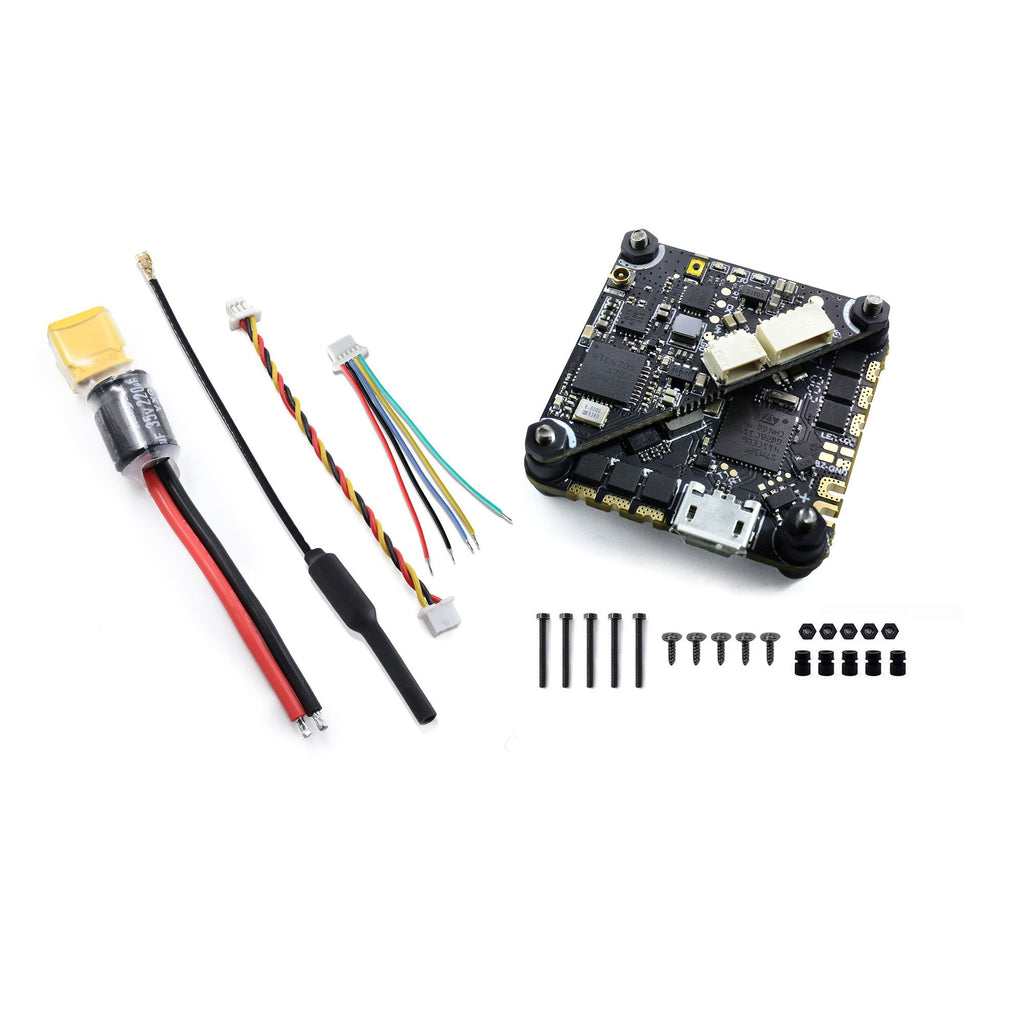

Include：

– 1 x GEP-20A-F4

– 1 x GEP-VTX200-Whoop

– 1 x Power cable

– 8 x screw

– 4 x Soft silicone
