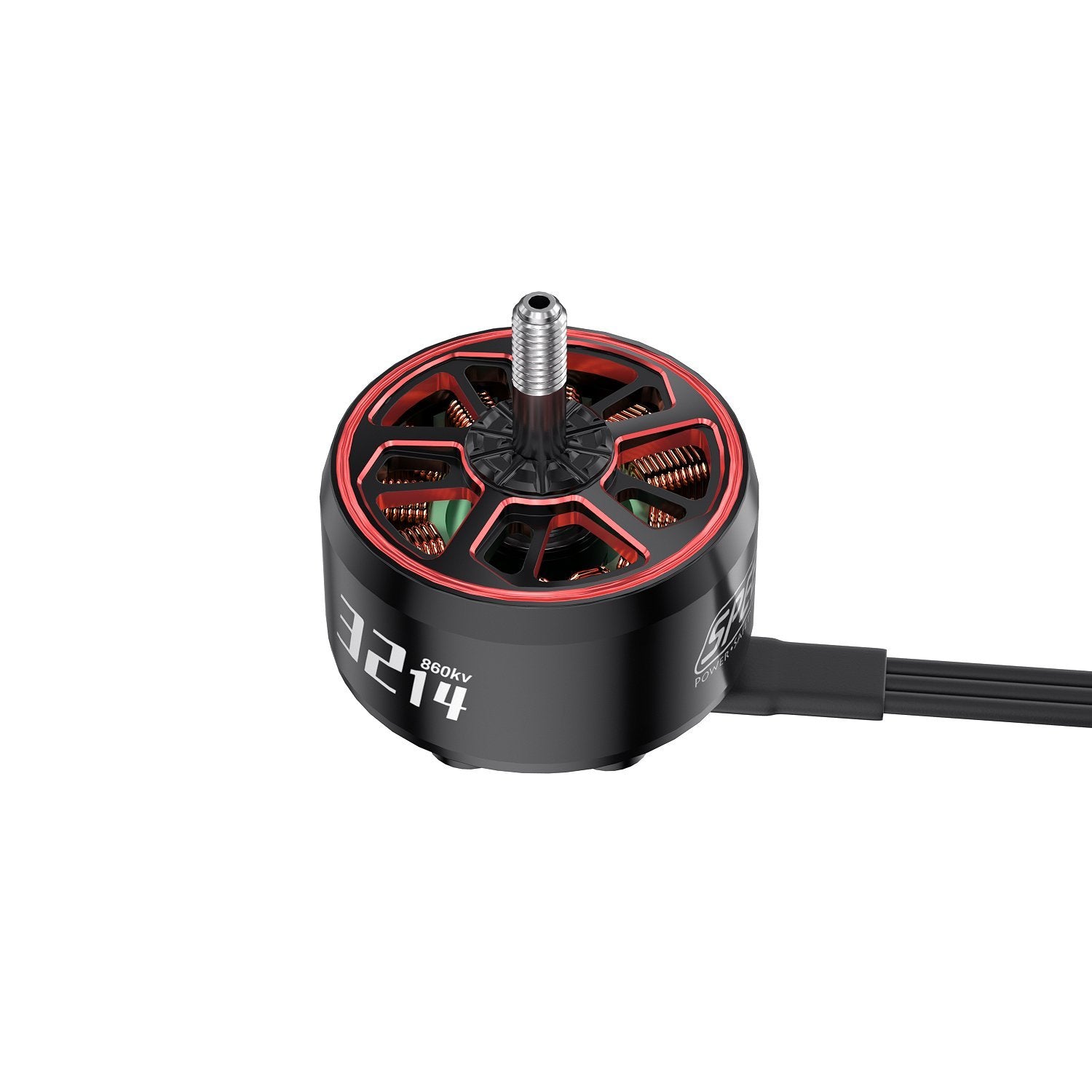

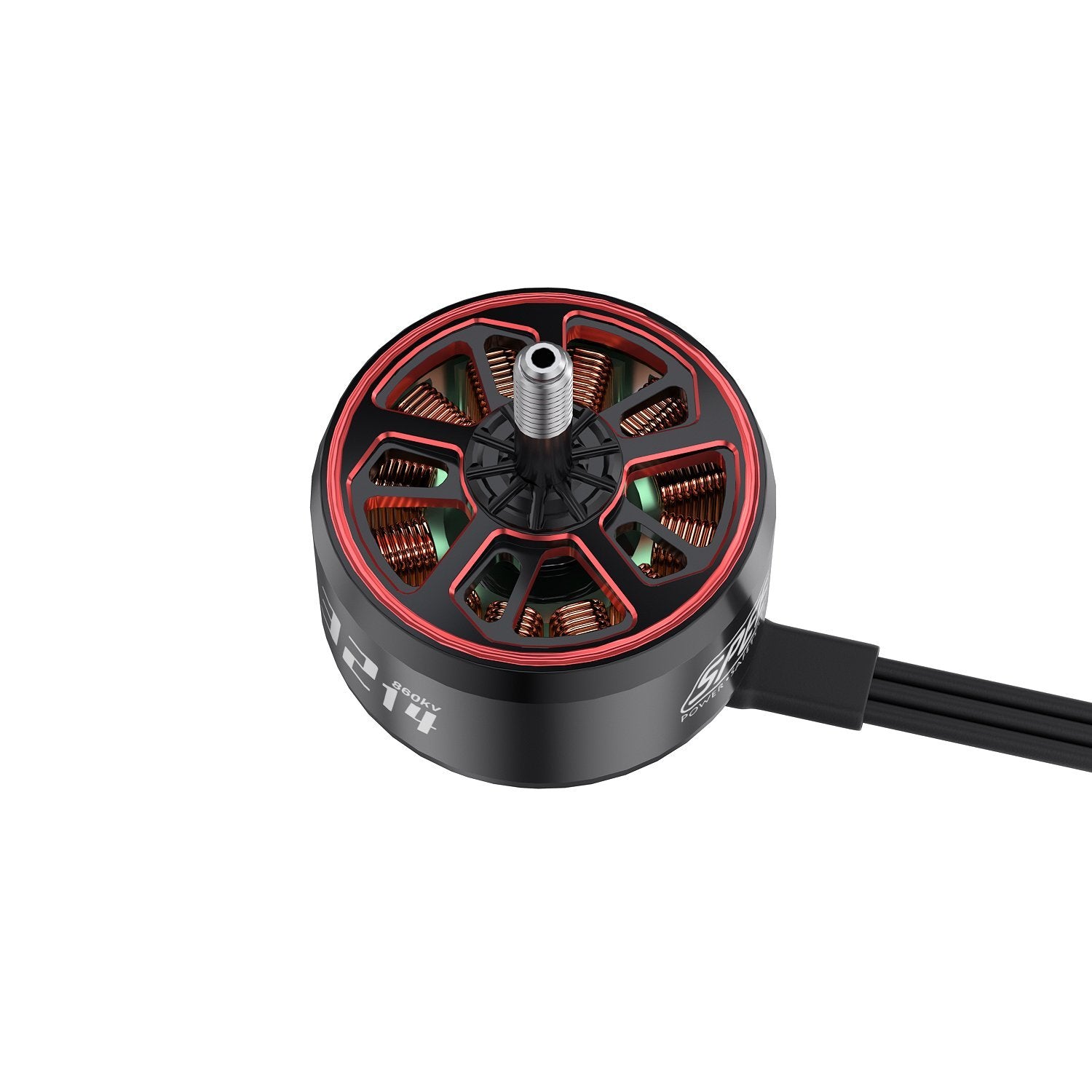

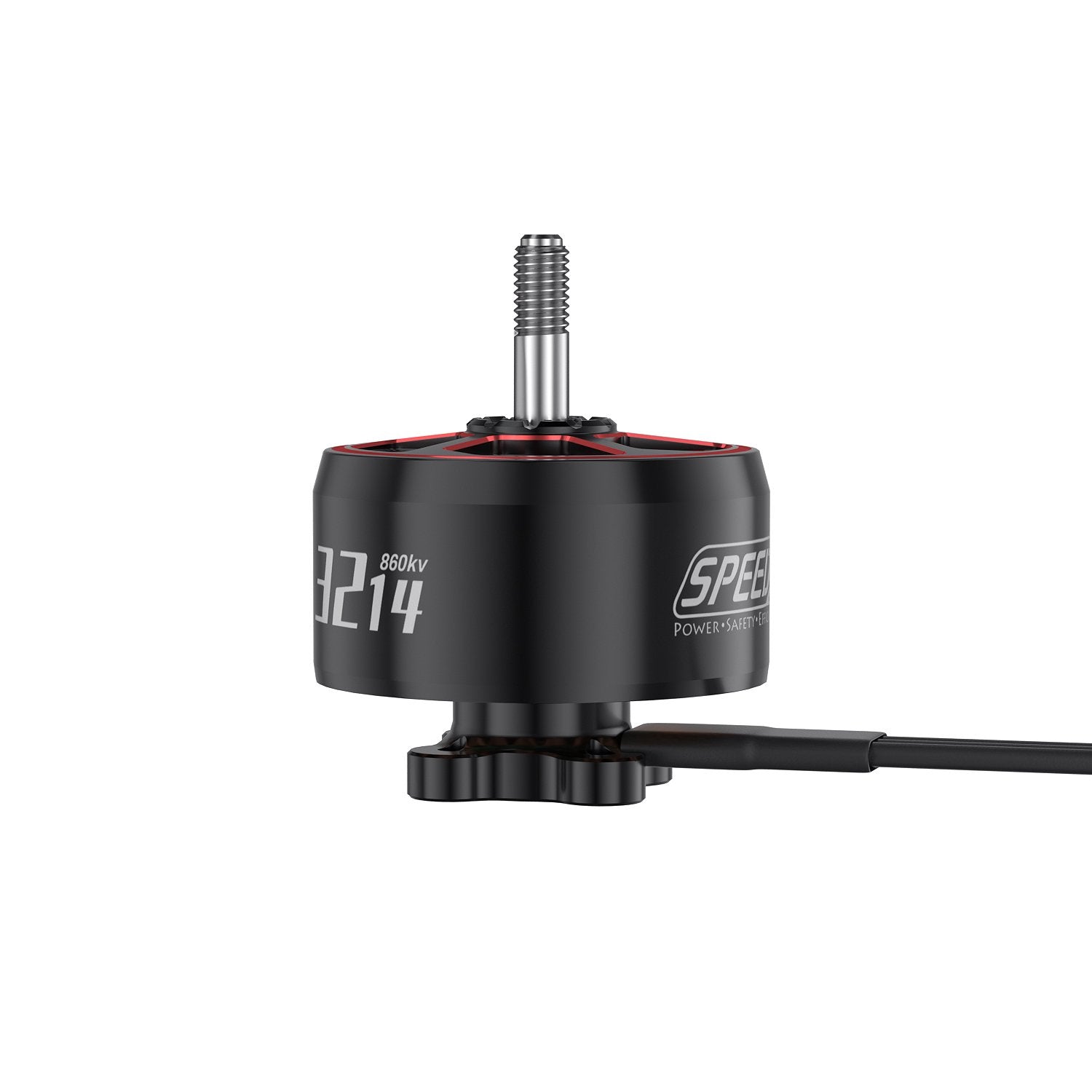

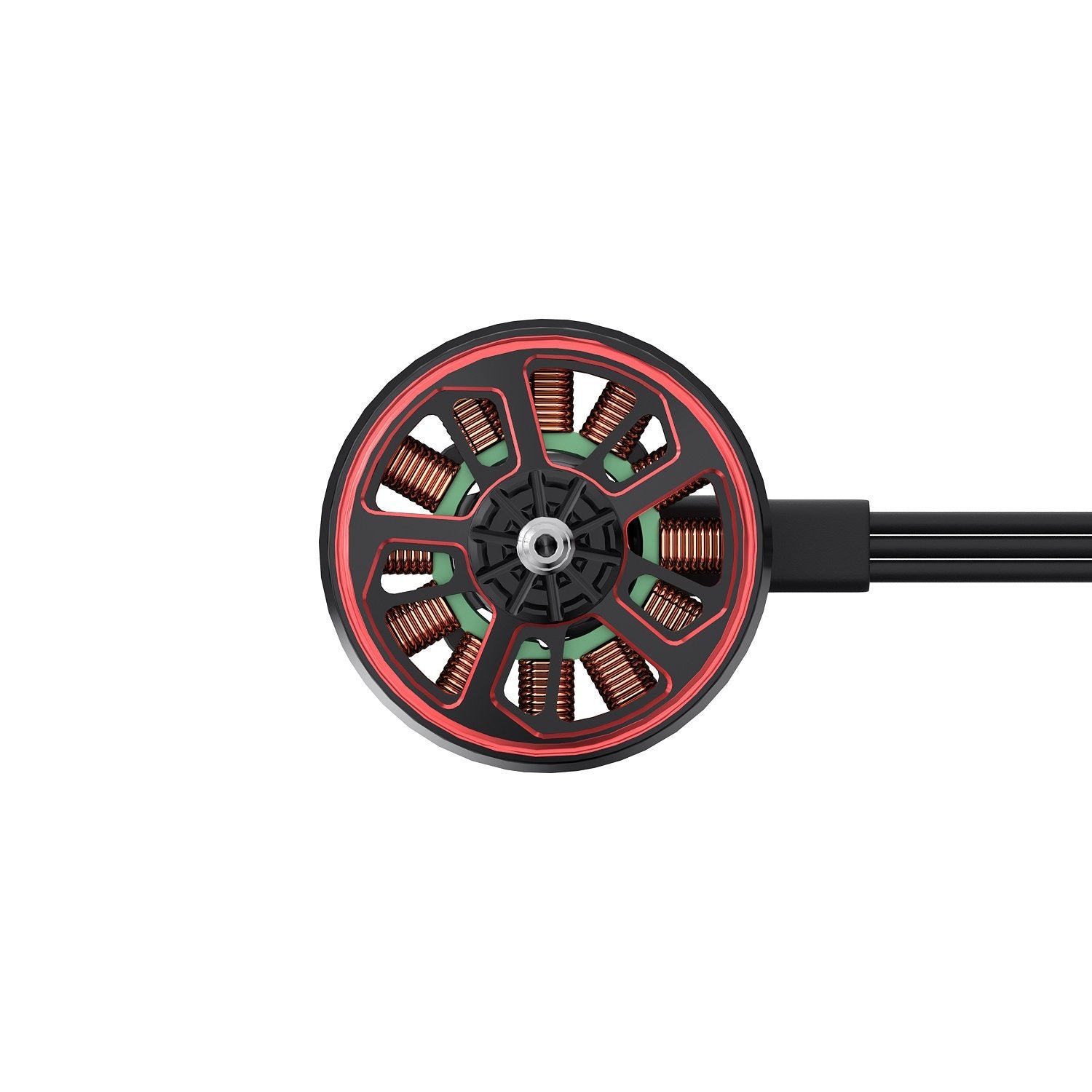

GEPRC SPEEDX2 3214 860KV Motor｜無刷馬達

GEPRC SPEEDX2 3214 860KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The SPEEDX2 3214 motor is specially designed for 9-10 inch long range FPV.Large size provides powerful power for your flight.The big torque of 860KV makes the payload more reasonable. The overall combination of red and dark tones highlights the individual appearance.Use high-end bearing shaft to ensure the smooth operation of the motor.

Feature

1. Integrated outer rotor, high-precision CNC aluminum alloy

2. High temperature resistant enameled wire, more stable under high temperature conditions

3.Personalized hollow appearance, reduced weight and higher power

4.Use N52H magnetic steel, with high magnetic energy product and stronger magnetic field

Specifications

Model: SPEEDX2 3214 Motor

KV: 860KV

Configuration: 12N14P

Magnet: N52H

Rotor material: 7075-T6 aviation aluminum alloy

Stator diameter: 32mm

Stator height: 14mm

Output shaft diameter: Φ5mm

Dimensions: Φ42mm * 49.8mm

Outlet specification: 16AWG 500mm

Rated voltage: 25.2V 6S（LiPo）

Maximum power(W): 1867.11w

Maximum current(A): 77.8A

Mounting hole: 19x19mm（M3）

Color: red and black

Weight: 155.0g

Applicable models: Suitable for 9-10 inch models

Includes

1 x SPEEDX2 3214 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut
