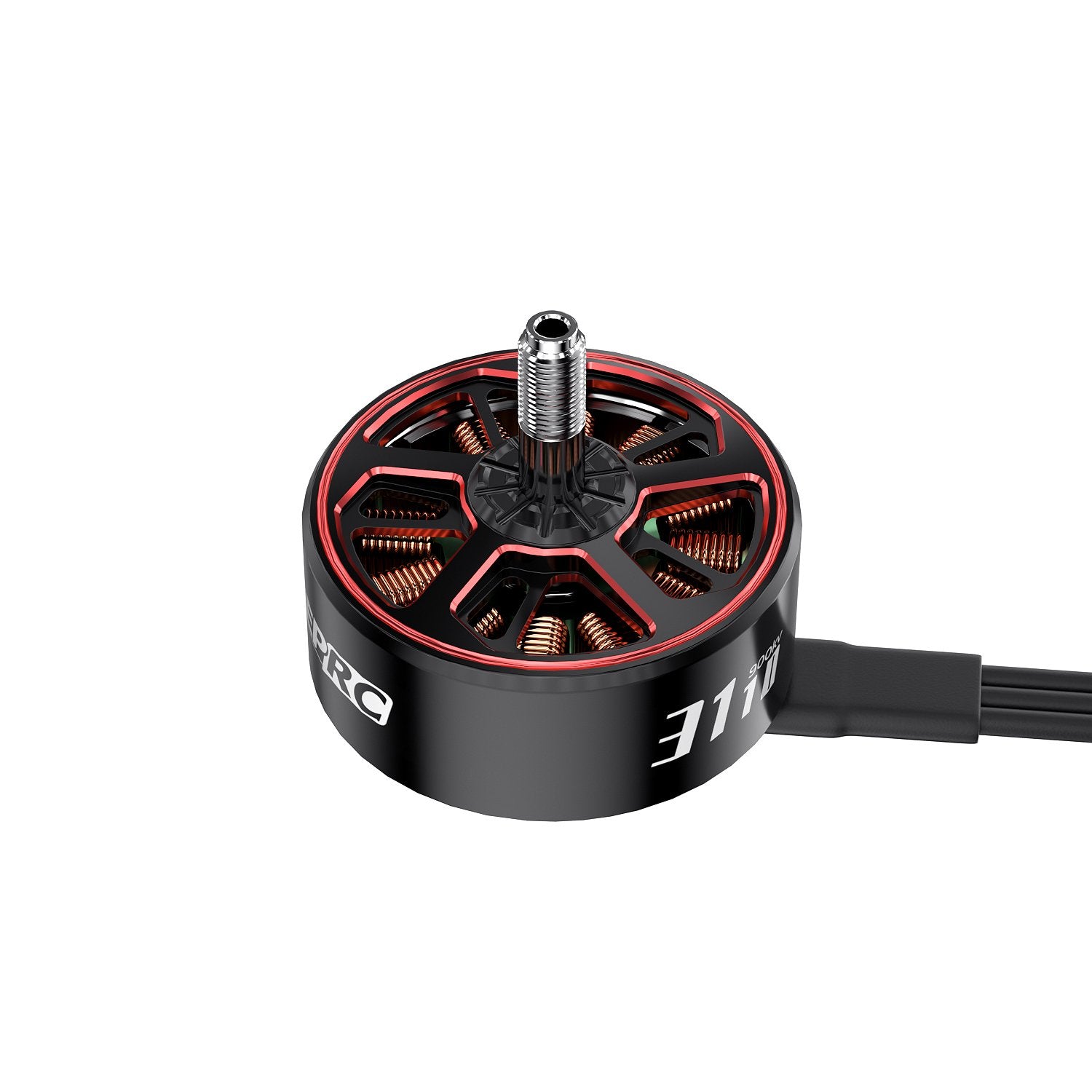

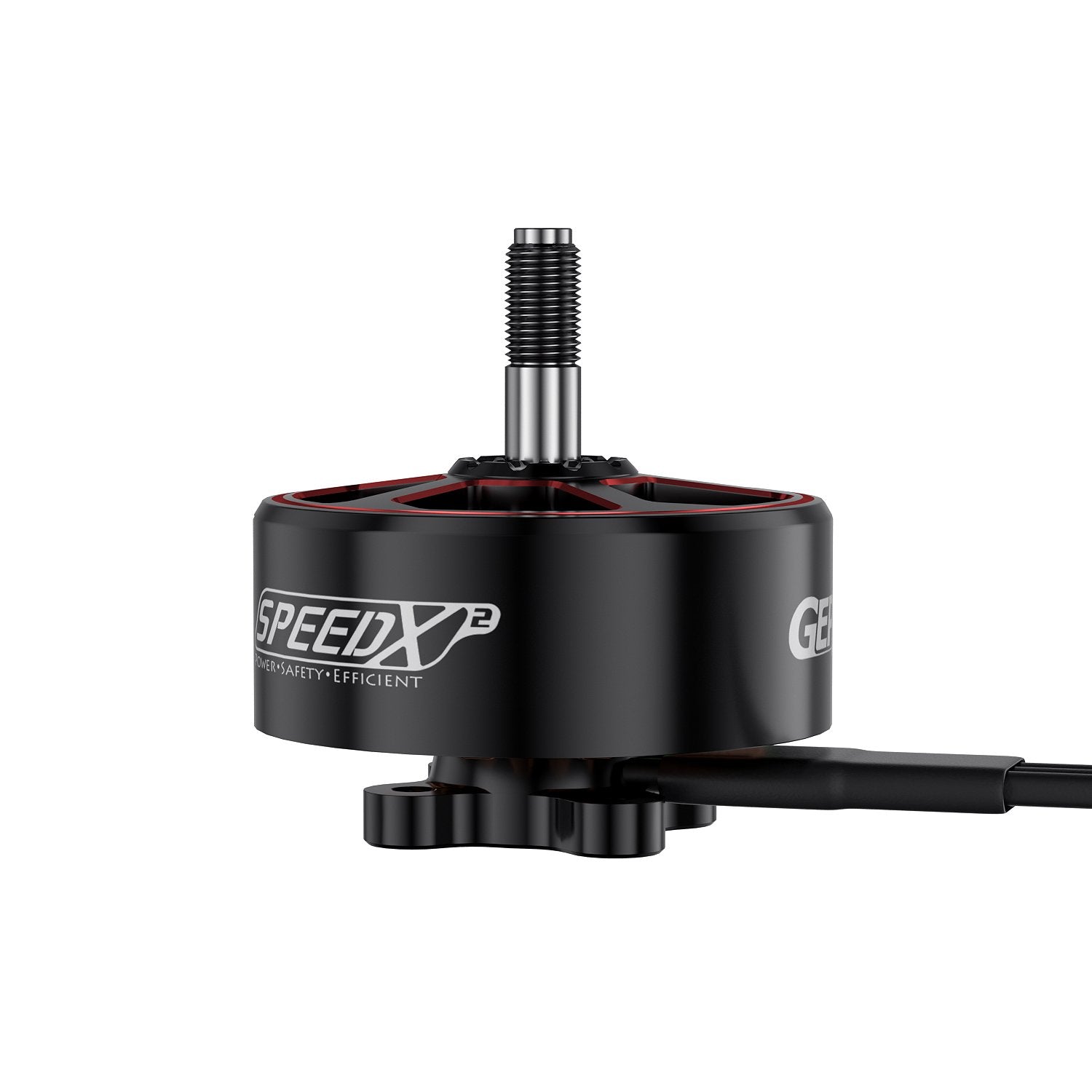

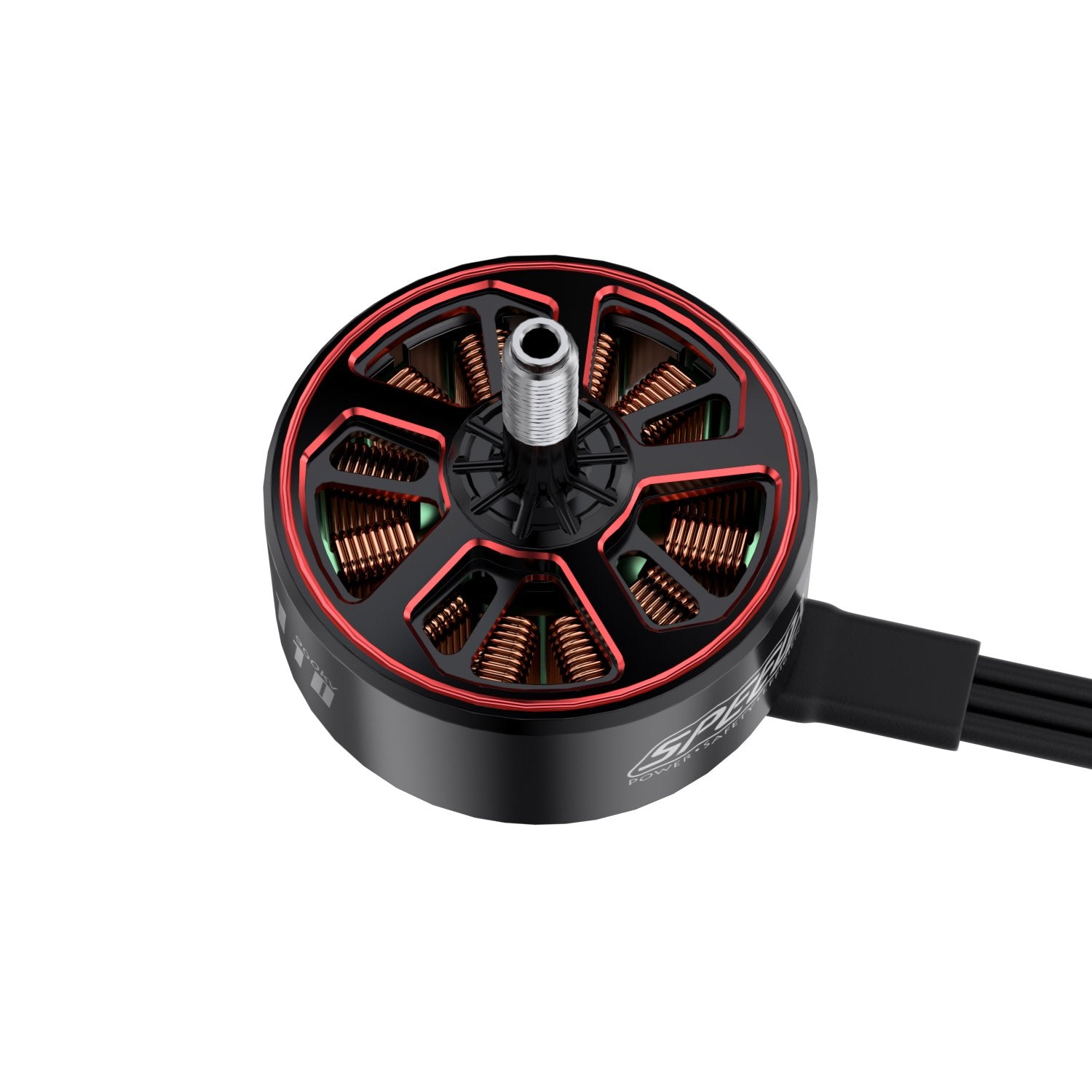

GEPRC SPEEDX2 3110 900KV/1250KV Motor｜無刷馬達

$534.00

規格 kv: 900KV kv: 1250KV

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEPRC SPEEDX2 3110 900KV/1250KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The SPEEDX2 series motors have an innovative appearance and are designed with cutting-edge elements. This 3110 motor has two KV values of 900KV and 1250KV.

The performance of the SPEEDX2 3110 motor focuses on high efficiency and power saving. Its stator uses imported Kawasaki silicon steel sheet iron core, and the magnetic steel uses high-quality N52H. After rigorous testing, it saves 10% of power compared with conventional motors of the same level.

Feature

New appearance of the SPEEDX2 series motor.

The overall black system is matched with red secondary oxidation borders, which is full of sci-fi feeling.

In terms of energy consumption of the magnetic circuit of the motor, the design is highly efficient, which saves 10% of the power compared with conventional motors of the same level.

The surface technology of the motor is treated with fine CD texture, which can effectively prevent scratches from affecting the appearance.

Using 7075 aviation aluminum alloy, high-precision CNC integral molding, lighter in weight.

Specifications

SPEEDX2 3110 900KV Motor

KV: 900KV

Configuration: 12N14P

Magnet: N52H ARC

Rotor material: 7075-T6 aviation aluminum alloy

Stator diameter: 31mm

Stator height: 10mm

Output shaft diameter: Φ5mm

Dimensions: Φ39.58mm *37.85mm
