GEPRC SPEEDX2 2809 V1.1 Motor｜無刷馬達

GEPRC SPEEDX2 2809 V1.1 Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

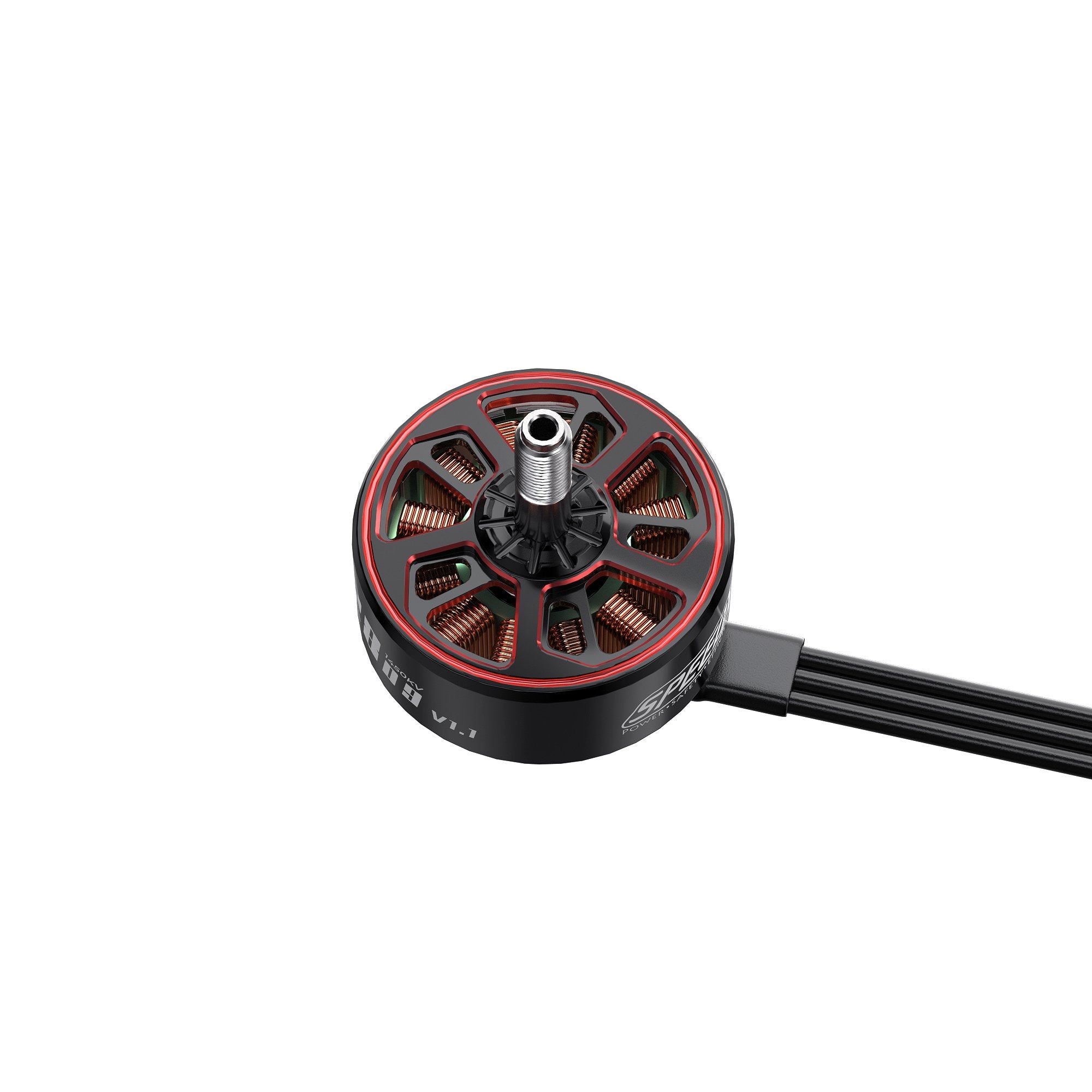

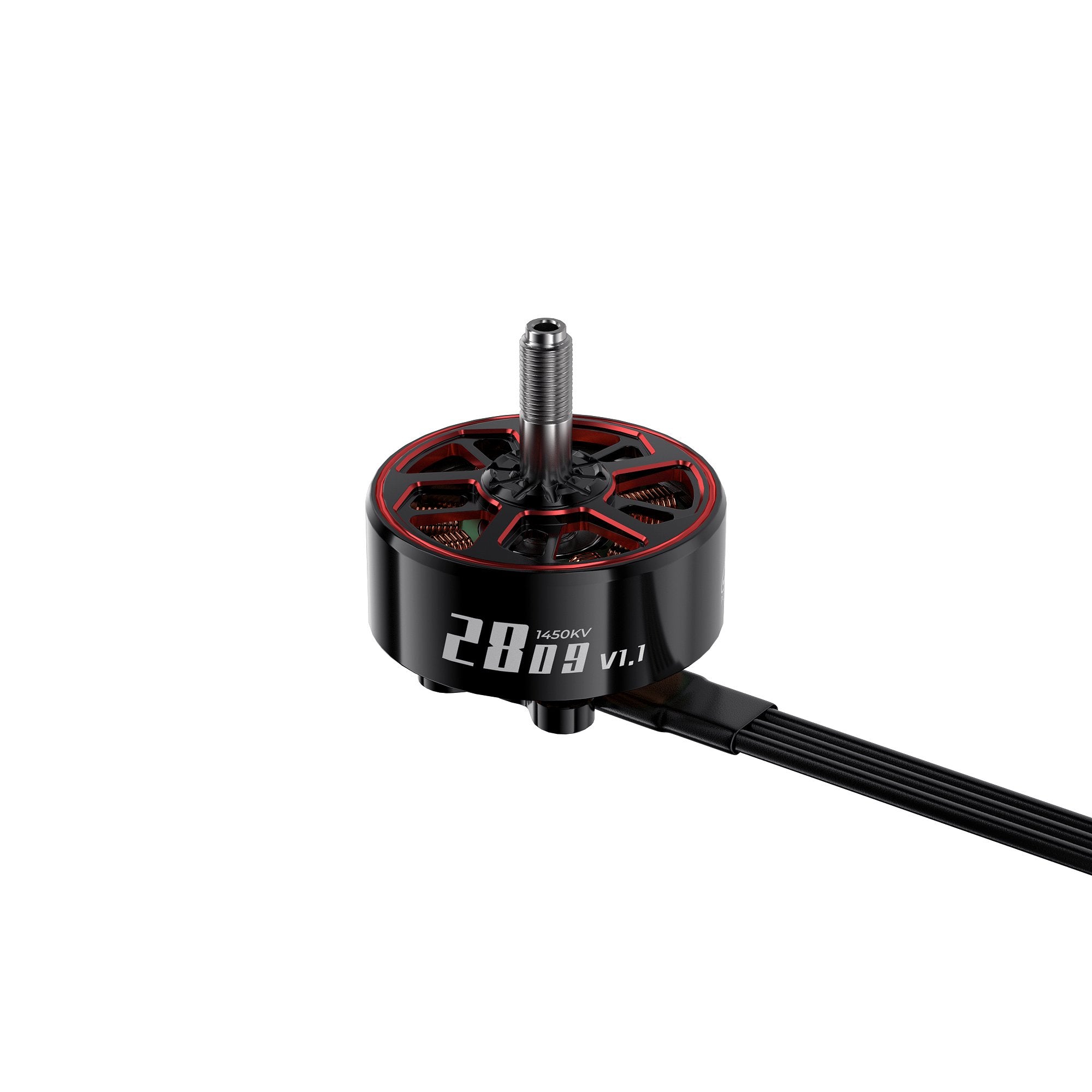

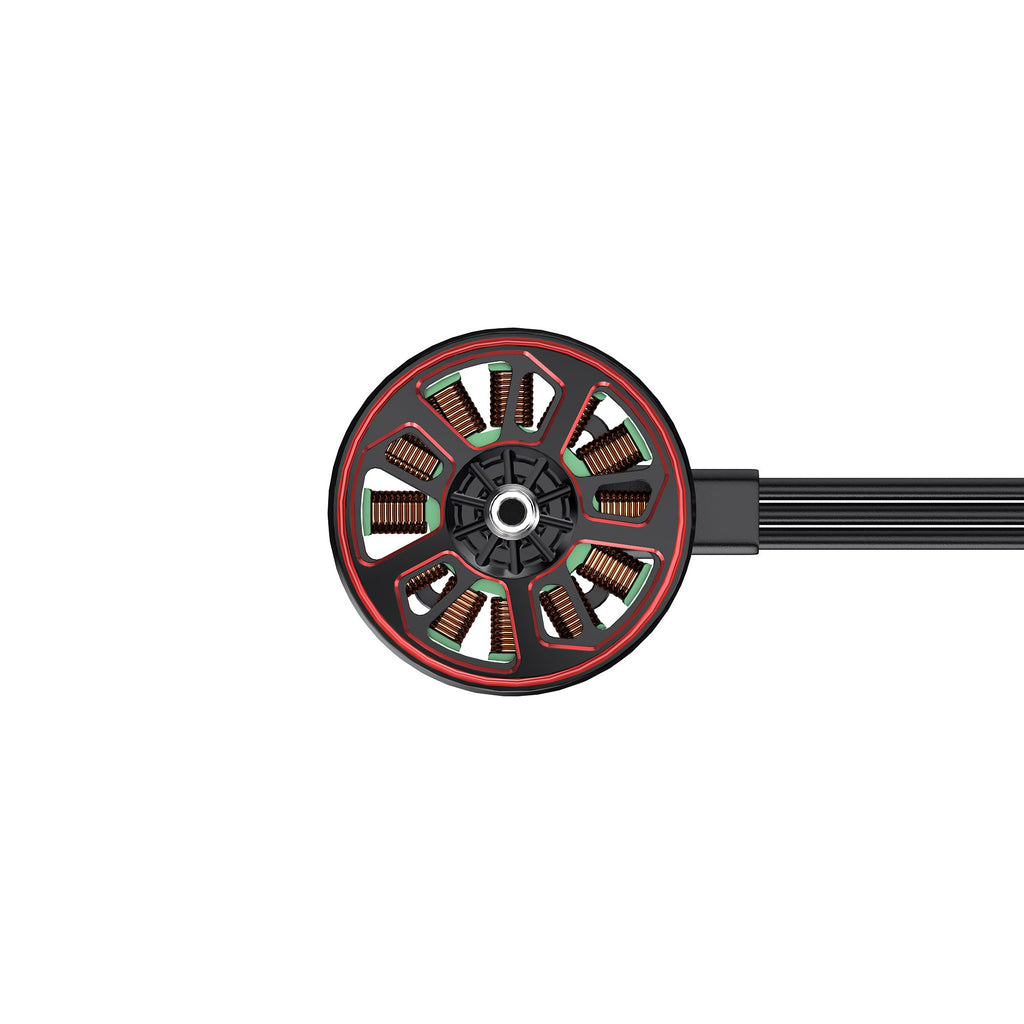

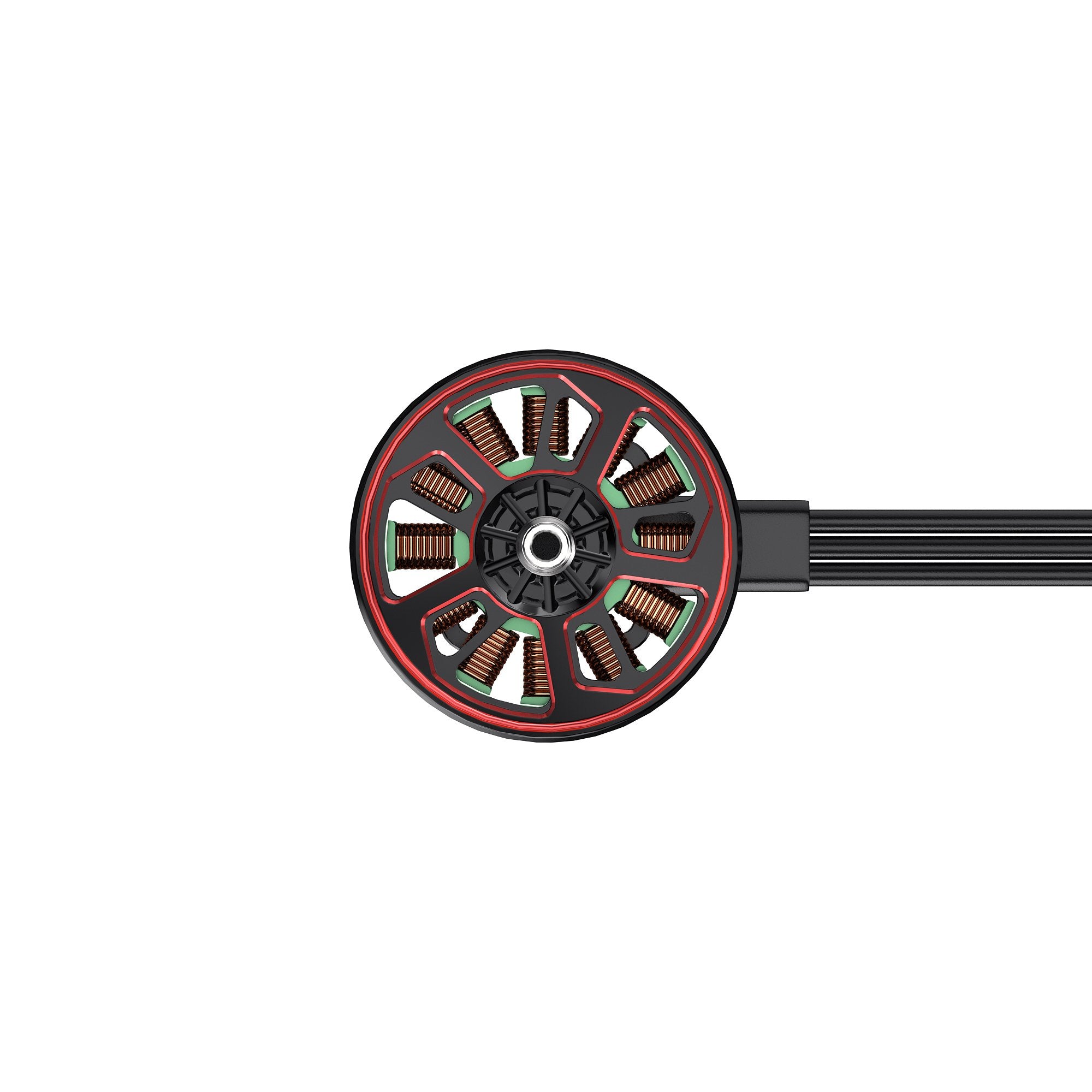

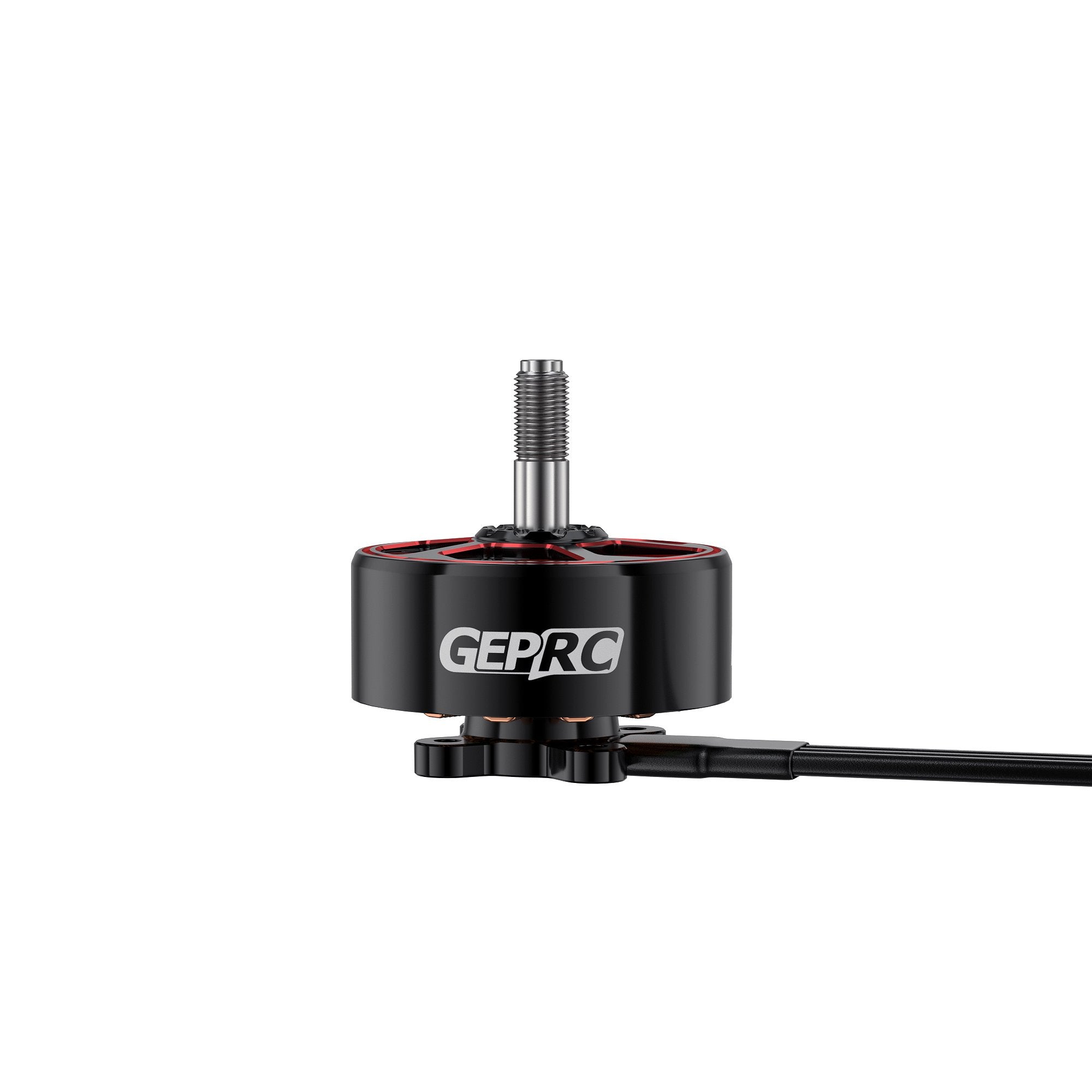

The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.

Feature

CNC-machined from 7075 aerospace aluminum.

Clean black finish with red trim.

Reinforced rotor edges for better impact resistance.

N52H magnets reduce the risk of heat-related demagnetization.

Specifications

Model: GEPRC SPEEDX2 2809 1450KV Motor

KV: 1450KV

Magnets: N52H

Rotor Material: 7075-T6 aerospace-grade aluminum

Stator Diameter: 28mm

Stator Height: 9mm

Shaft Diameter: Φ5mm

Dimensions: Φ34.2mm × 36.7mm

Wire: 18AWG, 250mm

Input Voltage: 25.2V 6S (Lipo)

Max Power (W): ≤1455.2W

Max Current (A):60.88A

Mounting Pattern: 19×19mm (M3)

Color: reddish black

Weight: 60.1g (with wire)

Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds

Includes

1 x GEPRC SPEEDX2 2809 1280KV/1450KV motor

4 x M3*9 half-round head screws

1 x M5 anti-slip mut
