GEPRC SPEEDX2 2306E Motor｜無刷馬達

GEPRC SPEEDX2 2306E Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

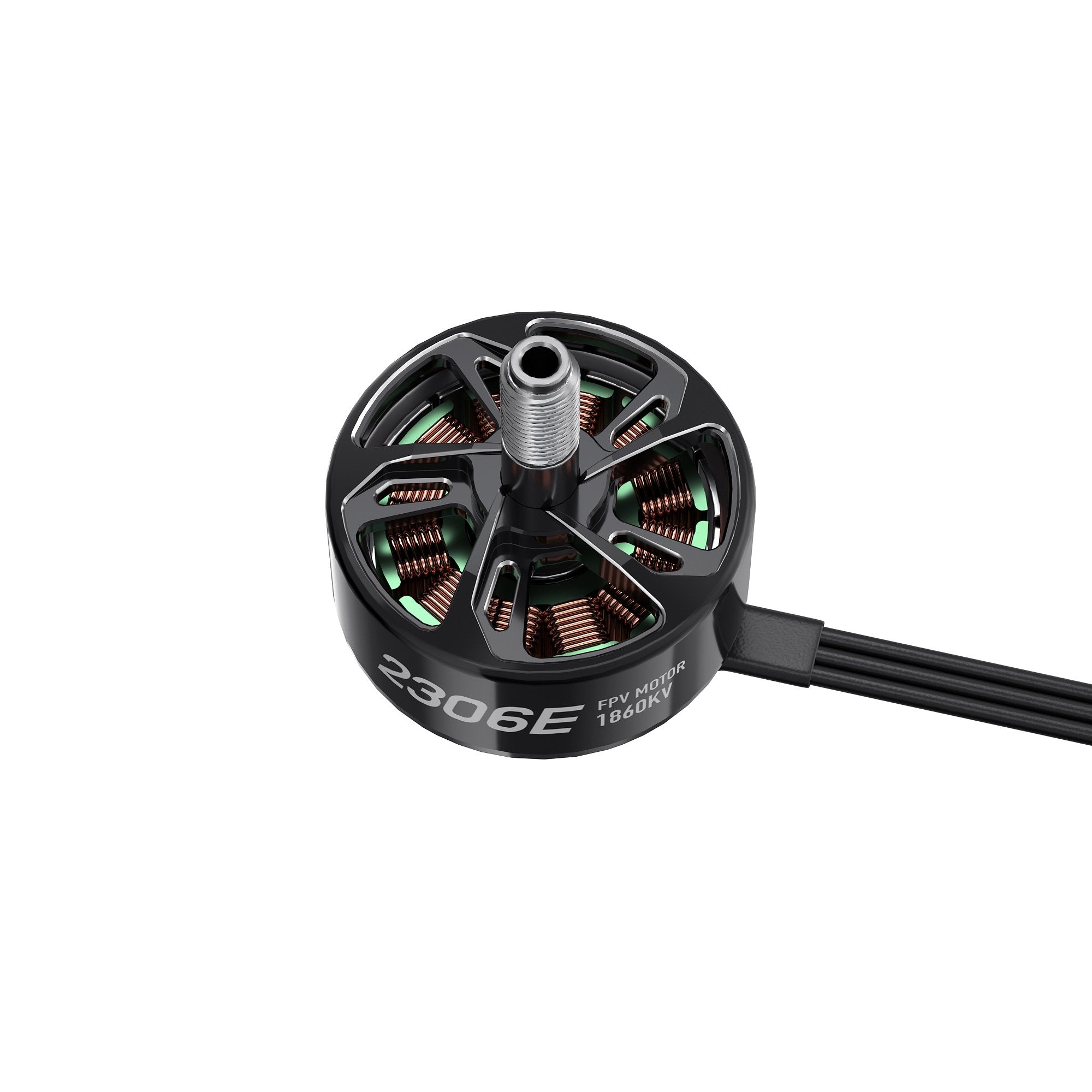

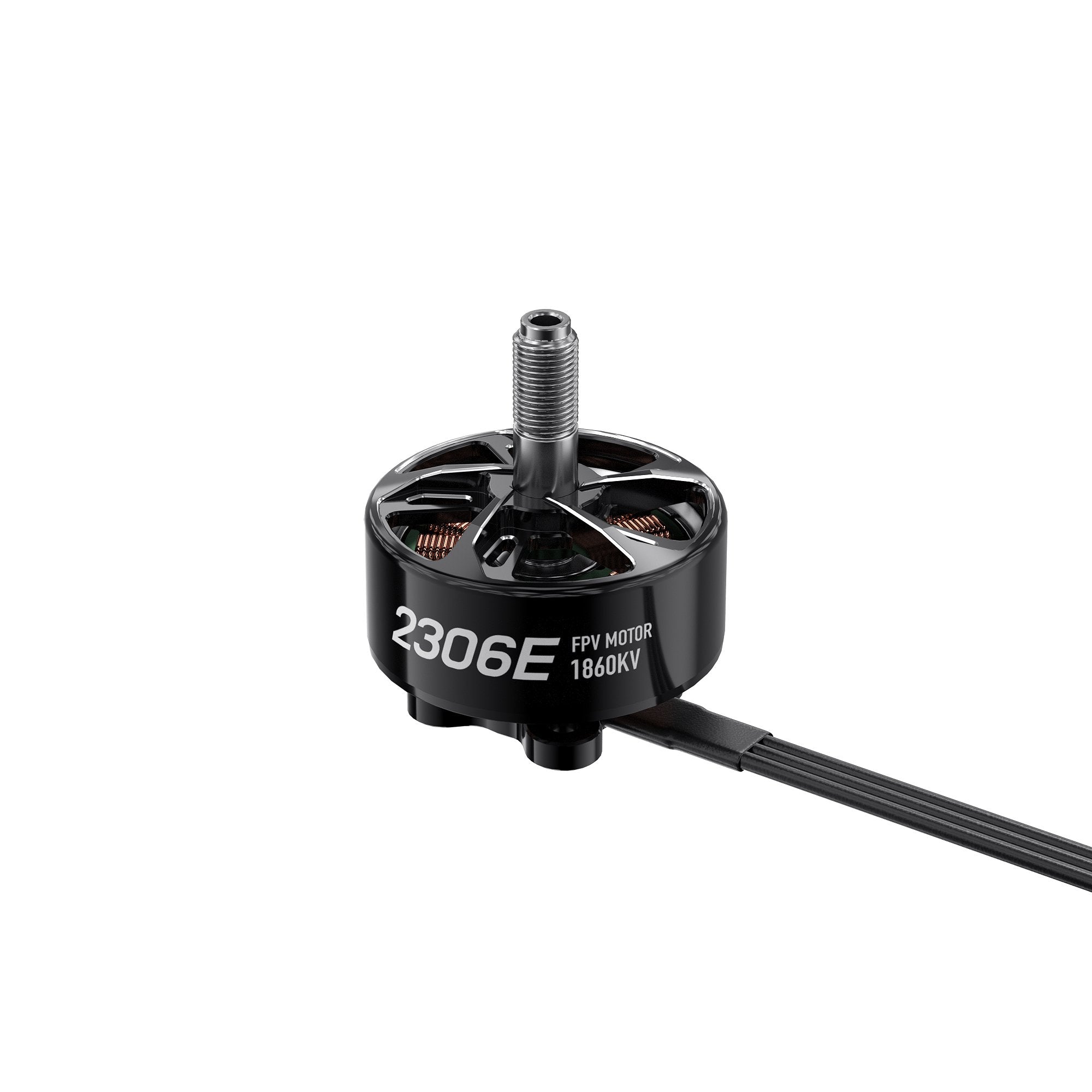

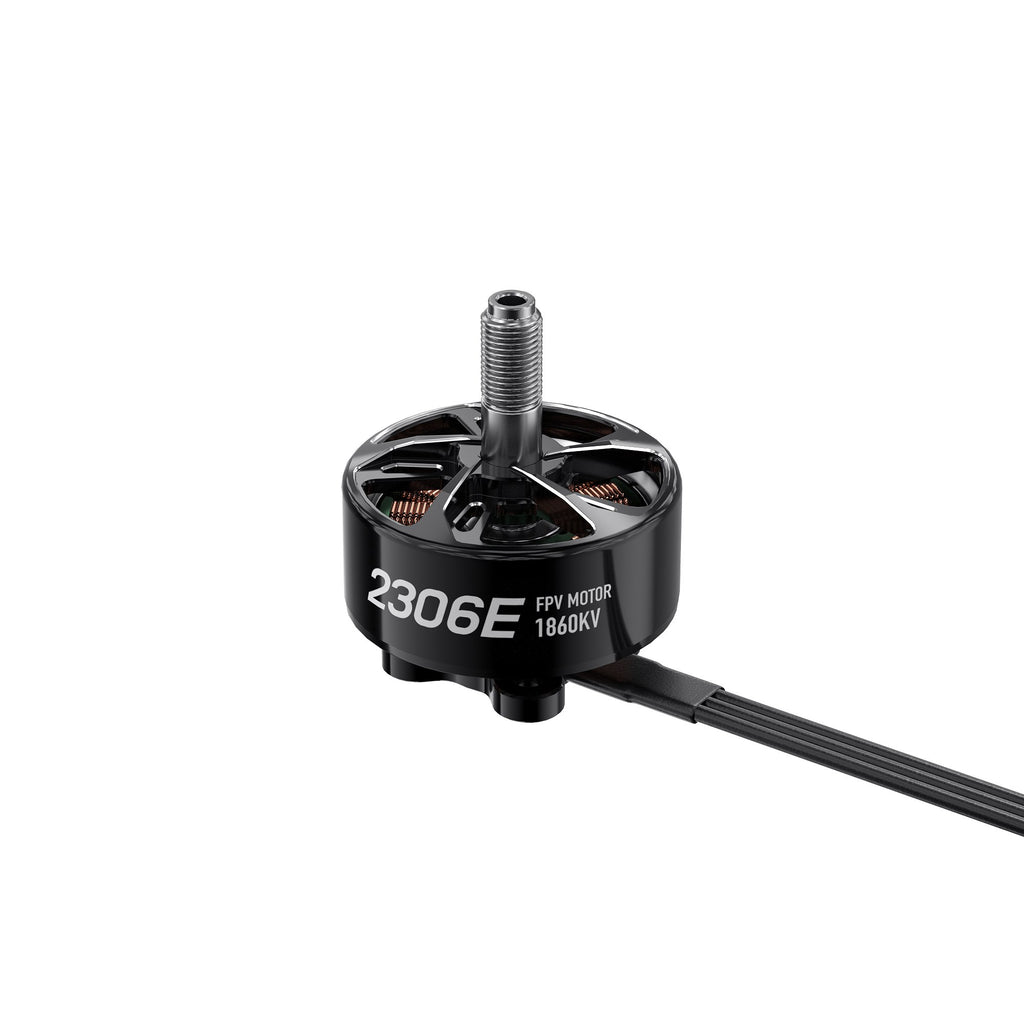

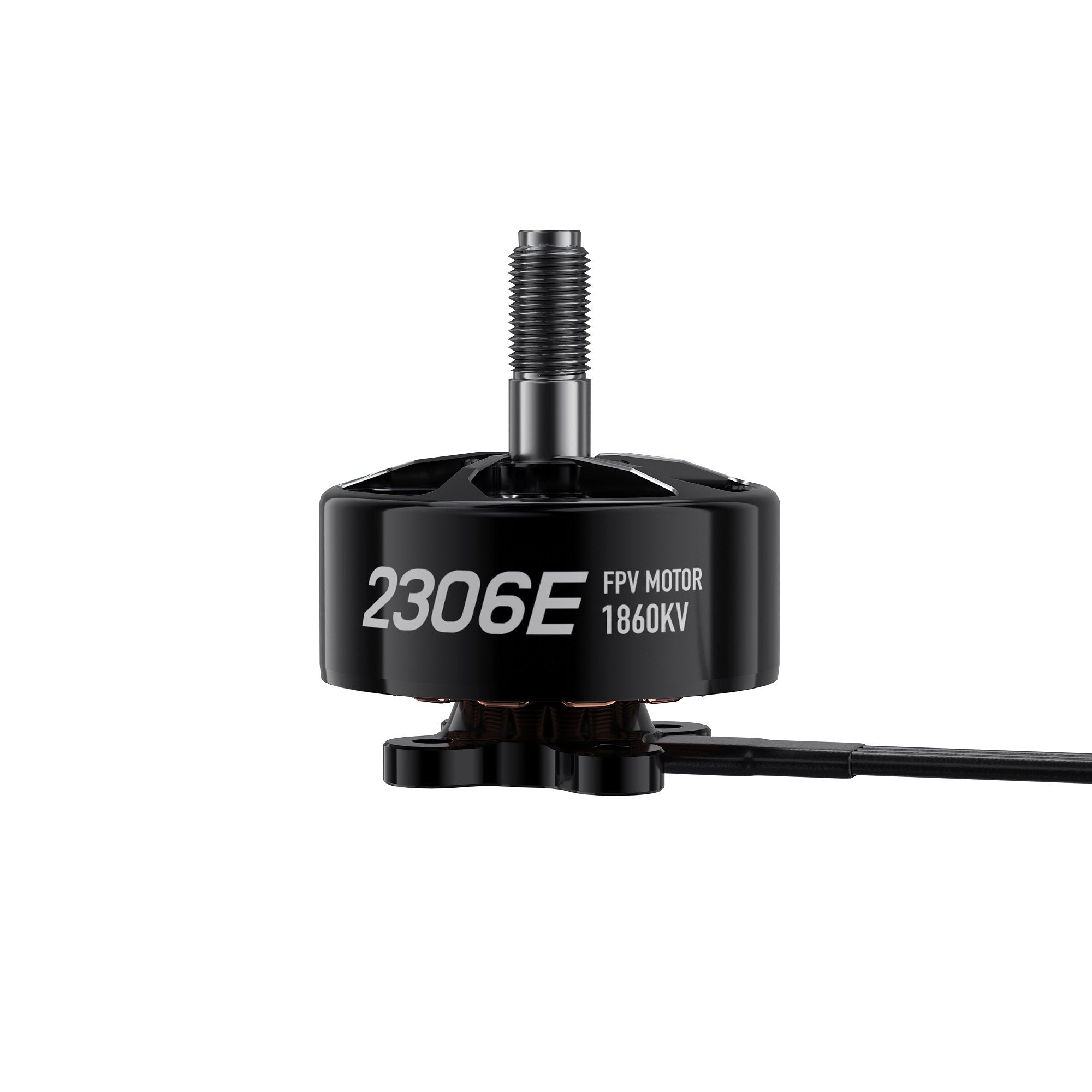

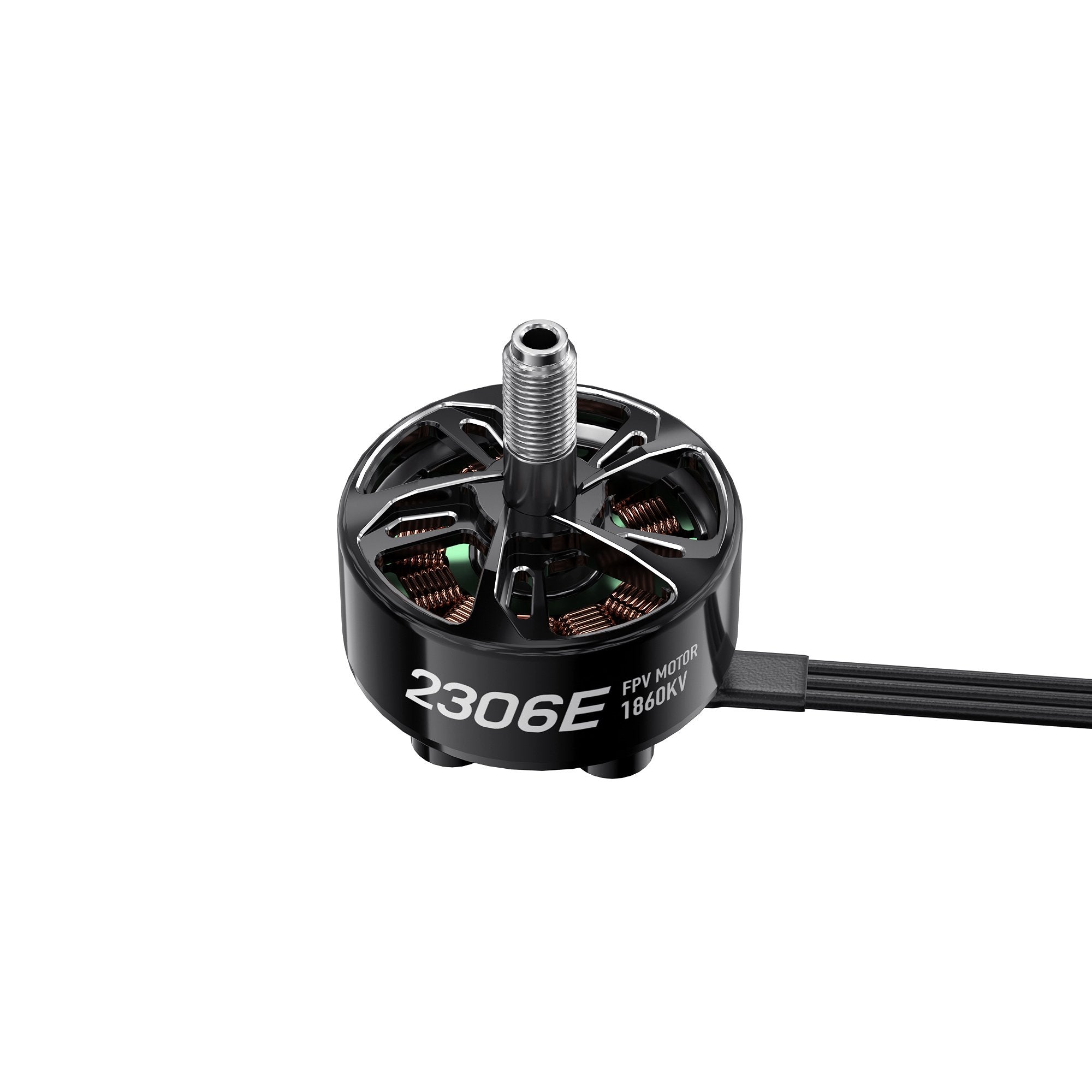

The SPEEDX2 2306E motor features a sleek all-black design with blade-like protrusions that securely lock the propellers. Its extensive cutout structure enhances heat dissipation efficiency. Crafted from aerospace-grade aluminum using precision CNC machining, it is both lightweight and durable.

Feature

Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.

The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.

Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

Model: SPEEDX2 2306E Motor

KV: 1860

Max Watt: 972.7W

Peak Current: 39.18A

Interphase Resistance: 83.17mΩ

Propeller: 4-5inch

Magnet: N52H

Bearing: NMB/NSK

Stator Configuration: 12N14P

Dimension: 29*18.6mm

Shaft Diameter: 5mm

Shaft Length: 13.5mm

Mounting Hole Size：16*16mm

Wire Specification: 20AWG/150mm

Compatible ESC: 40A/6S

Input Voltage: 6S

Winding: Single-strand copper winding

Color: Black

Weight：33.3g (including wire)

Compatible Models: Suitable for 4inch-5inch racing FPV quads
