GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

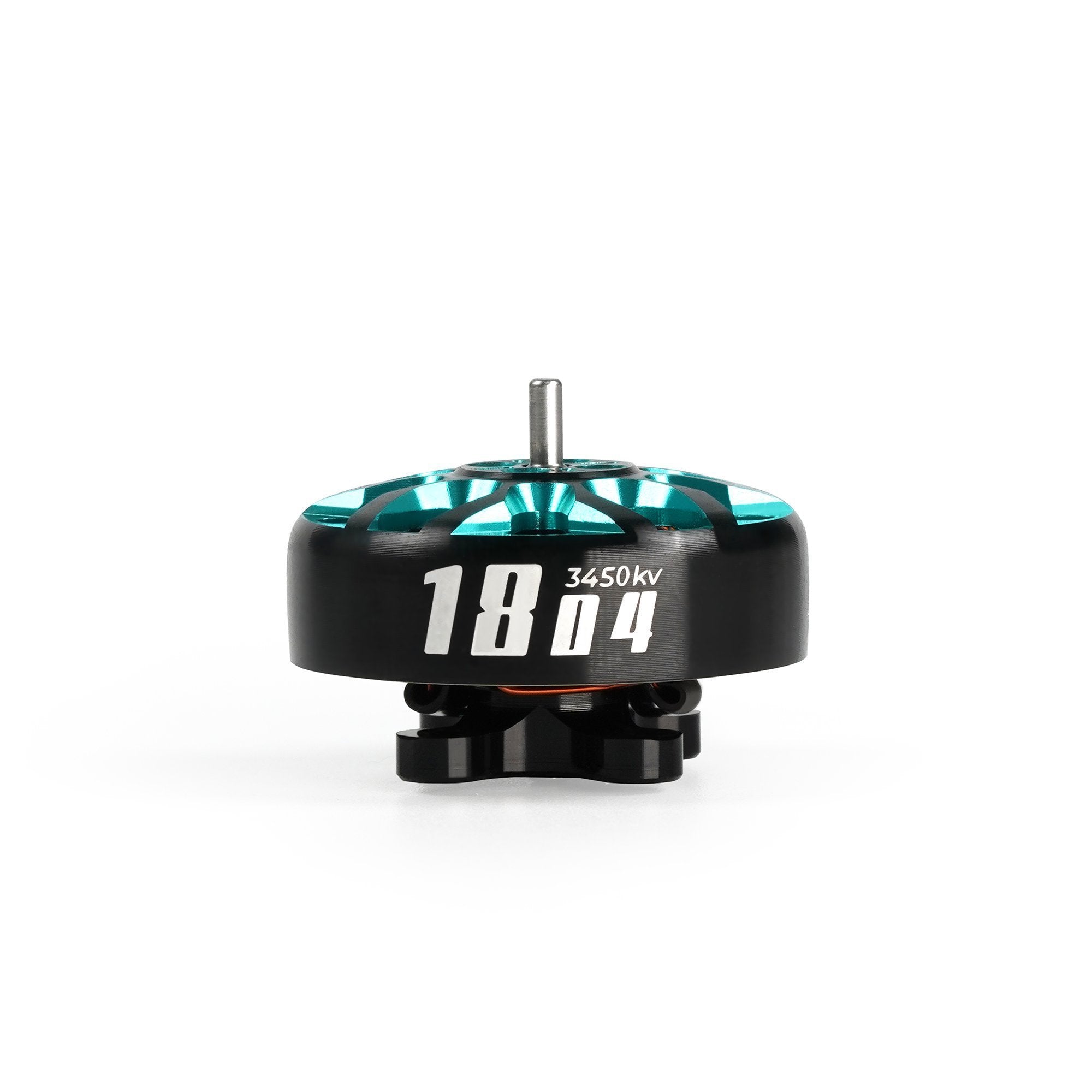

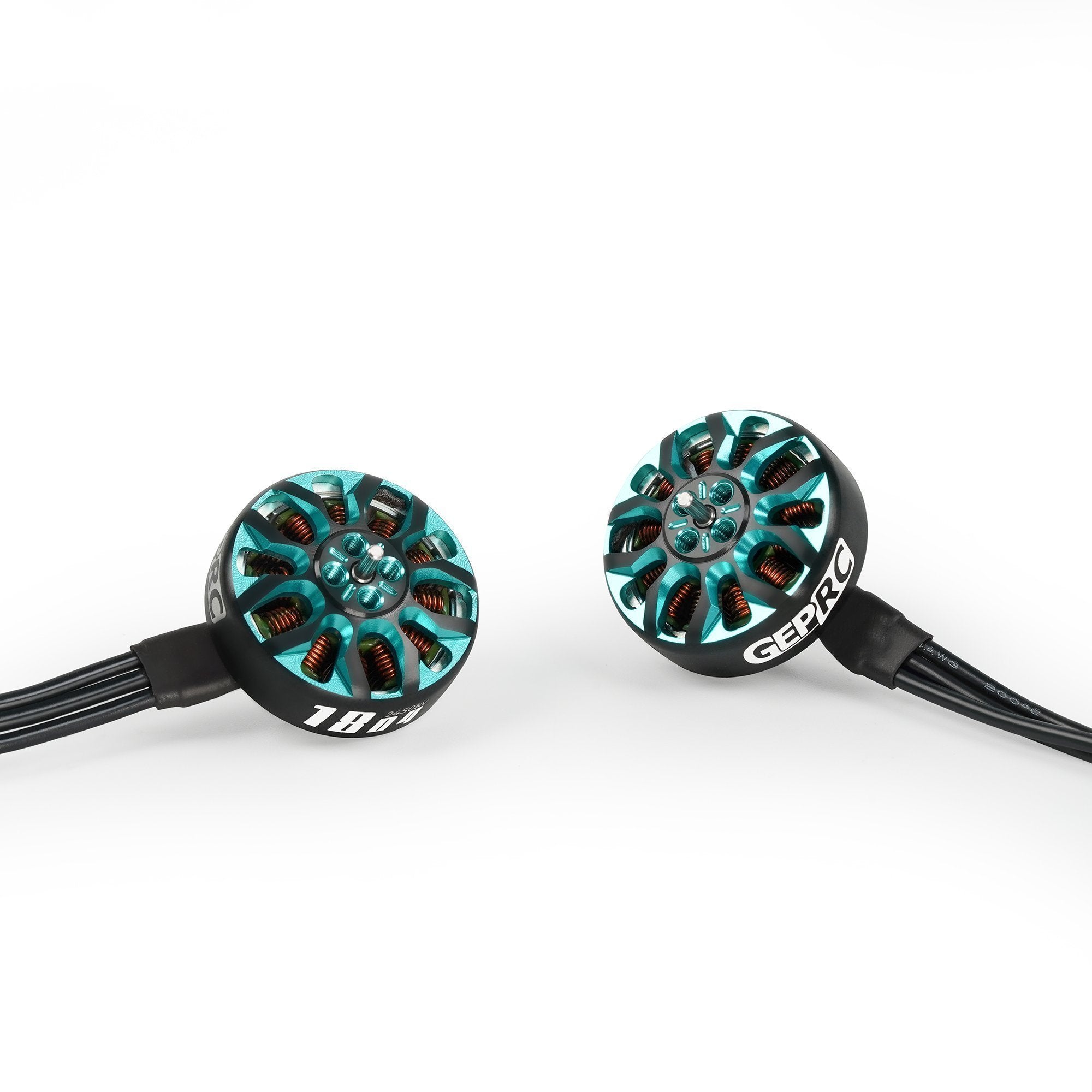

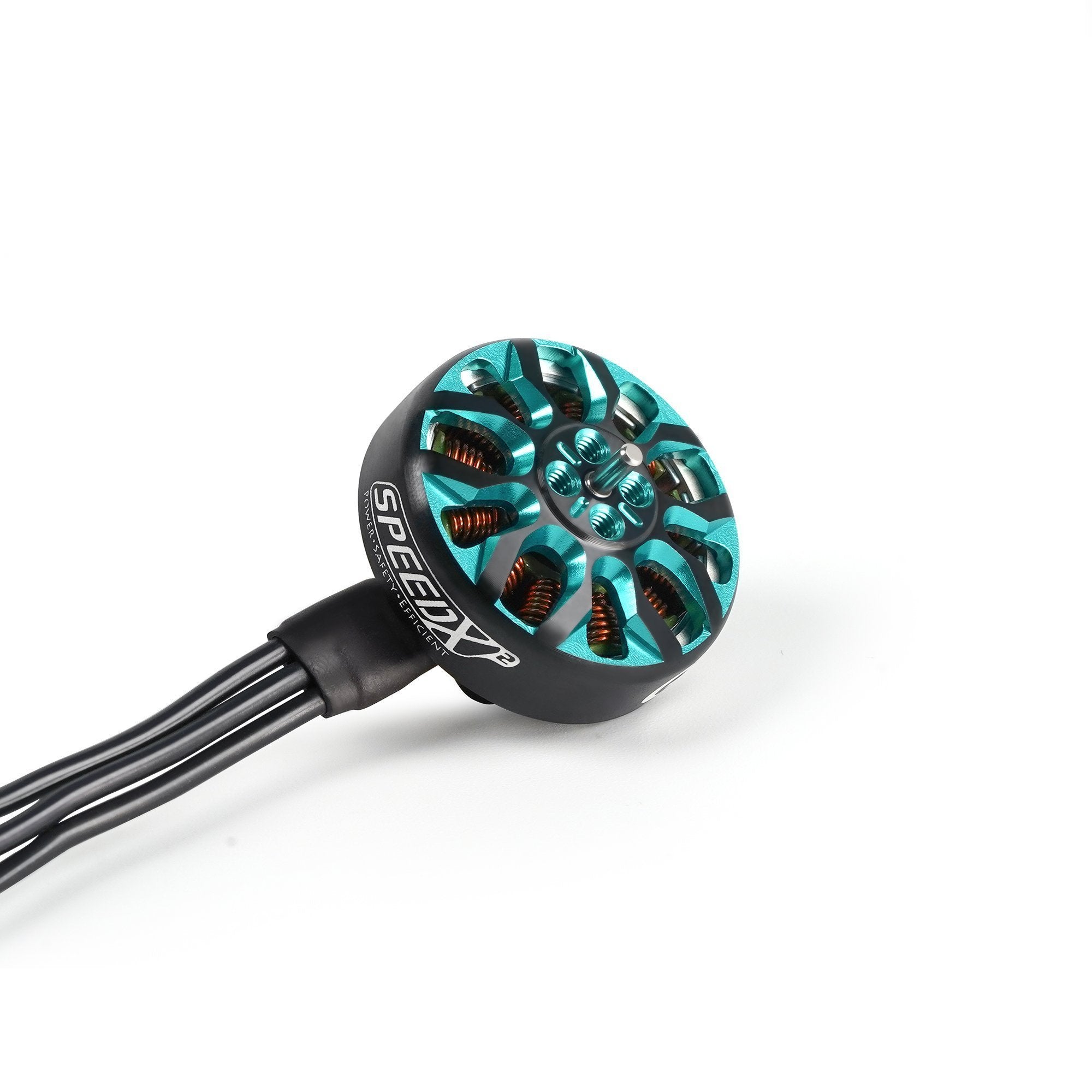

Today we are going to introduce the 2nd generation of SPEEDX2 1804 brushless motor. SPEEDX2 1804 motor is a highly innovative brushless motor with new structure and unique design.

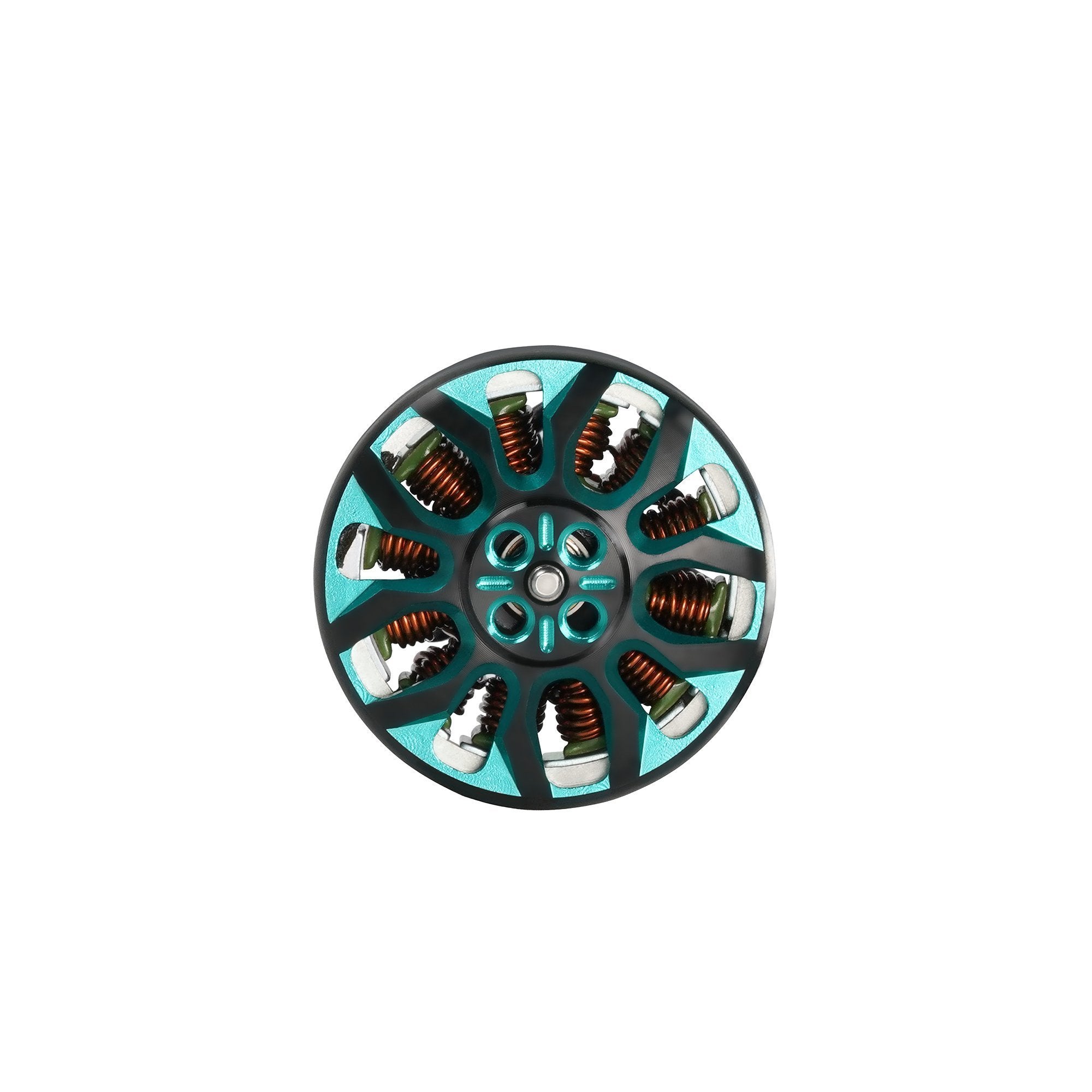

The overall lightweight structure greatly reduces the weight, only 13.2g (13CM wire). Circular arc appearance design, application to the pusher FPV drones, high compatibility. Avoid unbalanced propellers due to the contact between the large pitch propellers and the top of the rotor. A large area of hollowing out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.

Adopt high quality 7075-T aviation aluminum material, which brings better strength to the rotor. With highly efficient magnetic circuit design, SPEEDX2 1804 has great handling and stable explosive power, bringing pilots an ultra smooth flying experience. SPEEDX2 1804 motor is perfect for pilots to build their 3″ whoop FPV, 3-4″Toothpick & Long Range FPV.

GEPRC is committed to providing pilots with brushless motors that are much lighter in weight, faster in response, higher in efficiency and higher in power.

Feature

1. Lightweight design, only 13.g (13CM Wire)

2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.

3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.

4. High strength motor structure, outstanding durability.

5. Suitable for 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV.

Specification

Item: SPEEDX2 1804-2450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: Φ2mm(in)Φ1.5mm(out)

Size: Φ22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 4-6S

Max Continuous Power(W) (3S): 452.2W

Max Current (5S) : 18.8A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Black / Black + Cyan

Weight: 13.2 g （13CM Wire）

Suitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV

Item: SPEEDX2 1804-3450KV

Configuration: 12N14P

Magnet: N52H ARC

Stator Diameter: 18mm

Stator Height: 4mm

Shaft Diameter: Φ2mm(in)Φ1.5mm(out)

Size: Φ22.74mm*13.2mm

Lead Wires: 24#AWG 150mm

No. of Cells (LiPo) : 2-4S

Max Continuous Power(W) (3S): 404.8W

Max Current (5S) : 25.3A

Mounting Holes: 12mm x 12mm(M2 Screw)

Color: Black / Black + Cyan

Weight: 13.2 g （13CM Wire）

Suitable Quadcopter: 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV

Includes

1 x SPEEDX2 1804 Motor

5 x M2*6mm Screw

5 x M2*8mm Screw
