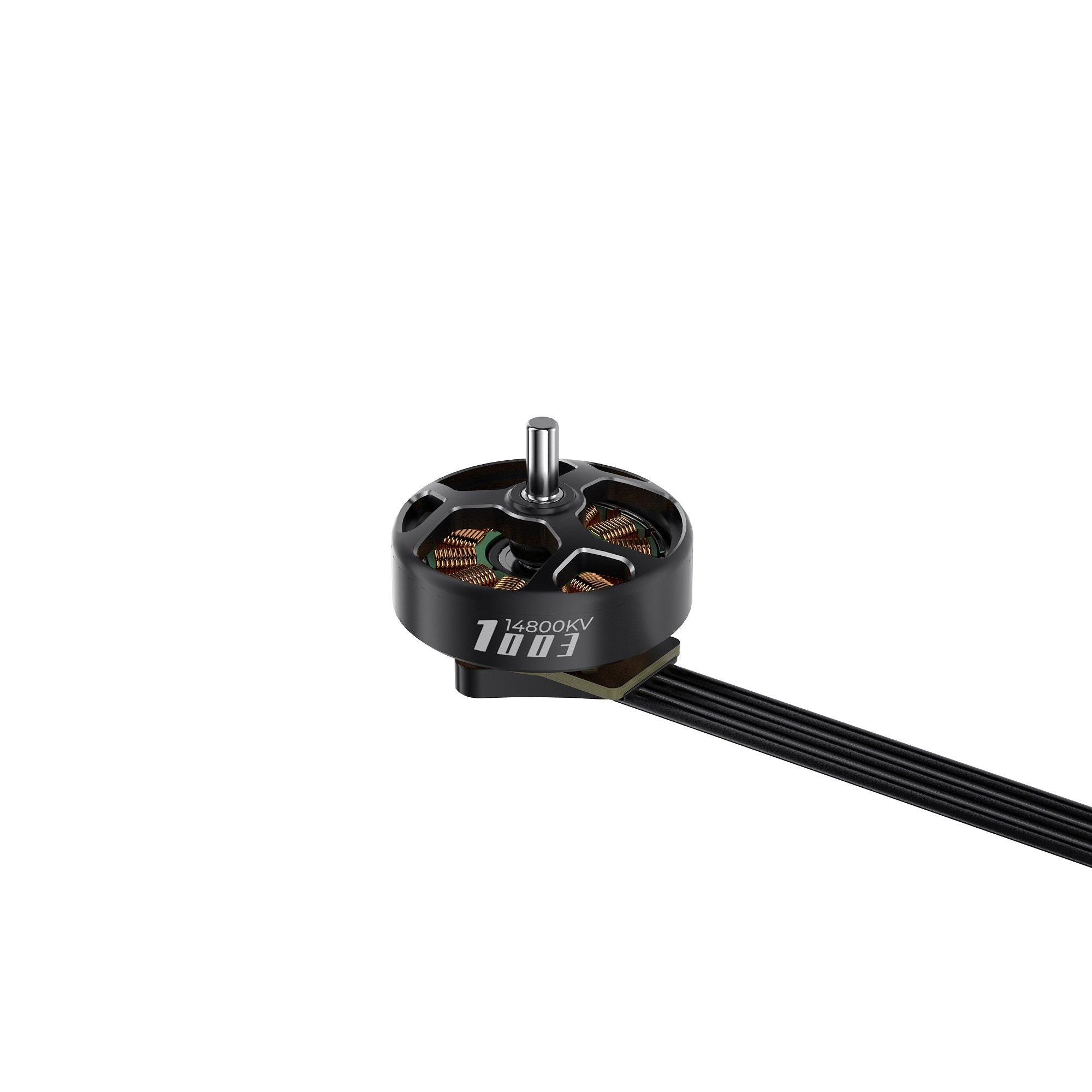

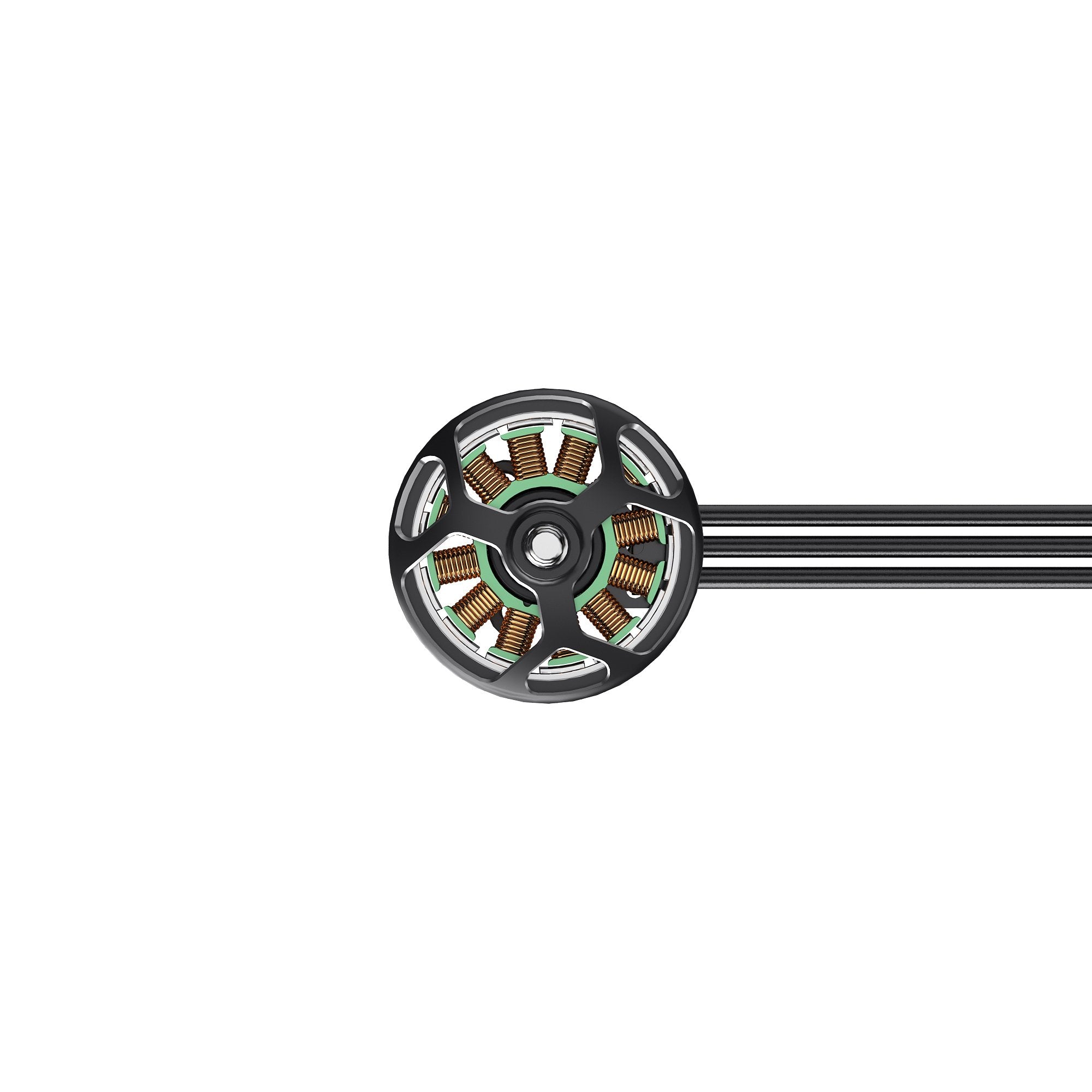

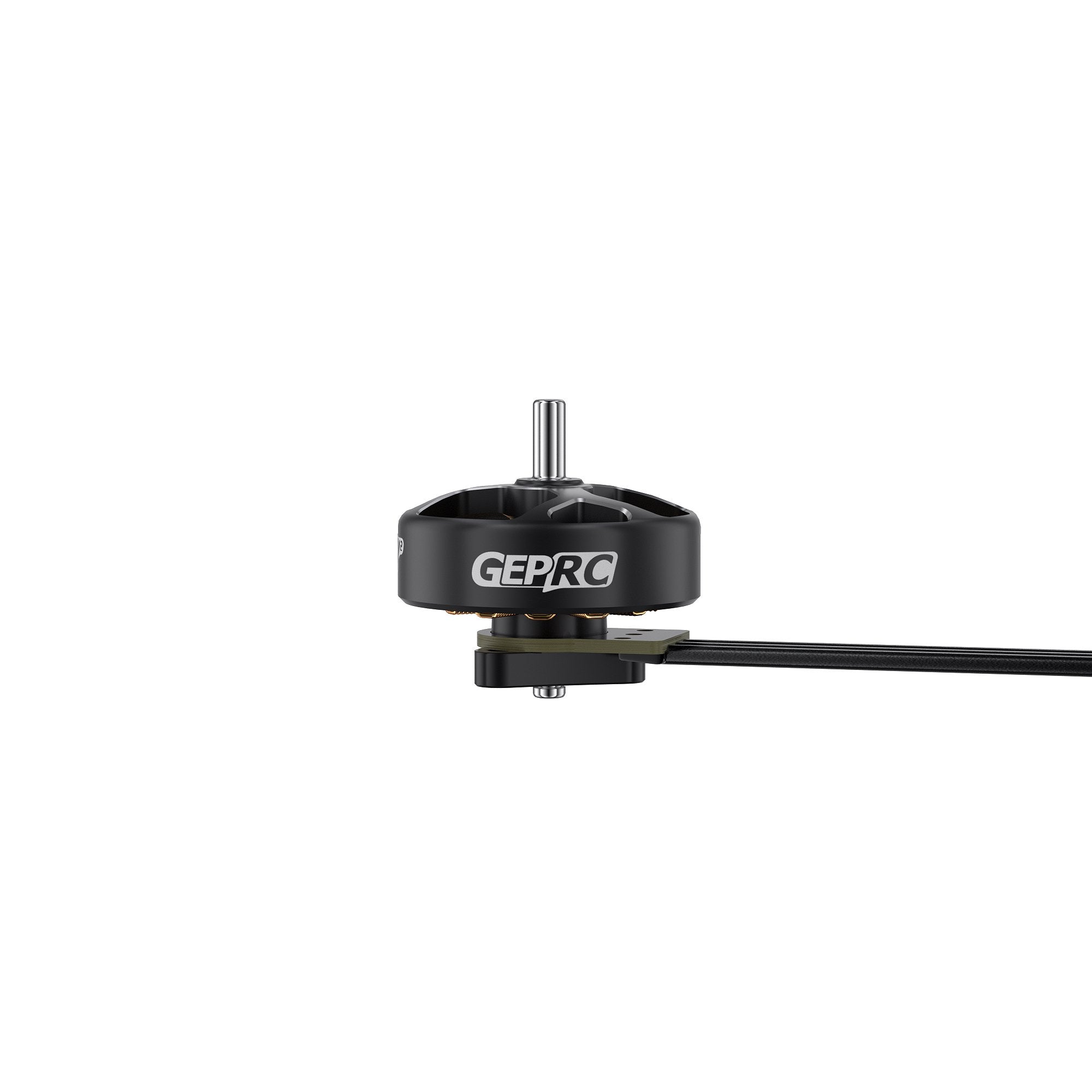

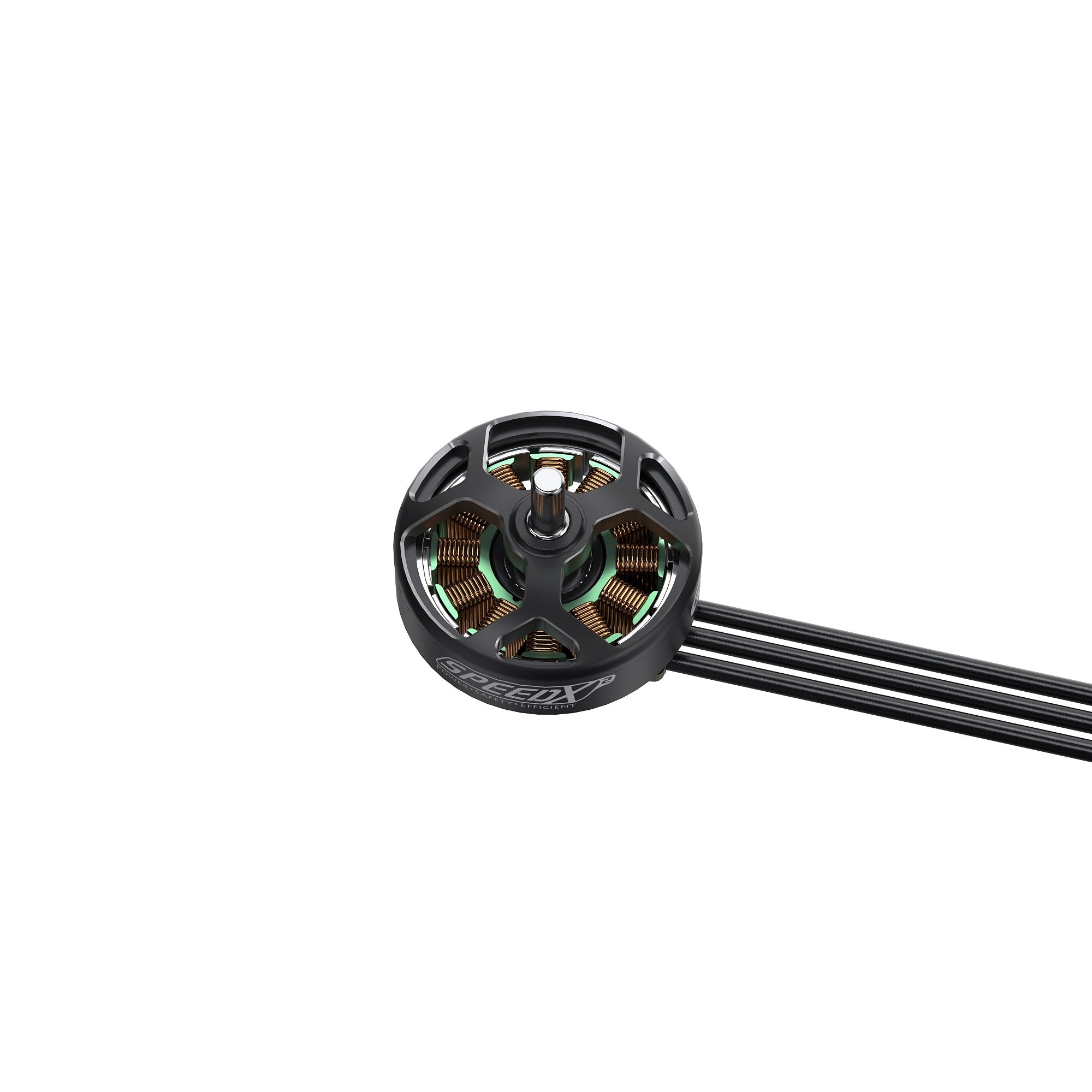

GEPRC SPEEDX2 1003 14800KV Motor｜無刷馬達

GEPRC SPEEDX2 1003 14800KV Motor｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

SPEEDX2 1003 is a high-performance brushless motor specially designed for 1.6-inch to 2-inch FPV drones. Built with N52H magnets and 7075 aviation-grade aluminum, it delivers efficient and stable performance in a compact, lightweight design that effectively reduces overall load. Equipped with a Kawasaki 1200 stator and an engineering-optimized magnetic circuit, the motor achieves remarkable power output and responsiveness.

Feature

NMB high-precision bearings provide stability with no vibration even at high RPM.

With a Kawasaki 1200 stator and excellent magnetic circuit design, the motor responds quickly and follows control precisely.

The CNC one-piece aviation aluminum alloy housing weighs only 3.2g, offering greater impact resistance.

The matte black finish with polished edges and large hollowed design make it visually appealing while reducing copper loss, lowering heat generation, and improving cooling efficiency.

Specifications

Model: GEPRC SPEEDX2 1003 14800KV Motor

Max Watt: 78.4W

Peak current: 10.6A（3S）

Interphase resistance: 95mΩ

Magnet: N52H

Bearing type: NMB

Configuration: 9N12P

Dimension: Φ13.6*8.7mm

Shaft Diameter: φ1.5mm

Shaft Protruding Length: 3mm

Mounting holes: 3-φ6.6mm

Lead: 50mm/30AWG

ESC:12-20A

Input Volts: 7.4V（2S LiPo)

Winding: multi strand copper winding

Weight: 3.2g±0.2g (included wire)

Suitable for:1.6 inch -2 inch lightweight models

Includes

1 x GEPRC SPEEDX2 1003 14800KV motor

6 x M1.4*4mm screws
